Fagor CNC System Retrofit — CNC Parts Dept., Inc.

Fagor CNC system retrofit service can boost your productivity and extend the lifespan of your CNC router machine. Fagor Automation’s latest CNC controllers are engineered for faster processing, greater precision, and seamless integration with modern manufacturing demands. At CNC Parts Dept, we specialize in upgrading legacy systems with powerful, modern Fagor controls. Unlock the full potential of your CNC with a Fagor controller retrofit.

Fagor CNC Retrofit Service

A retrofit extends the life of your machine, improves reliability, and gives you access to advanced features like:

Real-time tool path optimization
Intuitive interface
Enhanced safety and diagnostics
Support for 5-axis and high-speed machining

Fagor CNC System Retrofit Benefits

Faster processing for smoother surfaces
Tool center point compensation in 5 axis
Large capacity storage
Ethernet for fast downloads and multiple workstations
Reliable, uninterrupted production
Bright LCD screen
Touchscreen options available
EtherCAT compatibility

Frequently Asked Questions (F.A.Q.)

Fagor CNC upgrade and retrofit service replaces out-of-date CNC router controllers with the latest in Fagor Automation CNC system technology. Enjoy faster processing, ethernet connectivity, and more storage capacity.

Normal lead time is 2 weeks. New Fagor controllers are normally in stock. We can usually be on site to perform CNC retrofits within 2 weeks of your quote request.

Fagor CNC retrofits usually take 3-8 days to complete, during which time your machine will be out of operation.

Cost varies. The actual dollar amount depends on the Fagor CNC options you choose. We can provide a prompt quotation once we know more about your specific application. We offer the controller, installation and training.

One day. We will stay on site until your main operator is comfortable downloading and running a program. It usually takes one day of training.

Maybe. Programs written for 3 and 4 axis machines are relatively easy to transfer to the Fagor controller. If your shop runs 5 axis programs, there will be some manipulation required. In some cases it may be easier to start with the computer model and post it with a Fagor specific post processor. Fagor offers a conversion program to update low level NC code from older Fagor controllers.

Yes. We have programming capabilities and resources to customize a ‘post processor’ for your machine. The cost of programming varies and can range from $500 to $2000.

Yes. Fagor Automation offers one year warranty on controller parts, if due to a manufacturer’s defect.

CNC Services Inc. offers free telephone troubleshooting support to all of our customers. Call us today for more information about Fagor CNC retrofits.

Fagor Retrofit Controllers

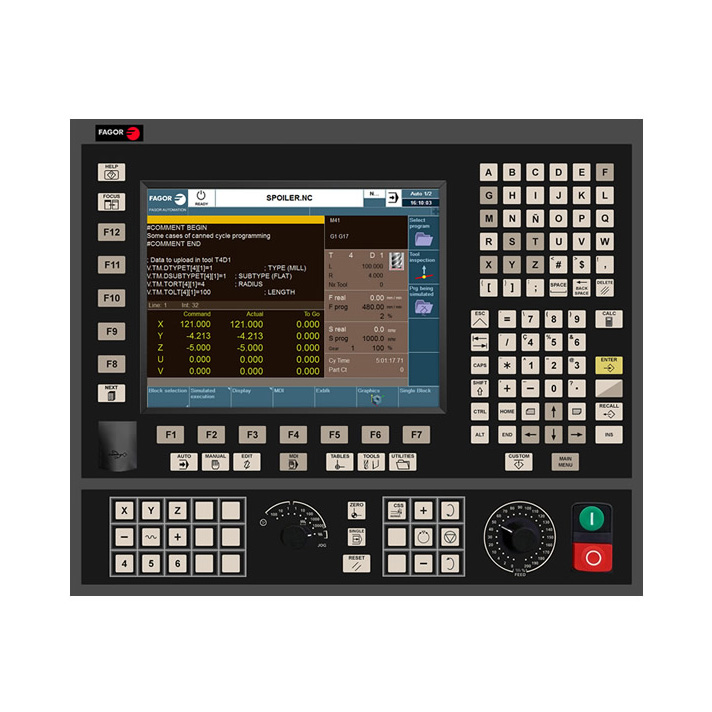

FAGOR 8058 Elite

Replaces 8035, 8037, 8040, 8055i controllers.
Supports 3-4 Axes plus 1-2 spindles

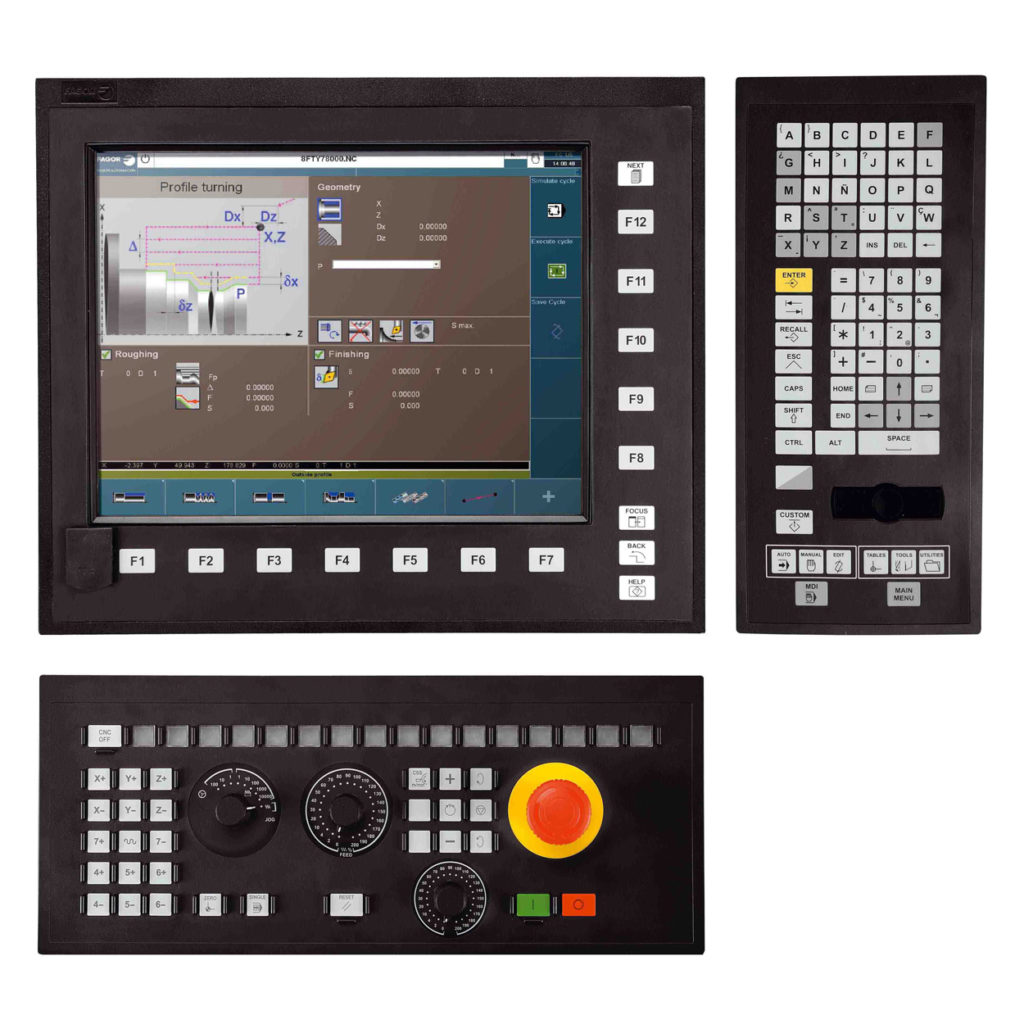

FAGOR 8065 Elite POWER

Replaces 8050 and 8055 controllers.
Supports 5-31 axes,plus up to 6 spindles

What type of CNC machine do you want to retrofit?

To get an idea of the range of control available, please choose from the options below.

Fagor 8058 Elite Standard Features

Hardware

Integrated Central Unit: 10.4″ LCD monitor with operator panel.
Basic Processor Module: MP-BASIC-
Memory: 4 GB RAM module and 15 GB flash memory.
Communication Interface: SERCOS III module for high-speed communication.
Operating System: Windows 10.

Software

Conversational Programming (IIP): Interactive Icon-based Pages for user-friendly operation.
ISO Programming Support: Standard G-code compatibility.
High-Speed Surface Accuracy (HSSA): Enhanced precision in machining.
Probing Support: For tool and part measurement.

Fagor 8058 Elite Optional Features

Hardware Additions

Modular Central Units: Options for milling and lathe machines.
Monitors: 18” and 21” widescreen LCD monitors.
Keyboards: Various horizontal QWERTY keyboards with touchpad options.
Operator Panels: JOG panels with or without spindle override, including thin profile versions.
Remote I/O Modules: RIOR-48I32O and RIOR-E-48I32O-FEEDBACK modules for expanded I/O capabilities.
UPS Battery Backup: Ensures uninterrupted power supply.
SERCOS III EtherCAT Modules: For enhanced communication with peripherals.

Software Enhancements

Dynamic RTCP (Rotating Tool Center Point): Facilitates multi-axis kinematics.
C-Axis and Y-Axis Kinematics: Enables complex lathe operations.
Tandem Axes Control: Synchronizes dual motors on a single axis.
Volumetric Compensation (FVC): Improves precision by correcting geometric errors.
User-Defined Conversational Cycles: Customizable machining cycles.
ProGTL3 Programming Language: Geometric-based programming without external CAD.
Dynamic Machining Control (DMC): Adjusts feedrate for optimal cutting conditions.
Fagor Machining Calculator (FMC): Assists in selecting cutting conditions.
Fagor Feed Control (FFC): Overrides feedrate and speed during canned cycles.
Collision Avoidance System (FCAS): Monitors movements to prevent collisions.
ISO Code Generation: Converts canned cycles into editable ISO code.
PWM Control: Essential for laser machining applications.
Gap Control: Maintains fixed distance between laser nozzle and material.

Fagor 8065 Elite Standard Features

Hardware

Compact Design: The 8065elite boasts a compact CNC platform, achieving size reductions of approximately 45% to 60% compared to previous models.
High-Resolution Displays: Available with 10.4″, 15″, or 21″ color LCD monitors.
Advanced Communication: Equipped with high-speed Ethernet communication ports and USB interfaces.
Digital Servo Bus: Incorporates SERCOS III Servo Bus with Industrial Ethernet technology at 100 MBd, enhancing multi-axis integration.

Software

Conversational Programming: Features Interactive Icon-based Pages (IIP) for user-friendly operation.
ISO G-code Support: Standard compatibility with ISO G-code programming.
High-Speed Surface Accuracy (HSSA): Enhances precision in machining operations.
3D Graphics and Simulation: Provides real-time 3D graphics and simulation for part programs.
Multi-Program Multitasking: Supports the execution of multiple programs simultaneously.
Probing Cycles: Includes tool and part probing functionalities.
Tool Management System: Offers comprehensive tool management features.
Basic Kinematic Transformations: Supports fundamental kinematic transformations such as RTCP for various machining operations.
Built-in Diagnostics: Equipped with diagnostic tools and alarm history tracking.
Customizable HMI: Allows customization of the Human-Machine Interface to suit specific needs.

Fagor 8065 Elite Optional Features

Hardware and Interface Options

Remote I/O Expansions: Offers additional I/O modules for expanded capabilities.
Analog/Digital I/O Extensions: Provides flexibility in integrating various servo motors, sensors and actuators.
Additional Axis/Spindle Cards: Allows expansion up to 64 axes in high-end models.
UPS (Battery Backup): Ensures uninterrupted power supply during outages.
Integrated Safety Modules: Compliant with safety standards like SIL/PL ratings.
Extended Memory Modules: Accommodates large part programs and data storage needs.

Advanced Software Options

Volumetric Error Compensation (FVC): Improves precision by correcting geometric errors, especially on 5-axis machines.
Tandem Axis Control: Synchronizes dual motors on a single axis.
Dynamic Feedrate Adjustment (DMC): Optimizes feedrate for varying cutting conditions.
Real-Time Axis Synchronization: Ensures synchronized movements in applications like gantry or mirrored machines.
Fagor Feed Control (FFC): Allows the user to adapt and set the feedrate during testing.
ISO Code Generator: Converts conversational programs into editable ISO code.
Collision Avoidance System (FCAS): Monitors movements to prevent potential collisions.
ProGTL3 Programming Language: Allows geometric-based programming without the need for external CAD systems.
Laser/Gantry/Plasma Options: Includes features like Gap Control, PWM modulation, and contour cutting enhancements.
Automatic Tool Wear and Breakage Detection: Monitors tool conditions to prevent machining errors.

Fagor 8060 Elite Standard Features

Hardware & Connectivity

EtherCAT Drive System Management: Ensures fast and distributed field-bus connectivity to I/O devices, enhancing system responsiveness.
Analogue I/O Support: Facilitates integration with proportional valves, laser generators, and laser heads.

Software & Functionality

High-Speed Surface Accuracy (HSSA): Includes HSSA I for plasma, flame, and waterjet cutting, and HSSA II for 2D laser cutting, ensuring smooth and precise cuts.
Cutting-Specific HMI: Features a user-friendly interface tailored for 2D cutting, with easy configuration of material and technological tables.

Fagor 8060 Elite Optional Features

Advanced Cutting Functions

2D Gap Control: Maintains a consistent distance between the cutting head and material surface, crucial for quality cuts.
PWM (Pulse Width Modulation): Provides precise control over laser power output, enhancing cut quality.
Power Control: Adjusts energy output dynamically to match cutting requirements, improving efficiency.
Leap Frog: Optimizes non-cutting movements, reducing cycle times and enhancing productivity.

Customization & Integration

Customizable Virtual Keyboard and Operator Panel: Allows OEMs to tailor the interface to specific operator preferences and requirements.
Flexible HMI Configuration: Supports the development of specialized interfaces to meet unique application needs.

Fagor 8070 Elite Standard Features

Hardware & Connectivity

High-Performance Architecture: Utilizes the Quercus drive system, enabling precise interpolation across 5 or more axes.
EtherCAT & Analog I/O Support: Facilitates integration with proportional valves, laser generators, and laser heads.
Multi-Head Control: Capable of managing multiple and independent cutting heads simultaneously.

Software & Functionality

High-Speed Surface Accuracy (HSSA II): Enhances precision in laser cutting operations.
Dynamic Override Algorithm: Allows real-time adjustments to acceleration and jerk control, improving part finish during the cutting process.
Cutting-Specific HMI: Features a user-friendly interface with 3D graphics and technological tables for various materials and cutting parameters.

Fagor 8070 Elite Optional Features

Advanced Cutting Functions

Gap Control: Maintains a consistent distance between the cutting head and material surface, crucial for quality cuts.
PWM (Pulse Width Modulation) Control: Provides precise control over laser power output, enhancing cut quality, especially for thick materials.
Dynamic Machining Control (DMC): Adapts feedrate during machining to maintain optimal cutting conditions.
Collision Avoidance System (FCAS): Monitors movements to prevent potential collisions between the tool and machine components.
ProGTL3 Programming Language: Allows geometric-based programming without the need for external CAD systems.
ISO Code Generation: Transforms canned cycles into editable ISO code for customization.

Customization & Integration

Customizable Virtual Keyboard and Operator Panel: Allows OEMs to tailor the interface to specific operator preferences and requirements.
Flexible HMI Configuration: Supports the development of specialized interfaces to meet unique application needs.

Fagor Automation Factory Authorized Integrator

As a Fagor Automation Factory Authorized Integrator (FAI) and global distributor, CNC Parts Dept, Inc. offers the latest in Fagor CNC system technology. For a tailored configuration that aligns with your specific machining needs, please contact our team for expert assistance.
