Used DMS 5 Axis CNC Router 12×6 Moving Gantry

2020 DMS 5 axis CNC router, U-Frame overhead gantry, 12×6 ft. table, 26.8 hp Hiteco spindle, 20 tool ATC rack, Fagor 8065 MP-Plus, remote. #E819

Machinery Specifications & Features

DMS CNC Router Specifications

  • Manufactured in 2020 by Diversified Machine Systems Inc.
  • DMS Model no. 5U6-12-6-60S-xxxxx

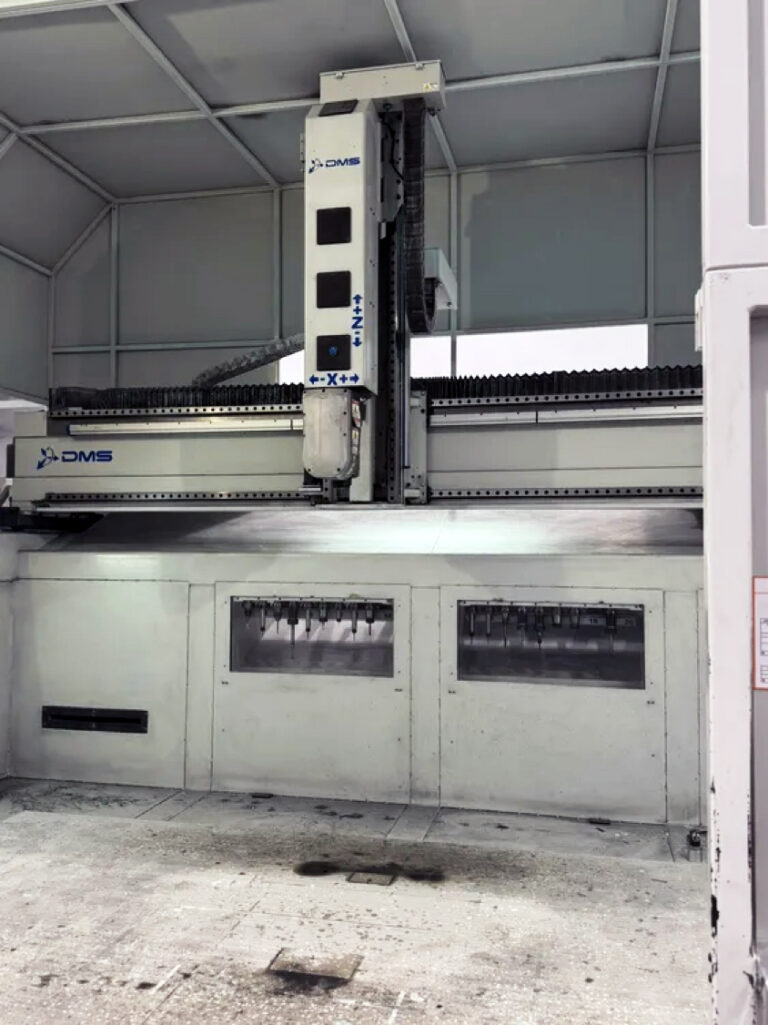

  • 5-Axis U-Frame overhead gantry machine

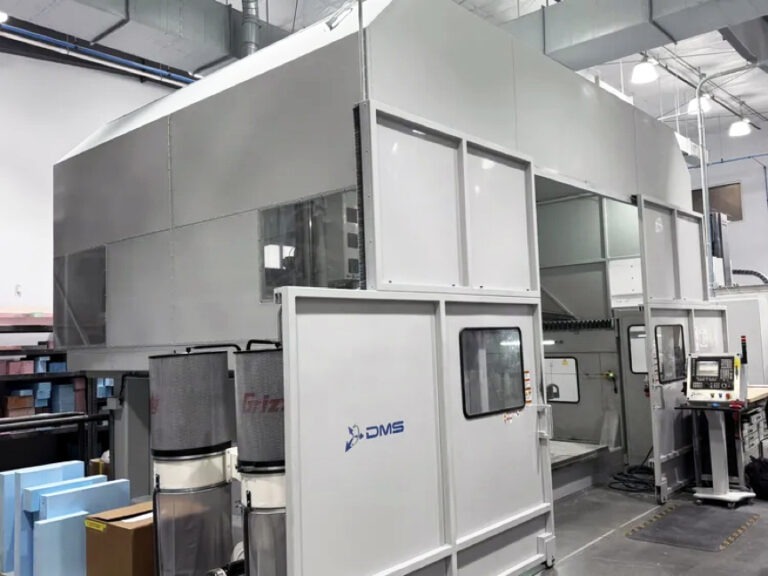

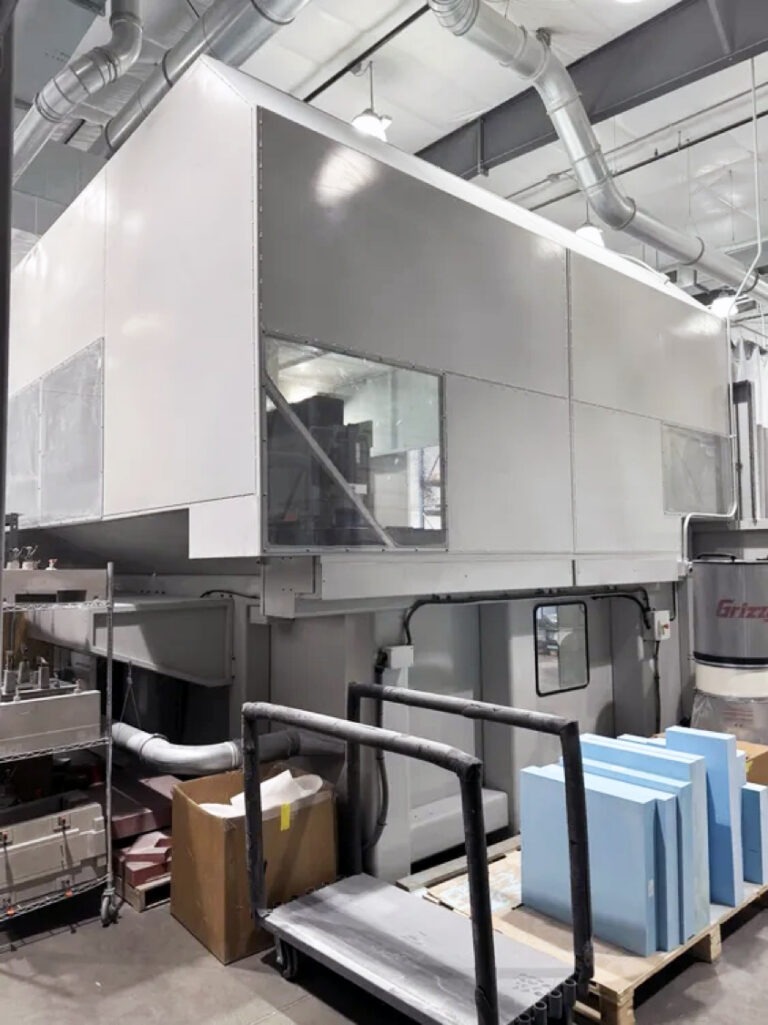

  • Fixed table with fixed-top enclosure
  • Manual front doors with safety interlocks
  • Solid back wall
  • Maximum rapid feed rate: 1600 inches per minute
  • 440V / 3-Phase / 60Hz (80 Amps)

Machine Construction

  • Rigid fabricated steel base
  • Heavy-gauge steel tube and plate weldment
  • All structural members stress-relieved for stability
  • Precision-ground / machined mounting surfaces
  • 6061 T6 aluminum on table and some Z-axis components

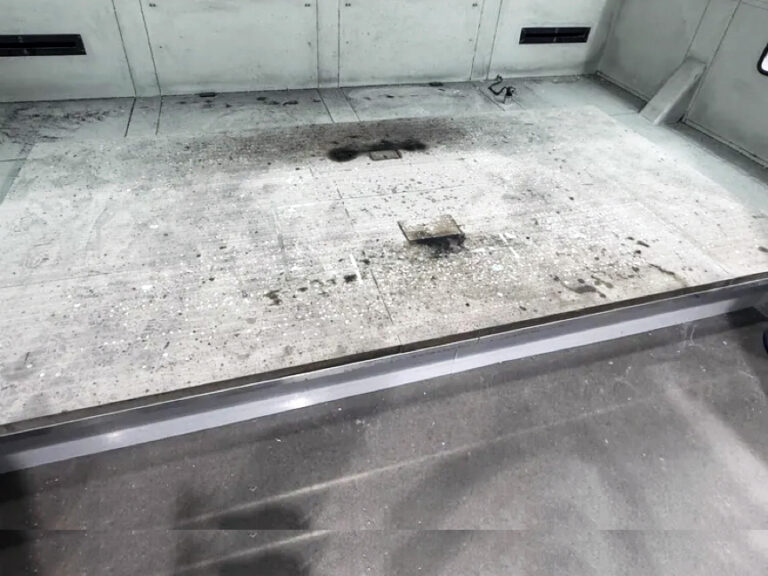

Table

  • 12′ x 6′ (144″ x 72″) table top
  • Machined aluminum
  • 3/8″-16 threaded inserts on 12″ centers
  • Approx. 19″ height from floor (low-profile frame)

Head & Spindle

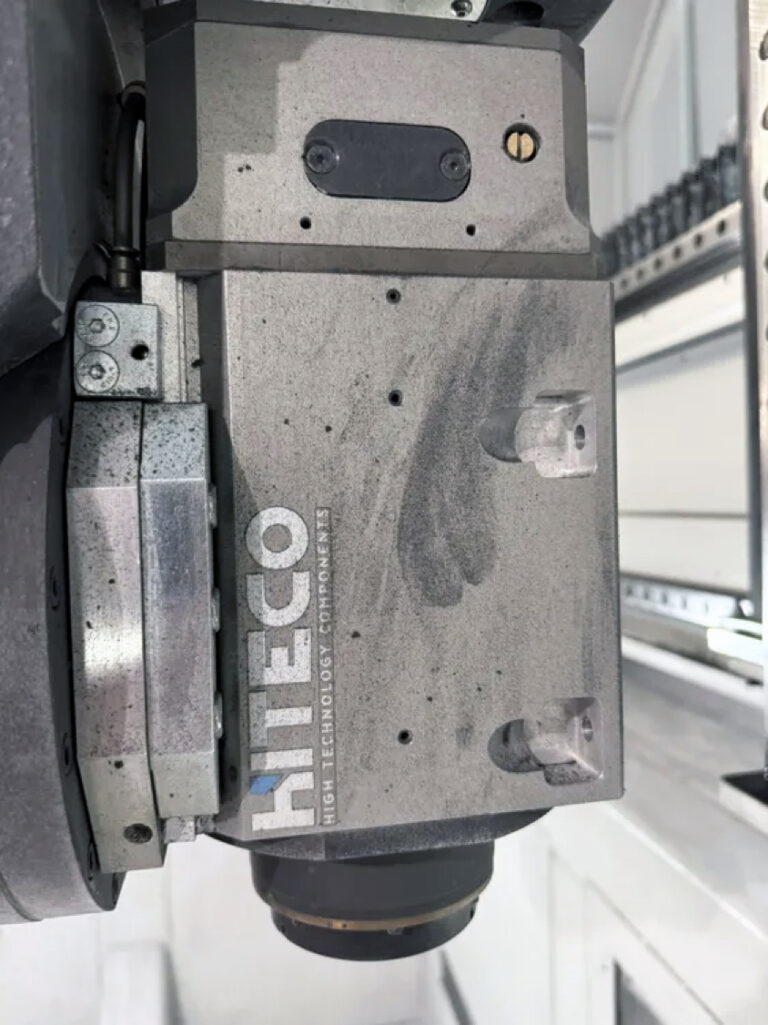

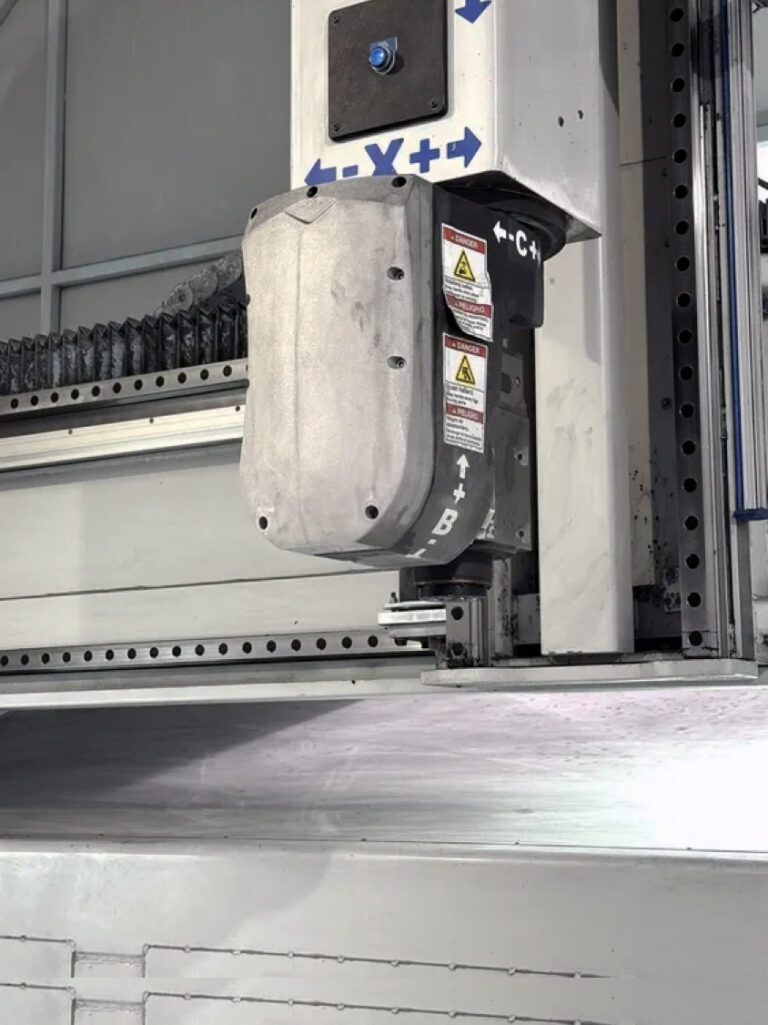

  • Hiteco Bi-Rotary Tilt V Series 90 spindle

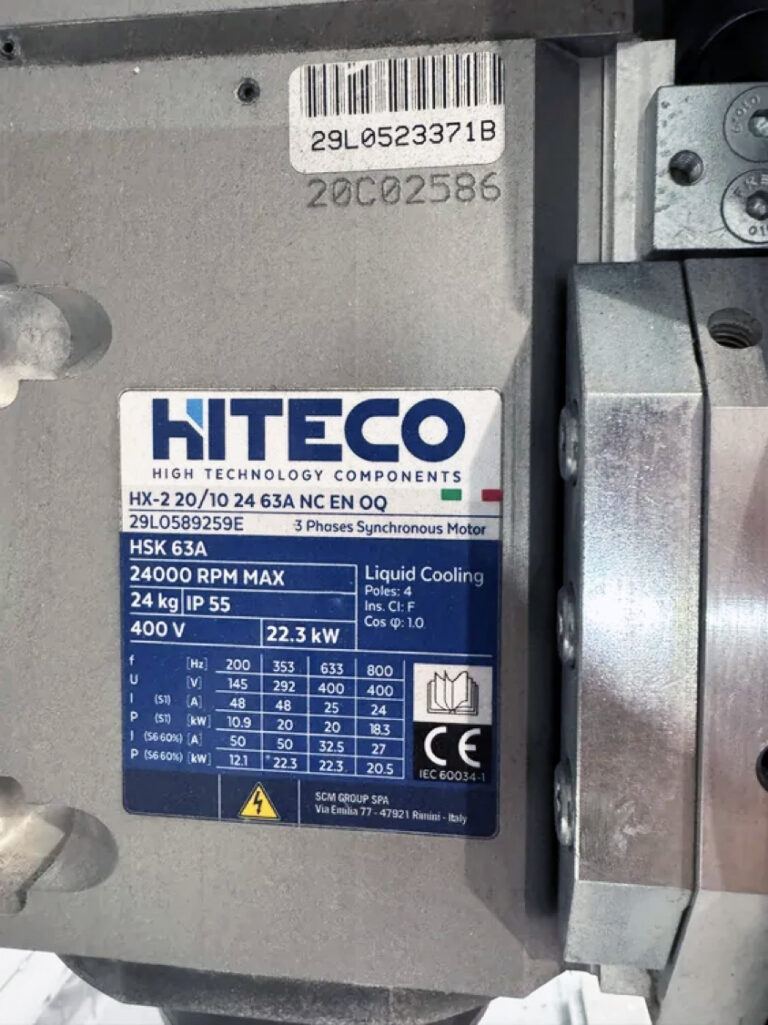

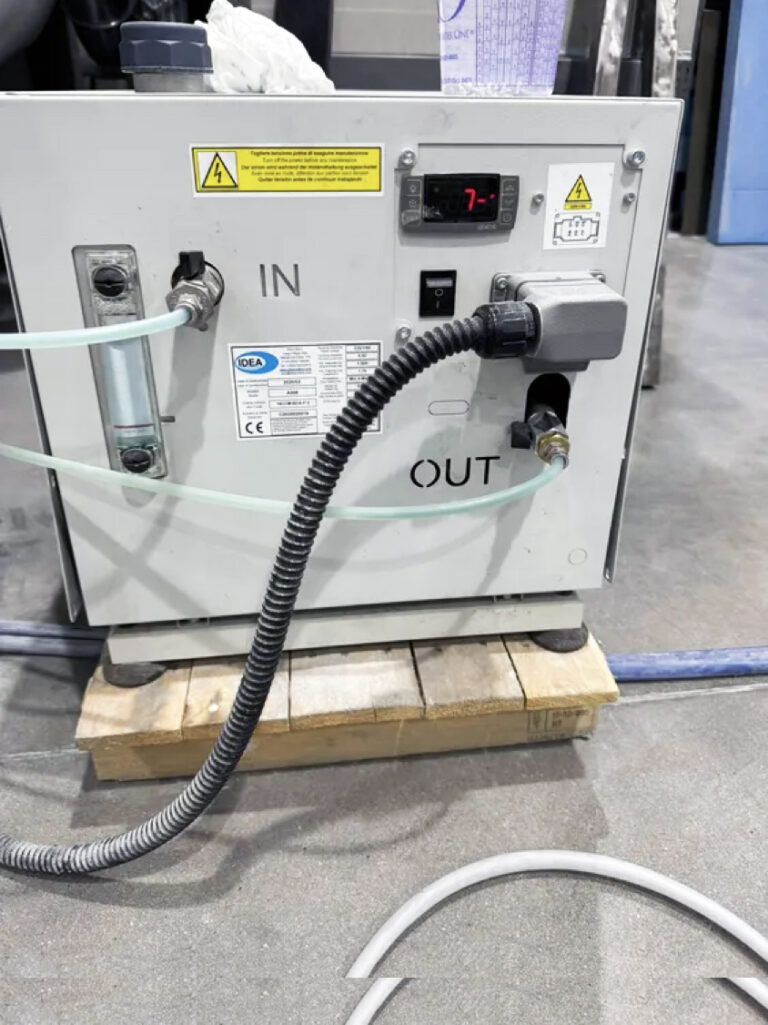

    • 26.8 HP (20 kW) liquid-cooled, quick-change
    • 500–24,000 RPM (via inverter with electronic braking)
    • HSK63A tool holders
    • Features through-tool air blast, pneumatic brakes (B & C axes), Heidenhain rotary scales

Air Requirements: 5 CFM @ 100 PSI; ATC Spindle requires minimum of 100 PSI for tool release

Axis Travels & Details

X-Axis (Bridge Travel)

  • Travel: ~156 inches
  • Max Feed Rate: 1200 IPM
  • Bearings: 45 mm roller bearings
  • Drive: Spinning recirculating ball nut w/ fixed-end lead screw

Y-Axis (Overhead Gantry)

  • Travel: ~84 inches
  • Max Feed Rate: 1200 IPM
  • Bearings: 45 mm roller bearings
  • Drive: dual spinning recirculating ball nuts w/ fixed-end lead screws

Z-Axis

  • Travel: 60 inches
  • Max Feed Rate: 1000 IPM
  • Bearings: 45 mm roller bearings
  • Drive: spinning lead screw w/ angular contact bearings

C-Axis (Rotates Parallel to Table)

  • Travel: ±320 degrees
  • Max Rotational Speed: 12,500 deg/min

B-Axis (Rotates Perpendicular to Table)

  • Travel: ±120 degrees
  • Max Rotational Speed: 10,000 deg/min

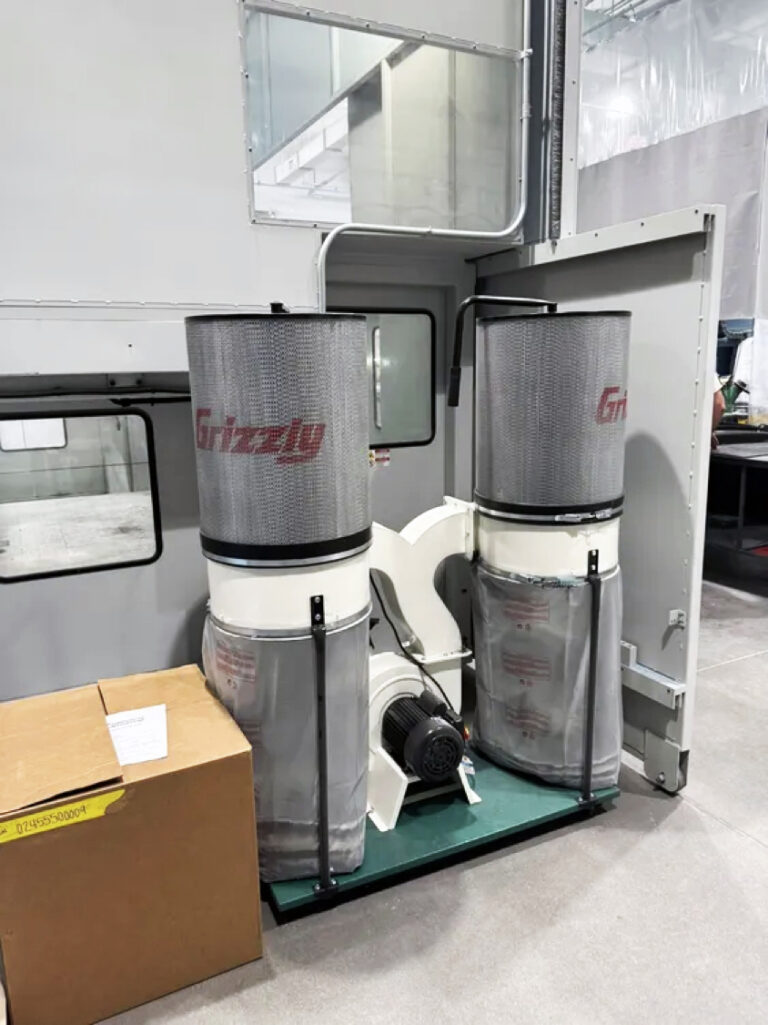

Additional Machine Features

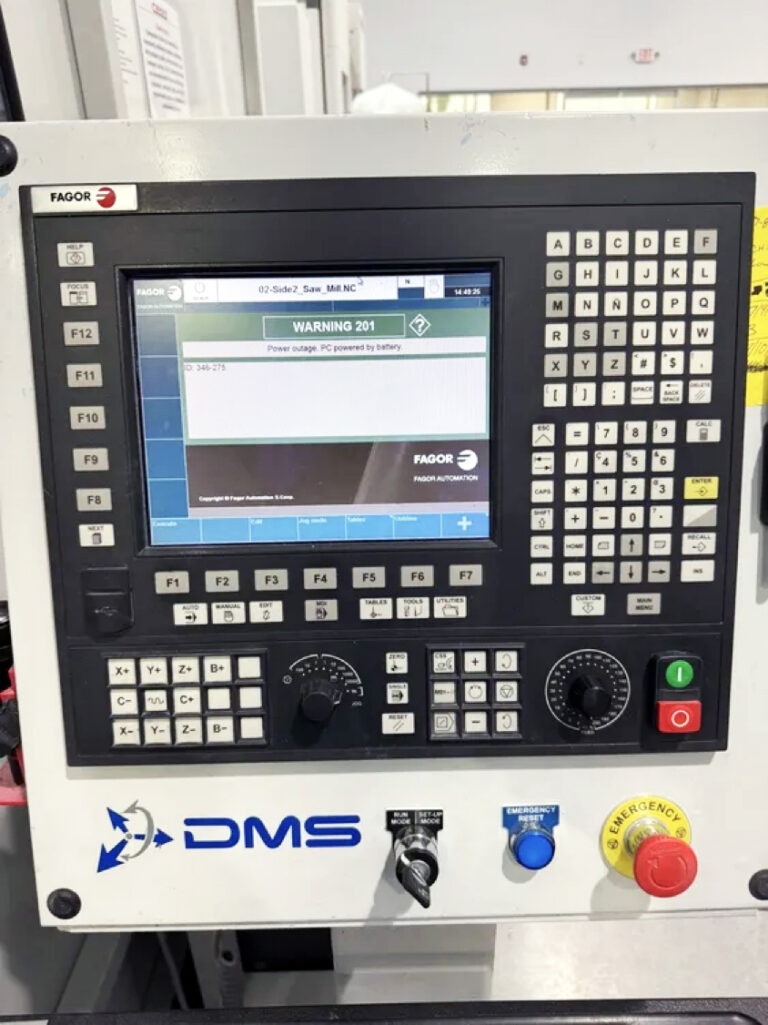

Fagor 8065 CNC System Controller

  • 10″ Color LCD screen
  • 32 GB memory
  • MP-Plus for high-speed machining
  • 3D graphics
  • Communication software
  • DNC via TCP/IP
  • Tool center point compensation

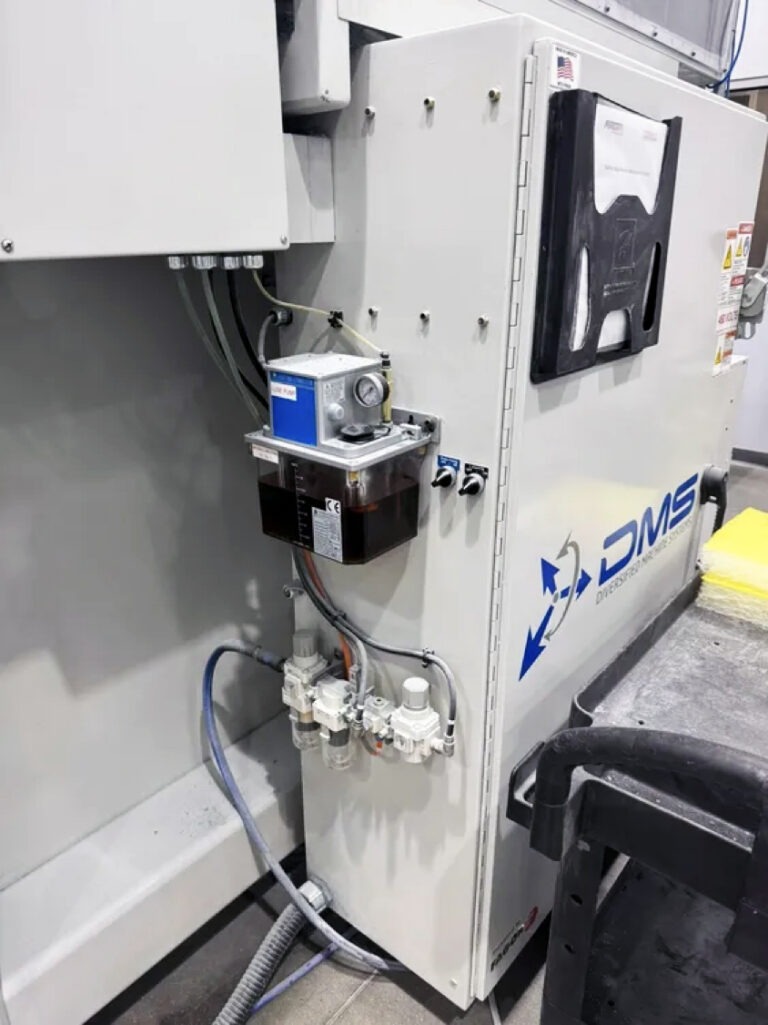

  • Electrical cabinet is machine-mounted with industrial A/C unit

Installed Equipment & Features

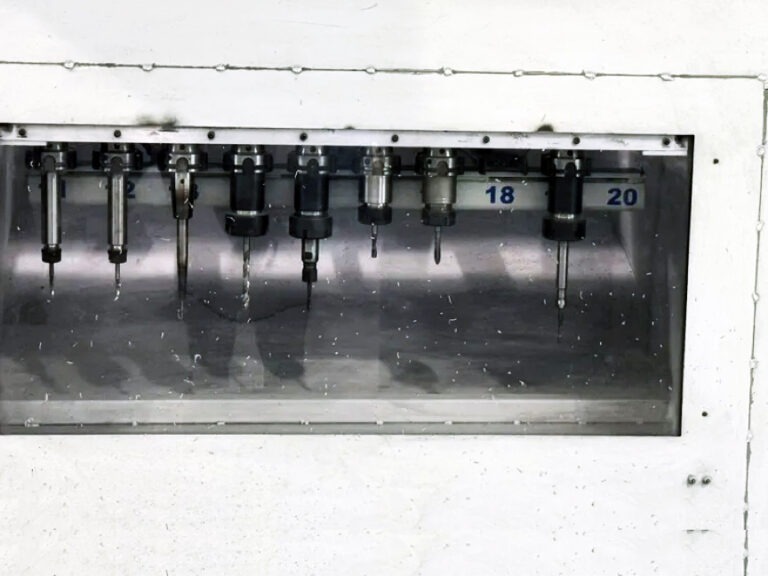

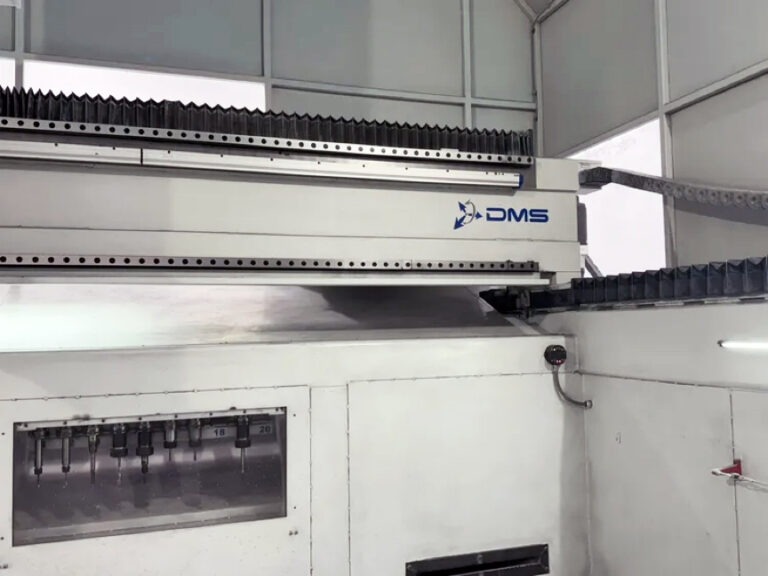

  • 20 position automatic tool changer
  • Renishaw tool height sensor
  • Fagor SERCOS digital drives
  • Fagor AC brushless servo motors
  • Roller rails
  • Safety light tower
  • Hand-held programmer (teach pendant)
  • Renishaw RMP 600 radio machine probe
  • Automatic lubrication system
