Freedom 3 Axis CNC Router C721 [SOLD]

SOLD: Used CNC 3-axis router, FMT Patriot, 4×8 vacuum table, 9in. stroke, moving gantry, lathe, 5hp HSD ATC spindle, Fagor 8055 CNC system.

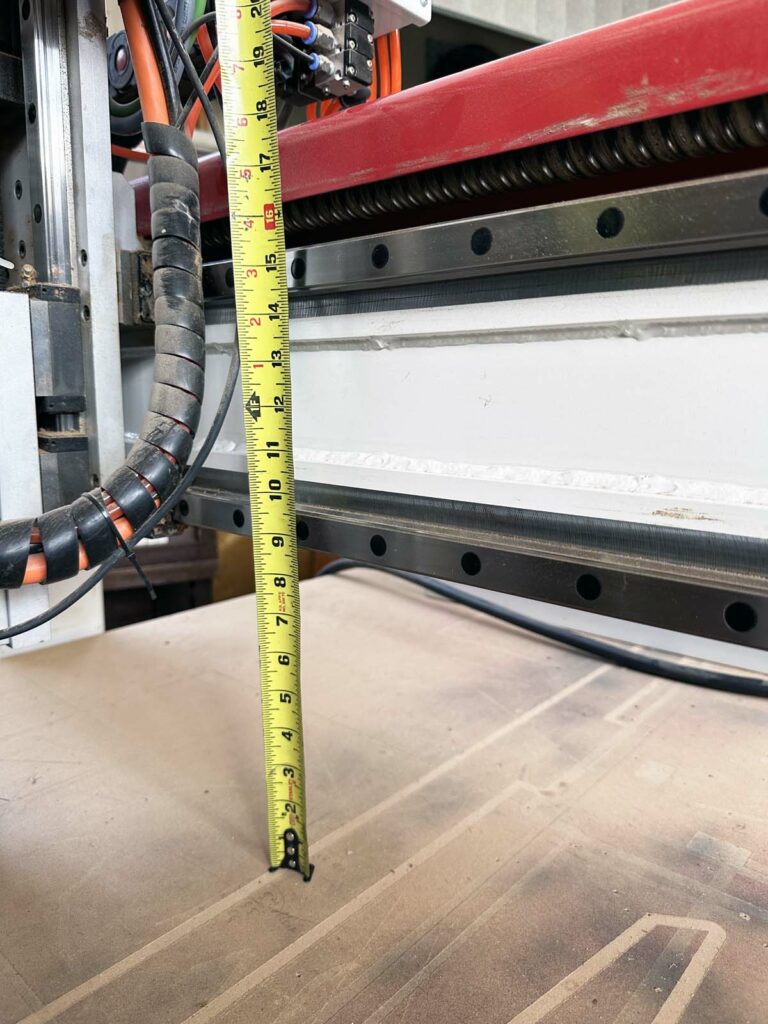

SOLD: This 2014 FMT Patriot 3-axis CNC router is equipped with a stationary 4 ft. x 8 ft. phenolic 4-zone vacuum router table, 7 inches of Z-axis stroke, moving gantry, 4th axis rotary lathe, 5hp HSD automatic tool change spindle motor with 7-position tool rack and tool height setter. CNC machinery is controlled by a Fagor 8055 CNC system controller. THIS CNC ROUTER IS NO LONGER AVAILABLE.

Used 3-Axis CNC Router Specifications

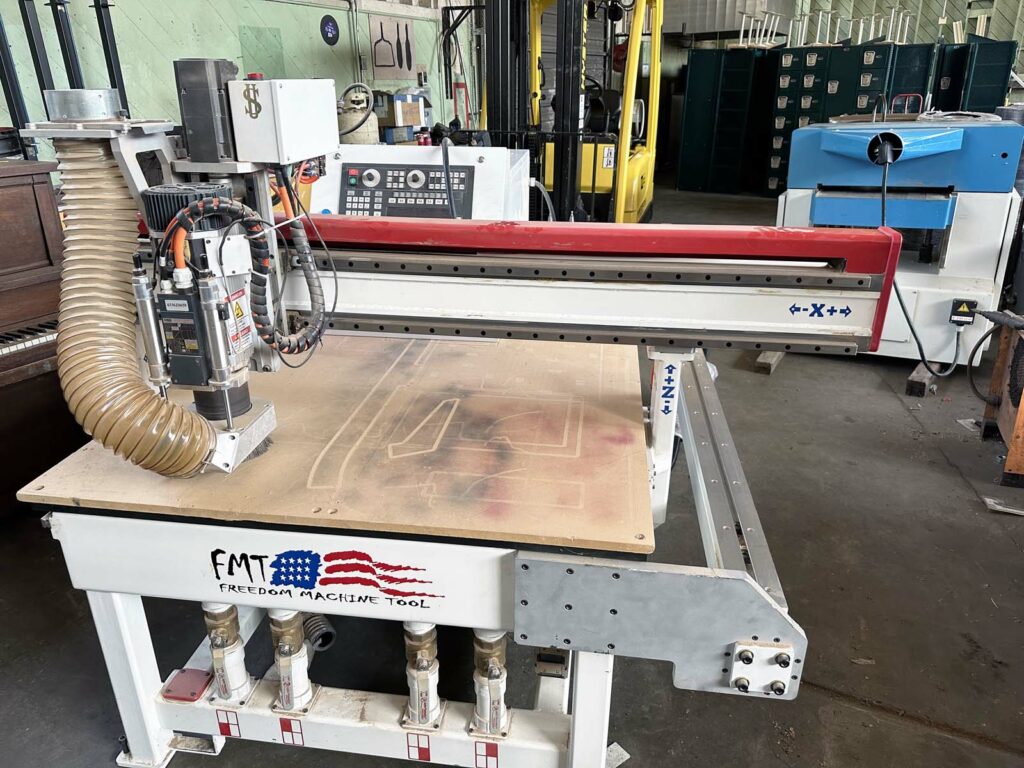

  • Freedom Machine Tool Patriot 3-axis CNC router
  • Originally manufactured in 2014 by DMS

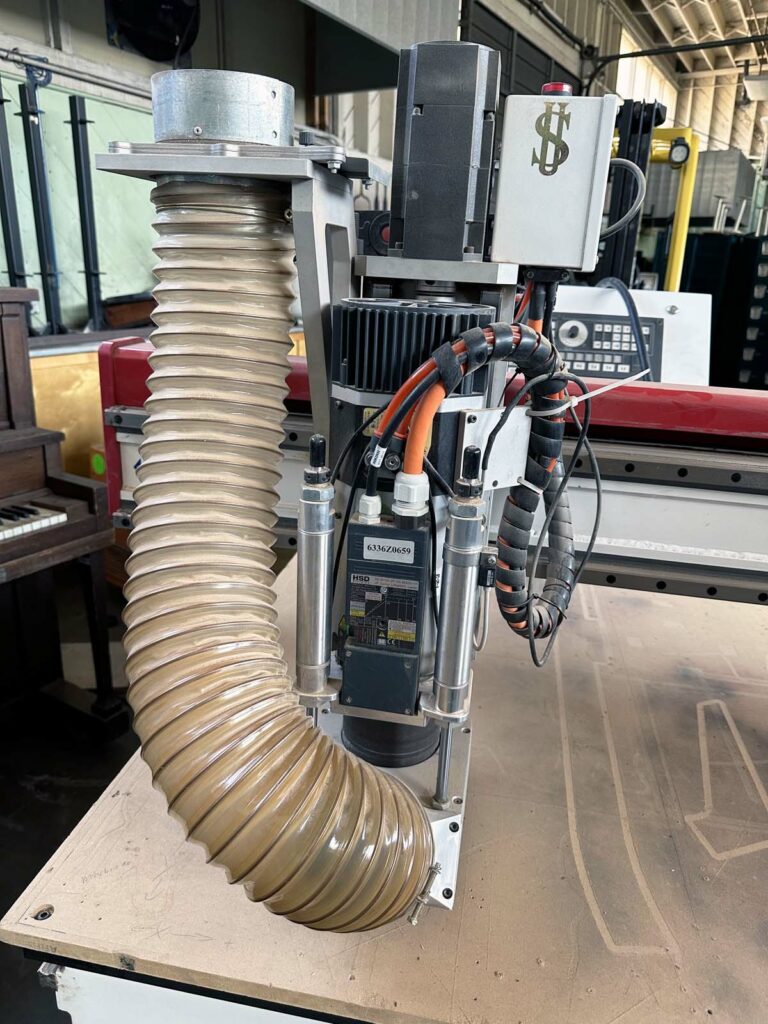

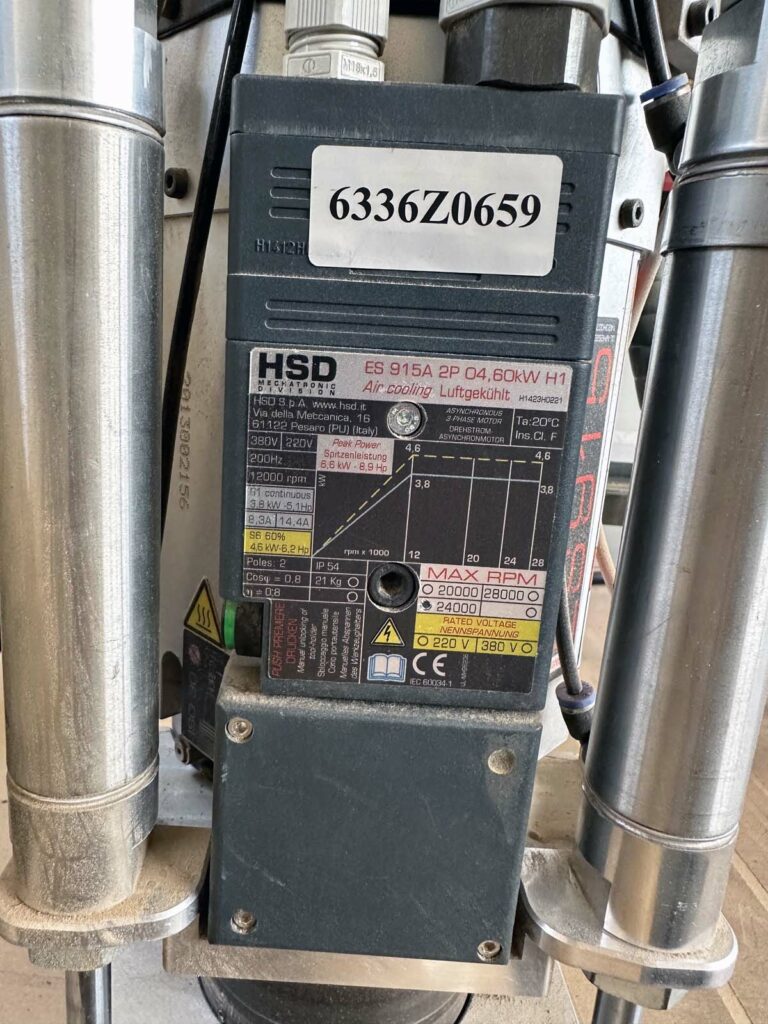

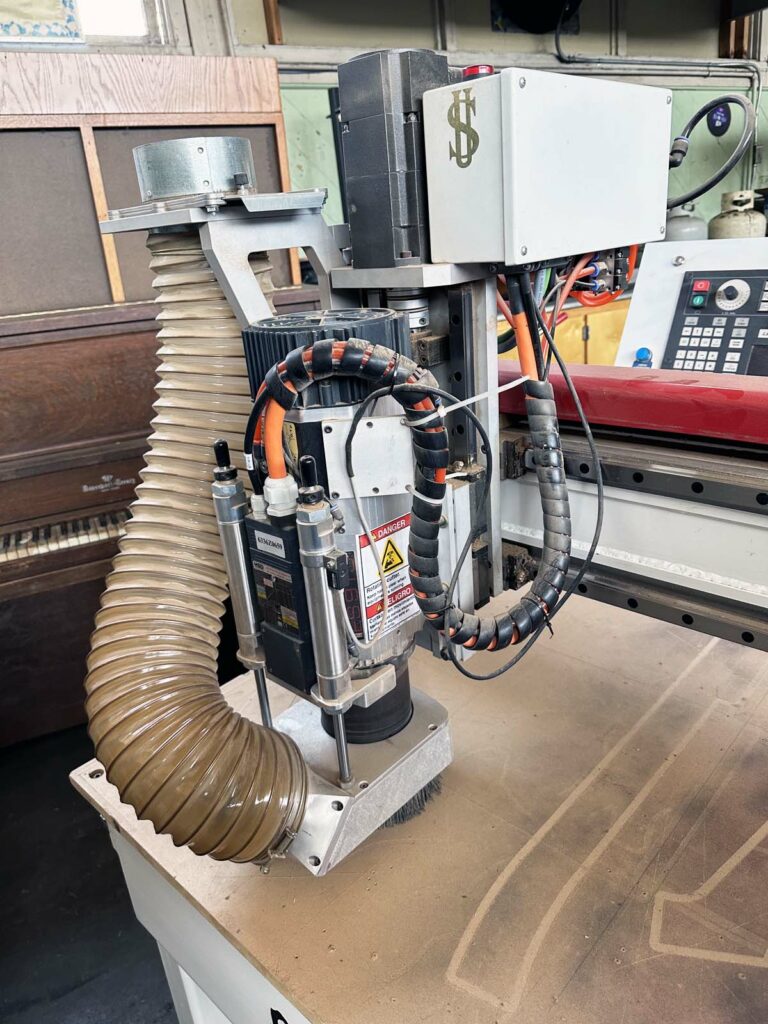

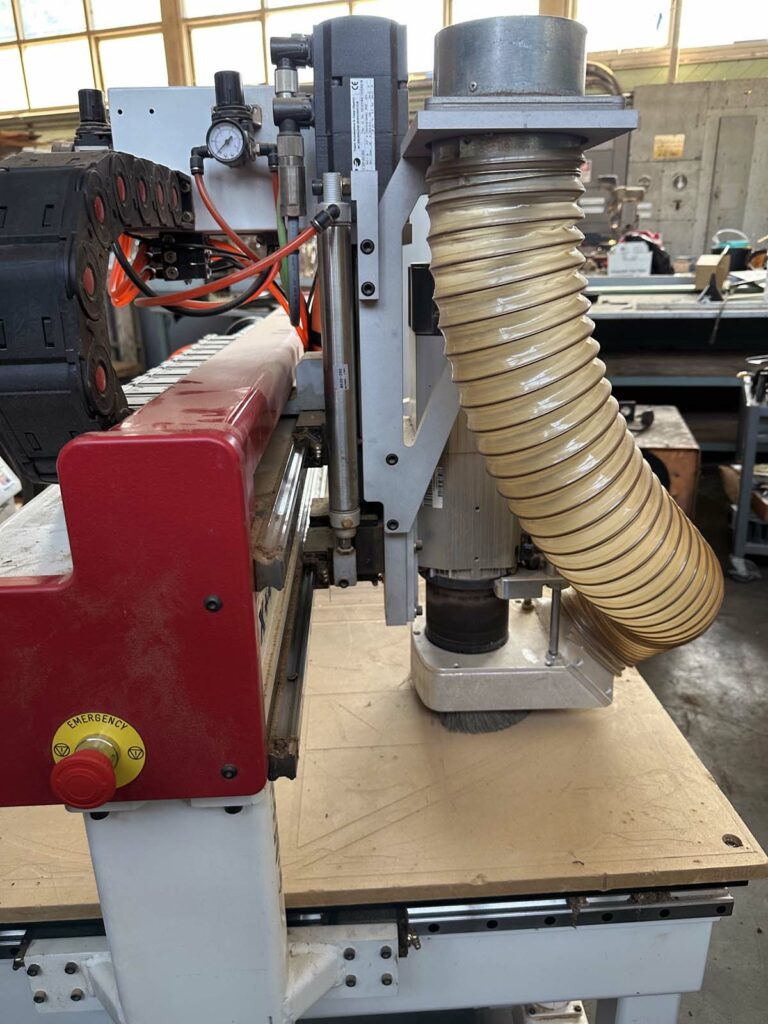

  • 5hp HSD ES915 A.T.C. spindle motor

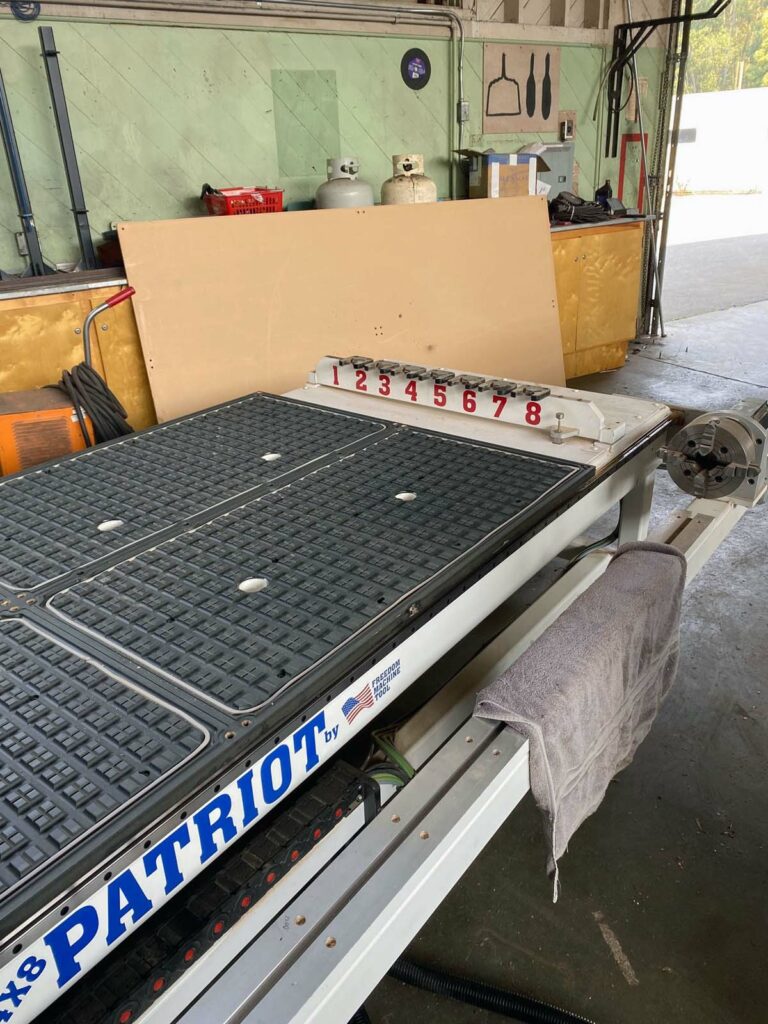

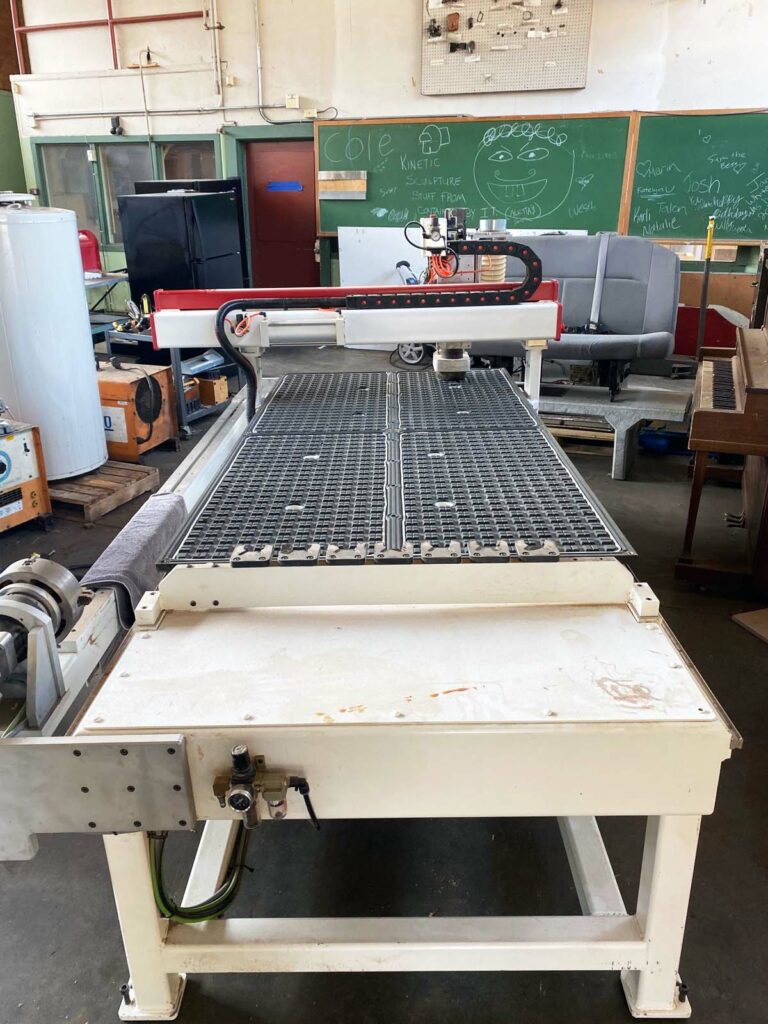

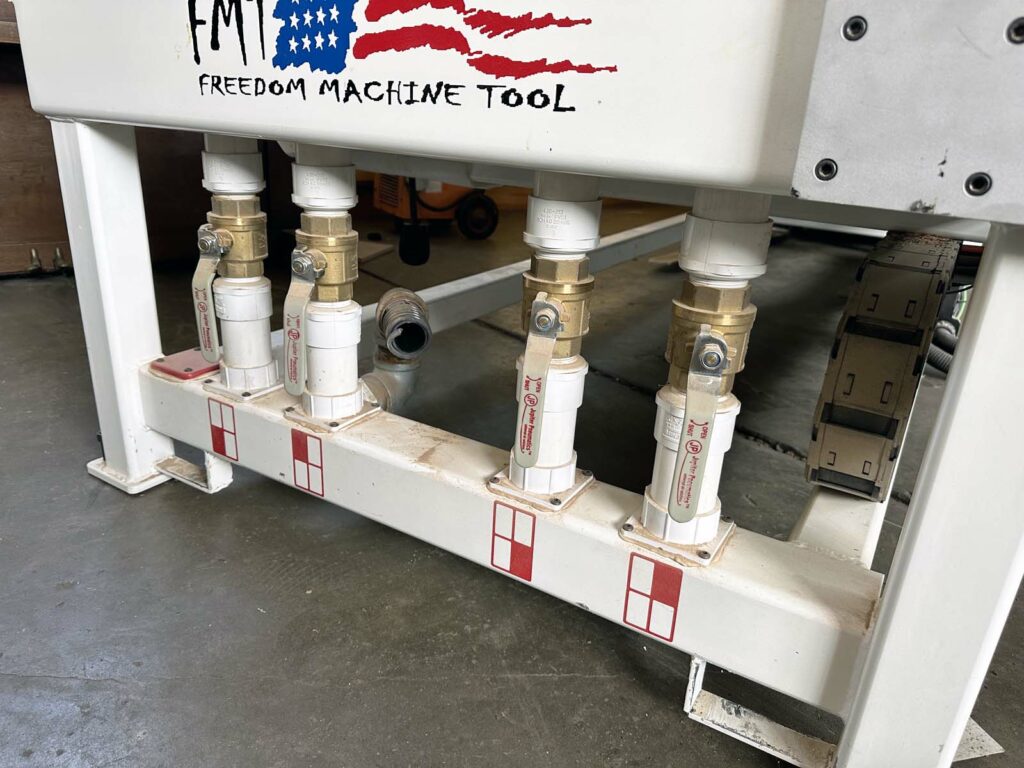

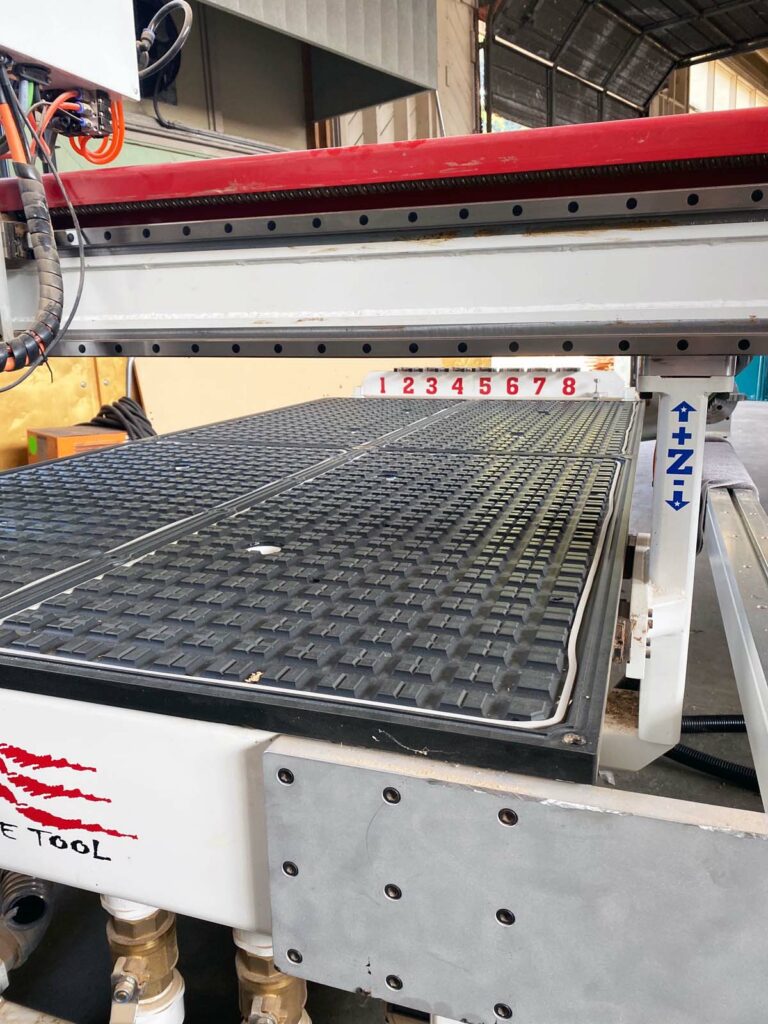

  • 4×8 Phenolic 4 Zone Vacuum table

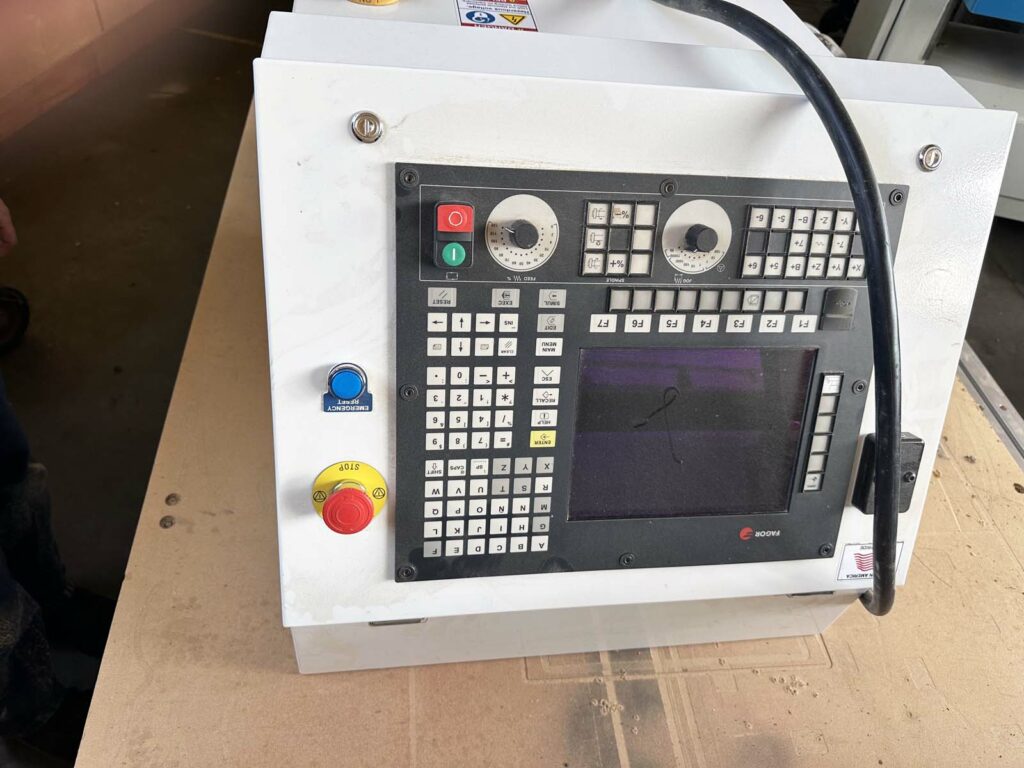

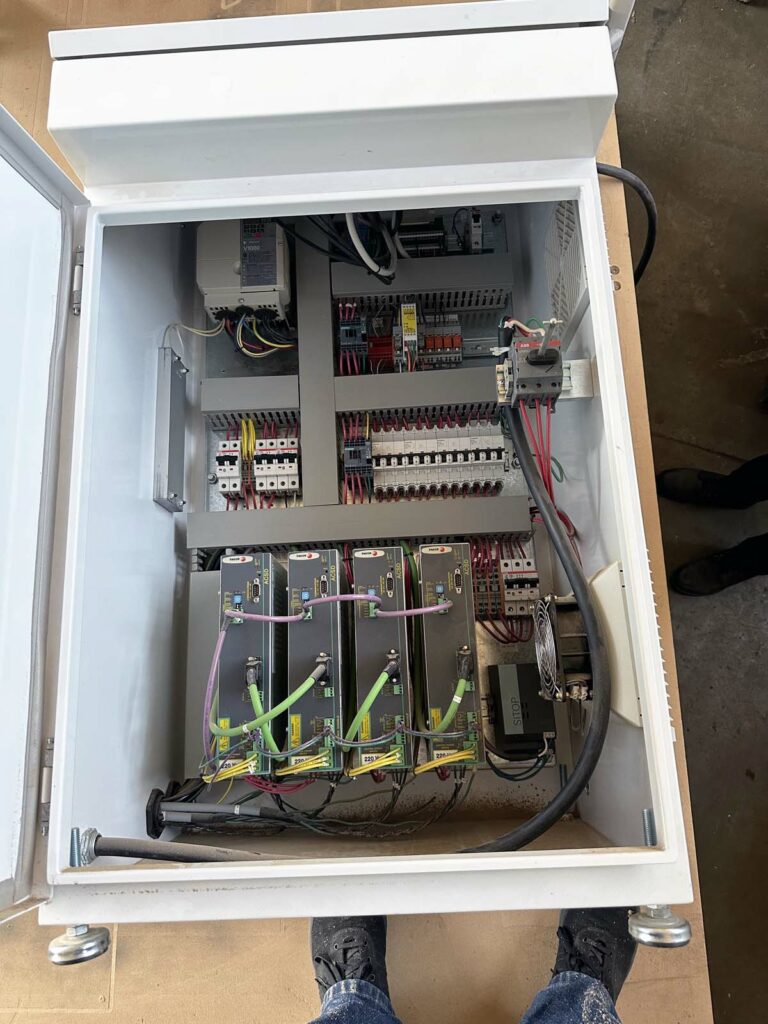

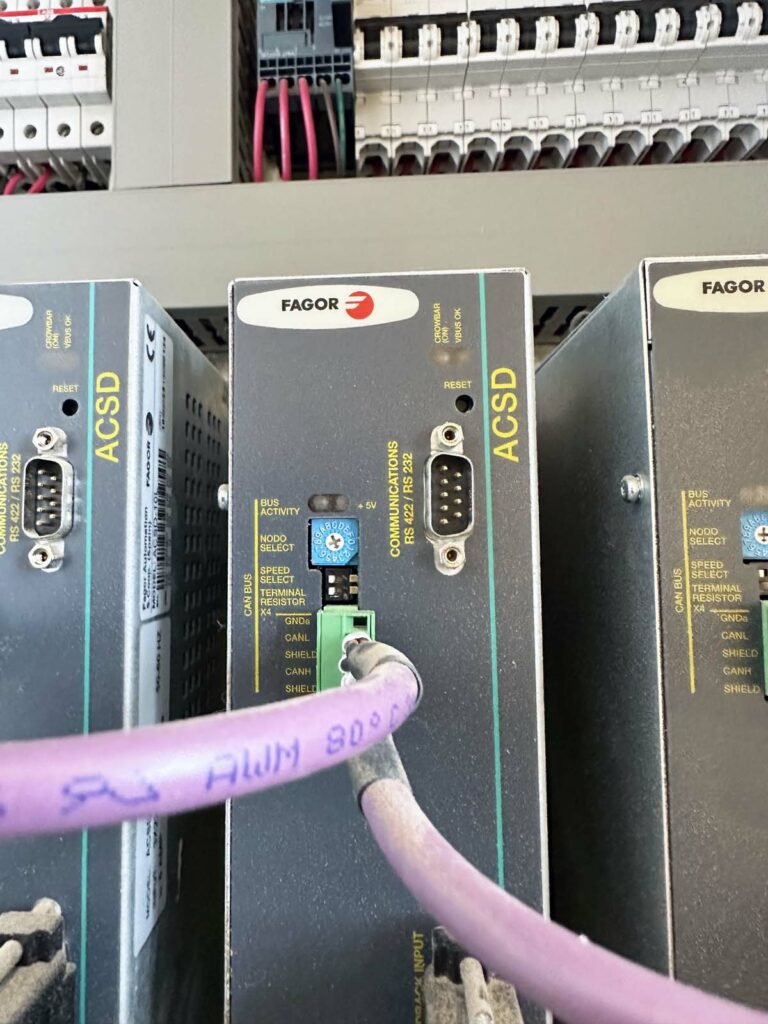

  • Fagor 8055 CNC system controller

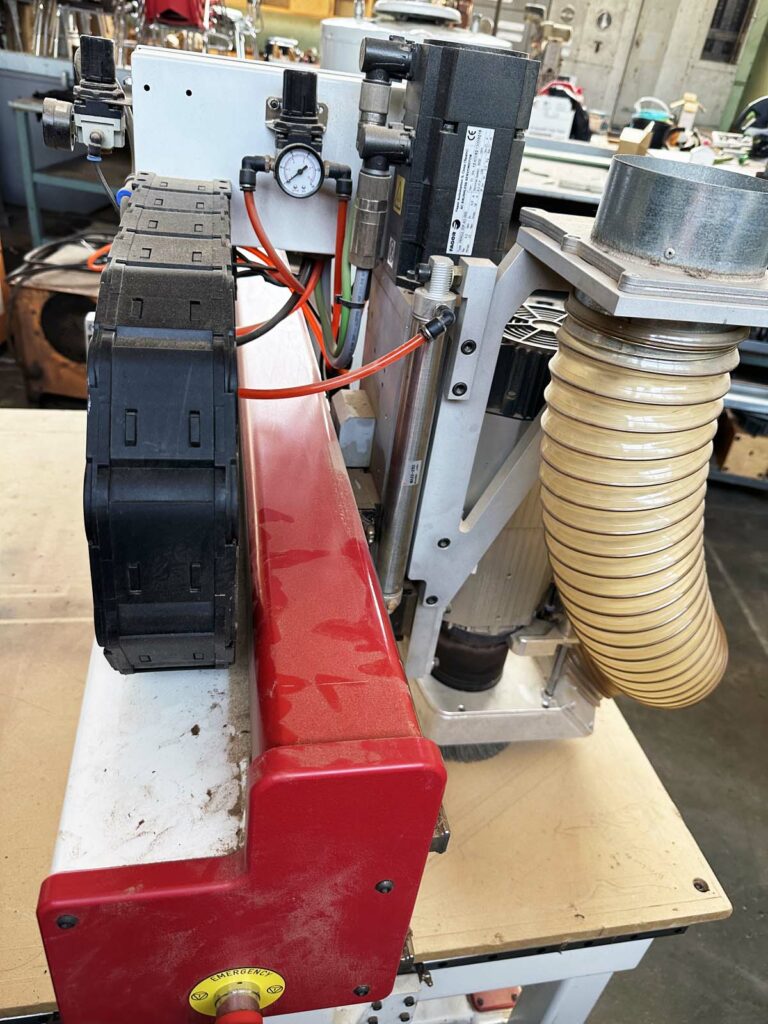

  • Dust collection hood
  • 7 position tool rack
  • Tool height setter

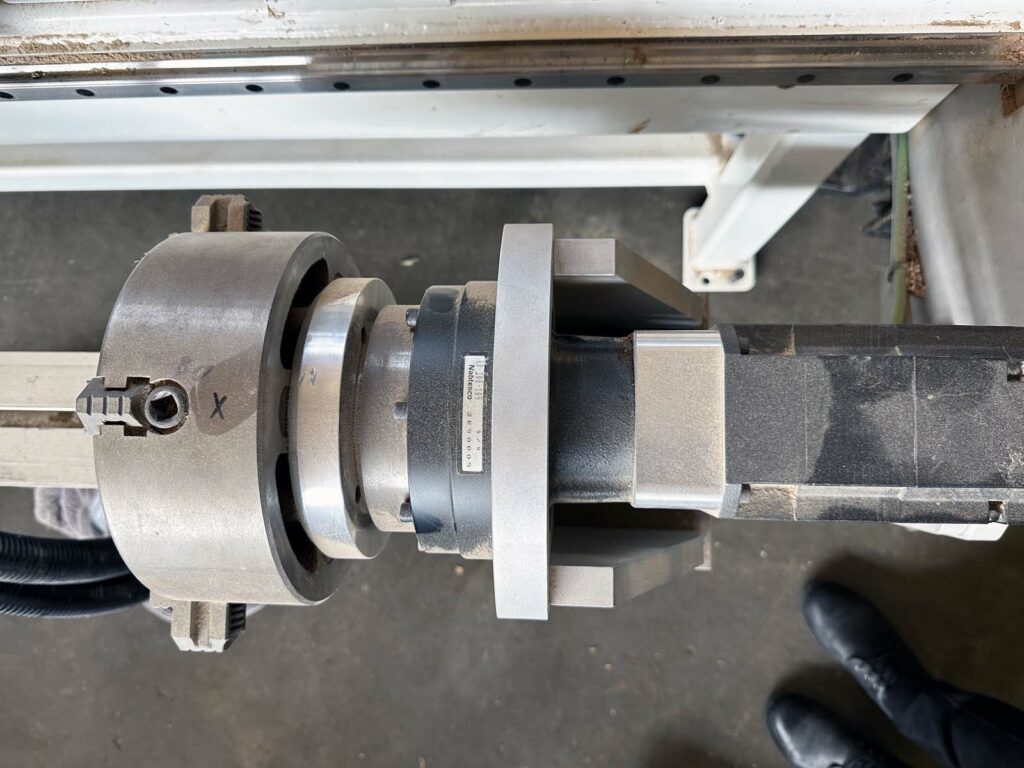

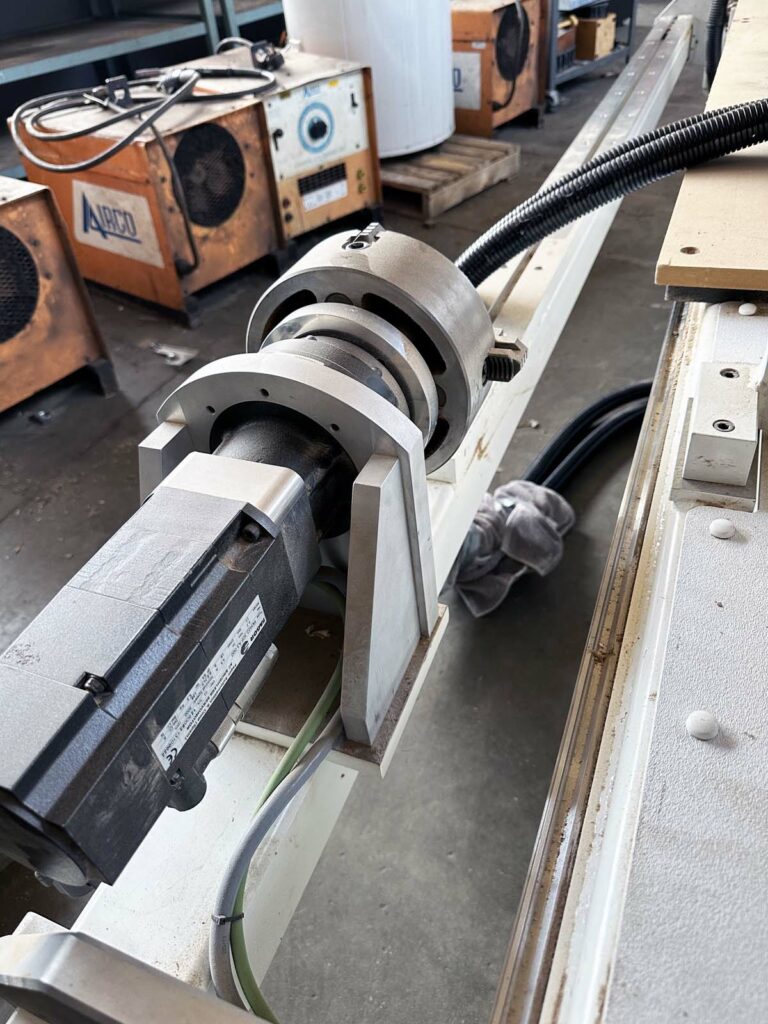

  • 4th axis rotary lathe
  • Speeds:
    • X Axis: 800 in/min.
    • Y Axis: 800 in/min.
    • Z Axis: 400 in/min.
  • 230 V / 3 phase power requirement
  • 30 Amps

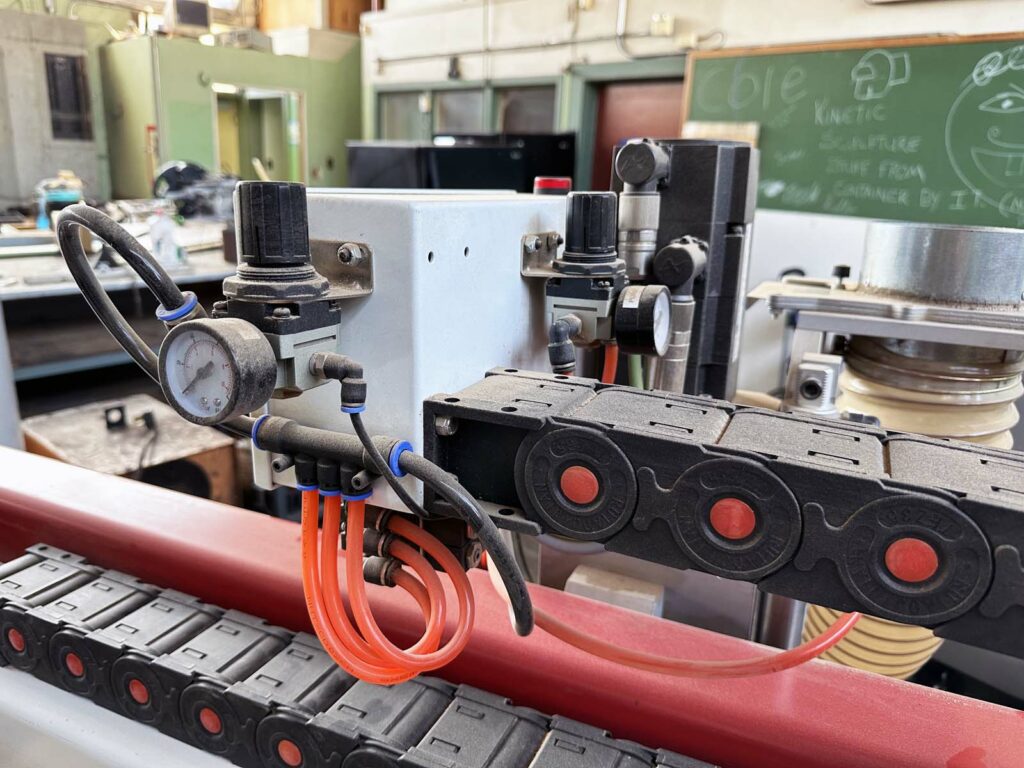

  • 90PSI air requirement
  • CNC Part Dept., Inc. Reference #C721

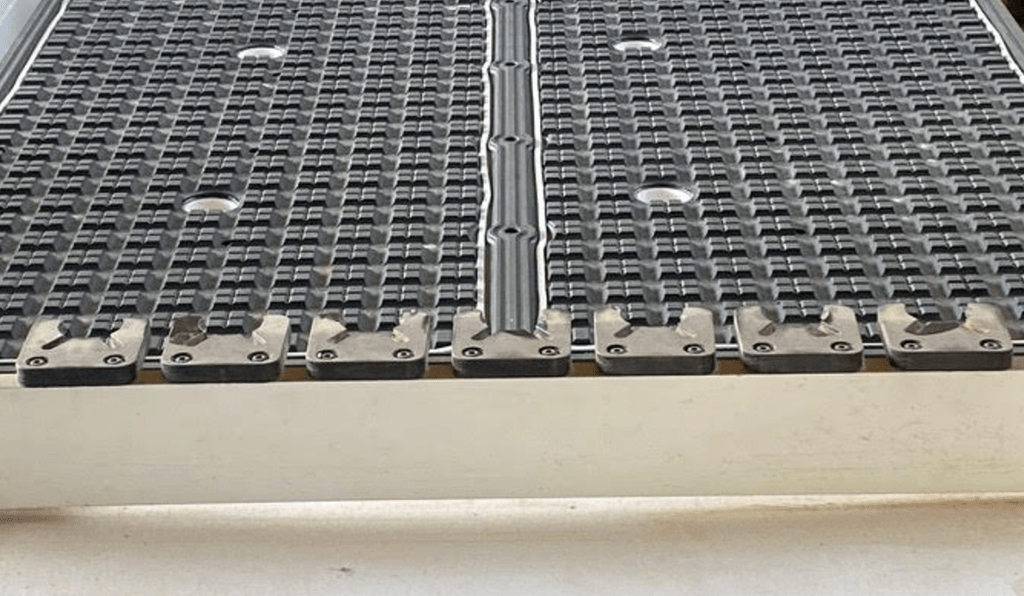

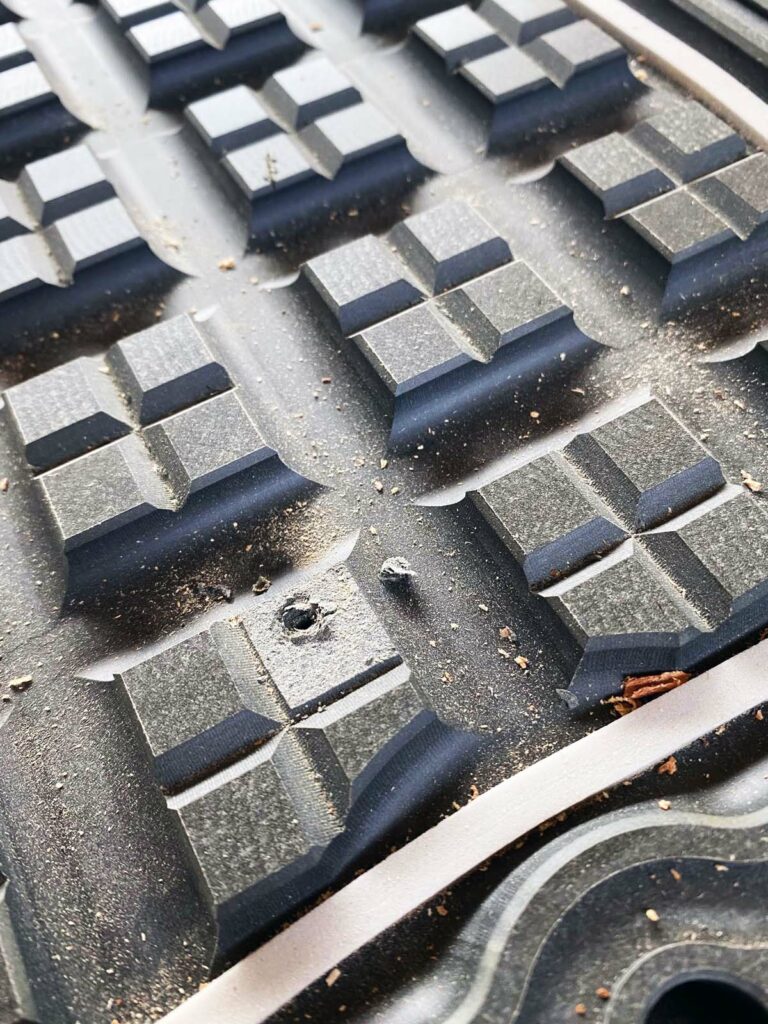

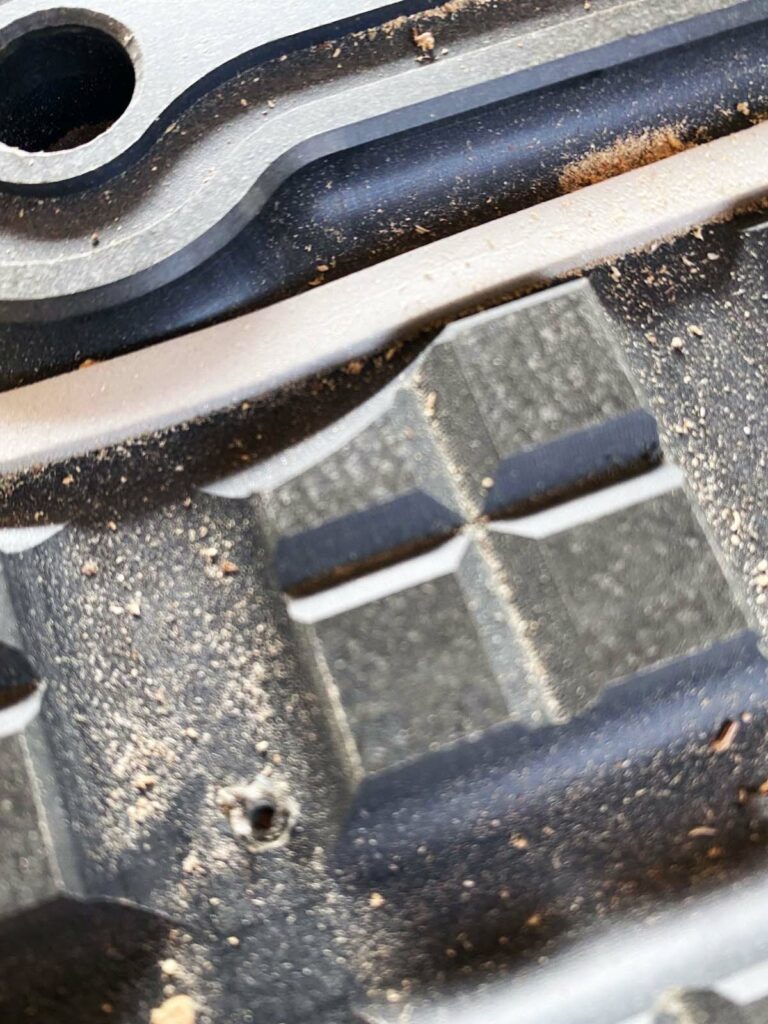

  • Known Issues: 4th axis rotary lathe drifts, some damage to phenolic table (see photos), some damage to tool clips.
