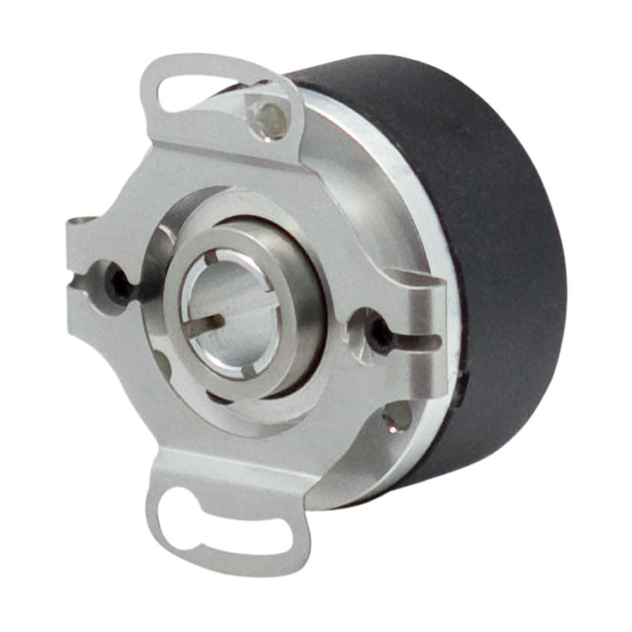

15T-14-SD-2048-C-5-R-HV-A00 Accu-coder Bore Encoder
15T-14-SD-2048-C-5-R-HV-A00 Encoder Products Company (EPC) Accu-Coder Model 15T incremental bore encoder.
Description
15T-14-SD-2048-C-5-R-HV-A00 Encoder Products Company (EPC) Accu-Coder Model 15T incremental bore encoder.
15T-14-SD-2048-C-5-R-HV-A00 Encoder Specifications
- Model: 15T (Thru-Bore)
- Bore size: 8 mm
- Mounting: 1.575″ (40 mm) Slotted Flex Mount
- CPR (cycles per revolution): 2,048
- Commutation: 8 Pole
- Input Voltage: 5 VDC
- Connector Type: 15-pin Header with 18″ Cable
Note: This encoder replaces LS model Mecapion H42-8-2048WL8. Ask us for more information.
Additional information
| Manufacturer Part Number | 15T-14-SD-2048-C-5-R-HV-A00 |
|---|---|
| Condition | New |
| Manufacturer | Accu-Coder |
