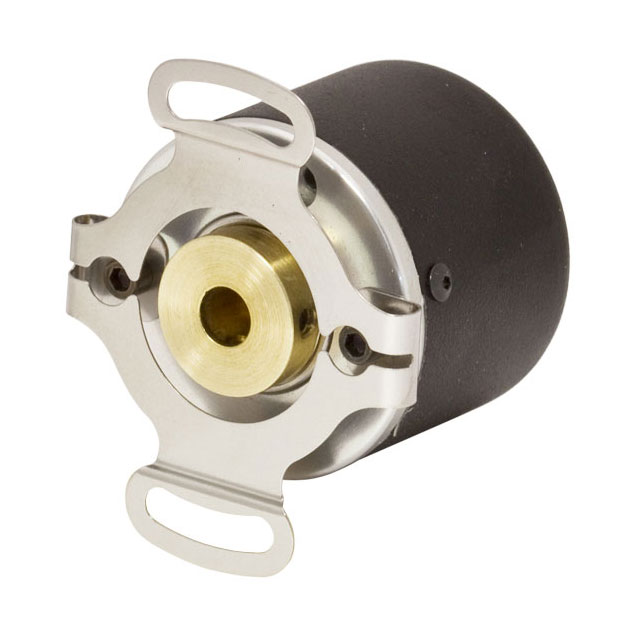

Accu-Coder 755A-01-S-1000-R-HV-1-SF-S/3-N Bore Encoder

Call for price

EPC Accu-Coder 755A-01-S-1000-R-HV-1-SF-S/3-N compact incremental rotary encoder features 1/4″ bore, 1,000 CPR, high-voltage line driver output, and standard flex mount.

  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: 755A-01-S-1000-R-HV-1-SF-S/3-N Categories: ,

Description

AccuCoder 755A-01-S-1000-R-HV-1-SF-S/3-N incremental rotary bore encoder.

Technical Specifications

  • Model: Accu-Coder 755A Incremental Rotary Encoder (1.5″ diameter)
  • Part no.: 755A-01-S-1000-R-HV-1-SF-S/3-N
  • Bore Size: 1/4″ bore
  • Operating Temperature: 0° to 70° C
  • Resolution: 1,000 count Cycles Per Revolution (CPR)
  • Channels: Quadrature A & B with Index (Z)
  • Output Type: Line Driver (Meets RS 422 at 5 VDC supply)
  • Max Frequency: Standard 100 kHz
  • Mounting: Slotted Flex Mount
  • Connector Type: Flying Leads / 3.0 ft (36 in) cable
  • Certification: None

Accu-Coder 755A compact, high-performance “Size 15” encoder is commonly used in robotics, CNC machinery, and motor feedback.

Additional information

Manufacturer

Accu-Coder

Model Series

Part Number (MPN)

755A-01-S-1000-R-HV-1-SF-S/3-N

Condition

New
