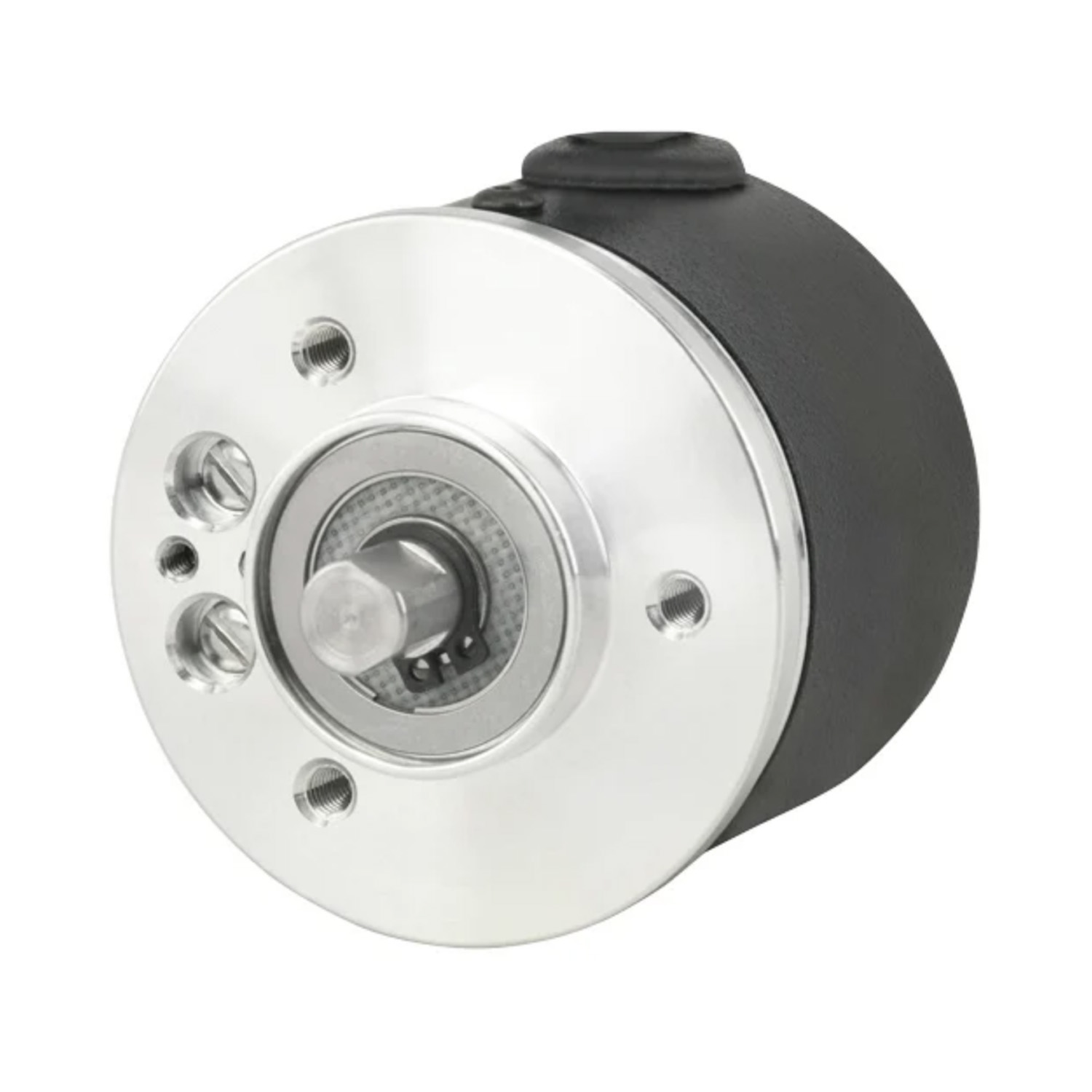

755A-07-S-2000-R-HV-1-S-S/3-N Accu-Coder Shaft Encoder
$571.00
755A-07-S-2000-R-HV-1-S-S/3-N EPC Accu-Coder compact incremental rotary shaft encoder features 2,000 CPR, 1/4″ shaft, line driver output, and standard mount.
Description
Accu-Coder 755A-07-S-2000-R-HV-1-S-S/3-N high-performance, compact incremental rotary shaft encoder.
Accu-Coder 755A-07-S-2000-R-HV-1-S-S/3-N Specifications
- Model: Accu-Coder 755A incremental encoder (1.5″ diameter)
- Shaft Size: 1/4″ bore
- Operating Temperature: 0° to 70° C
- Resolution: 2,000 cycles per revolution (CPR)
- Channels: Quadrature A & B with index (Z)
- Output Type: Line driver (Meets RS 422 at 5 VDC supply)
- Max Frequency: Standard 100 kHz
- Mounting: Standard servo mount
- Cable Length: 18″ leads
Additional information
| Condition | New |
|---|---|
| Model Series | |
| Manufacturer Part Number | 755A-07-S-2000-R-HV-1-S-S/3-N |
| Manufacturer | Accu-Coder |
