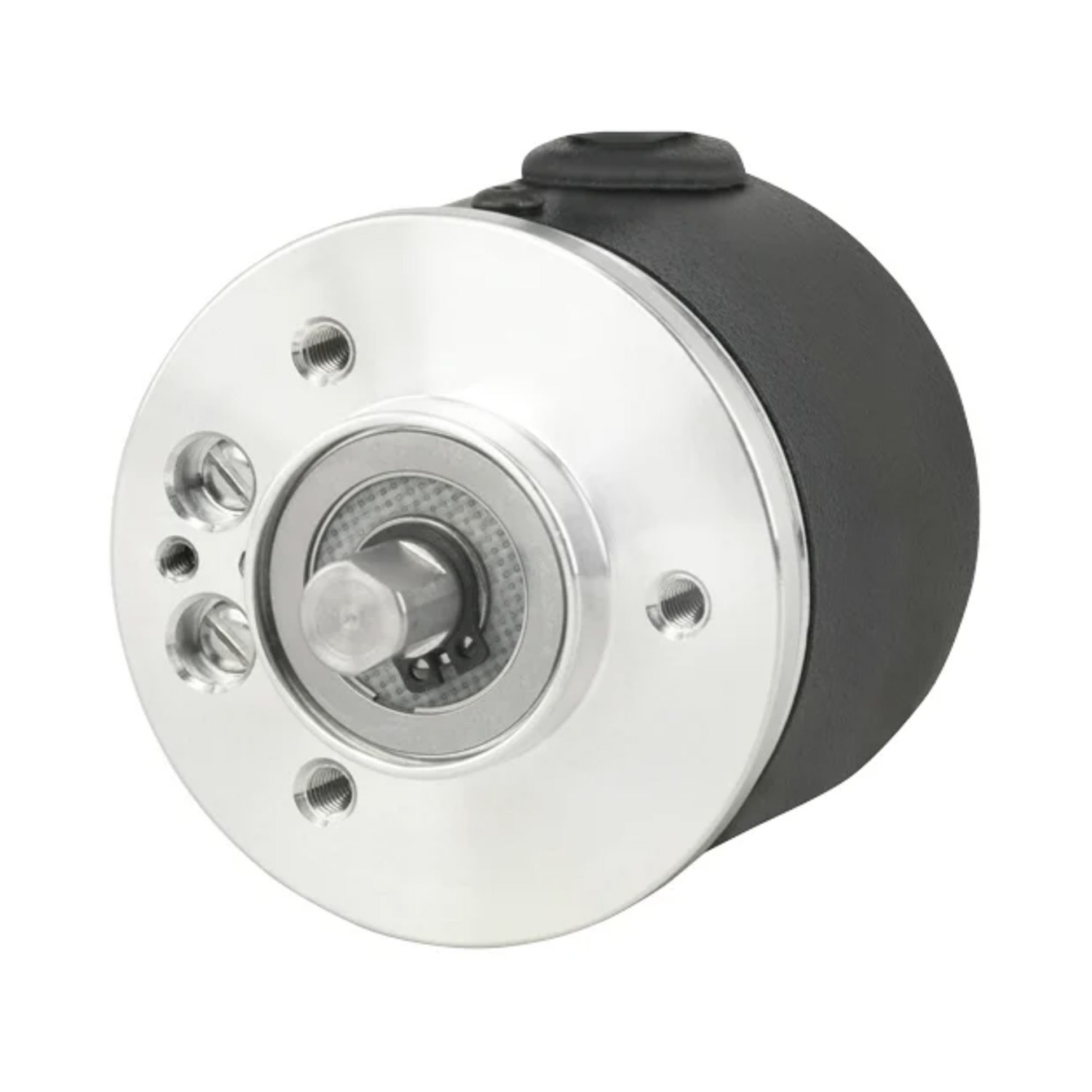

755A-01-S-1000-R-HV-1-SF-S/3-N Accu-Coder Encoder
Encoders

755A-01-S-1000-R-HV-1-SF-S/3-N Accu-Coder Encoder

Call for price

755A-01-S-1000-R-HV-1-SF-S/3-N EPC Accu-Coder compact incremental rotary encoder features 1,000 CPR, 1/4″ bore, line driver output, and standard flex mount.

Call to order
Product Inquiry
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: 755A-01-S-1000-R-HV-1-SF-S/3-N Category: Tag:

Description

Accu-Coder 755A-01-S-1000-R-HV-1-SF-S/3-N servo motor encoder.

Accu-Coder 755A-01-S-1000-R-HV-1-SF-S/3-N Encoder Specifications

  • Model: Accu-Coder 755A Incremental Rotary Encoder (1.5″ diameter)
  • Bore Size: 1/4″ bore
  • Operating Temperature: 0° to 70° C
  • Resolution: 1,000 count Cycles Per Revolution (CPR)
  • Channels: Quadrature A & B with Index (Z)
  • Output Type: Line Driver (Meets RS 422 at 5 VDC supply)
  • Max Frequency: Standard 100 kHz
  • Mounting: Slotted Flex Mount
  • Cable Length: 36″ leads

Additional information

Condition

New
Model

Manufacturer Part Number

755A-01-S-1000-R-HV-1-SF-S/3-N
