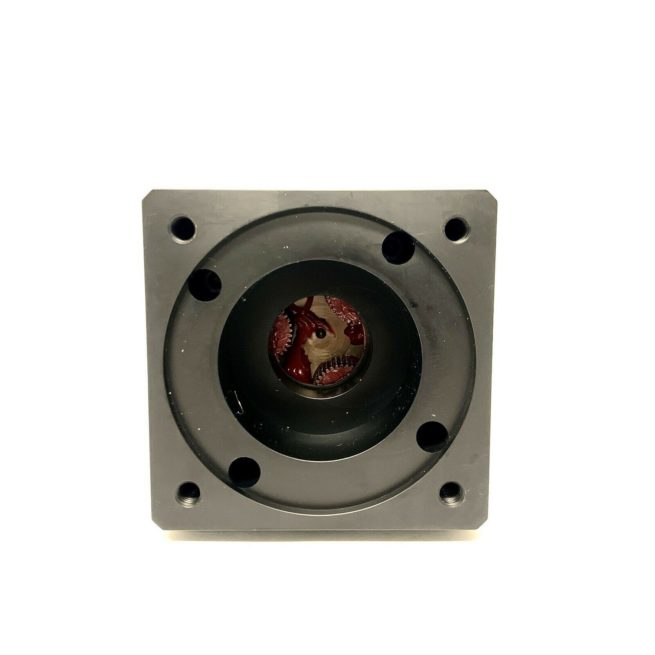

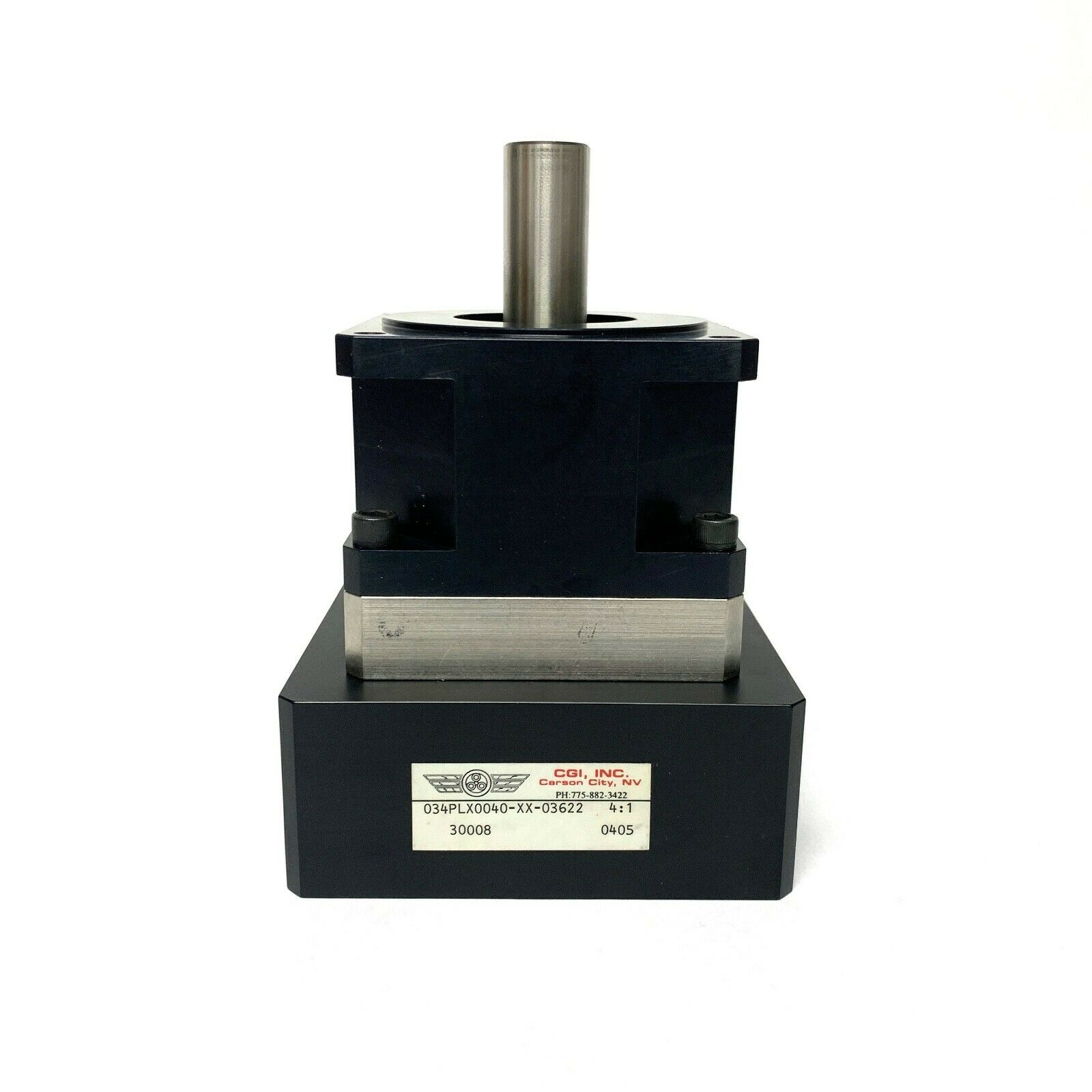

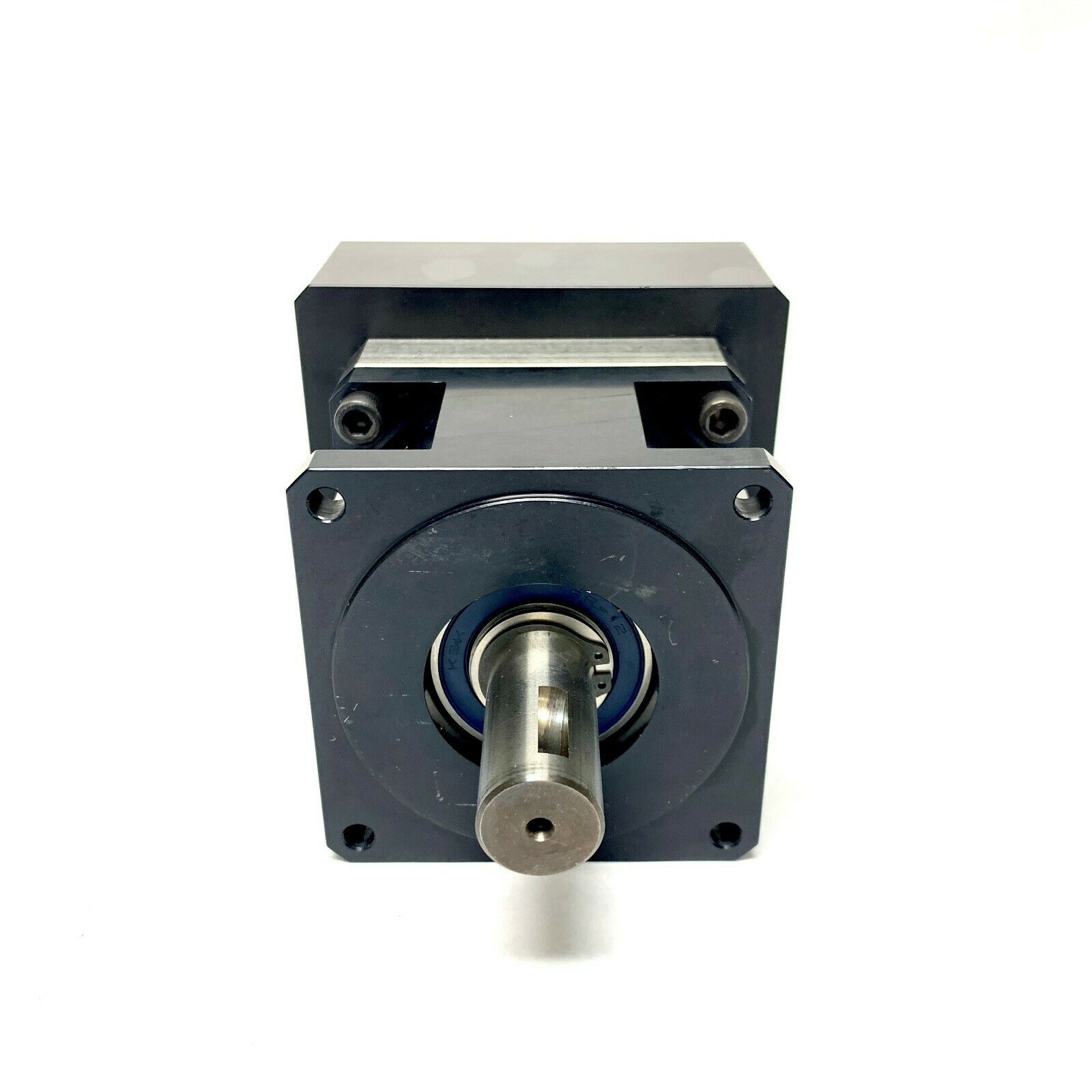

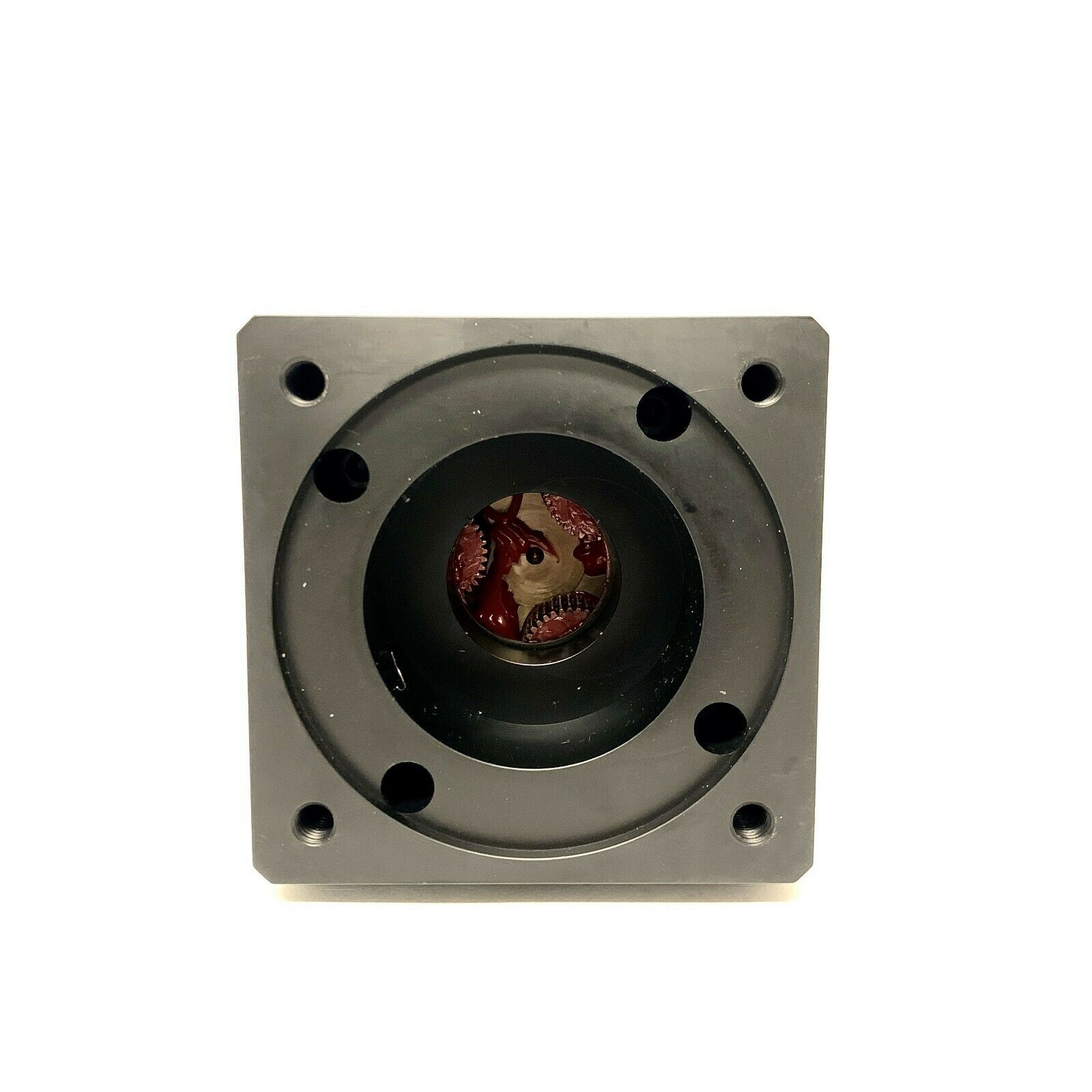

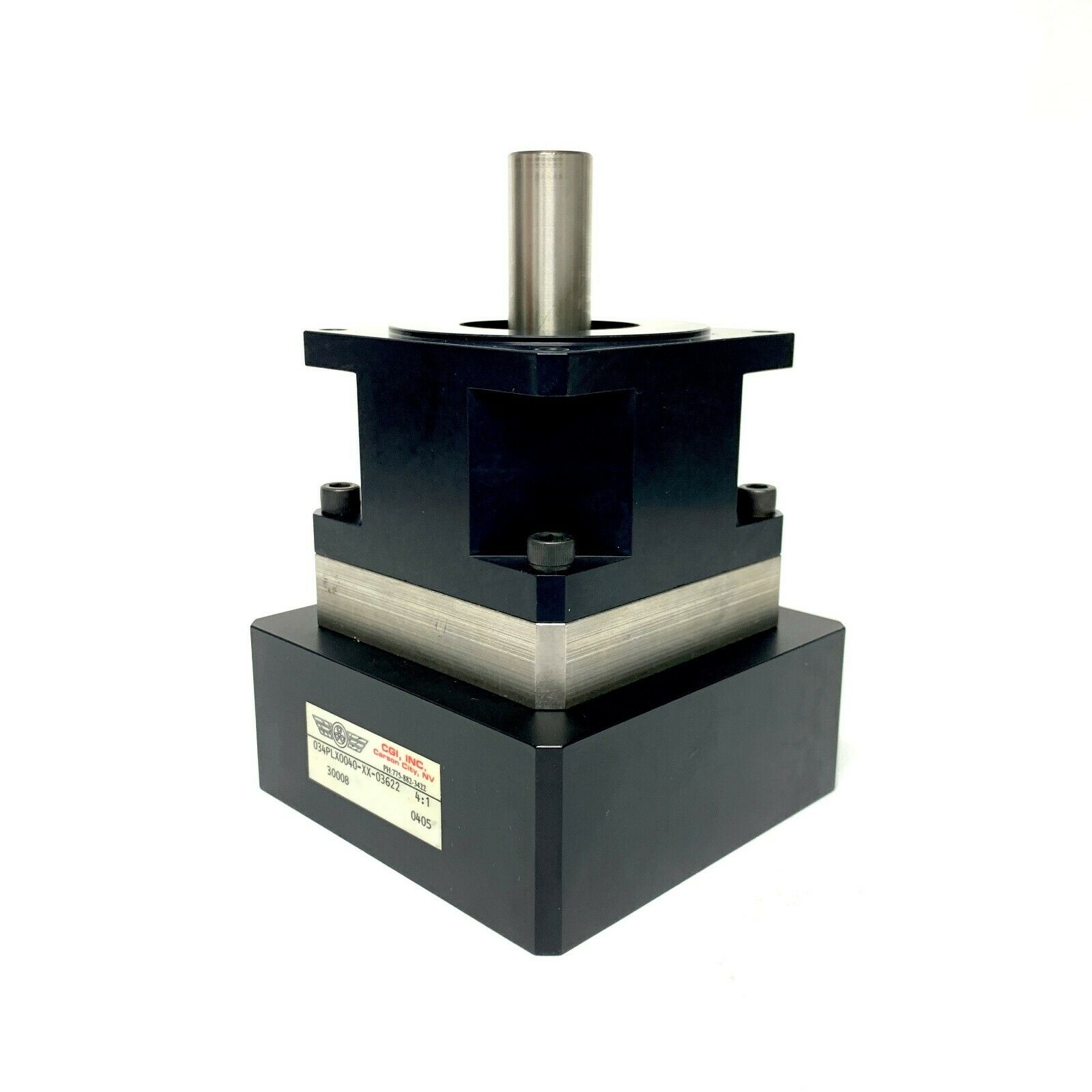

034PLX0040-XX-03622 CGI Planetary Gearhead

$325.00

034PLX0040-XX-03622 CGI Motion 034PLX Prime™ Series 4:1 Single Stage Precision High Performance Gearheads.

In stock

Request More Information

CNC Router Part Request

For a fast and easy CNC router part request, send us a message using the form provided.

SKU: 034PLX0040-XX-03622 Category:

Product Description

CGI PLX Series Prime High-Grade Planetary Angle Gearhead, Model 034PLX0040-XX-03622.

034PLX0040-XX-03622 Specifications

  • CGI Motion PLX SERIES
  • Prime™ Planetary Angle Gearheads
  • Flange: 3.25” Square .312” Thick
  • Shaft: 1.5” long  .7495/.7500” diameter
  • Pilot: .062” long  2.873/2.875” diameter
  • Sealed ball bearings

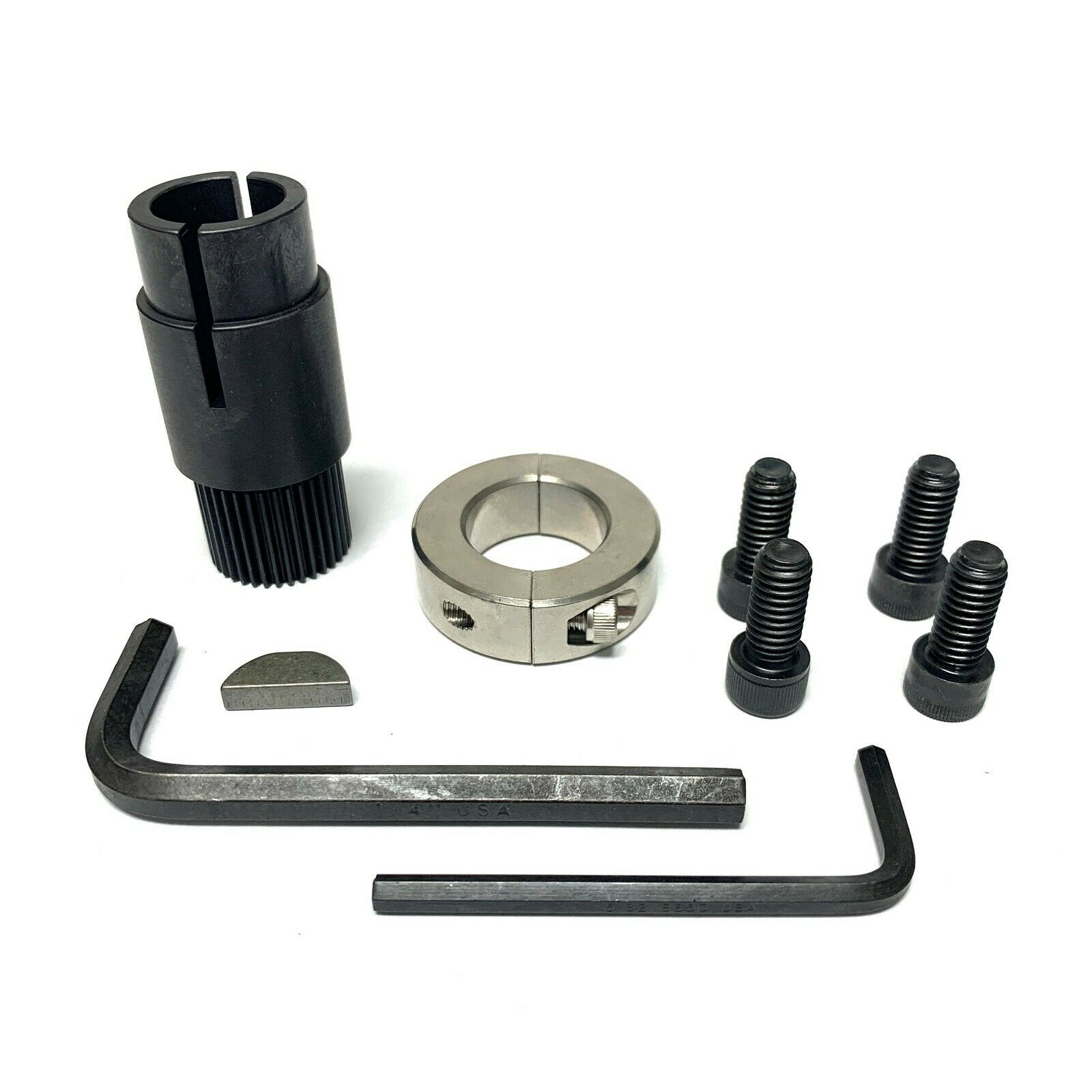

  • Includes Motor Mounting Hardware

Additional Information

Weight 8.00 lbs
Dimensions 12 × 6 × 6 in
Model

034PLX0040-XX-03622
MPN

034PLX0040-XX-03622
Brand

CGI
Condition

New
Country/Region of Manufacture

United States

Design Features

  • Low backlash design
  • Input pinion with balanced clamp collar
  • Quick installation
  • Strong, caged roller bearings
  • High reliability design
  • High strength steels
  • High shaft loading capacity
  • Viton O-Ring sealed at each joint
  • Sealed ball bearings
  • High efficiency design
  • All gears are heat treated
  • NEMA mounting standards
  • 5 year warranty
