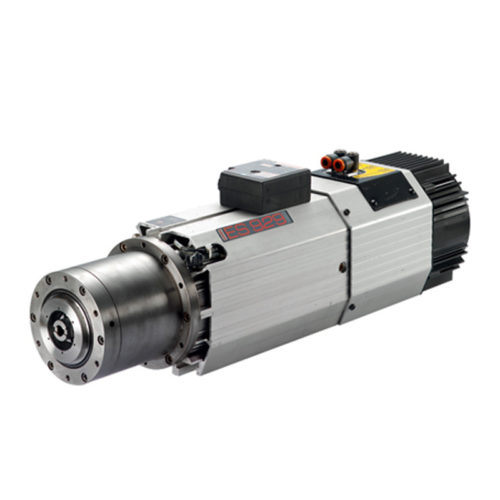

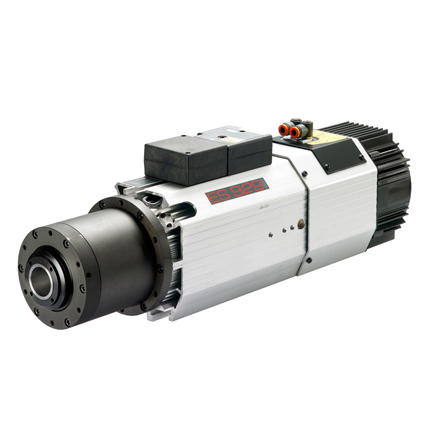

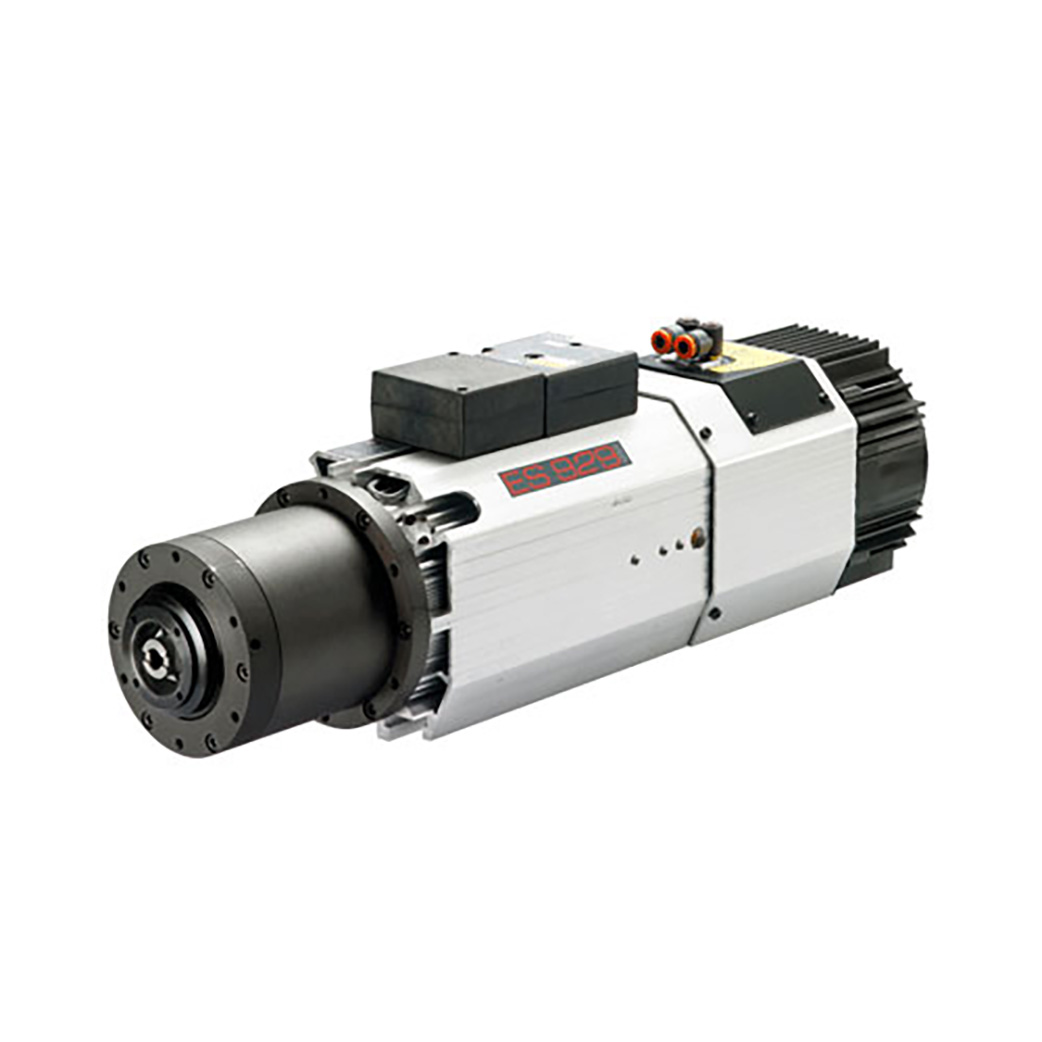

H6161H0992 ES929 HSD Spindle Motor
H6161H0992 HSD spindle motor, ES929 series, ATC, electric fan-cooled, HSK 63F tooling, long nose, 12-24,000 RPM, 400-800 Hz, 4-pole, 220/380 V.
Description
H6161H0992 (or A6161H0992) HSD spindle motor.
Technical Specifications
- Model Series: HSD ES929
- Model no.: H6161H0992
- Tool Change: Automatic with quick-change tool release button
- Tooling Interface: HSK 63F tool holder, long nose shaft
- Cooling: Electric fan-cooled
- Bearings: Ceramic (front and rear)
- Rated Speed @ Frequency:
- 12,000 RPM @ 400 Hz
- 24,000 RPM @ 800 Hz
- Power @ 12,000 RPM (400 Hz):
- S1: 13.4 hp (10 kW)
- S6: 16 hp (12 kW)
- Power @ 24,000 RPM (800 Hz):
- S1: 11 hp (8.2 kW)
- S6: 13.2 hp (9.84 kW)
- Voltage: 220 V / 380 V (Dual Voltage)
- Pole Count: 4-pole
Additional information
| Model Series | |
|---|---|
| Tool Change | |
| Condition | New |
| Part Number (MPN) | A6161H0992, H6161H0992 |
| Manufacturer | HSD |
| Country/Region of Manufacture | Italy |
Discover the HSD ES929 Spindle Series
HSD ES929 series is an industrial-grade powerhouse engineered for heavy-duty routing, milling, and high-precision CNC operations. Featuring advanced ceramic bearings and robust fan-cooling, it delivers the stability and longevity required for multi-shift production environments.
