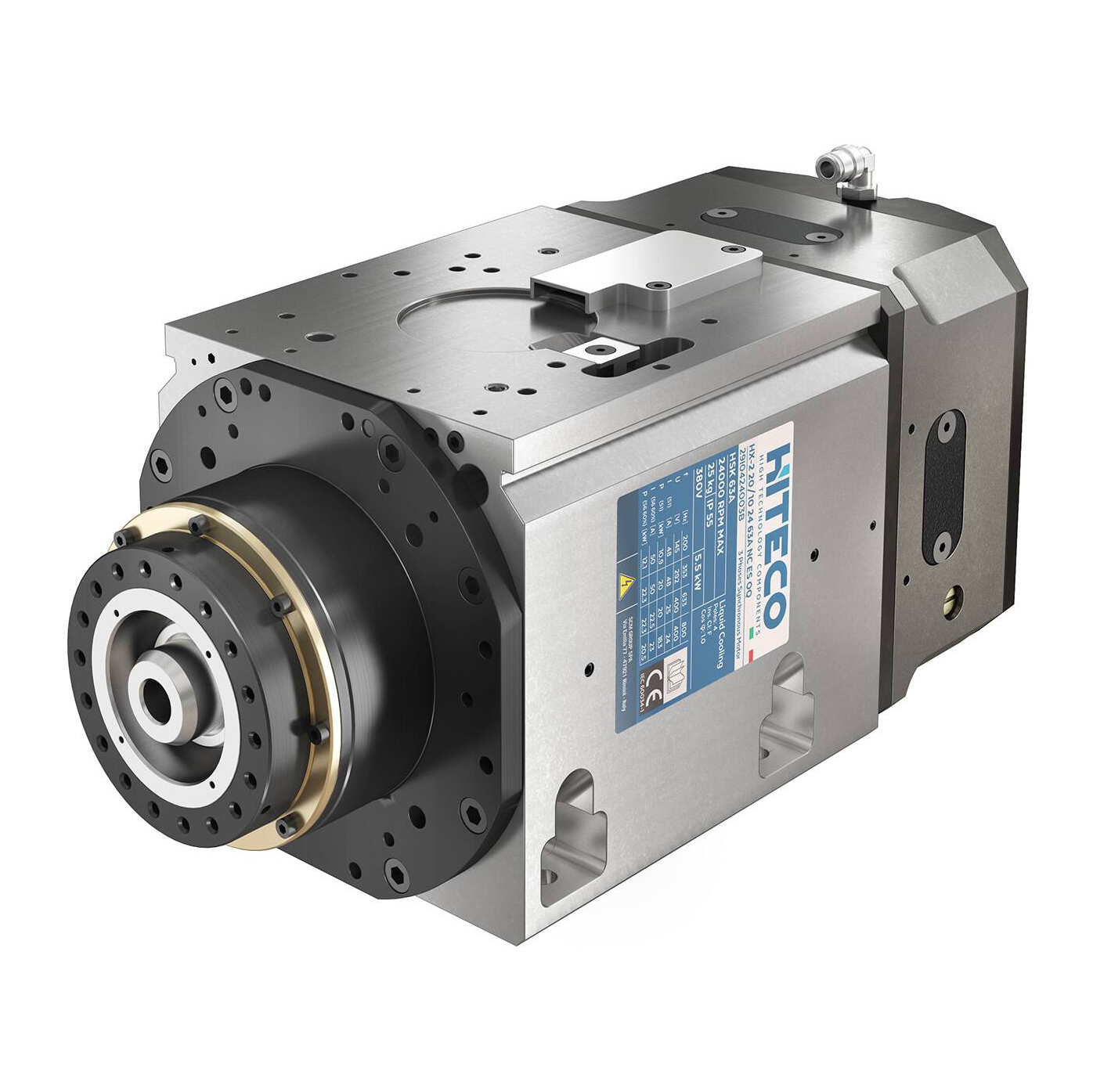

HX-2 13/7 24 63A NL 3C ES Hiteco Spindle Motor
HX-2 13/7 24 63A NL 3C ES Hiteco Robotech spindle motor, HX 3C series, Liquid-cooled, HSK 63A tooling, long nose, 24,000 RPM max speed, 380 V / 3 phase.
Description
Hiteco Robotech spindle motor, HX 3C series, model no. HX-2 13/7 24 63A NL 3C ES.
HX-2 13/7 24 63A NL 3C ES Hiteco Motor Specifications
- Motor Series: Hiteco HX Series
- Spindle Type: Asynchronous 6 Poles
- Max Power:
- S1: 17.4 hp / 13 kW
- S6: 21.5 hp / 16 kW
- Speed:
- Rated: 7,000 RPM
- Maximum: 24,000 RPM
- Max Torque:
- Â S1: 17 Nm
- S6: 19 Nm
- Current:
- S1: 35 Amps
- S6: 39 Amps
- Voltage: 380 V, 3 phase
- Tooling Interface: HSK63A, Long Nose
- Cooling: Liquid Cooled
Additional information
| Manufacturer | Hiteco |
|---|---|
| Country/Region of Manufacture | Italy |
Hiteco Spindle Motors for CNC Routers and Robots
Hiteco Electrospindles are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.
