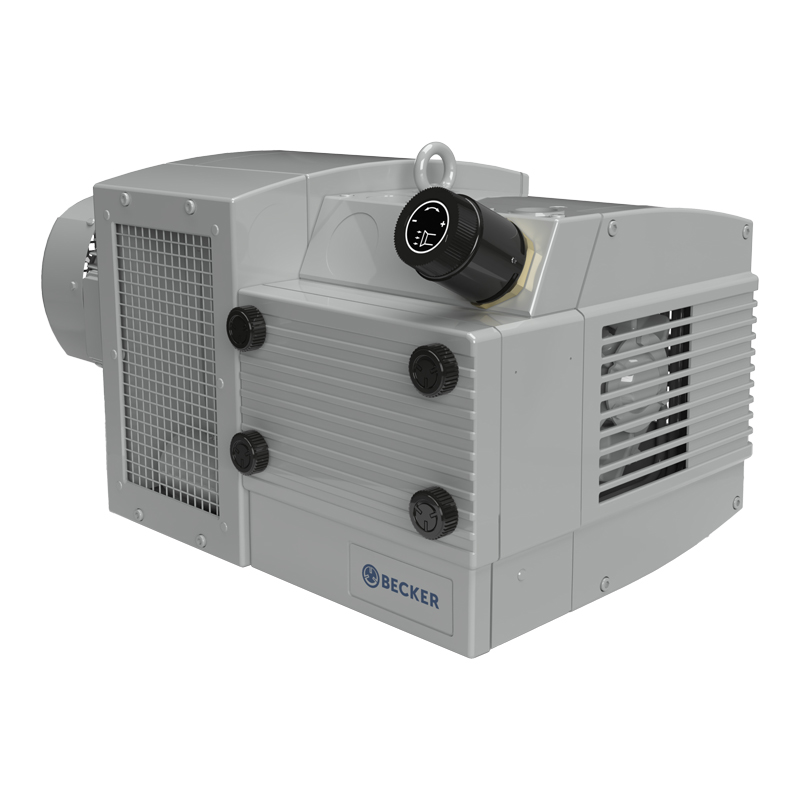

Becker KVT 3.60 Vacuum Pump
Becker KVT 3.60 dry-running, oil-less rotary vane vacuum pump, 39 CFM, 27 in.Hg, 73 db(A), coupled to a 3 hp, 208/230/460 V, 3 phase, 60 Hz, TEFC motor.
Description
Becker KVT 3.60 dry-running, oil-less rotary vane vacuum pump is designed for continuous duty. It uses self-lubricating graphite composite vanes that don’t need oil. Vacuum pump includes integrated suction filter, vacuum regulating valve, and integrated blow off valve / silencer.
Becker KVT 3.60 Pump Specifications:
- Flow Rate / Suction Air Rate: 66 m³/h (39 CFM)
- Maximum Vacuum: 100 mbar (26.6 in. HgV)
- Emission Sound Pressure Level: 73 dB(A)
60 Hz Motor Specifications:
- Power: 3 hp, 3 phase
- Voltage:
- 208 V
- 1,730 RPM
- 8.8 A
- 230 / 460 V
- 1,800 RPM
- 8.0/4.0 A
- 208 V
- Version: UL • CSA • NEMA • ISO F
Additional information
| Manufacturer | Becker |
|---|---|
| Manufacturer Part Number | KVT 3.60 |
| Condition | New |
