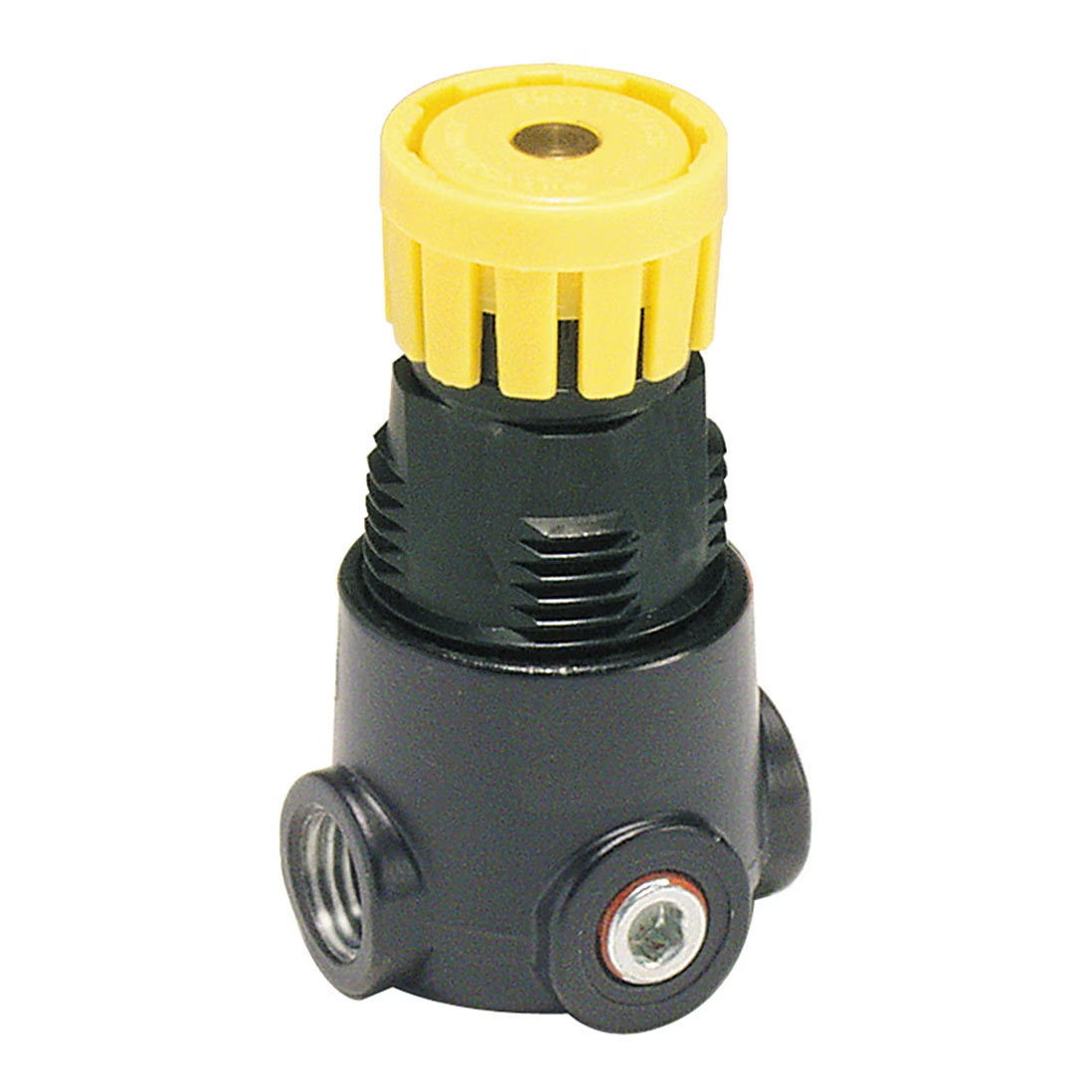

Parker 14RB18FC Miniature Pneumatic Regulator
The Parker 14RB18FC is a miniature Prep-Air® II regulator designed for high-accuracy pressure control in space-constrained CNC and industrial environments. Featuring a 125 PSIG range and 15 SCFM flow capacity, it ensures stable pneumatic performance.
Description
The Parker 14RB18FC professional-grade pneumatic component is engineered for precise downstream pressure management. As part of the 14R series, this miniature regulator is optimized for industrial applications where consistent airflow and a compact footprint are critical. Constructed with a rugged zinc body, the 14RB18FC utilizes a solid control piston with a high-performance lip seal. This design provides significantly longer service life compared to traditional diaphragm regulators in high-cycle CNC environments. The relieving design allows for the venting of excess downstream pressure, ensuring your system remains balanced and protecting sensitive tooling from over-pressurization.
Engineering Advantages
- Enhanced Connectivity: Unlike standard 14R models with 1/8″ ports, the 14RB variant features dual 1/4″ NPT gauge ports, providing flexibility for mounting gauges or using one port as an additional full-flow outlet.
- Precision Control: Equipped with a non-rising yellow adjusting knob, allowing for smooth, incremental pressure settings up to 125 PSIG.
- Flow Efficiency: Supports a flow rate of 15 SCFM, delivering the necessary volume for air-actuated CNC clamps, tool changers, and blow-off nozzles.
Technical Specifications
- Manufacturer: Parker Hannifin
- Series: 14R / Prep-Air II
- Model Number: 14RB18FC
- Port Size: 1/4″ NPT
- Gauge Port Size: Dual 1/4″ NPT
- Pressure Range: 2 to 125 PSIG
- Flow Rate: 15 SCFM
- Regulator Type: Relieving (Self-Venting)
Additional information
| Part Number (MPN) | 14RB18FC |
|---|---|
| Condition | New |
| Port Size | 1/4 inch |
| Manufacturer | Parker Hannifin |
| Thread Type | NPT |
| Model Series |
