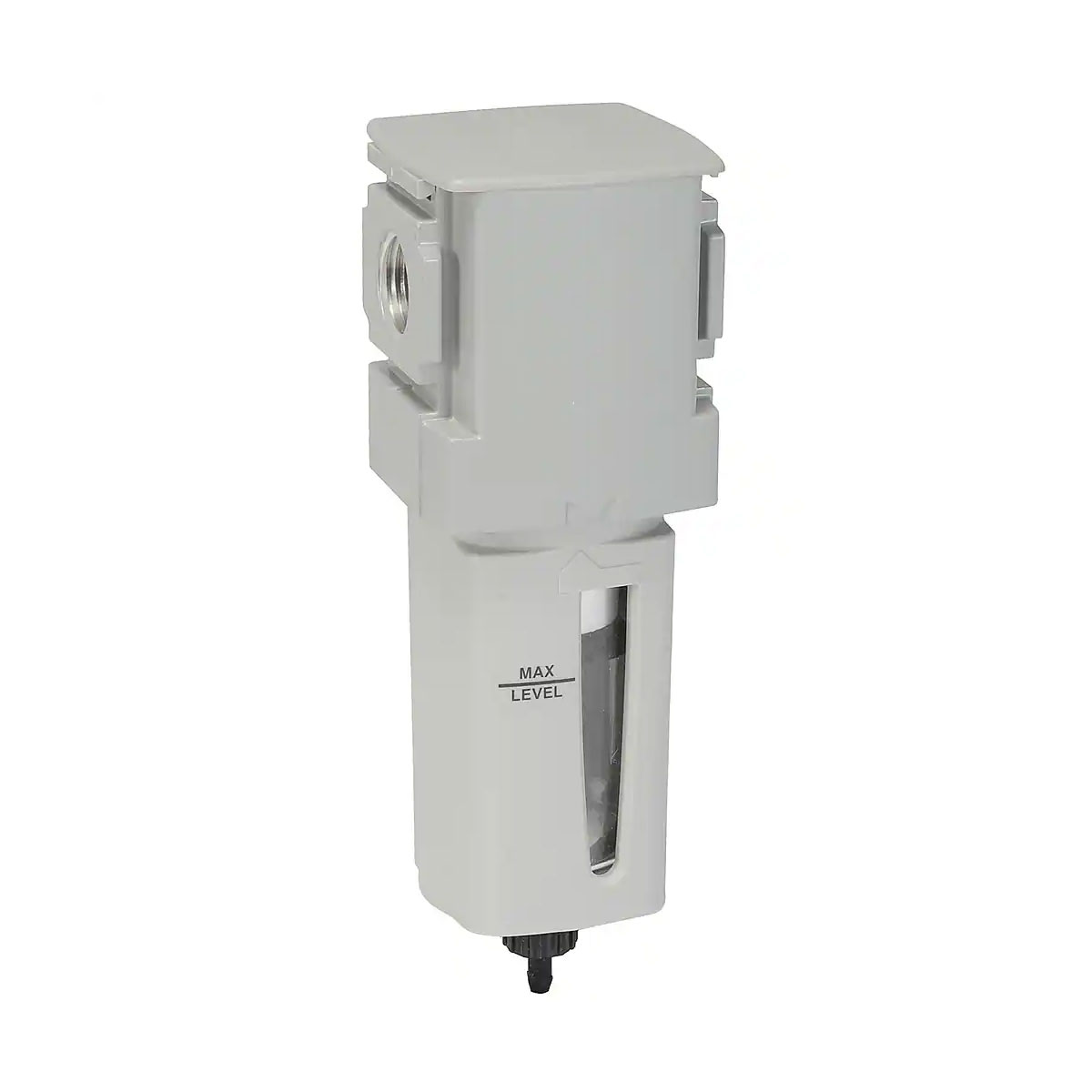

Parker P32FB93EGAN Particulate Filter

Description

The Parker P32FB93EGAN belongs to the Global Air Preparation System (P32 Series), a line of compact modular filters designed for modern industrial environments. This specific model provides a high-efficiency solution for removing liquid aerosols and solid particulates from compressed air lines.

Utilizing a 5-micron sintered polyethylene element, the P32FB93EGAN captures contaminants that cause premature wear in valves and cylinders. The unit is housed in a robust, lightweight aluminum body with a polycarbonate “Poly” bowl and nylon bowl guard, balancing durability with easy visual monitoring.

Engineering Advantages

• Automatic Float Drain: Eliminates the need for manual maintenance by automatically discharging collected liquids when they reach a specific level.
• Modular Design: Features a patented modular connector system, allowing for easy integration with other P32 series regulators or lubricators without pipe nipples.
• High Flow Path: Optimized internal geometry supports flow rates up to 78 SCFM (depending on pressure drop), minimizing energy loss across the system.
• Enhanced Safety: The bayonet-style bowl latch ensures a secure fit and prevents accidental detachment under pressure.

Technical Specifications

• Manufacturer: Parker
• Part No.: P32FB93EGAN
• Port Size: 3/8″
• Port Type: NPT
• Flow Capacity: 50 SCFM
• Filter Element: 5 Micron Sintered Polyethylene
• Drain Type: Automatic Float Drain
• Bowl Material: Polycarbonate with Nylon Guard
• Operating Temperature: -25°C to 52°C (-13°F to 125°F)
• Body Material: Aluminum
