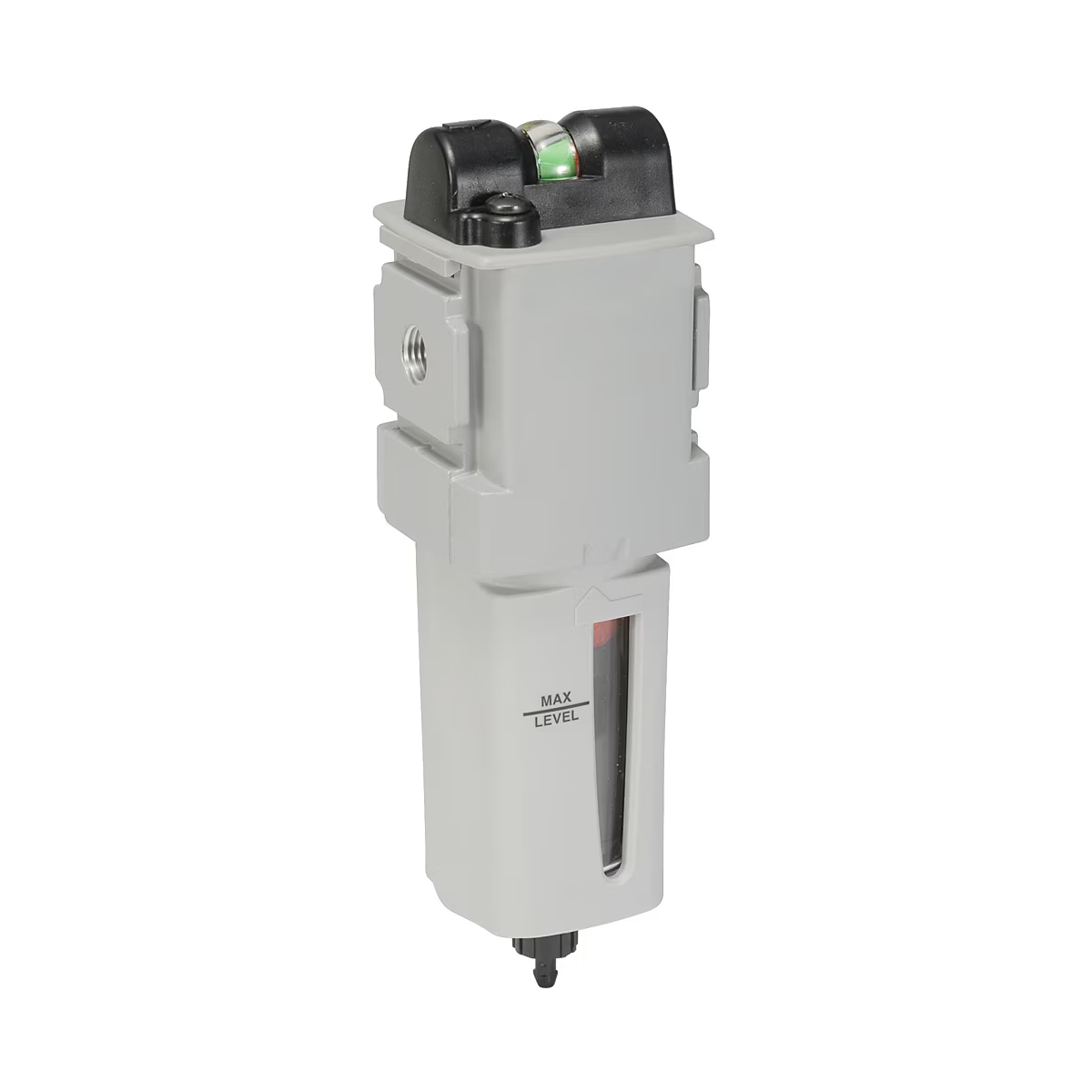

Parker P32FB94DSAN Coalescing Filter

Description

The Parker P32FB94DSAN coalescing filter is a cornerstone of the P32 Compact Global Air Preparation Series. Engineered for high-demand industrial environments, this unit specializes in the removal of liquid aerosols, water, and submicron particles down to 0.01 microns. By integrating this filter into your CNC pneumatic lines, you significantly reduce the risk of spindle contamination and valve failure caused by oil carryover.

Built with a robust aluminum body and a metal bowl featuring a sight gauge, the P32FB94DSAN is rated for supply pressures up to 250 psig (17.2 bar). The inclusion of a Differential Pressure Indicator (DPI) allows maintenance teams to monitor element saturation at a glance, preventing costly pressure drops and ensuring consistent tool performance.

Engineering Advantages

• Superior Air Purity: 99.99% oil removal efficiency protects sensitive downstream components.
• Automated Maintenance: The internal auto-drain eliminates manual intervention, preventing bowl overflow.
• Modular Design: Easily integrates with P32 series regulators and lubricators using modular connectors.
• Durability: The metal bowl construction is essential for applications involving high pressure or synthetic lubricants.

Technical Specifications

• Brand: Parker Hannifin
• MPN: P32FB94DSAN
• Port Size: 1/2″ NPT
• Filter Element: 0.01 Micron (Grade 6)
• Flow Rate: 36 SCFM
• Maximum Pressure: 250 psig (17.2 bar)
• Operating Temperature: -13°F to 150°F (-25°C to 65.5°C)
• Bowl Type: Metal with Sight Gauge
• Drain Type: Pulse/Auto Drain
• Body Material: Aluminum
• Seal Material: Nitrile (Buna-N)
