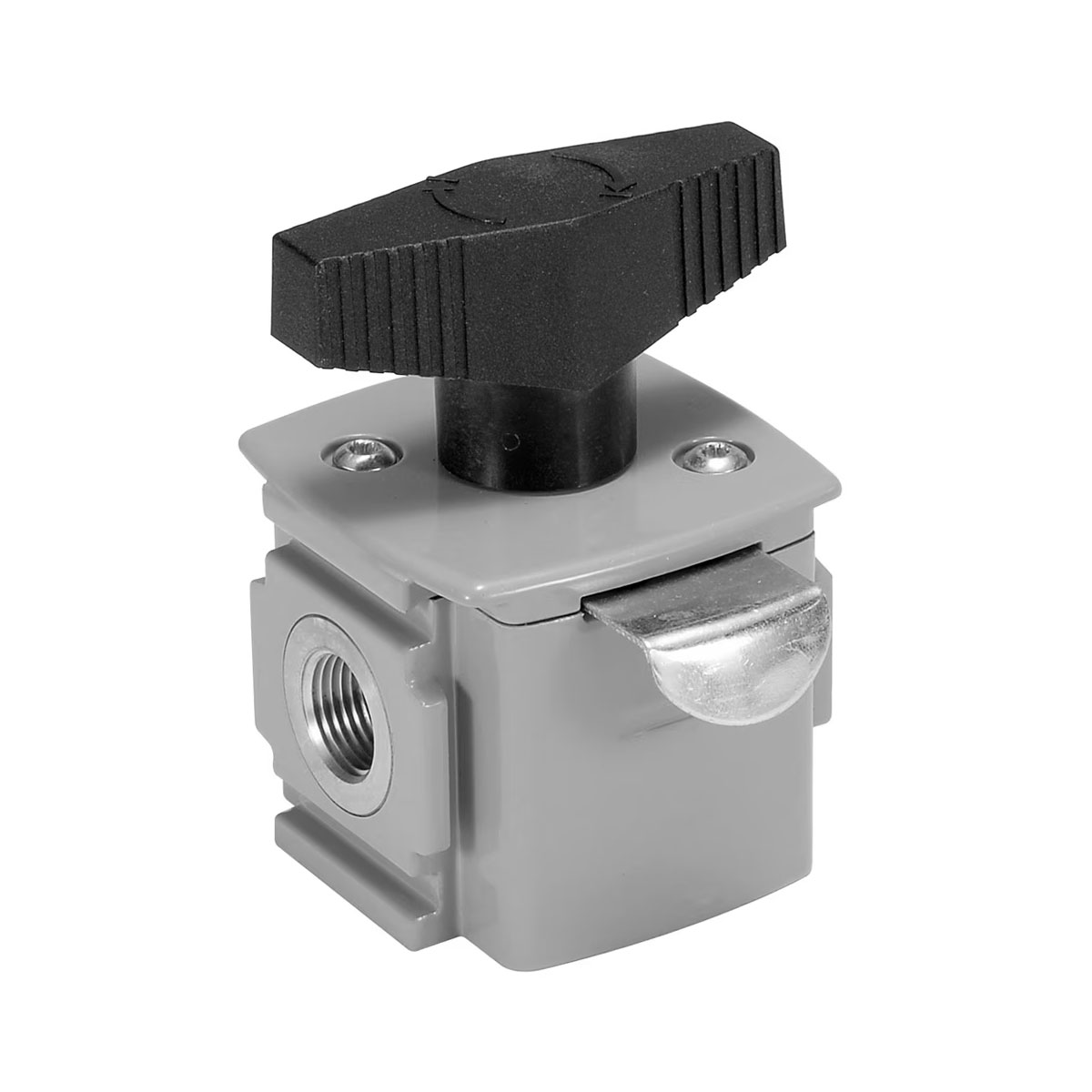

Parker P32VB93LBNN Modular Ball Valve

Parker P32VB93LBNN Modular Ball Valve / Lockout Valve

Call for price

Parker P32VB93LBNN heavy-duty, modular ball valve is designed for rapid pneumatic system isolation. This 3/8″ NPT shut-off valve features a dedicated lockout/tagout (LOTO) slide, ensuring full compliance with OSHA safety standards during equipment maintenance. With a high flow capacity of 190.7 SCFM and a robust aluminum body, it provides reliable pressure relief by exhausting downstream air when closed.

Product Inquiry

Description

The Parker P32VB93LBNN (part of the Global Air Preparation System) is a critical safety component for any CNC or industrial pneumatic circuit. This 2-way, 3-port valve is designed to block inlet pressure and simultaneously exhaust downstream air through a dedicated 1/4″ exhaust port. This “quick-dump” capability ensures that no residual energy remains in the system during service.

Engineering Advantages

OSHA Compliance: The integrated padlock slide allows the valve to be locked exclusively in the “Closed” position, preventing accidental re-pressurization.
Modular Design: Part of the P32 series, it easily connects to other Global FRL (Filter, Regulator, Lubricator) units using standard modular connectors.
Durable Construction: Built with an aluminum housing and a stainless steel or chrome-plated brass ball, it is rated for extreme temperatures ranging from -40°F to 176°F.
Full Flow Efficiency: Despite its compact 60mm body size, the P32VB93LBNN supports a high flow rate of 190.7 SCFM (at 90 PSIG), minimizing pressure drop in your main air lines.
