QE-1F 8/12 24 63F NC CB BT Hiteco Spindle Motor
QE-1F 8/12 24 63F NC CB BT Hiteco spindle motor, Powertech 300, ATC, 11 hp / 8 kW, 12-24,000 RPM, fan-cooled, HSK 63F, short nose, 220/380 V.
Description

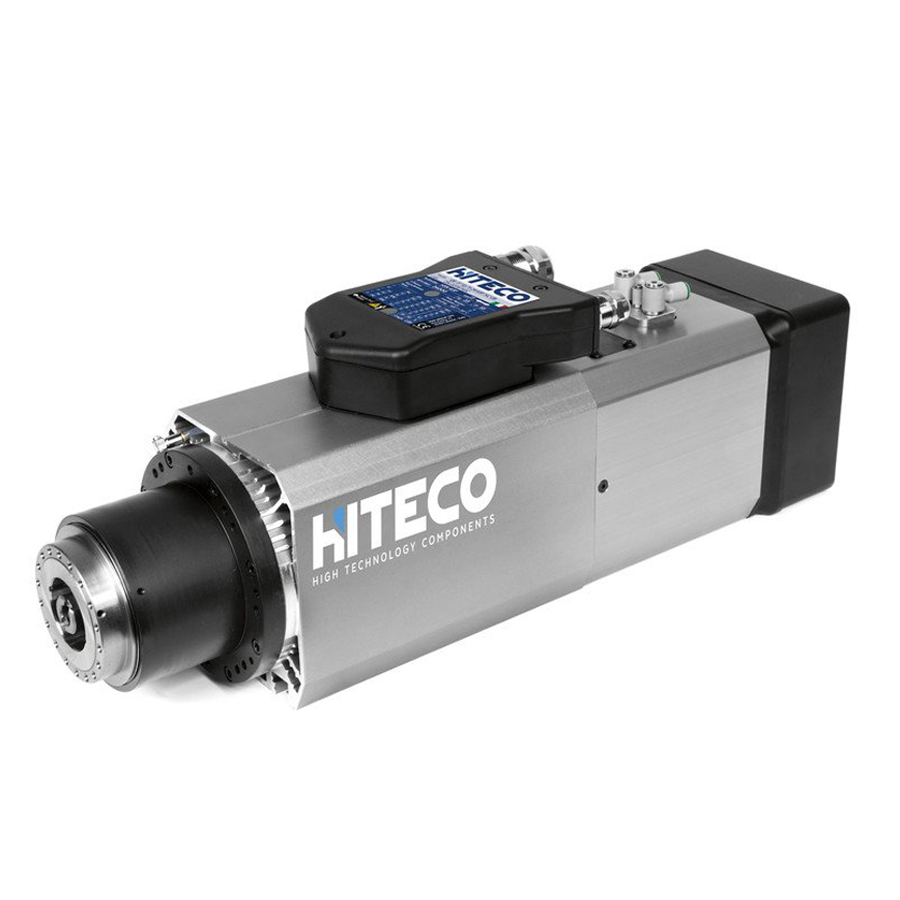

QE-1F 8/12 24 63F NC CB BT Hiteco spindle motor is an asynchronous 4-pole ATC electrospindle from Hiteco Powertech 300 series.
QE-1F 8/12 24 63F NC CB BT Hiteco Motor Specifications
- Power:
- 11 hp / 8 kW (S1 continuous)
- 12.7 hp / 9.5 kW (S6)
- Speed:
- 12,000 RPM rated speed
- 24,000 RPM max speed
- Tool Change: Automatic tool change with quick release push button for manual tool change
- Tool Interface: HSK 63F tool taper, short nose
- Cooling: Electric fan
- Bearings: ceramic ball bearings
- Voltage: 220 V or 380 V
Additional information
| Condition | New |
|---|---|
| Manufacturer | Hiteco |
| Model | Powertech 300, QE-1F |
| Manufacturer Part Number | QE.300.A04.01, QE-1F 8/12 24 63F NC CB BT, QE-1F 8/12 24 63F |
| Maximum Output Frequency (Hz) | 400, 800 |
| Poles | 4 |
| Current (Amps) | 15, 27 |
| Country/Region of Manufacture | Italy |
