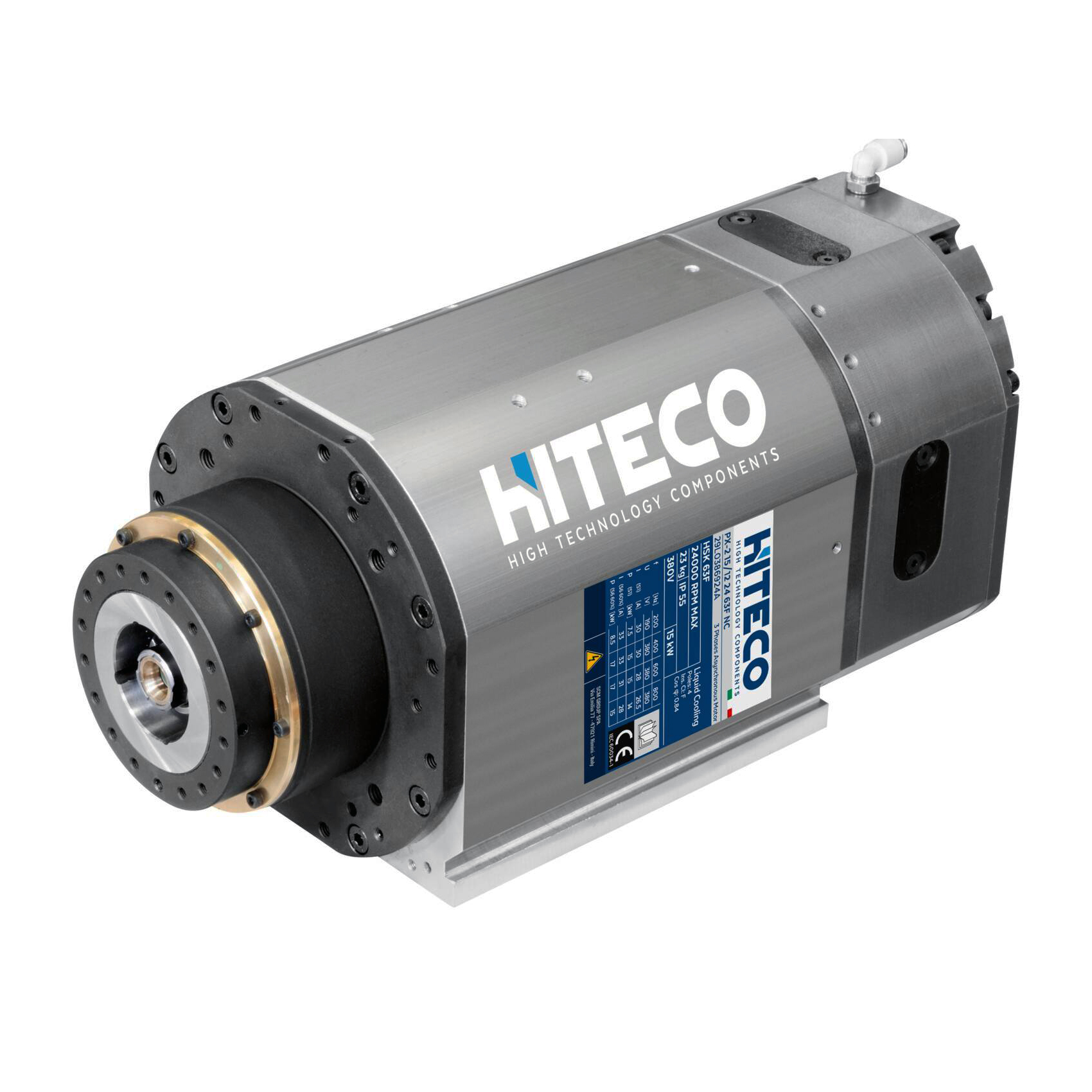

Hiteco PX-2 15/12 24 63F NC OQ Spindle Motor
Hiteco PX-2 15/12 24 63F NC OQ spindle motor, ATC, HSK 63F, short nose, liquid cooled, 24,000 RPM, 4-pole, 20 hp (15 kW), 380 V.
Description
Hiteco PX-2 15/12 24 63F NC OQ spindle motor.
Technical Specifications
- Model Series: Hiteco PX Series
- Model no.: PX-2 15/12 24 63F NC OQ
- Tool Change: Automatic Tool Change (ATC)
- Tool Interface: HSK 63F
- Spindle Nose: Short nose
- Cooling:Â Liquid-cooled
- Speed:
- Rated: 12,000 RPM
- Maximum: 24,000 RPM
- Frequency:
- Rated: 400 Hz
- Maximum: 800 Hz
- Pole Count: 4-pole
- Power:
- S1: 15 kW (20 hp)
- S6: 17 kW (22.8 hp)
- Voltage: 380 V
- Torque:
- S1: 11.9 Nm
- S6: 13.8 Nm
- Current:
- S1: 30 A
- S6: 33 A
Hiteco PX-2 15/12 24 63F NC OQ is equipped with Oil Mist / MQL (Minimum Quantity Lubrication) for improved precision.
Additional information
| Manufacturer | Hiteco |
|---|---|
| Rated Speed (RPM) | 12,000 |
| Rated Frequency (Hz) | 400 |
| Part Number (MPN) | PX-2 15/12 24 63F NC OQ |
| Maximum Speed (RPM) | 24,000 |
| Maximum Frequency (Hz) | 800 |
| Condition | New |
| Country/Region of Manufacture | Italy |
| Model Series |
Hiteco Spindle Motors for CNC Routers and Robots
Hiteco spindle motors are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.
