QD-1F 4/12 24 I30 NC CB BT Hiteco Spindle Motor
Hiteco ATC Spindle Motors

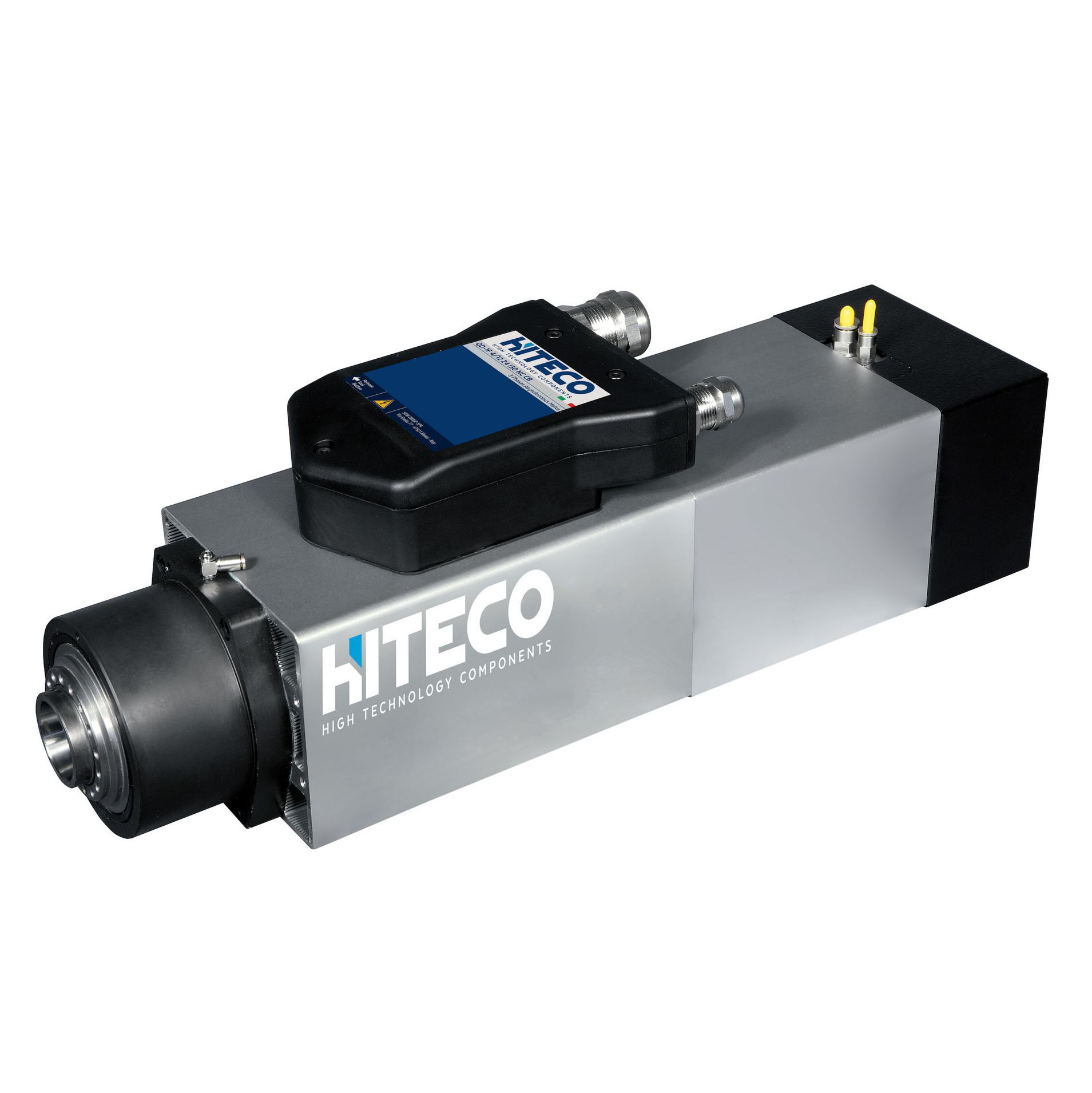

Hiteco QD-1F 4/12 24 I30 NC CB BT Spindle Motor

$5,000.00

Request A Quote Call To Order

Hiteco QD-1F 4/12 24 I30 NC CB BT Powertech 200 spindle motor, ATC, ISO 30, short nose, fan-cooled, 24,000 RPM max speed, 400-800 Hz, 4-pole, 5.5 hp (4 kW) max power, 220/380 V.

Only 1 left in stock

  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: QD-1F 4/12 24 I30 NC CB BT Categories: , , Tags: , , , Brand:

Description

Hiteco QD-1F 4/12 24 I30 NC CB BT spindle motor.

Technical Specifications

  • Series: Hiteco Powertech 200 series
  • Model no.: QD-1F 4/12 24 I30 NC CB BT
  • Tool Change: Automatic Tool Change (ATC) with quick release push button for manual tool change
  • Tool Taper: ISO 30
  • Spindle Nose: Short nose
  • Bearings: Ceramic ball bearings, grease lubricated for life
  • Cooling: Electric fan (24V DC)
  • Speed Range:
    • Rated: 12,000 RPM
    • Maximum: 24,000 RPM
  • Power @ 12,000 RPM:
    • S1: 5.5 hp (4 kW)
    • S6: 6 hp (4.5 kW)
  • Power @ 24,000 RPM:
    • S1: 4 hp (3 kW)
    • S6: 4.6 hp (3.4 kW)
  • Torque @ 12,000 RPM:
    • S1: 3.2 Nm
    • S6: 3.6 Nm
  • Torque @ 24,000 RPM:
    • S1: 1.4 Nm
    • S6: 1.2 Nm
  • Voltage: 220 V / 380 V (Dual voltage)
  • Pole Count: 4-pole
  • Sensors: Includes sensors for tool grip (S1), collet open (S2), and spindle rotation (S3)
  • Release Cylinder: Pneumatic double-action

Additional information

Manufacturer

Hiteco
Part Number (MPN)

QD-1F 4/12 24 I30 NC CB BT
Country/Region of Manufacture

Italy
Rated Speed (RPM)

12,000
Horsepower (hp)

5.5
Condition

New
Maximum Speed (RPM)

24,000
Kilowatt (kW)

4
Rated Frequency (Hz)

400
Model Series

Maximum Frequency (Hz)

800
Tool Change

QD-1F 4/12 24 I30 NC CB BT Technical Data SheetDownload

You may also like…

Hiteco Spindle Motors for CNC Routers and Robots

Hiteco spindle motors are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.
