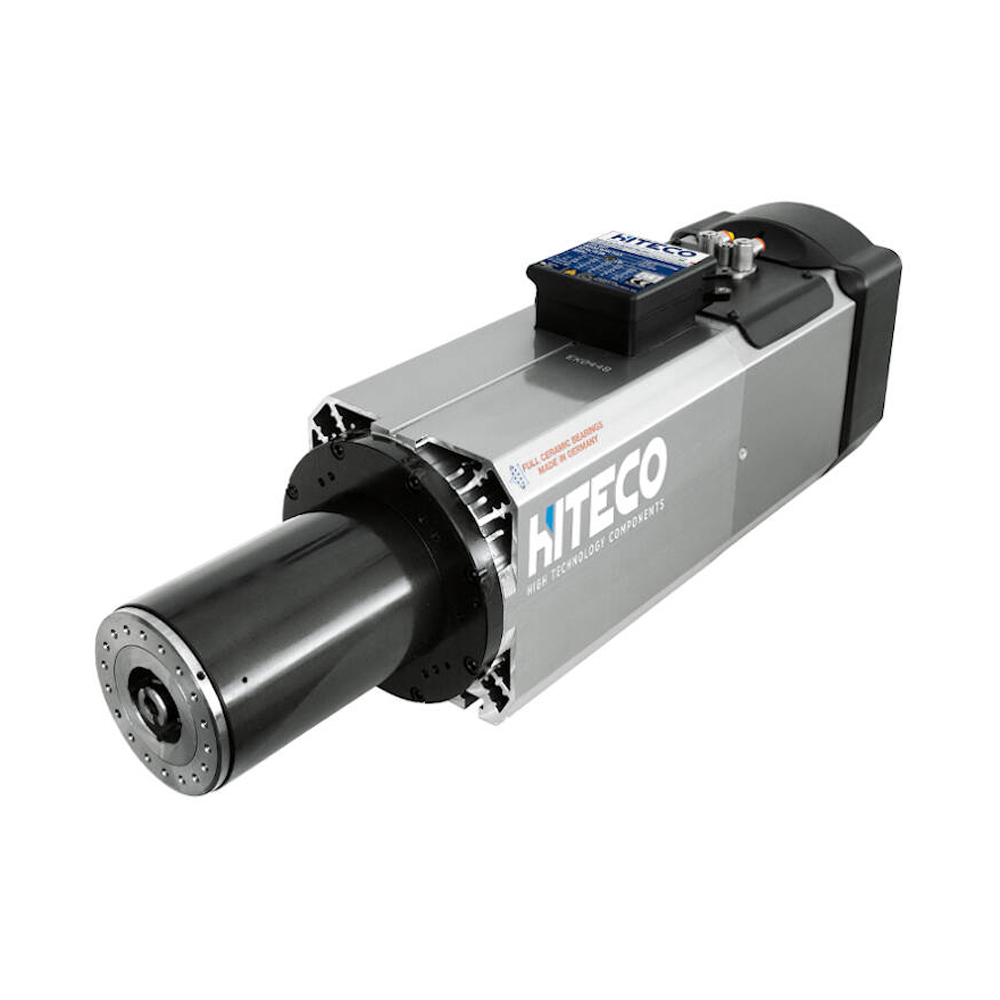

Hiteco QE-1F 10/11 24 63F NL CB Spindle Motor
Hiteco QE-1F 10/11 24 63F NL CB Powertech 400 spindle motor, ATC, HSK 63F, long nose, fan-cooled, 24,000 RPM, 800 Hz, 4-pole, 13.4 hp (10 kW), 380 V.
Description
Hiteco QE-1F 10/11 24 63F NL CB spindle motor.
Technical Specifications
- Model Series: Hiteco Powertech 400 Series
- Model no.:Â QE-1F 10/11 24 63F NL CB
- Tool Change:Â Automatic Tool Change (ATC) with quick release push button for manual tool change
- Tool Interface: HSK 63F tool taper
- Spindle Nose: Long nose
- Bearings: Ceramic ball bearings
- Cooling:Â Electric fan (24V DC)
- Speed:
- Rated:Â 12,000 RPM
- Maximum:Â 24,000 RPM
- Output Frequency:
- Rated:Â 400 Hz
- Maximum:Â 800 Hz
- Pole Count:Â 4-pole
- Power: 13.4 hp (10 kW)
- Voltage:Â 380 V
Additional information
| Model Series | |
|---|---|
| Rated Speed (RPM) | 11,000 |
| Maximum Frequency (Hz) | 800 |
| Condition | New |
| Maximum Speed (RPM) | 24,000 |
| Tool Change | |
| Country/Region of Manufacture | Italy |
| Part Number (MPN) | QE-1F 10/11 24 63F NL CB, QE-1F 10/11 24 63F |
