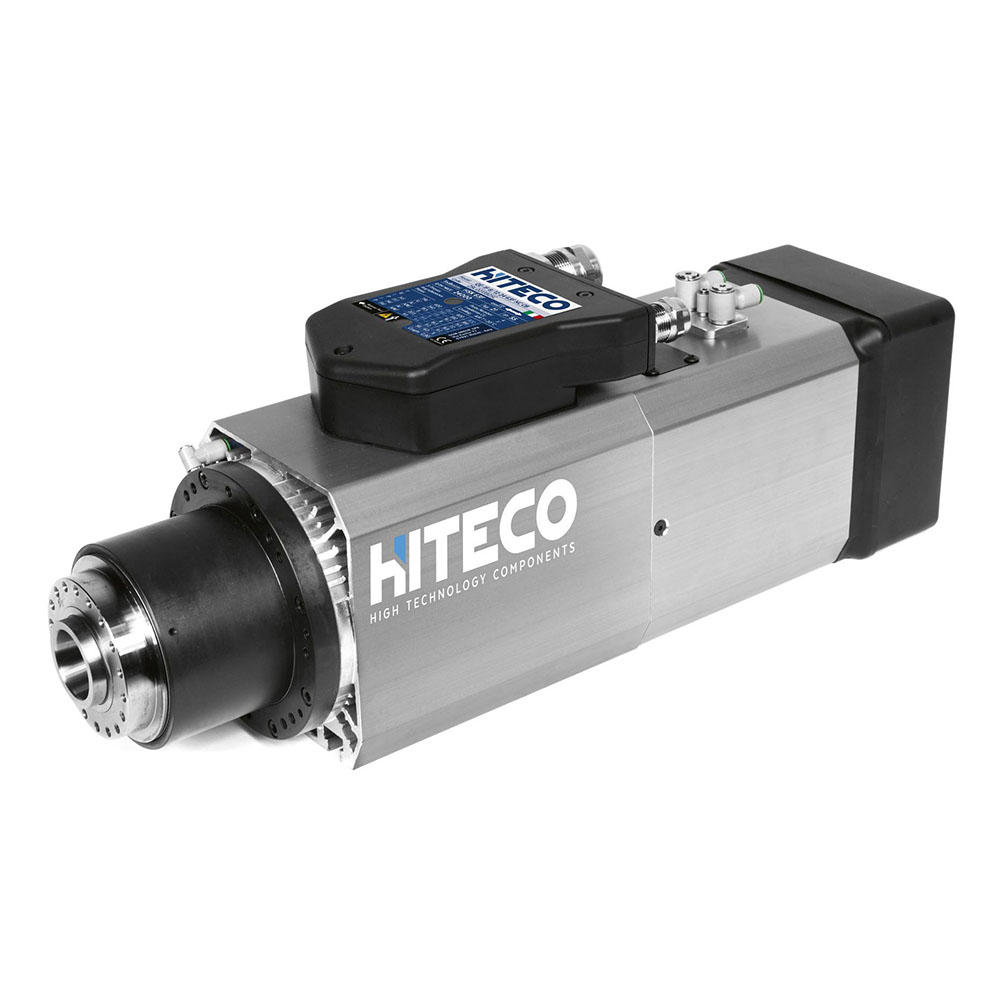

QE-1F 6.6/12 24 I30 NC CB Hiteco Spindle Motor
Hiteco ATC Spindle Motors

QE-1F 6.6/12 24 I30 NC CB Hiteco Spindle Motor

$6,100.00

QE-1F 6.6/12 24 I30 NC CB Hiteco Powertech 300 spindle motor, ATC, ISO 30, short nose, fan-cooled, 24,000 RPM, 800 Hz, 4-pole, 9 hp (6.6 kW), 380 V.

Call to order

Frequently Bought Together

Hiteco

826-110-C01 Hiteco Compressed Air Kit Modification

826-110-C01 Factory installed Hiteco compressed air kit modification for 110 frame Hiteco spindle motors. 5 CFM. *Allow 7 day lead time for assembly.

Temporarily unavailable

Product Inquiry
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: QE-1F 6.6/12 24 I30 NC CB Categories: , , Tags: , Brand:

Description

QE-1F 6.6/12 24 I30 NC CB Hiteco spindle motor.

QE-1F 6.6/12 24 I30 NC CB Hiteco Spindle Motor Specifications

  • Model Series: Hiteco Powertech 300 Series
  • Tool Change: Automatic Tool Change (ATC) with quick release push button for manual tool change
  • Tool Interface: ISO 30 tool taper
  • Spindle Nose: Short nose
  • Bearings: Ceramic ball bearings
  • Cooling: Electric fan (24V DC)
  • Speed:
    • Rated: 12,000 RPM
    • Maximum: 24,000 RPM
  • Output Frequency:
    • Rated: 400 Hz
    • Maximum: 800 Hz
  • Pole Count: 4-pole
  • Power: 9 hp / 6.6 kW (S1)
  • Voltage: 380 V

Additional information

Model Series

Tool Change

Current (Amps)

14.5
Manufacturer Part Number

QE-1F 6.6/12 24 I30 NC CB, QE.300.A00.01, QE-1F 6.6/12 24 I30
Spindle Nose

Short Nose
