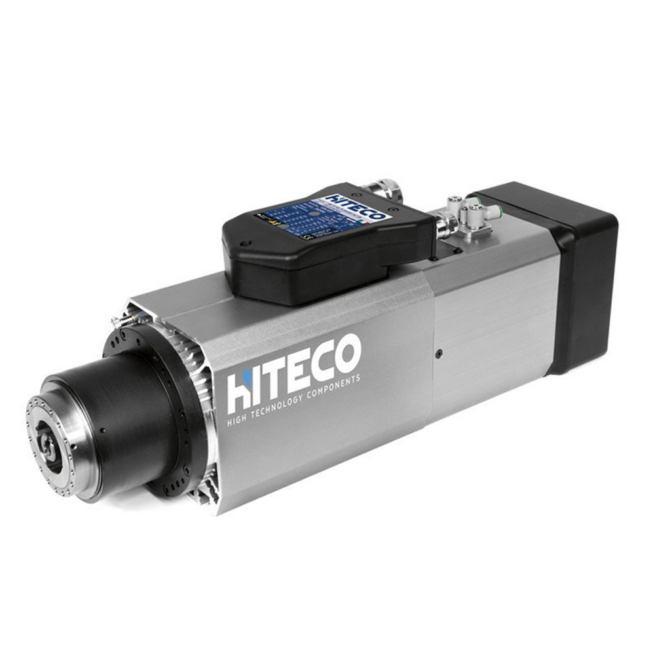

QE-1F 8/12 24 63F NC CB BT Hiteco Spindle Motor
$6,790.00
QE-1F 8/12 24 63F NC CB BT Hiteco Powertech 300 spindle motor, ATC, HSK 63F, short nose, fan-cooled, 24,000 RPM, 800 Hz, 4-pole, 11 hp (8.2 kW), 220/380 V.
Only 1 left in stock
Description
QE-1F 8/12 24 63F NC CB BT Hiteco spindle motor.
Technical Specifications
- Model Series: Hiteco Powertech 300 Series
- Model no.: QE-1F 8/12 24 63F NC CB BT
- Tool Change: Automatic Tool Change (ATC) with quick release push button for manual tool change
- Tool Interface: HSK 63F tool taper
- Spindle Nose: Short nose
- Bearings: Ceramic ball bearings
- Cooling: Electric fan
- Speed Range:
- Rated: 12,000 RPM
- Maximum: 24,000 RPM
- Max Power @ 12,000 RPM:
- S1: 11 hp (8 kW)
- S6: 12.7 hp (9.5 kW)
- Standard Power @ 24,000 RPM:
- S1: 11 hp (8 kW)
- S6: 11.4 hp (8.5 kW)
- Current:
- Current @ S1 Power:
- 15 Amps (380 V)
- 27 Amps (220 V)
- Current @ S6 Power:
- 18 A (380V)
- 30 A (220V)
- Current @ S1 Power:
- Voltage: 220 V or 380 V (Dual Voltage)
- Pole Count: 4-pole
Additional information
| Condition | New |
|---|---|
| Model Series | |
| Manufacturer | Hiteco |
| Part Number (MPN) | QE.300.A04.01, QE-1F 8/12 24 63F NC CB BT, QE-1F 8/12 24 63F |
| Tool Change | |
| Country/Region of Manufacture | Italy |
Hiteco Spindle Motors for CNC Routers and Robots
Hiteco spindle motors are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.
