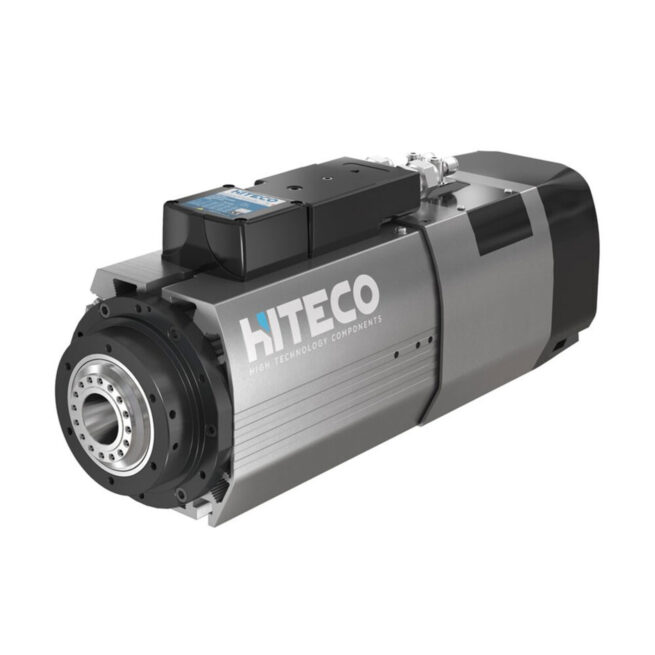

UE‐1F 8/12 24 I30 CH BT Hiteco Spindle Motor
UE-1F 8/12 24 I30 CH BT Hiteco Ultratech spindle motor, ISO 30, short nose, fan-cooled, 24,000 RPM, 800 Hz, 4-pole, 11 hp (8.2 kW), 230/380 V.
Description
Hiteco UE-1F 8/12 24 I30 CH BT high-performance 11 HP (8.2 kW) Ultratech series spindle is engineered for high-speed CNC routing. Featuring an ISO 30 taper and 24,000 RPM capability, it delivers industrial-grade precision for wood, plastic, and composites.
Technical Specifications
- Model Series: Hiteco Ultratech series
- Model no.: UE‐1F 8/12 24 I30 CH BT
- Tool Change: Automatic Tool Change (ATC)
- Tool Interface: ISO 30 tool taper
- Spindle Nose: Short nose
- Cooling: 220 V Electric fan
- Speed:
- Rated: 12,000 RPM
- Maximum: 24,000 RPM
- Output Frequency:
- Rated: 400 Hz
- Maximum: 800 Hz
- Pole Count: 4-pole
- Power: 11 hp (8.2 kW)
- Voltage: 230 V / 380 V (Dual voltage)
Additional information
| Manufacturer | Hiteco |
|---|---|
| Part Number (MPN) | UE‐1F 8/12 24 I30 CH BT, UE‐1F 8/12 24 I30 |
| Model Series | |
| Speed (RPM) | |
| Tool Holder | ISO 30 |
| Voltage (V) | |
| Tool Change | |
| Spindle Nose | Compact Short Nose |
| Cooling Method | Electric Fan |
| Condition | New |
| Country/Region of Manufacture | Italy |
