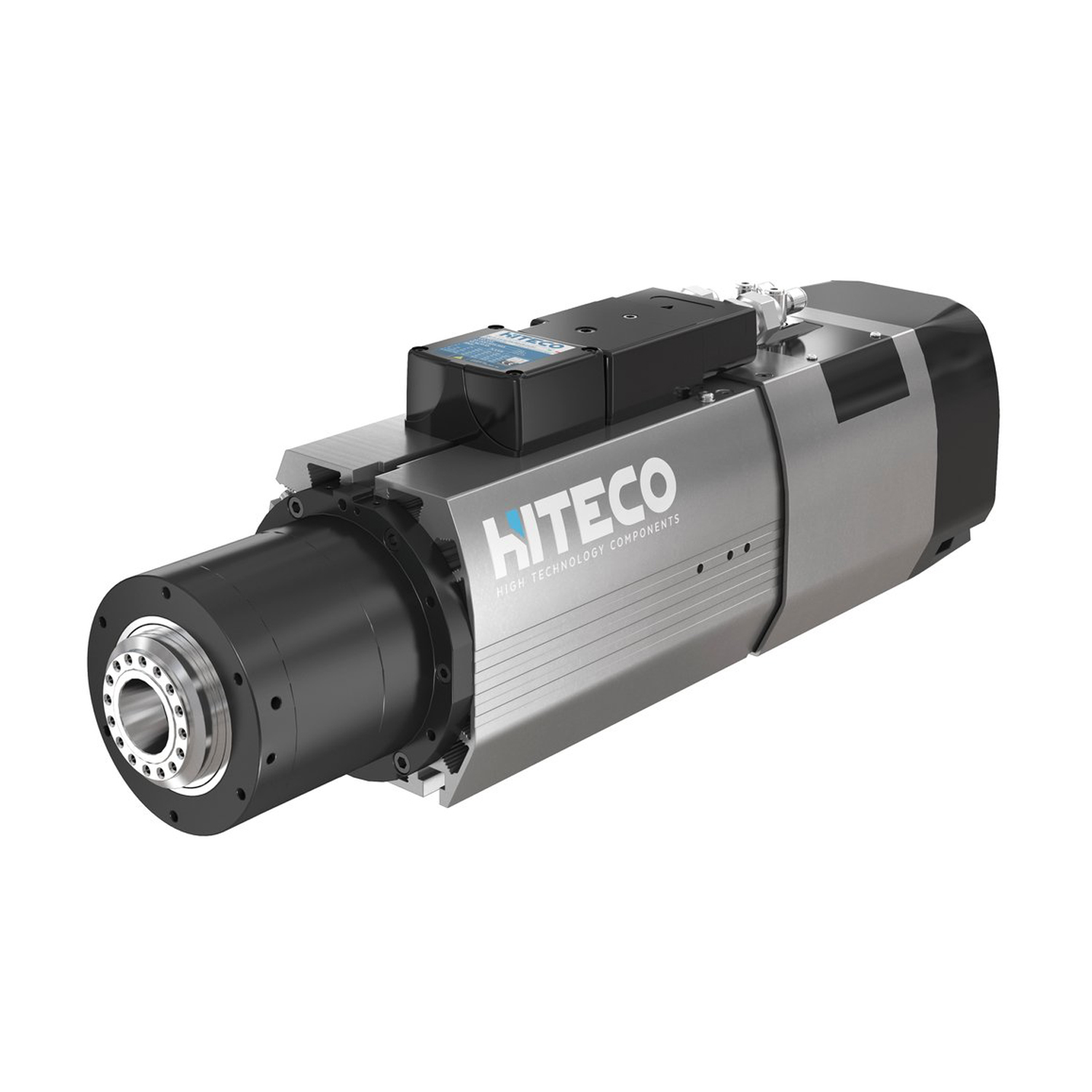

Hiteco UE‐1F 8/12 24 I30 LH BT Spindle Motor
Hiteco UE‐1F 8/12 24 I30 LH BT Ultratech spindle motor, ISO 30, long nose, fan-cooled, 24,000 RPM, 800 Hz, 4-pole, 11 hp (8.2 kW), 230/380 V.
Description
Hiteco UE‐1F 8/12 24 I30 LH BT spindle motor.
Technical Specifications
- Model Series: Hiteco Ultratech series
- Model no.: UE‐1F 8/12 24 I30 LH BT
- Tool Change: Automatic Tool Change (ATC)
- Tool Interface: ISO 30 tool taper
- Spindle Nose: Long nose
- Cooling: 220 V Electric fan
- Speed:
- Rated: 12,000 RPM
- Maximum: 24,000 RPM
- Output Frequency:
- Rated: 400 Hz
- Maximum: 800 Hz
- Pole Count: 4-pole
- Power: 11 hp (8.2 kW)
- Voltage: 230 V / 380 V (Dual voltage)
Additional information
| Manufacturer | Hiteco |
|---|---|
| Rated Speed (RPM) | 12,000 |
| Country/Region of Manufacture | Italy |
| Maximum Speed (RPM) | 24,000 |
| Part Number (MPN) | UE‐1F 8/12 24 I30 LH BT |
| Model Series | |
| Tool Holder | ISO 30 |
| Tool Change | |
| Cooling Method | Electric Fan-Cooled |
| Spindle Nose | Compact Long Nose |
| Poles | 4 |
| Rated Frequency (Hz) | 400 |
| Maximum Frequency (Hz) | 800 |
| Kilowatt (kW) | 8.2 |
| Horsepower (hp) | 11 |
| Voltage (V) | 230, 380 |
| Condition | New |
