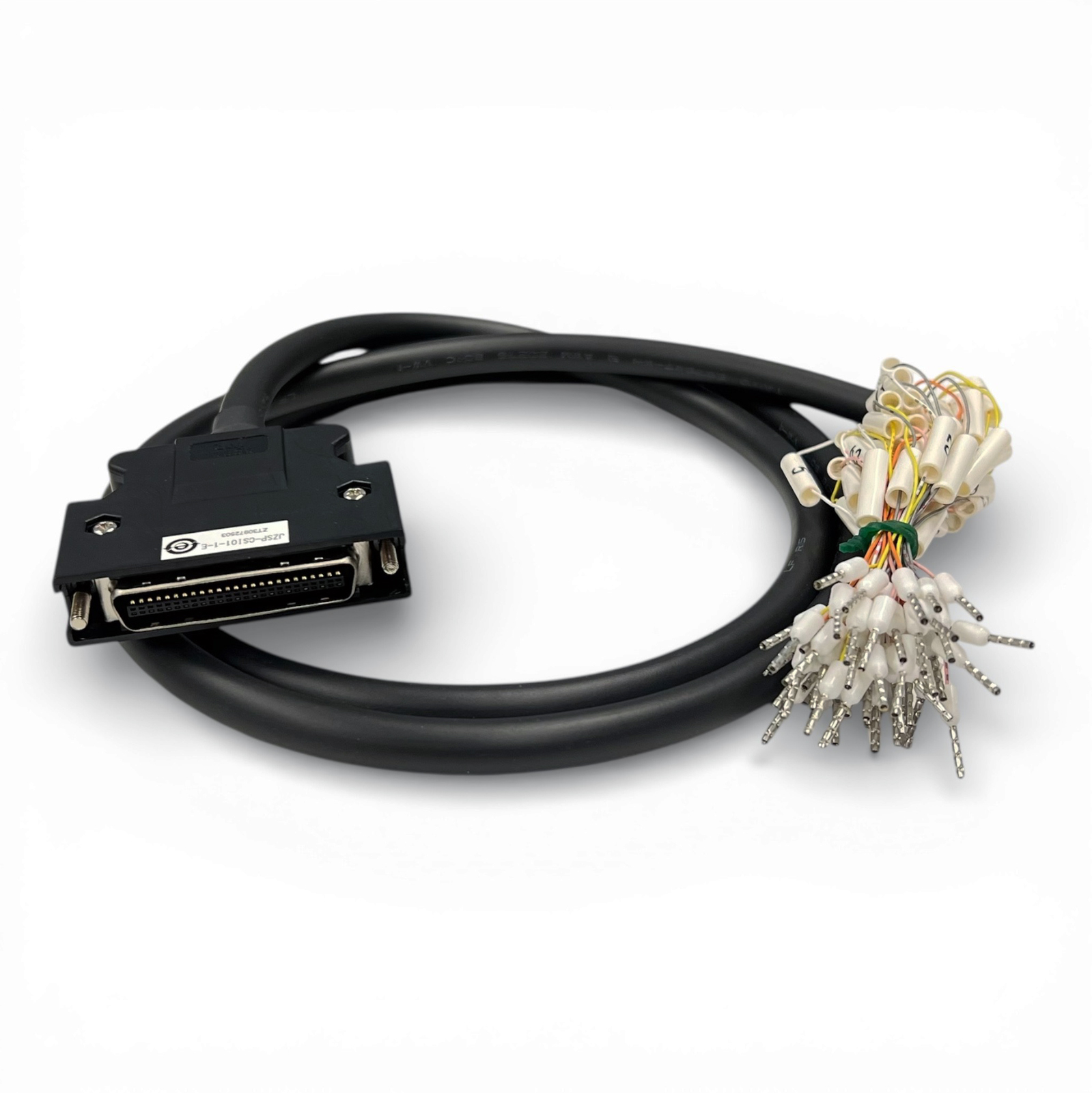

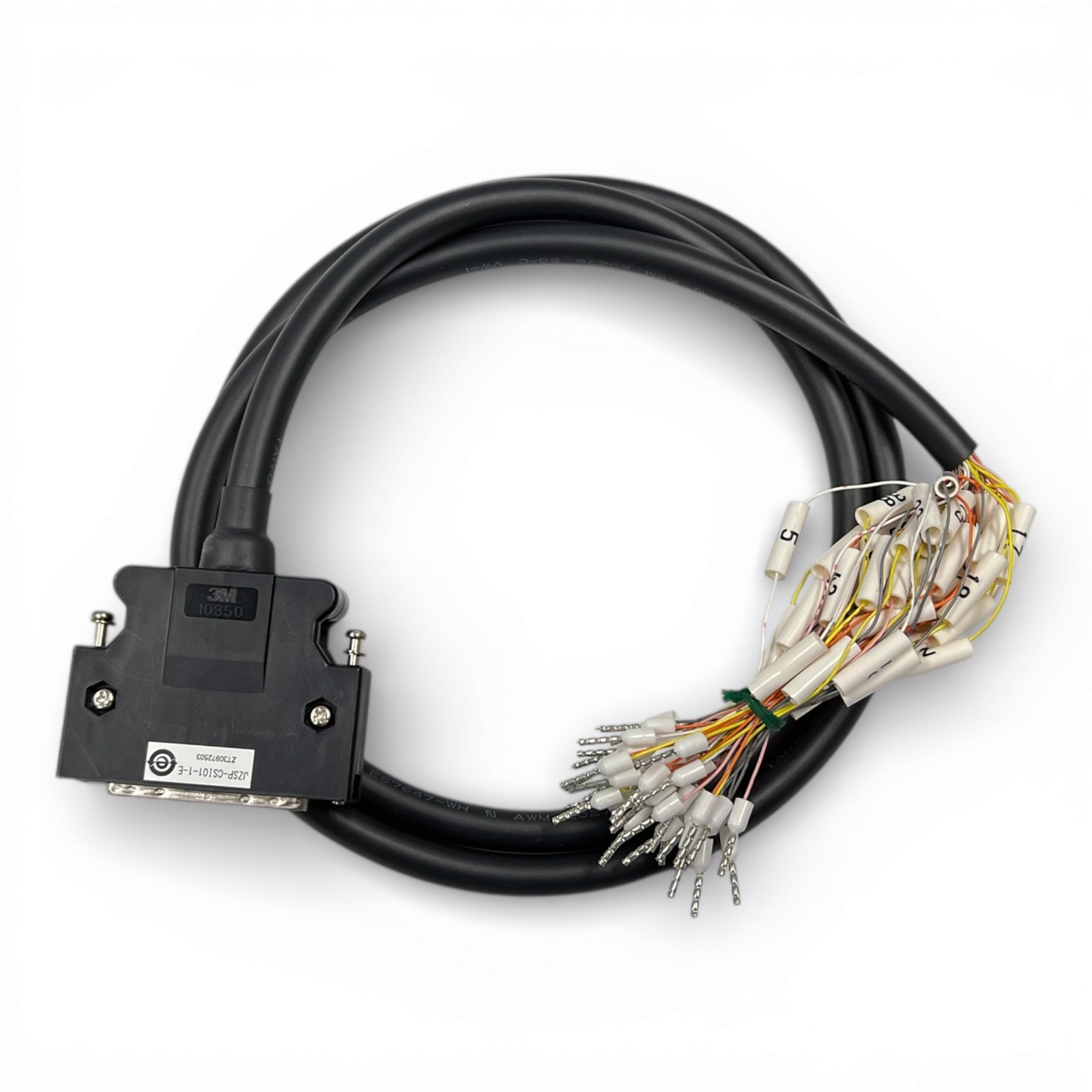

JZSP-CSI01-1-E Yaskawa I/O Signal Cable

Description

Yaskawa JZSP-CSI01-1-E is the standard interface solution for integrating Yaskawa AC Servo Drives into industrial control systems. It provides a reliable interface for pulse-train commands, analog voltage references, and discrete safety signals between your host controller and the servo drive.

Technical Specifications & Compatibility

This shielded cable is engineered to handle high-speed pulse strings and sensitive analog signals without data corruption or electrical noise interference.

• Model: JZSP-CSI01-1-E
• Function: CN1 I/O Signal Transmission
• Length: 1 Meter (3.28 ft)
• Connector Type: High-density SCSI-style (Drive side) to Flying Leads (Controller side)
• Compatibility: Sigma-5 (SGDV), Sigma-7 (SGD7S, SGD7W)
• Signal Support: Pulse train, Analog Voltage, DI/DO (Digital I/O)

This cable plugs directly into the CN1 port of the SERVOPACK and features flying leads (loose wires) at the peripheral end, allowing for flexible terminal block wiring or direct connection to a PLC (Programmable Logic Controller).
