Used DMS 5 Axis CNC Router E791 [SOLD]

SOLD: Used 5 axis CNC router, DMS, twin 2×3 aluminum shuttle tables, 30 in. stroke, HSD ES915 ATC spindle, 10-tool rack, Fagor 8055 CNC.

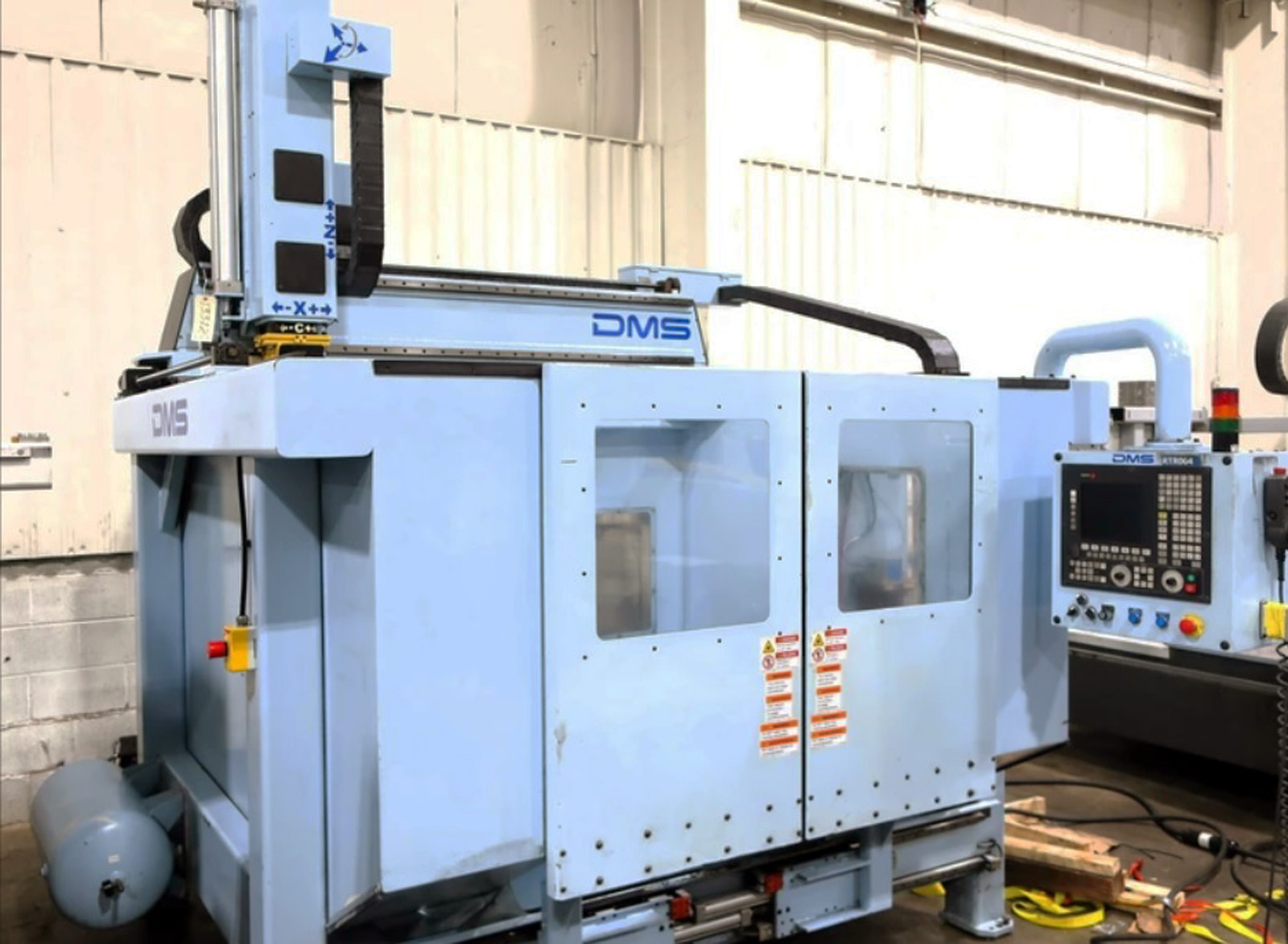

SOLD: DMS 5 axis CNC router fully equipped with twin 2 ft. x 3 ft. aluminum shuttle tables, 30 inches of Z axis stroke, a 4.6 kW HSD ES915A ATC spindle motor, and 10 position automatic tool change rack. Used CNC router machinery is controlled by a Fagor 8055 CNC system controller.

Used CNC Router Specifications

  • DMS CNC router model: 505i-2-3-30TCORLS
  • Trim center
  • 5-axis CNC machinery
  • Manufactured in 2013

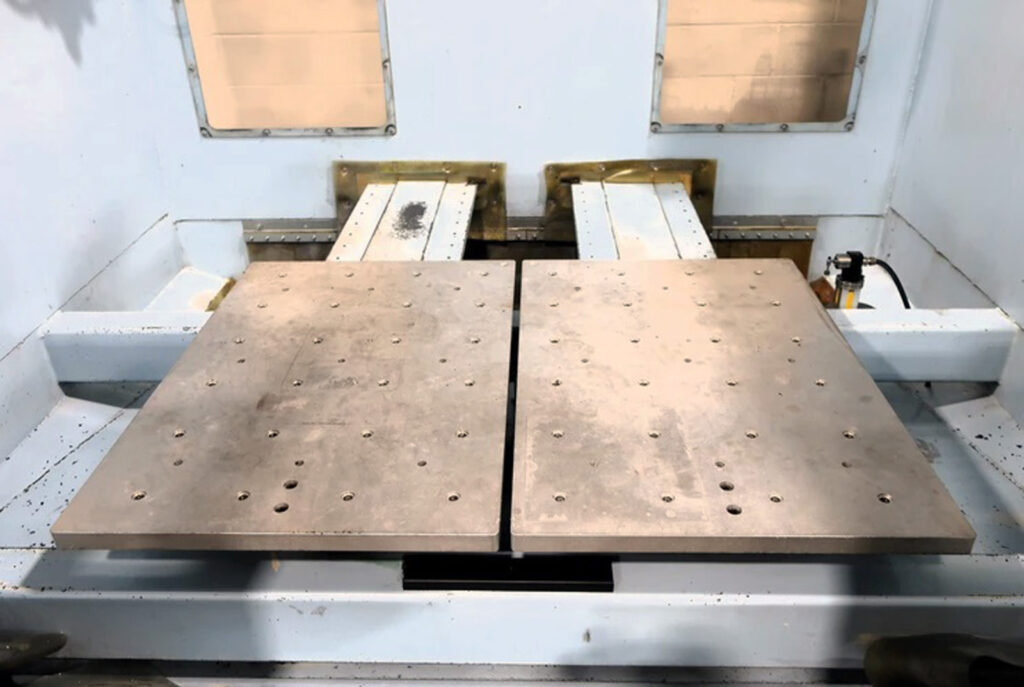

  • Twin 2 ft. x 3 ft. aluminum shuttle tables, with 3/8 inserts on 6″ centers
  • 30 inches of Z-axis stroke
  • DMS Compact Yoke

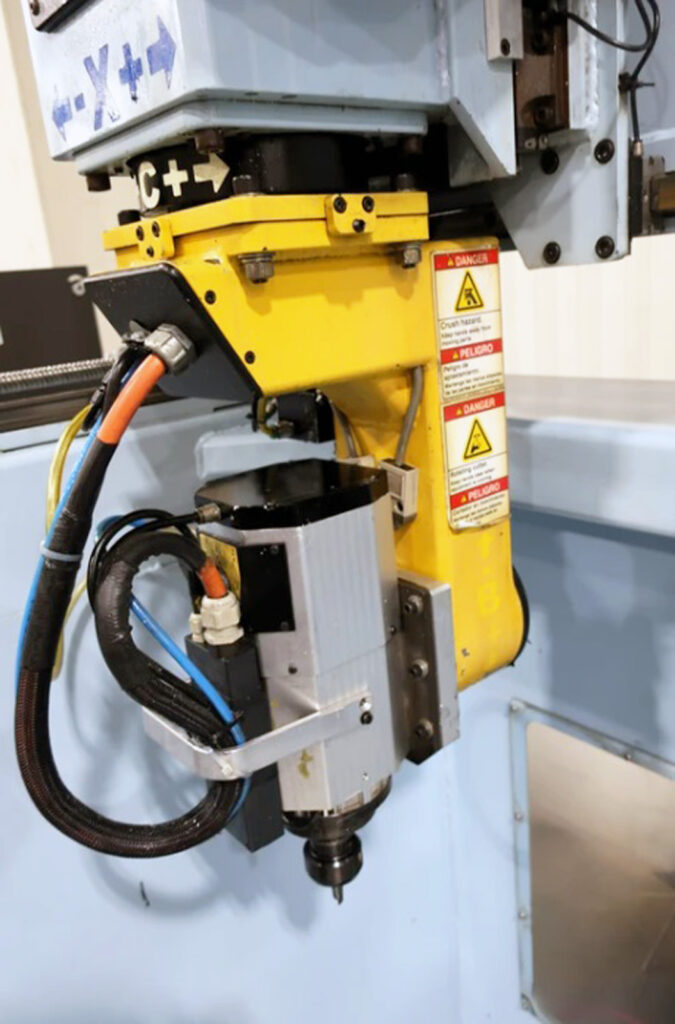

  • 4.6 kW HSD ES915 ATC Spindle
    • 24,000 Max RPM Speed

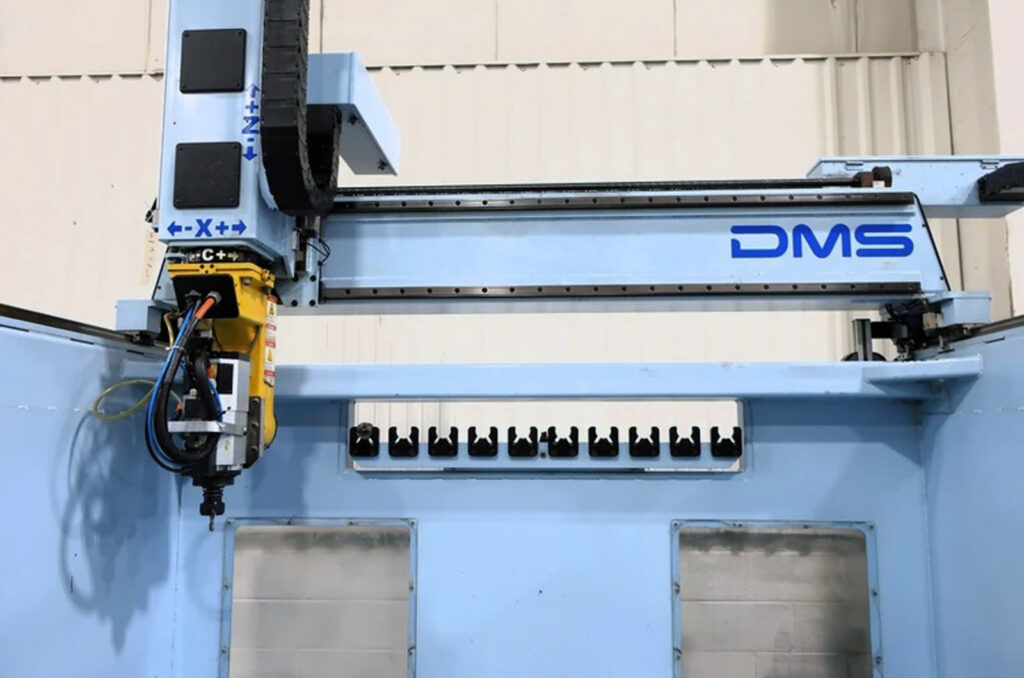

  • 10 position tool rack

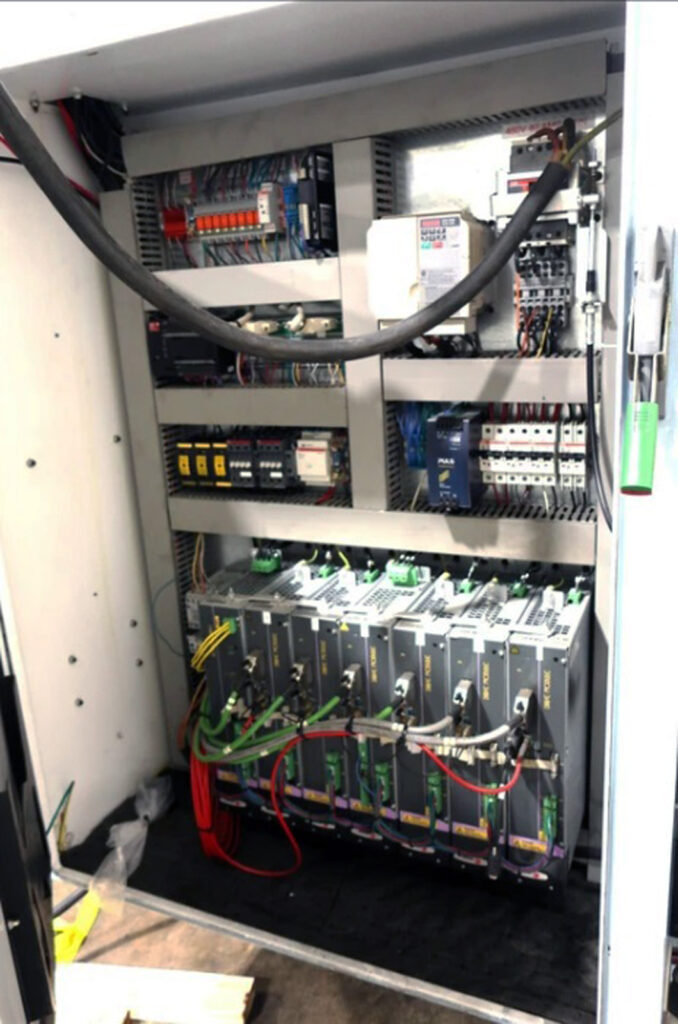

  • Fagor 8055 Power CNC system controller
    • Ethernet
    • .5 GB Compact Flash Card Hard Drive
    • TCP
    • Telediagnostics
    • AC drive System
  • Auto lube
  • Tool length setter
  • 460 V / 3 phase power requirements
  • CNCPD reference #E791

DMS CNC Router Axis Travels

  • C Axis: Continuous rotation with rollover at 360 degrees. Max rotational speed is 8,000 degrees per minute. Uses Cycloidal gear head with 109:1 reduction.
  • B Axis: Max rotational speed is 8,000 degrees per minute. Uses Cycloidal gear head with 105:1 reduction. Pivot point distance from top of table to the bottom of the Z is approx. 9 inches.
  • X Axis: 62″ – Max federate 1500 inches per minute
  • Y Axis: 60″ – Max federate 1500 inches per minute
  • Z Axis: 30″ – Max federate 800 inches per minute
