Motionmaster 3 Axis CNC Router 8×4 Moving Table [USED]
FOR SALE: Used Motionmaster 3 axis CNC router, 8×4 moving vacuum table, 6 in. stroke, 12 hp Colombo ATC spindle, Fagor 8037. #C797

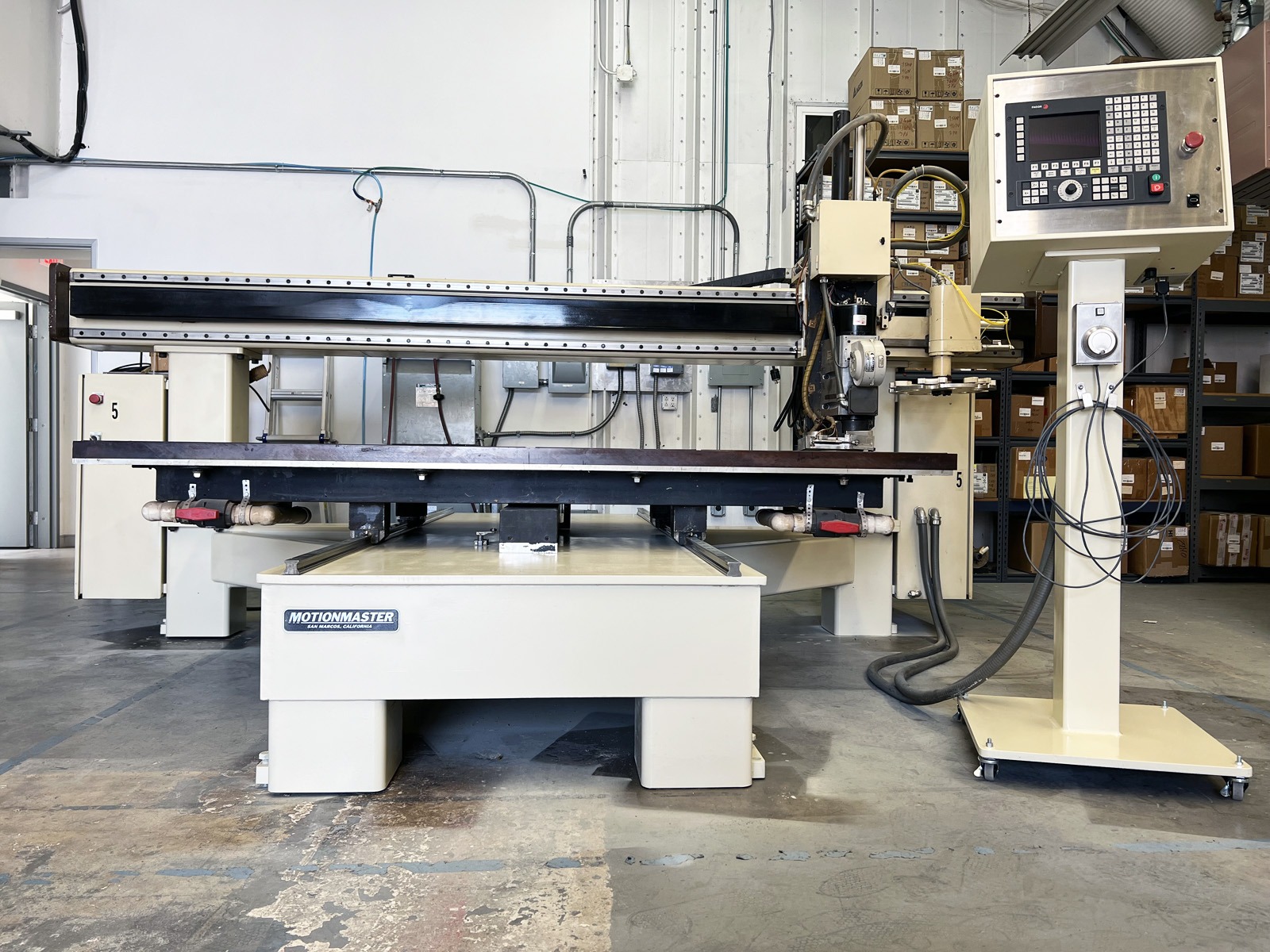

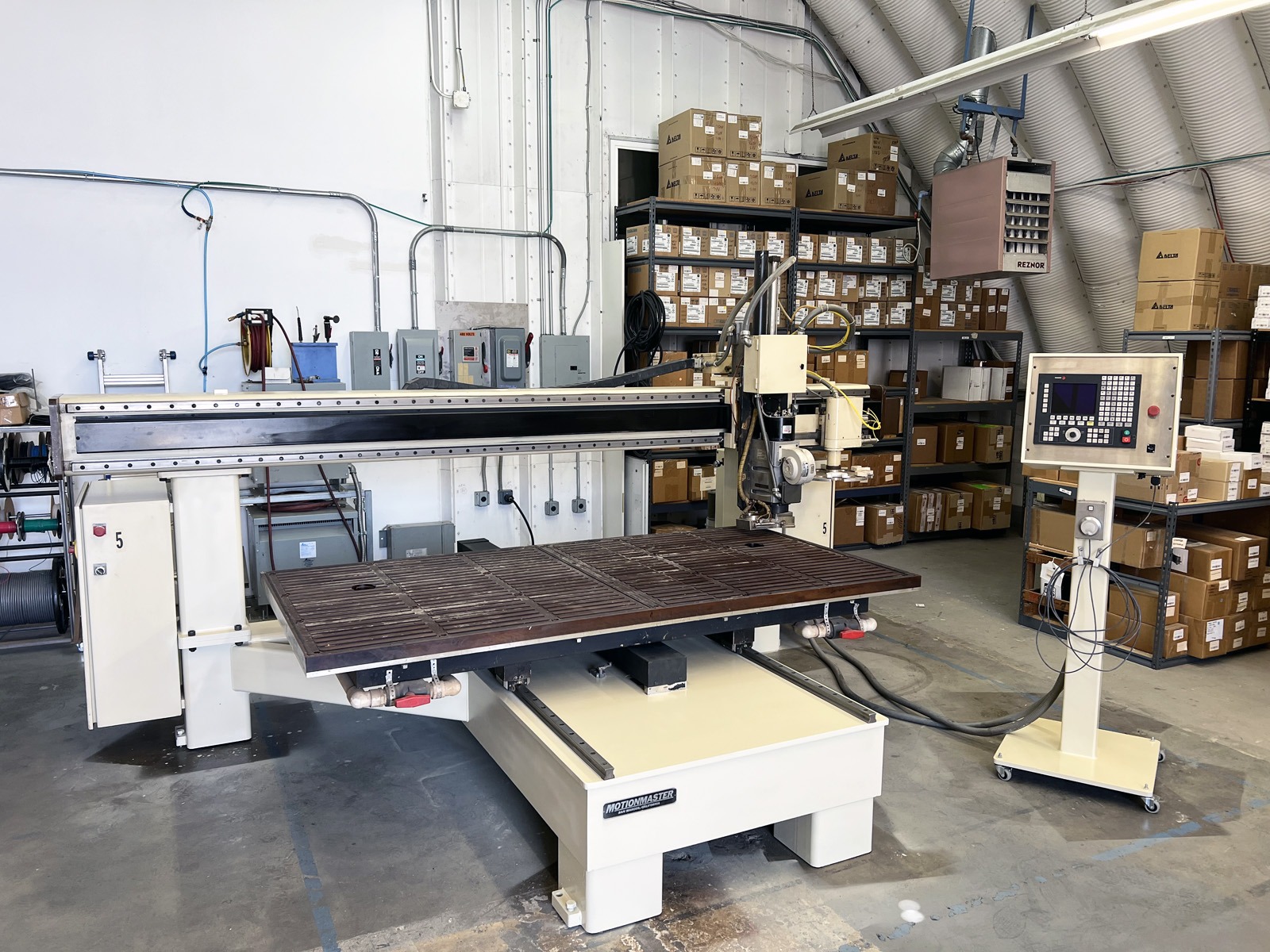

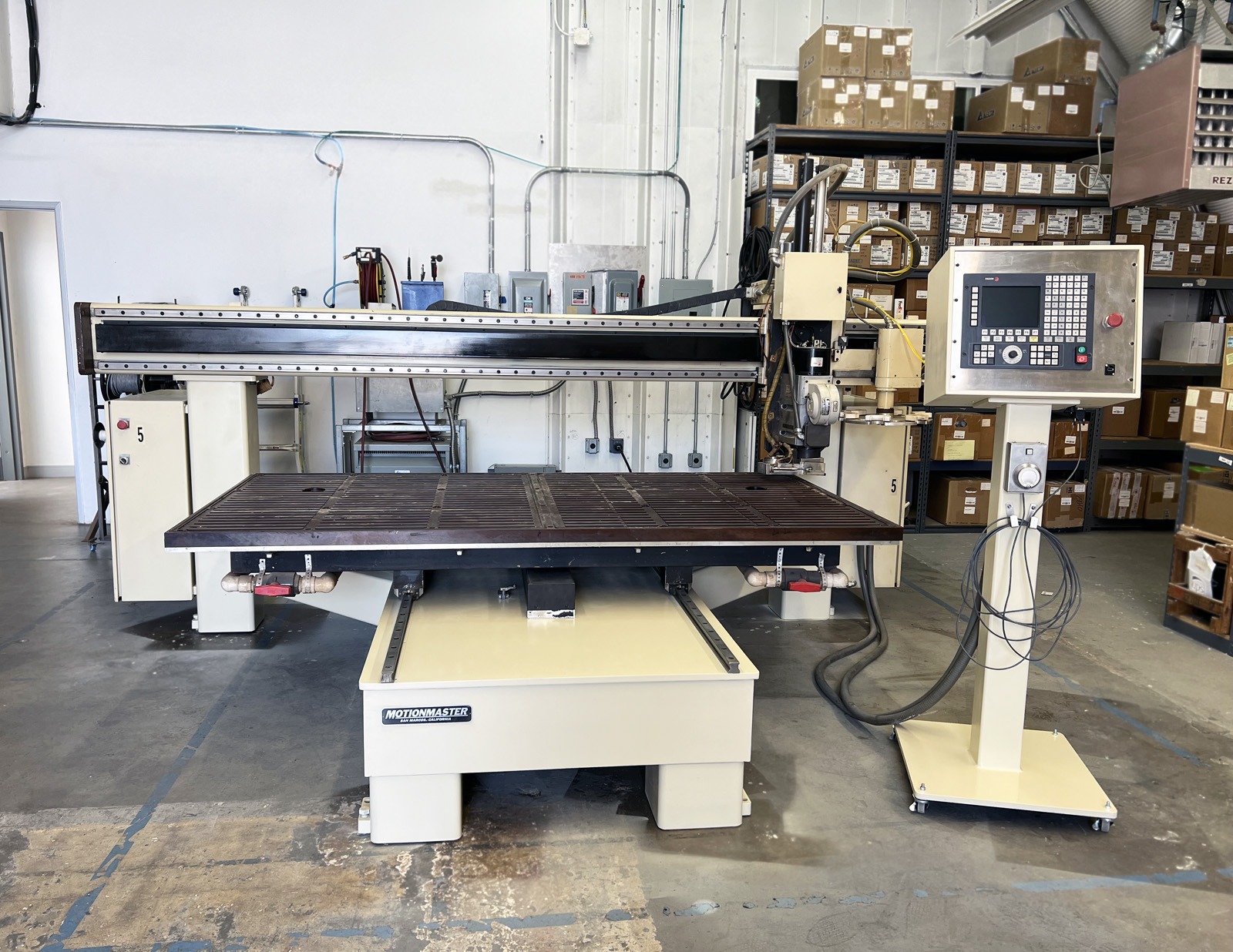

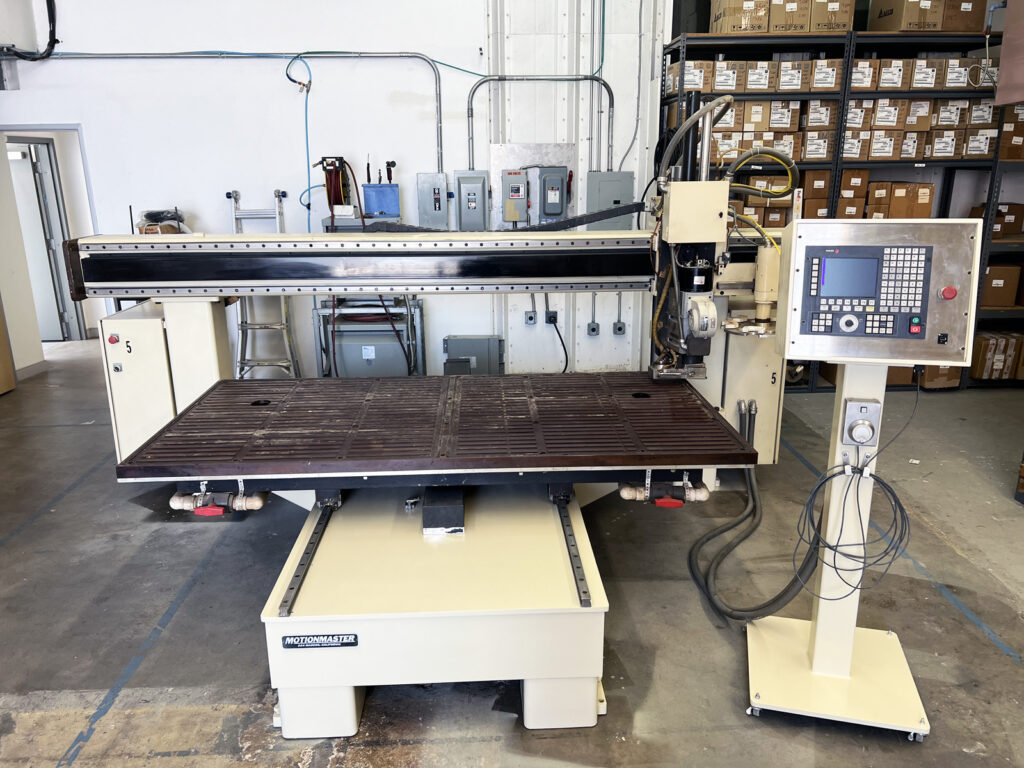

This used Motionmaster 3-axis CNC router for sale features a 8 ft. by 4 ft. moving vacuum table, 6 inches of stroke, 12 hp Colombo ATC spindle motor, and a 6-position automatic tool change carousel. CNC router machinery is controlled by a Fagor 8037 CNC system with remote hand wheel.
CNC machinery is under power and ready for demonstration in San Diego, California. It has been inspected and repaired by our experienced CNC router service technicians. This machine is refurbished with new wiring and pneumatic lines. View detailed specifications below and contact us for a quote today. (Reference #C797)
Video Demonstrations
Used CNC Router Machine Specifications
- Motionmaster CNC router
- 3 axis CNC machine

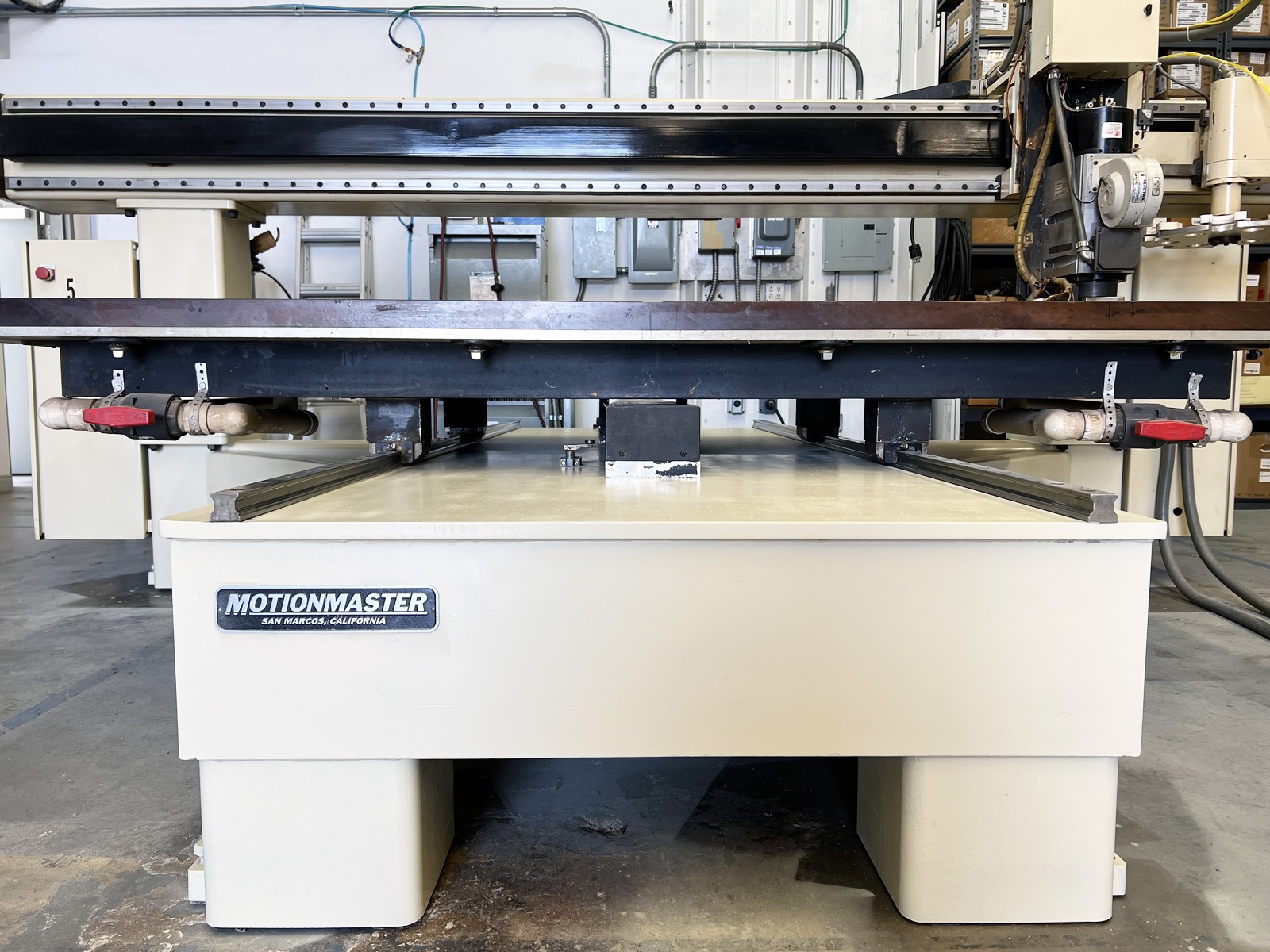

- 8 ft. x 4 ft. moving table (2-zone vacuum)
- 6 inches of Z-axis stroke

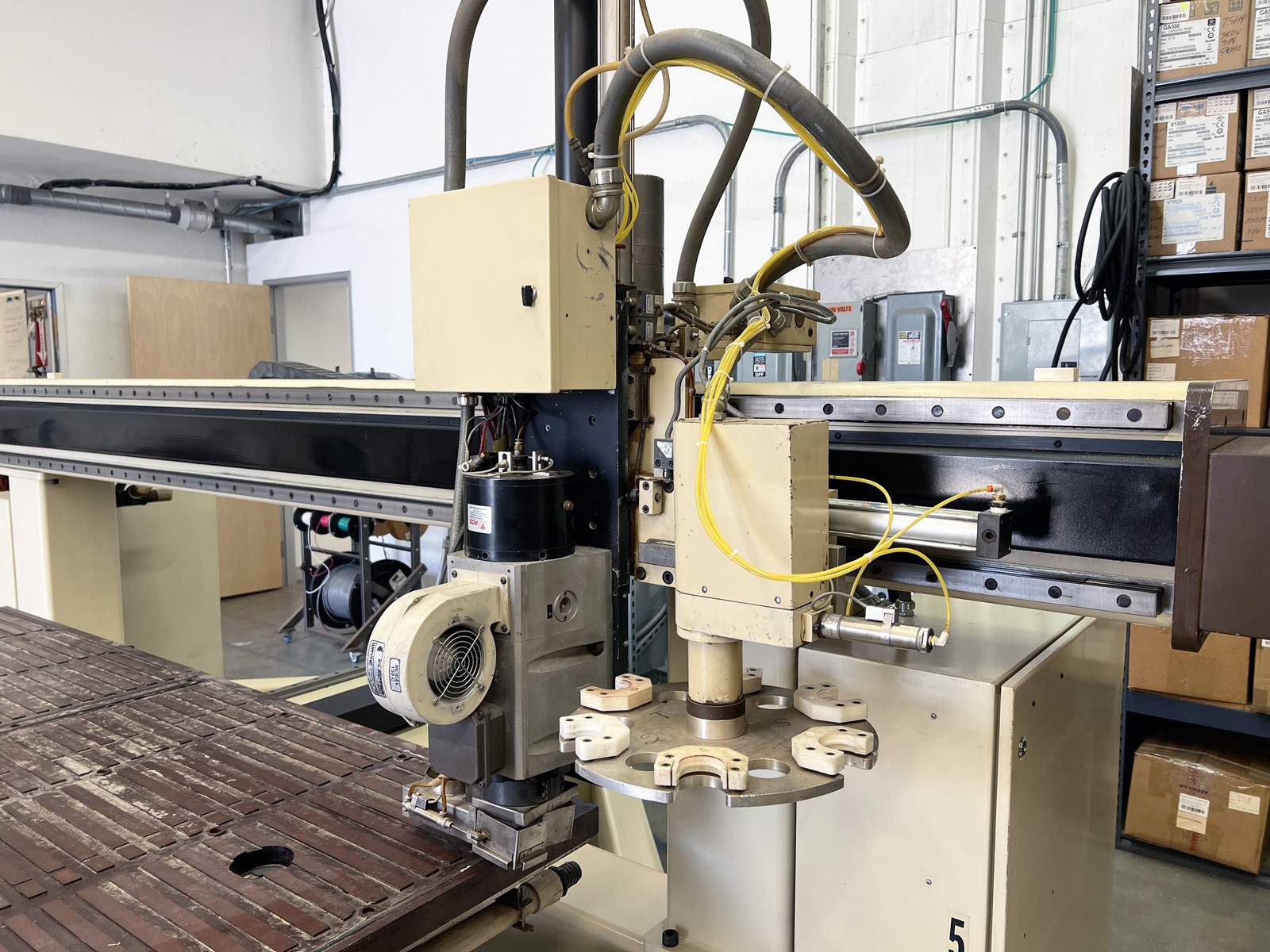

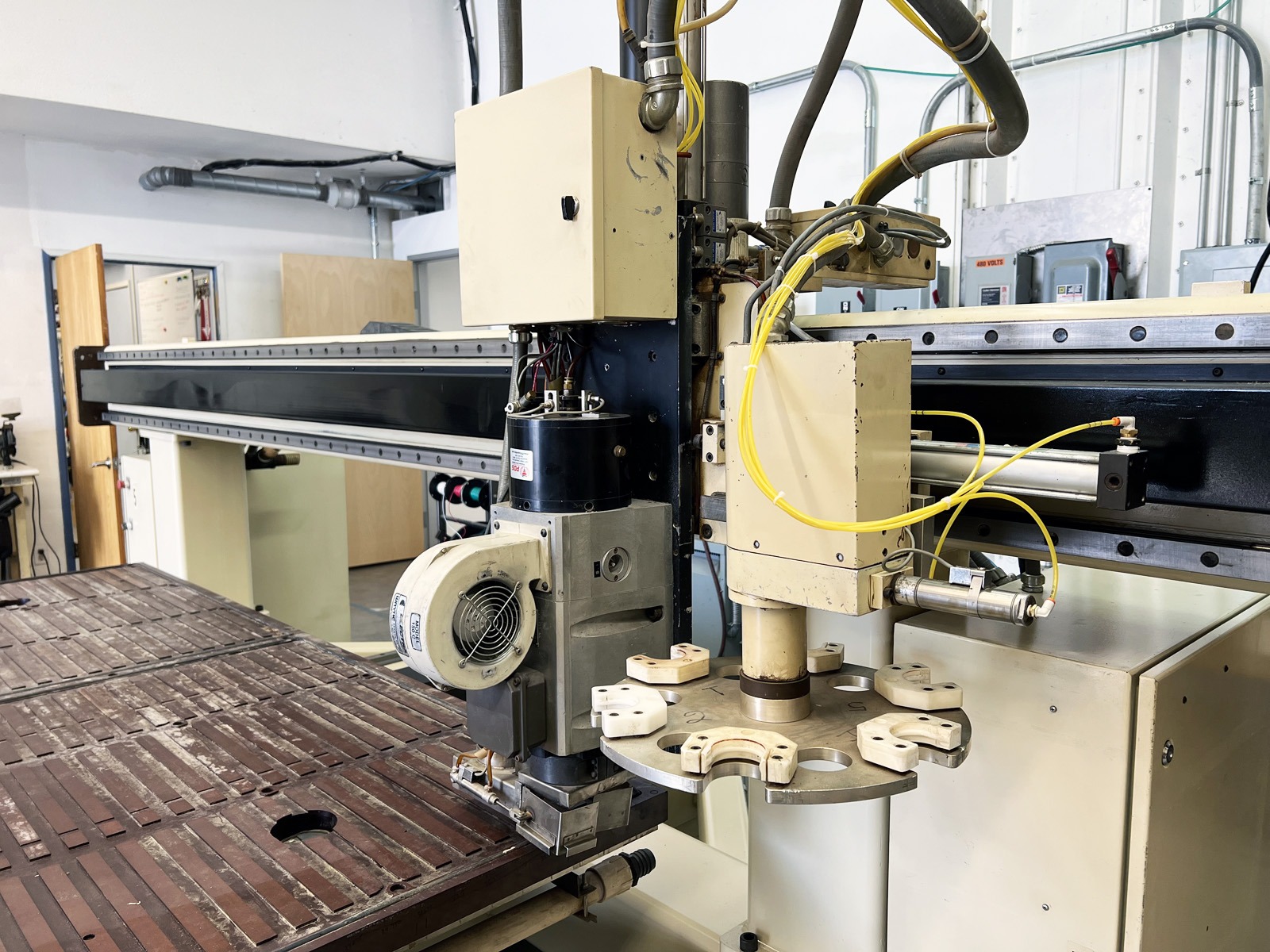

- 12 hp ATC Colombo spindle motor (18,000 RPM max speed)
- Dust collection hood
- 6 Position tool change carousel

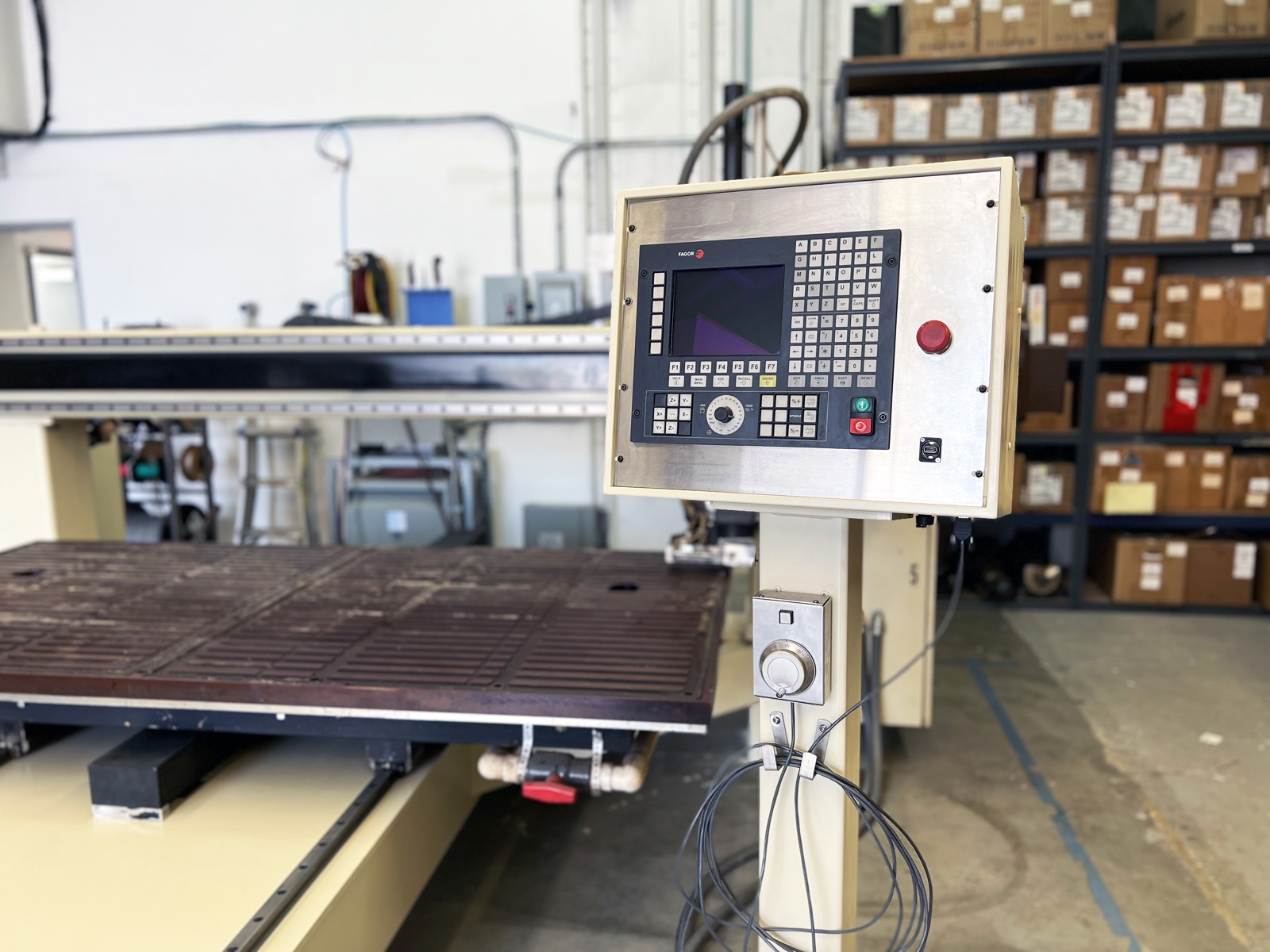

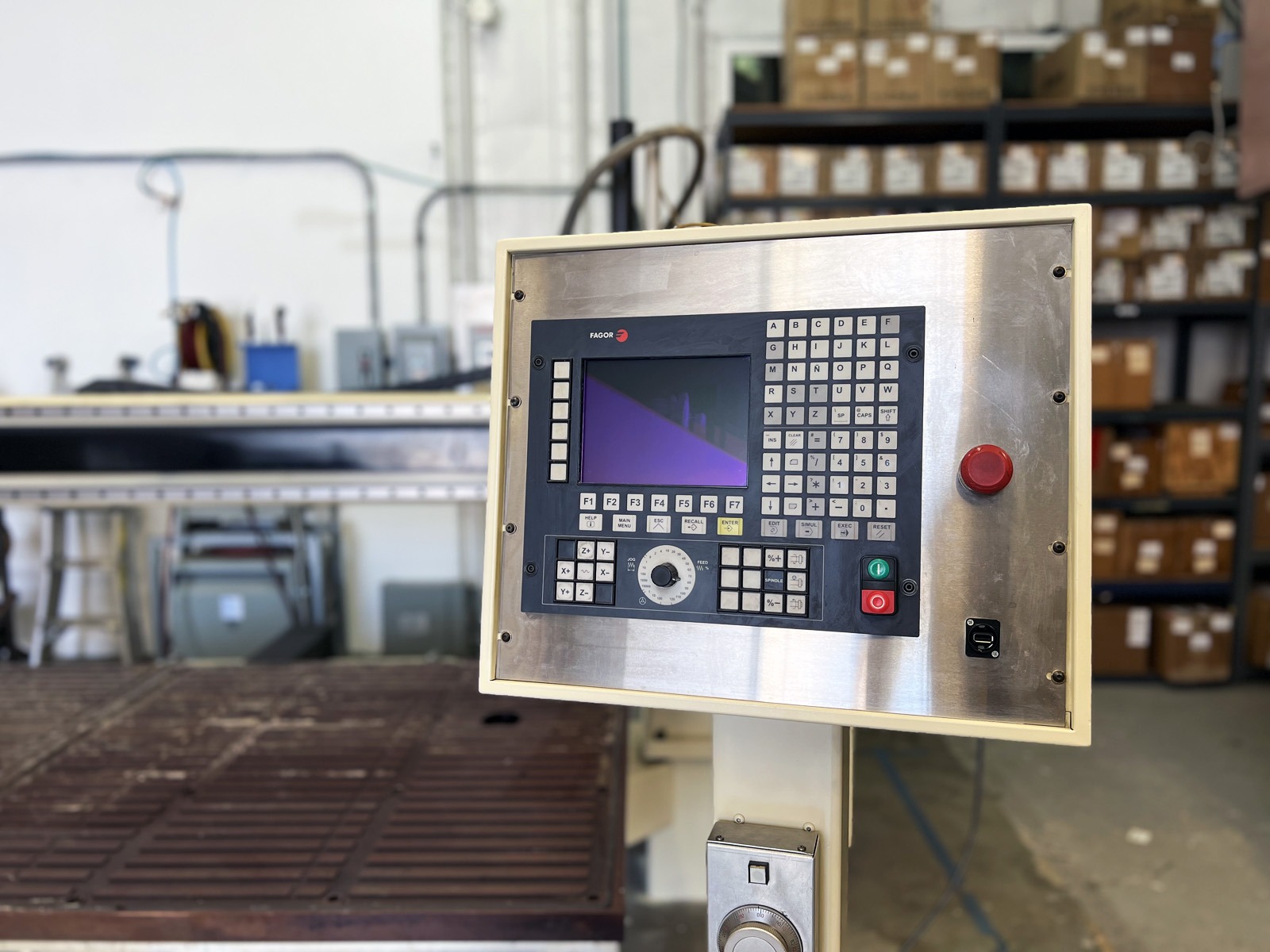

- Fagor 8037 CNC system
- Ethernet Communication
- USB & RS232 Cable Compatible

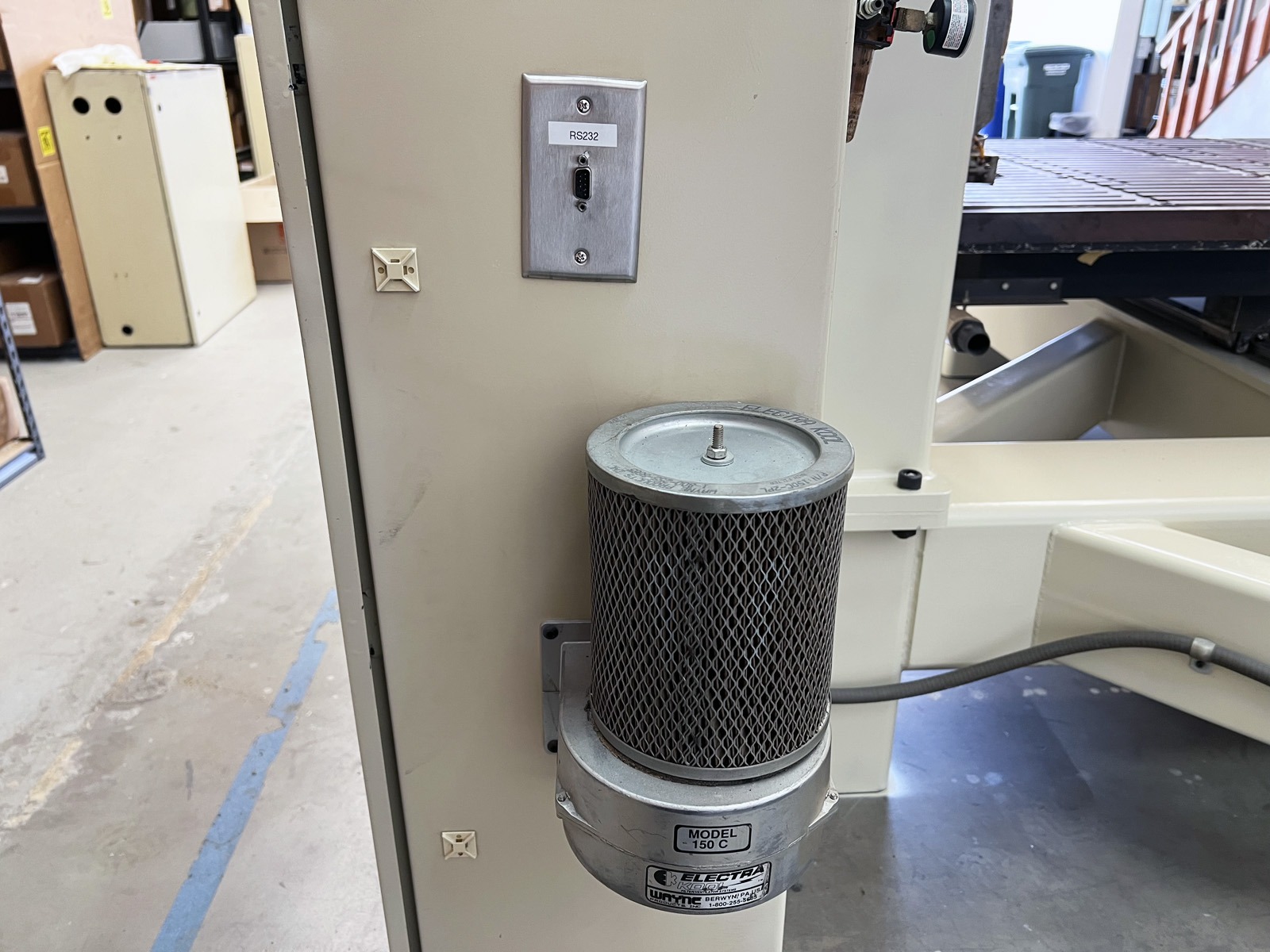

- CNCPD Fan/Filter Bracket 150 CFM
- 90 PSI, 5 CFM Air Requirement
- 440 V / 3 Phase Electrical Requirements
- Speeds:
- X-Axis – 800 in./min.
- Y Axis – 800 in./min.
- Z Axis – 400 in./min.
- Includes 3 used tool holders and pull studs
