Motionmaster 19×65 5-Axis CNC Router | 10′ Stroke & Fagor 8055
Motionmaster 5 axis CNC router, 19×65 moving gantry, 10 in. stroke, 10 hp Colombo ATC spindle, Fagor 8055 Power, remote. #E775
Massive Working Envelope for Large-Scale Industrial Production

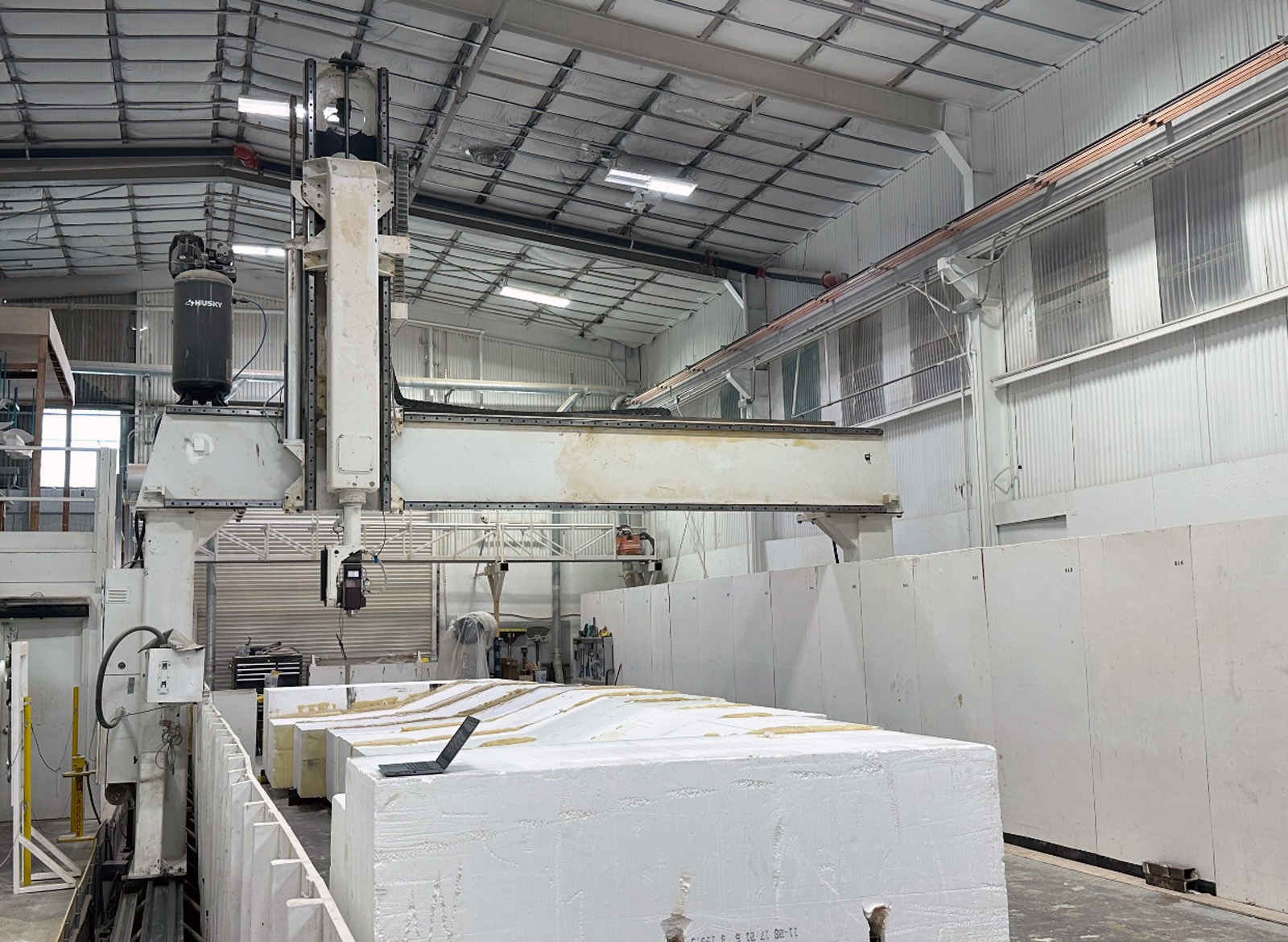

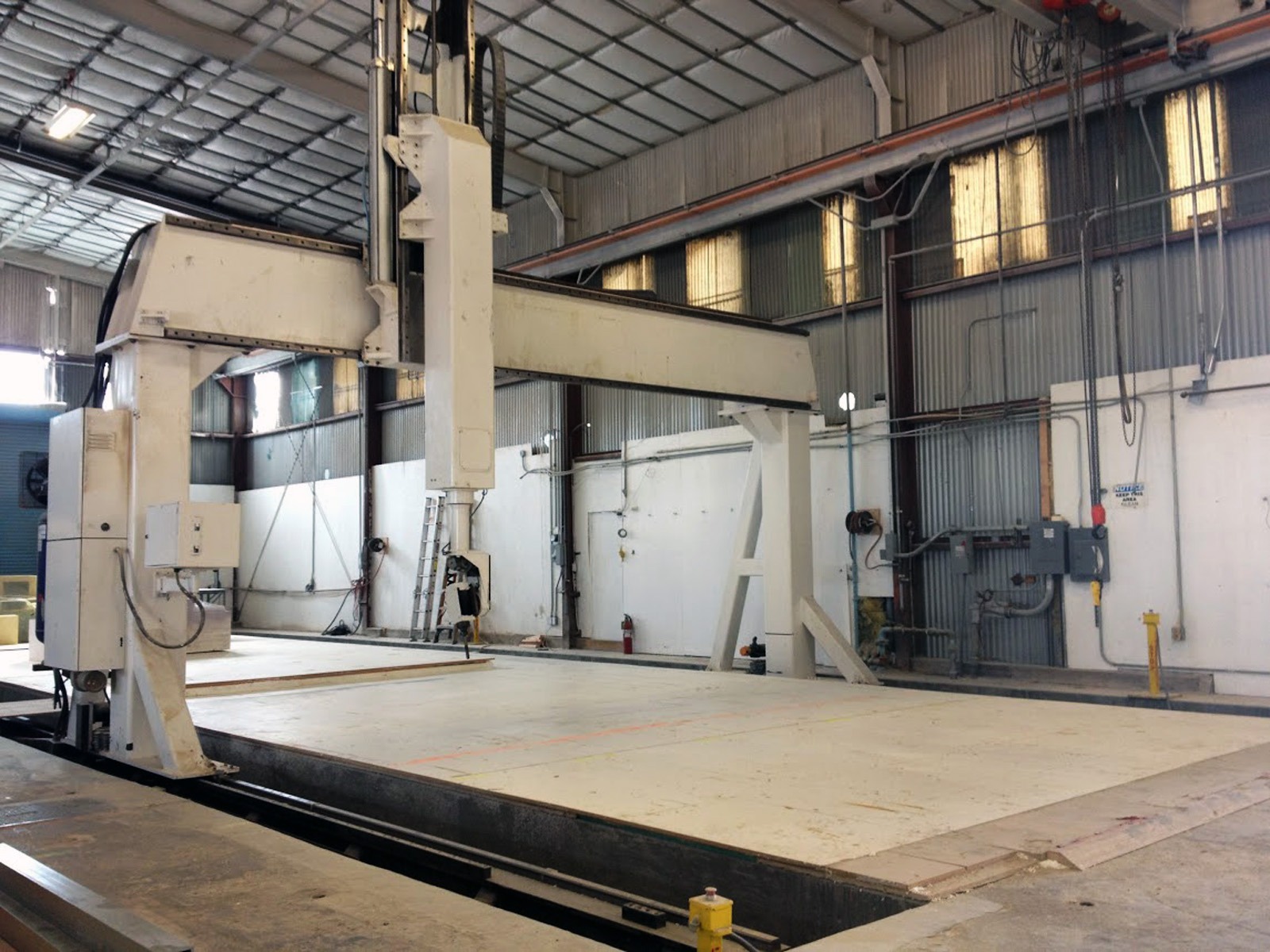

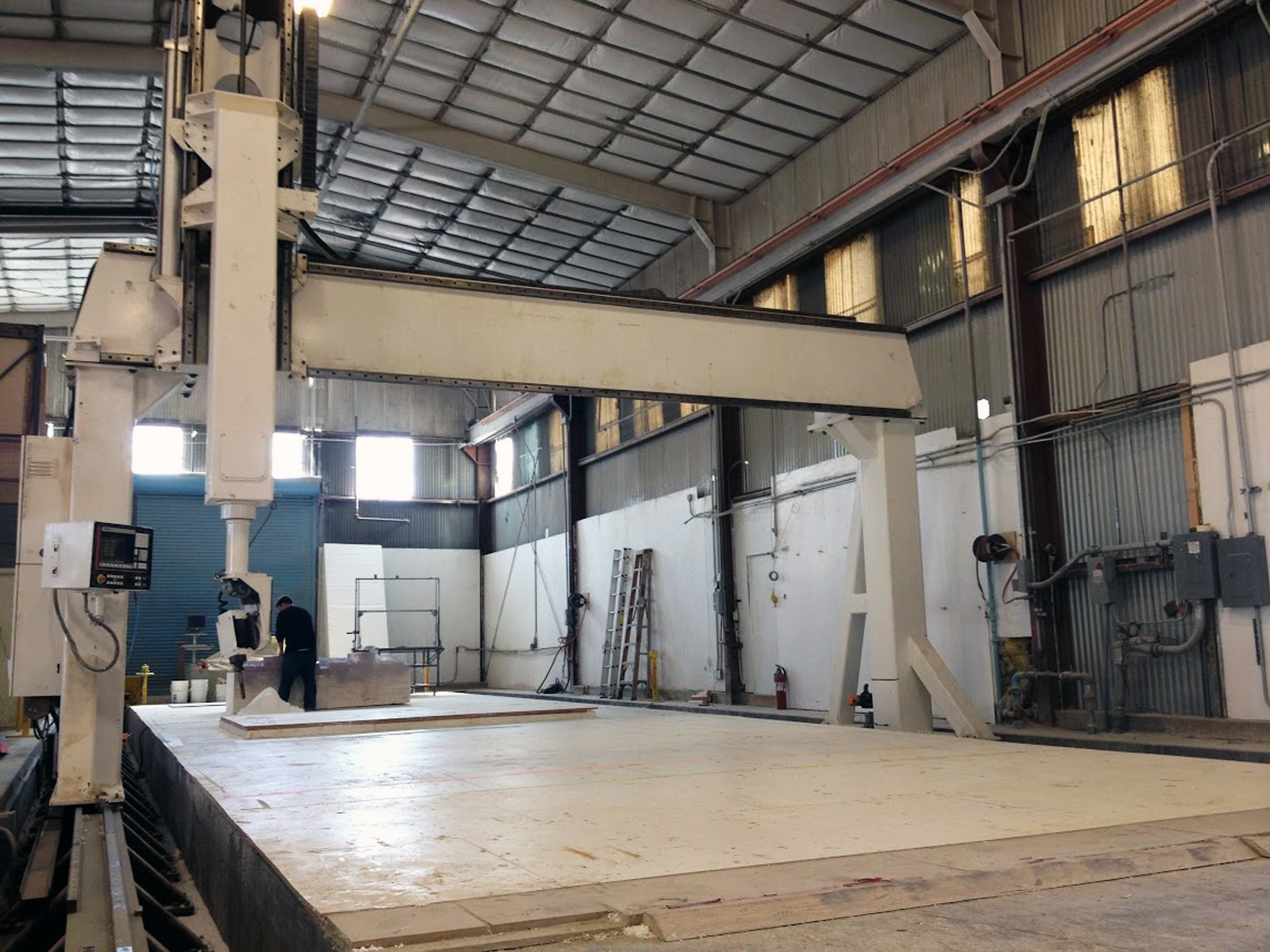

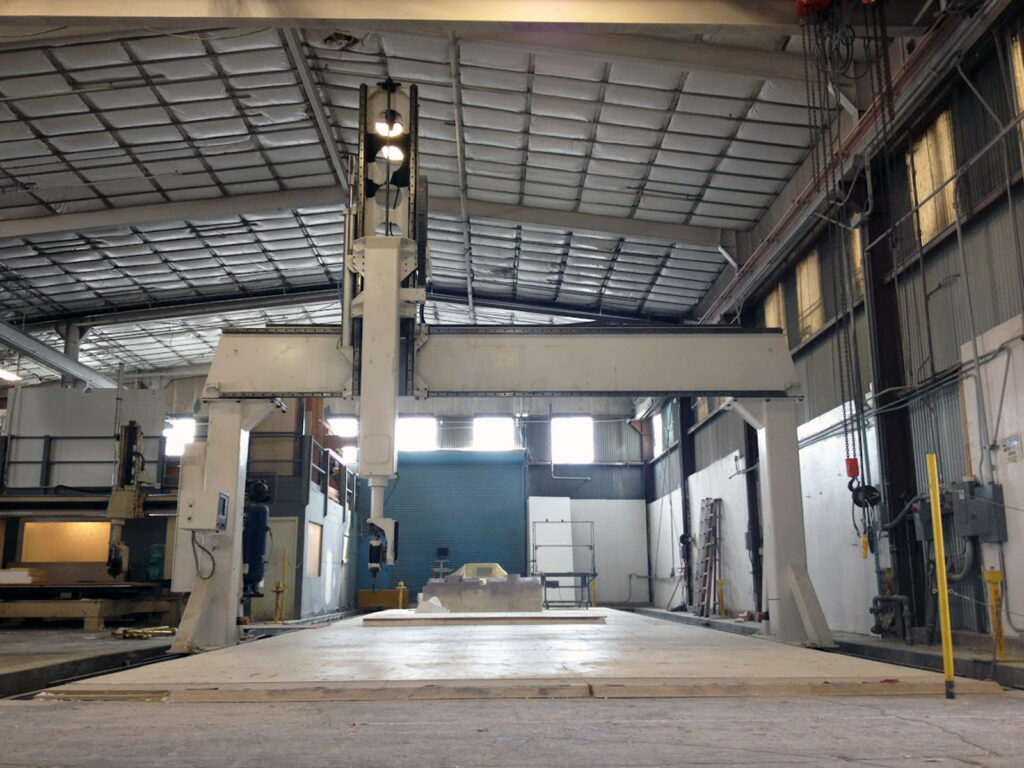

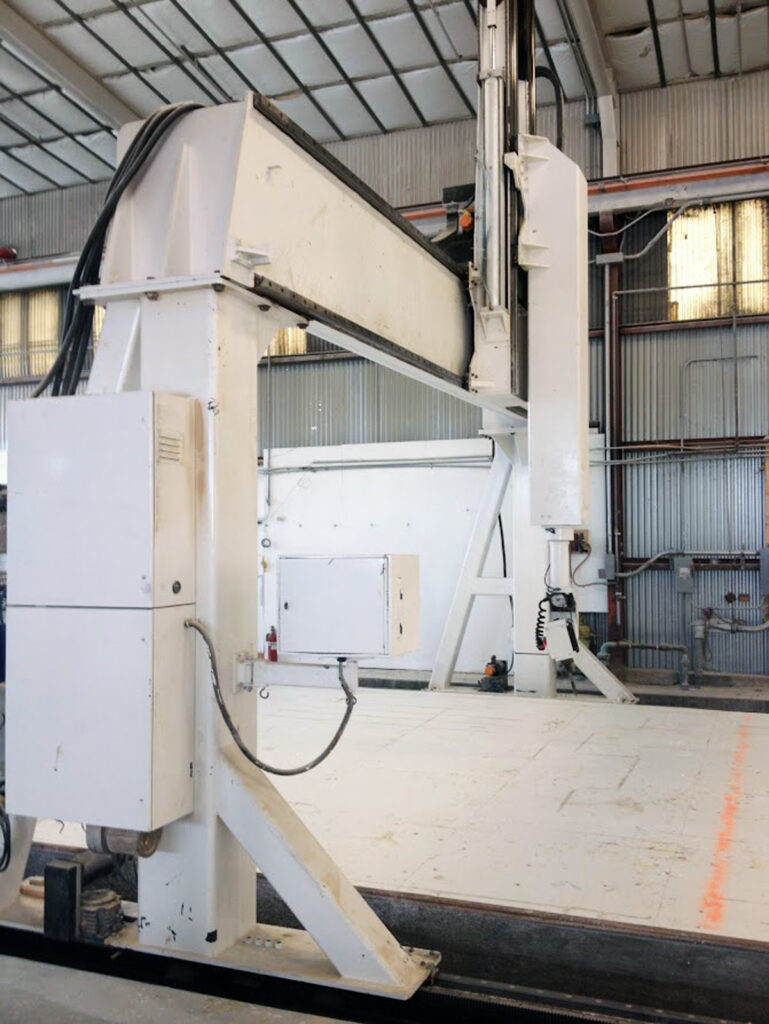

The Motionmaster 5-axis CNC router (Reference #E775) is an elite, large-format solution designed for the most demanding manufacturing projects. Featuring a massive 19 ft. x 65 ft. moving gantry and a rare 10-foot Z-axis stroke, this machine provides the reach and flexibility required for oversized components in the aerospace, automotive, and composites industries. Whether you are machining massive 3D patterns or trimming large-scale thermoformed parts, the E775 delivers the industrial-grade performance your production goals require.
Precision Performance with Modernized Systems
This Motionmaster router combines a robust industrial frame with significant recent technology and mechanical upgrades for enhanced reliability:

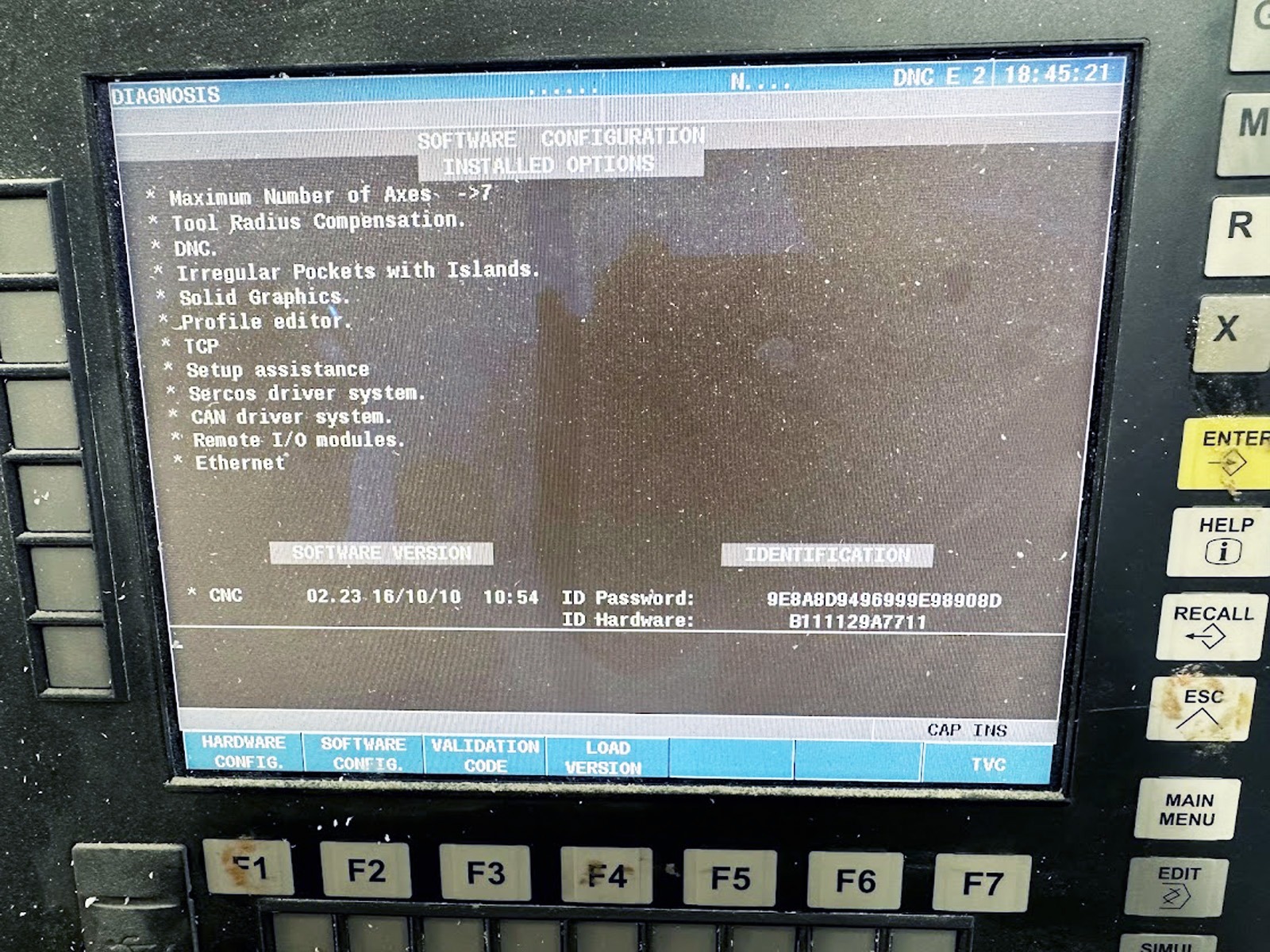

- Modern Control System: Equipped with a Fagor 8055 Power CNC system (installed new in 2017) featuring TCP (Tool Center Programming) and Ethernet for fast data transfers.

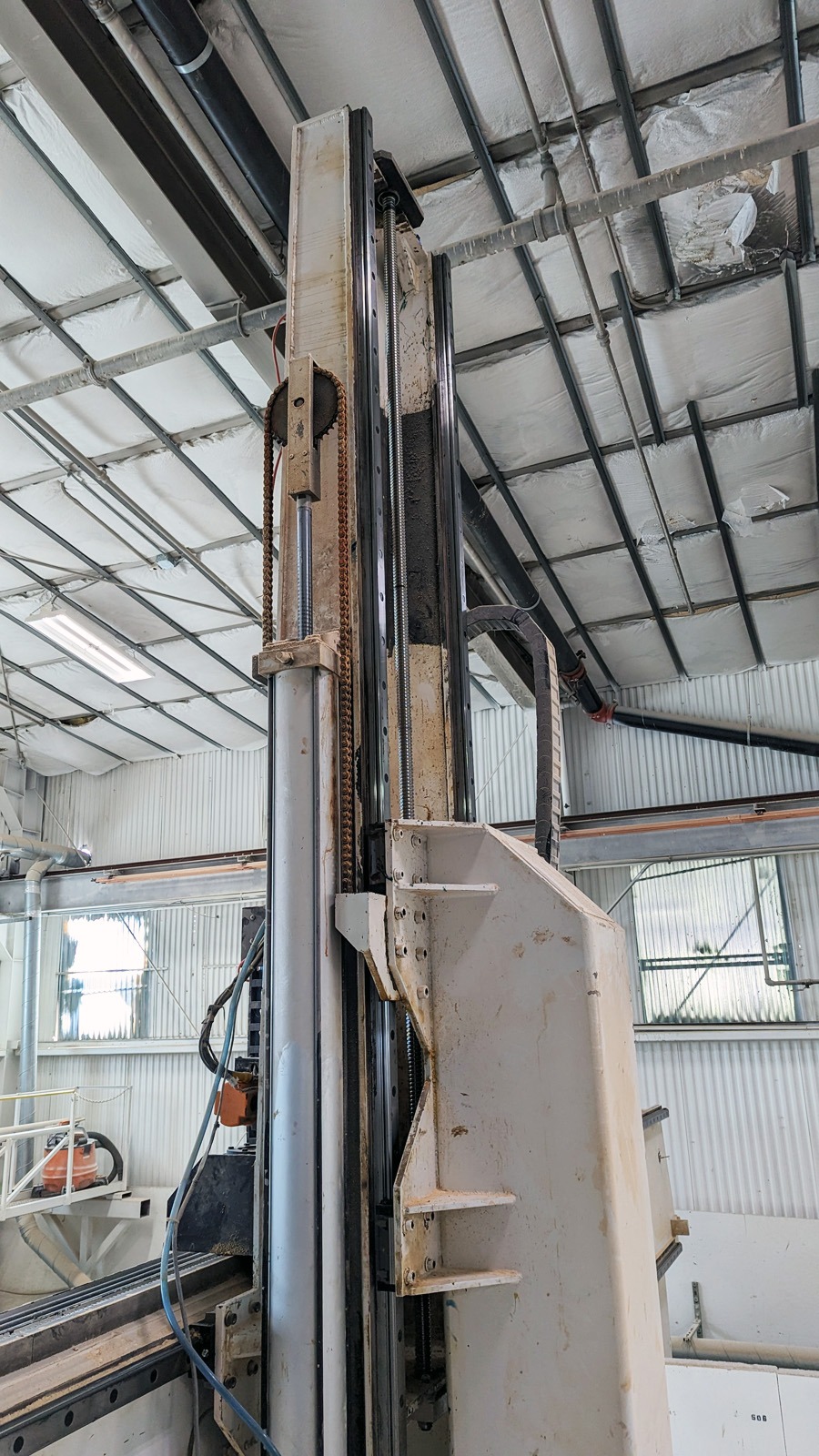

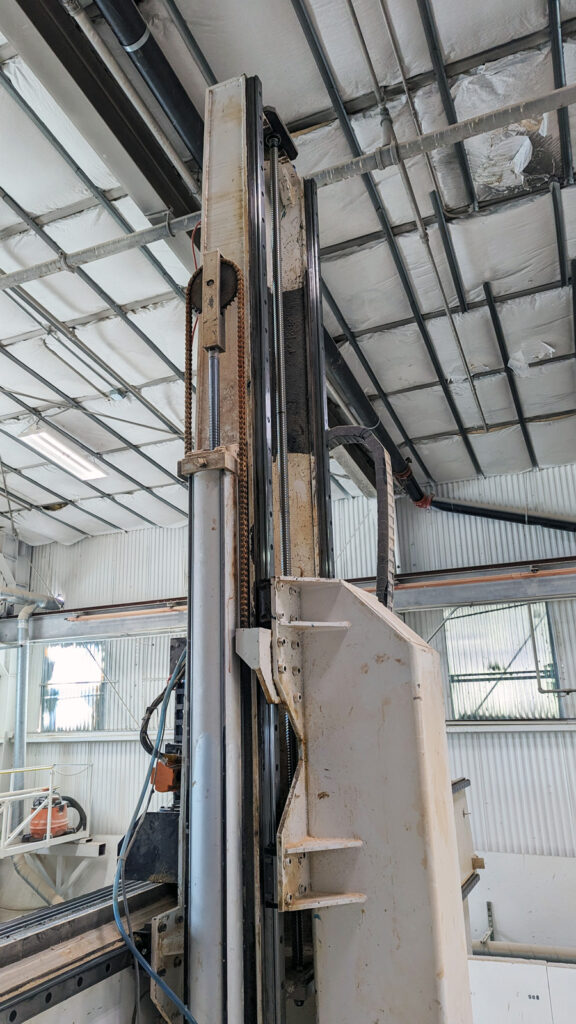

- Mechanical Integrity: Features a new Z-axis lead screw and ball nut (installed 2022) and all-new moving wires (2017), ensuring smooth operation and tight tolerances on large workpieces.

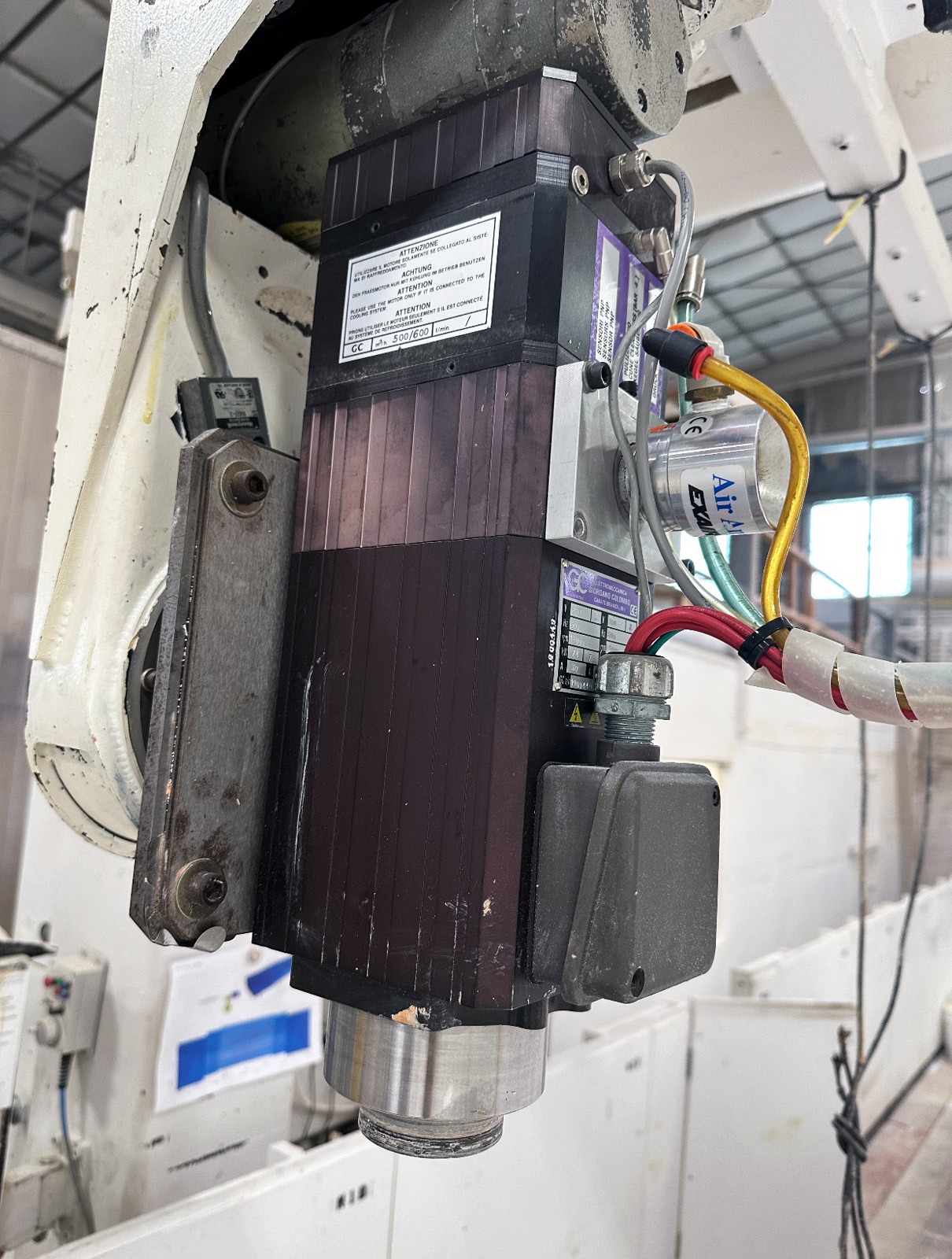

- High-Clearance Versatility: The 10-foot vertical stroke and 10 hp Giordano Colombo ATC spindle provide the clearance and power needed for deep-cavity molds and complex intricate components.
Comprehensive Support for Large-Format Transitions
Installing a 65-foot gantry machine requires expert technical oversight. CNC Parts Dept., Inc. provides the specialized services to ensure your investment is successful:
- Professional Pack and Prep: Our technicians specialize in securing 5-axis equipment to prevent costly shipping damage during nationwide delivery.
- Expert Commissioning & Calibration: We provide total setup support, including precision leveling, laser calibration of all linear and rotary axes, and complete backup of your machine settings.
- Specialized Operator Training: We offer a 3-day on-site training course covering machine orientation, Fagor control operation, and preventative maintenance to get your team running efficiently from day one.
Technical Specifications
- Working Area: 19 ft. x 65 ft. Moving Gantry
- Z-Axis Stroke: 10 feet

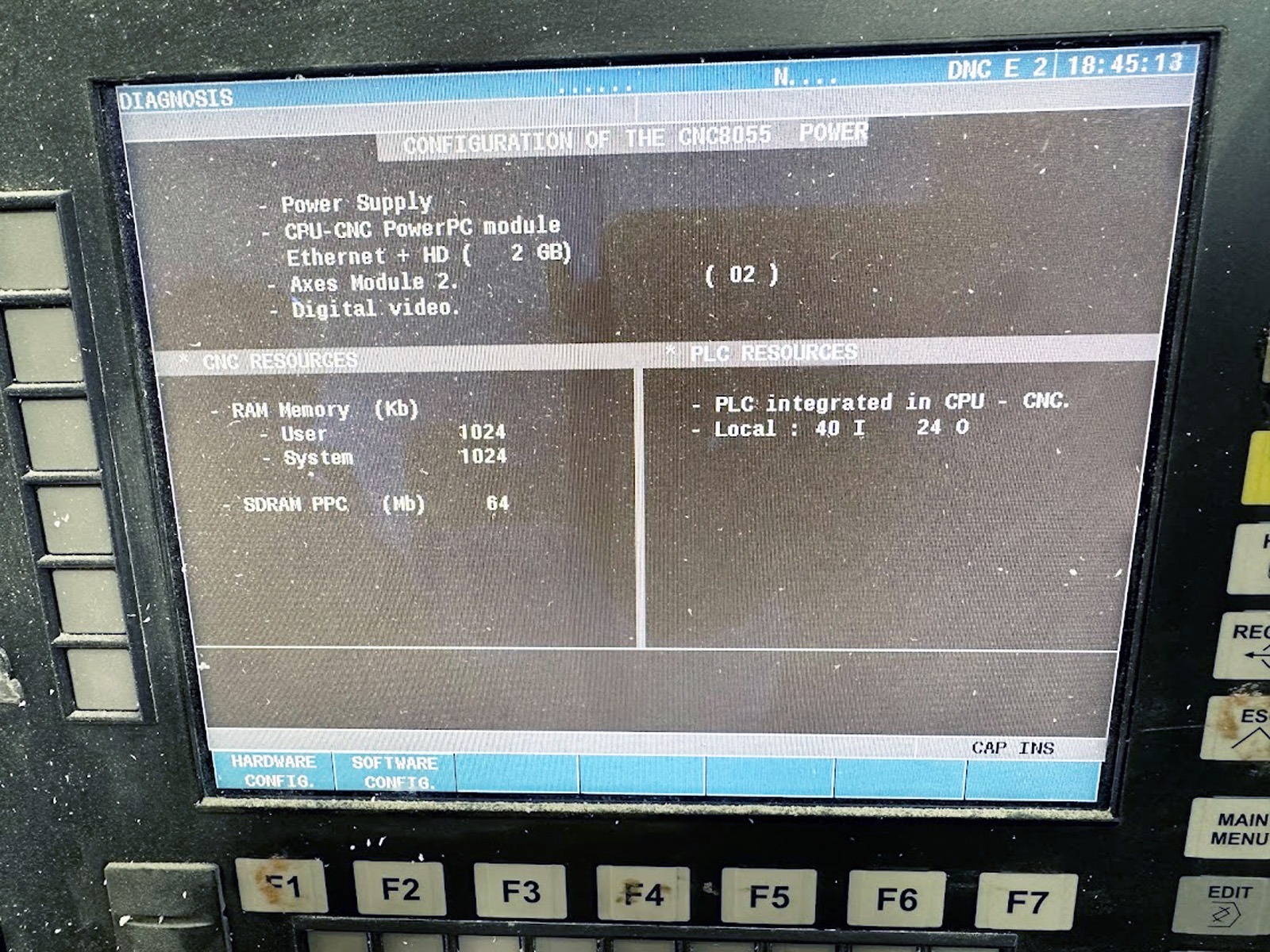

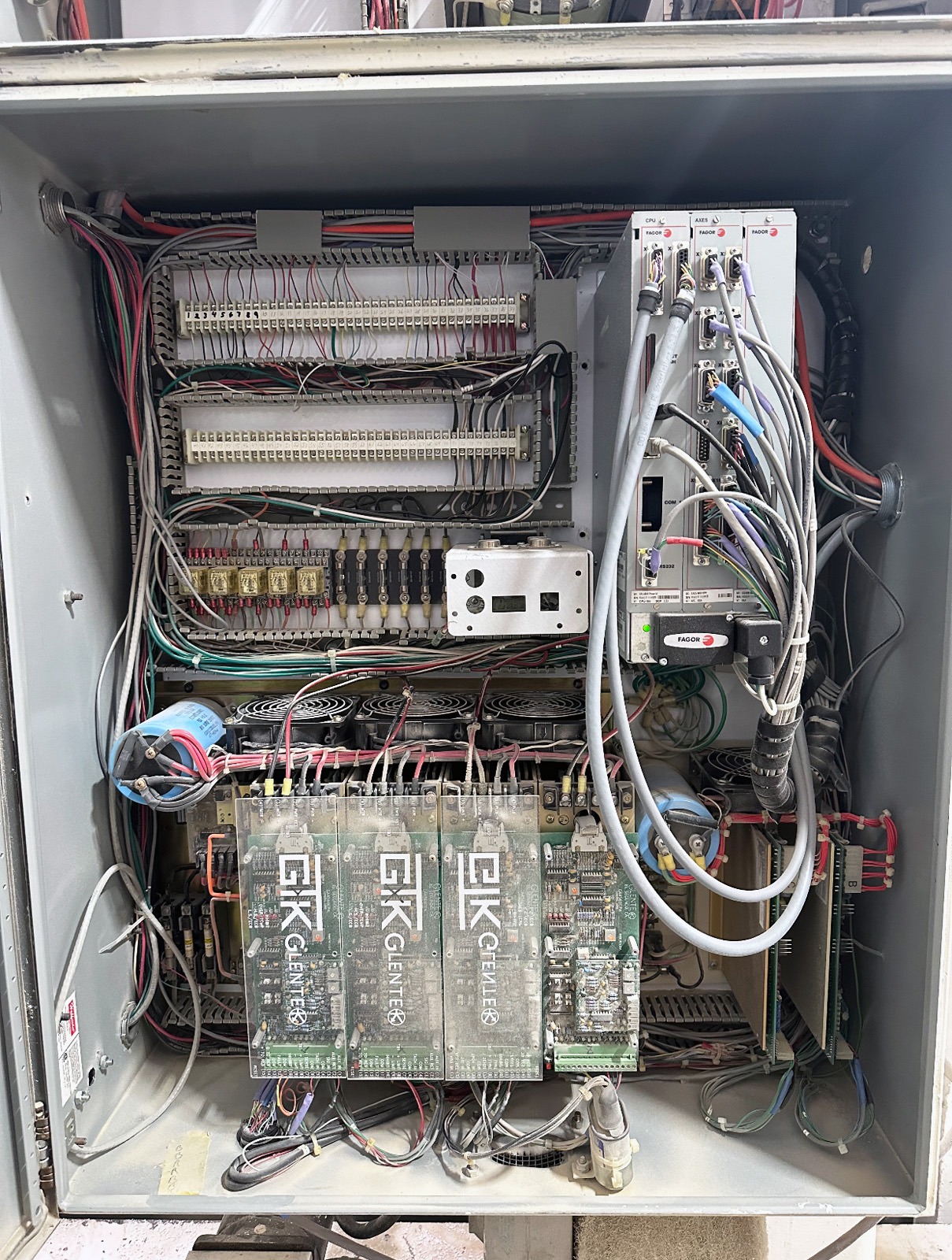

- Controller: Fagor 8055 Power CNC system controller (new in 2017)

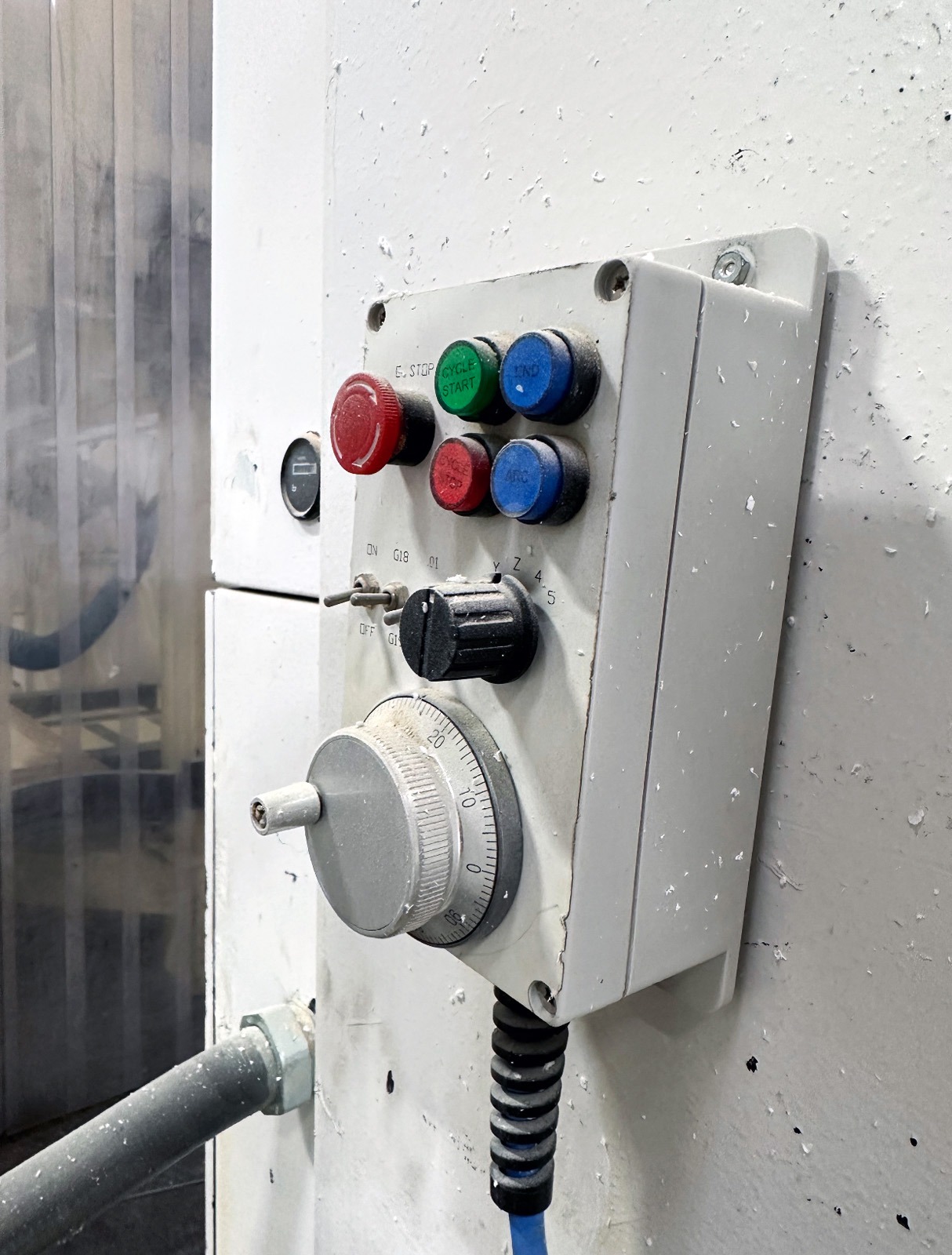

- CNCPD remote teach pendant
- Spindle: 10 hp Giordano Colombo ATC spindle motor
- Electrical: 440 V / 3 Phase
