Motionmaster 5 Axis CNC Router E766 [SOLD]
SOLD: Used 5 axis CNC router, Motionmaster, 4×8 moving table, 30 in. stroke, 8-tool carousel, 9 hp HSD ATC spindle, Fagor 8055 CNC, remote.

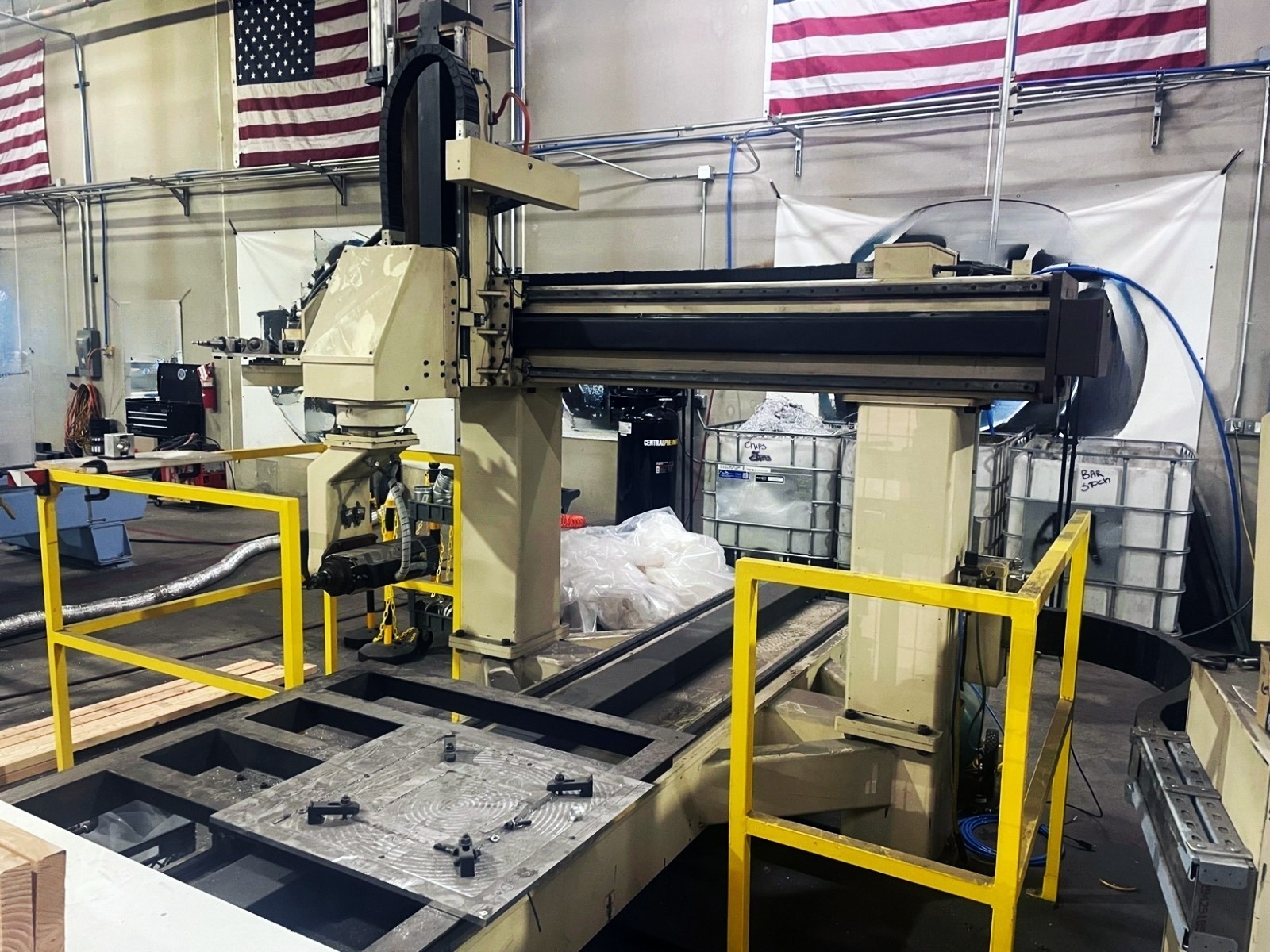

SOLD: Used Motionmaster 5 axis CNC router, 4×8 moving router table, 30 inches of Z-axis stroke, 8 position tool change carousel, alpha gear head with a 9 hp HSD ATC spindle motor. CNC router is controlled by a Fagor 8055 CNC system, with remote teach pendant included.
Used CNC Router Specifications
- Motionmaster CNC router
- 5-axis CNC router machinery
- Moving 4 ft. x 8 ft. router table base
- 30 in. Z-axis stroke
- 8 position automatic tool change carousel
- 9 hp ES 919 HSD ATC spindle motor
- Alpha Gear Head
- Fagor 8055 CNC system controller
- Teach Pendant Included
- X Travel: 115″
- Y Travel: 67″
- Z Travel: 30″
- Speeds:
- X-Axis – 800 in./min.
- Y Axis – 800 in./min.
- Z Axis – 400 in./min.
- C Axis – 100 degrees/second
- B Axis – 100 degrees/second
- Under power and ready for demonstration
- 90PSI, 5CFM air requirement
- 460 V / 3 phase power requirement
- CNCPD reference #E766
