Used Motionmaster 5 Axis CNC Router E772 [SOLD]
SOLD: Used 5 axis CNC router, Motionmaster, twin 5x 5 tables, 36 in. stroke, 10 hp HSD ATC spindle, 6-tool carousel, Fagor 8055 Power CNC.

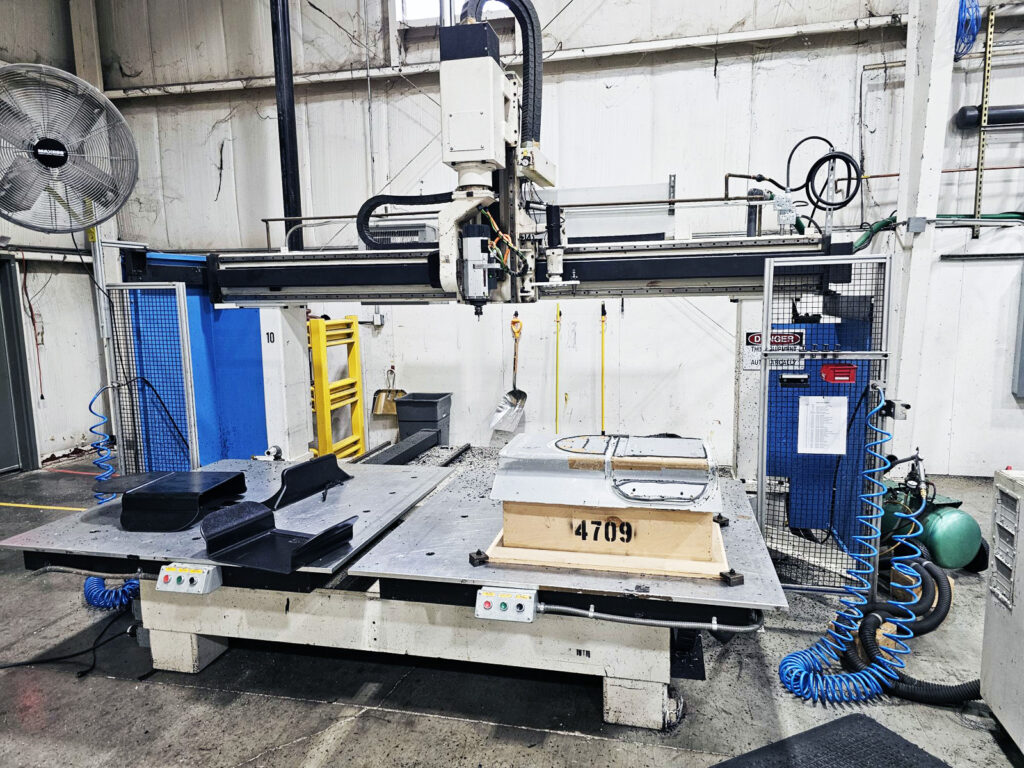

SOLD: Used Motionmaster 5 axis CNC router, equipped with twin 5 ft. x 5 ft. moving tables, 36 inches of Z axis stroke, a 10 hp HSD ATC spindle motor, and 6 position tool change carousel. The used CNC router machinery is controlled by a Fagor Automation 8055 Power CNC system controller.
Used CNC Router Machine Specifications
- Motionmaster CNC router
- 5 axis CNC machinery
- Twin 5 ft. x 5 ft. aluminum moving tables
- 36 in. Z-axis stroke
- 10 hp HSD ATC spindle motor
- 6 position tool carousel
- Fagor 8055 Power CNC system
- Ethernet
- TCP
- Tool Radius Compensation
- Teach pendant
- 440 V / 3 Phase electrical requirements
- 90PSI, 5CFM air requirement
- C Axis +/- 360 degrees
- Speeds:
- X-Axis – 800 in./min.
- Y Axis – 800 in./min.
- Z Axis – 400 in./min.
- C Axis – 100 degrees/second
- B Axis – 100 degrees/second
- CNCPD reference #E772
