Thermwood Dual 5×10 5 Axis CNC Router E565 [SOLD]
SOLD: 2006 Thermwood 5 axis CNC router, dual 5×10 moving tables, 48 in. stroke, 10 hp HSD ATC spindle, Thermwood Super Controller.
*These photos were taken before disassembly.*

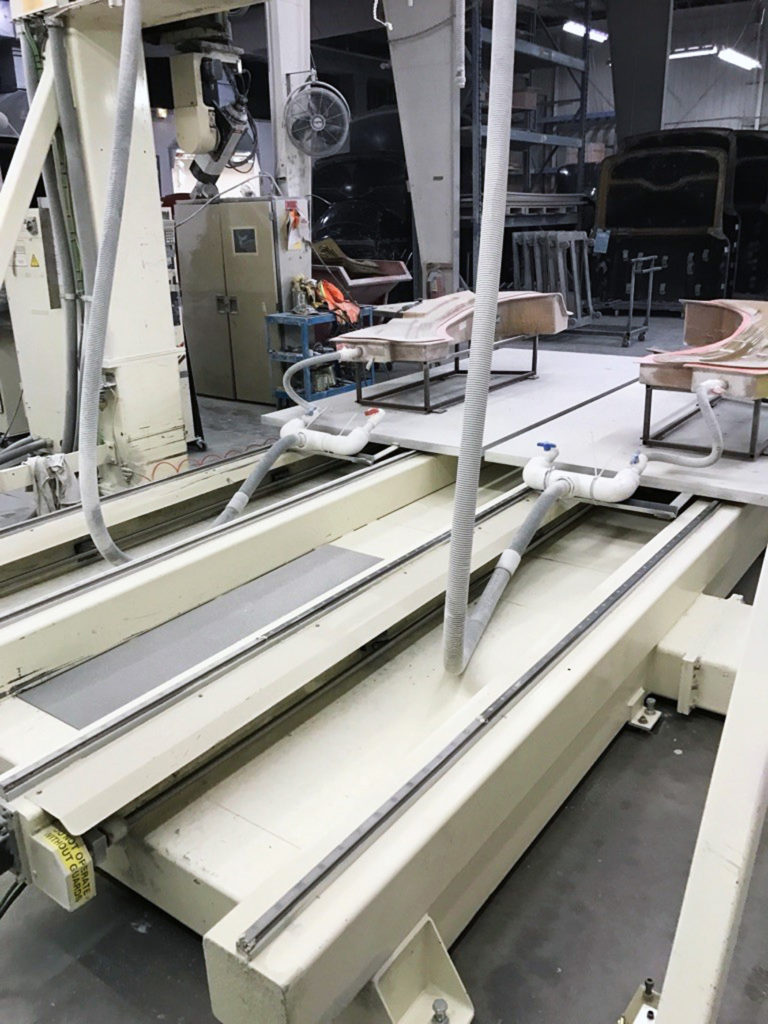

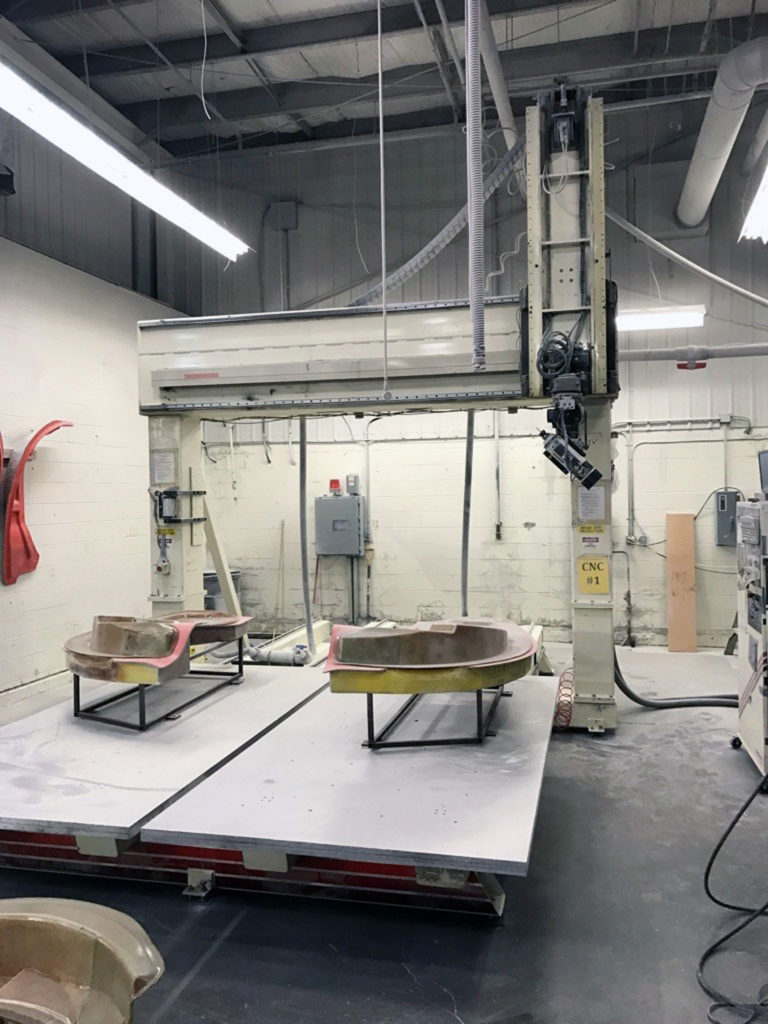

SOLD: Used 2006 Thermwood 5 axis CNC router, equipped with dual 5 ft. x 10 ft. moving tables that can be slaved together for a total working area of 10 ft. x 10 ft. or used separately for faster production. The machine has 48 inches of stroke, a 10 hp HSD ATC spindle motor, plus a pop-out tool change rack. Used router is controlled by Thermwood Super Controller with Windows 2000 platform.
Used CNC Router Machine Specifications
- Thermwood CNC router
- 5 axis CNC router machinery
- Originally manufactured in 2006
- 5 ft. x 10 ft. moving twin tables – can be slaved together for a total working area of 10 ft. x 10 ft. or used separately for faster production.
- 48 inches of Z-axis stroke
- Pop out tool change rack
- 10 hp ATC HSD spindle motor
- Thermwood Super Controller with Windows 2000 platform
- 440 V / 3 PH electrical requirements
Notes: This machine has been disassembled. This machine will require a controller retrofit and a rewire. The spindle turns without issue and it is unknown whether it needs to be replaced. There is rust on spindle and rails. A laser tracker is recommended at the time of setup depending on the accuracy sought.
