5-Axis Head Alignment & Kinematic Calibration Services

Understanding 5-Axis Head Misalignment

Is your 5-axis CNC router producing poor surface finishes, gouging workpieces, or failing to hold tight tolerances during complex multi-axis profiling? Multi-axis head misalignment is one of the most common issues in high-precision shops. Equipment crashes, structural settlement, facility relocation, and continuous mechanical wear shift rotary centerlines out of alignment, causing geometric errors that multiply as the spindle rotates.

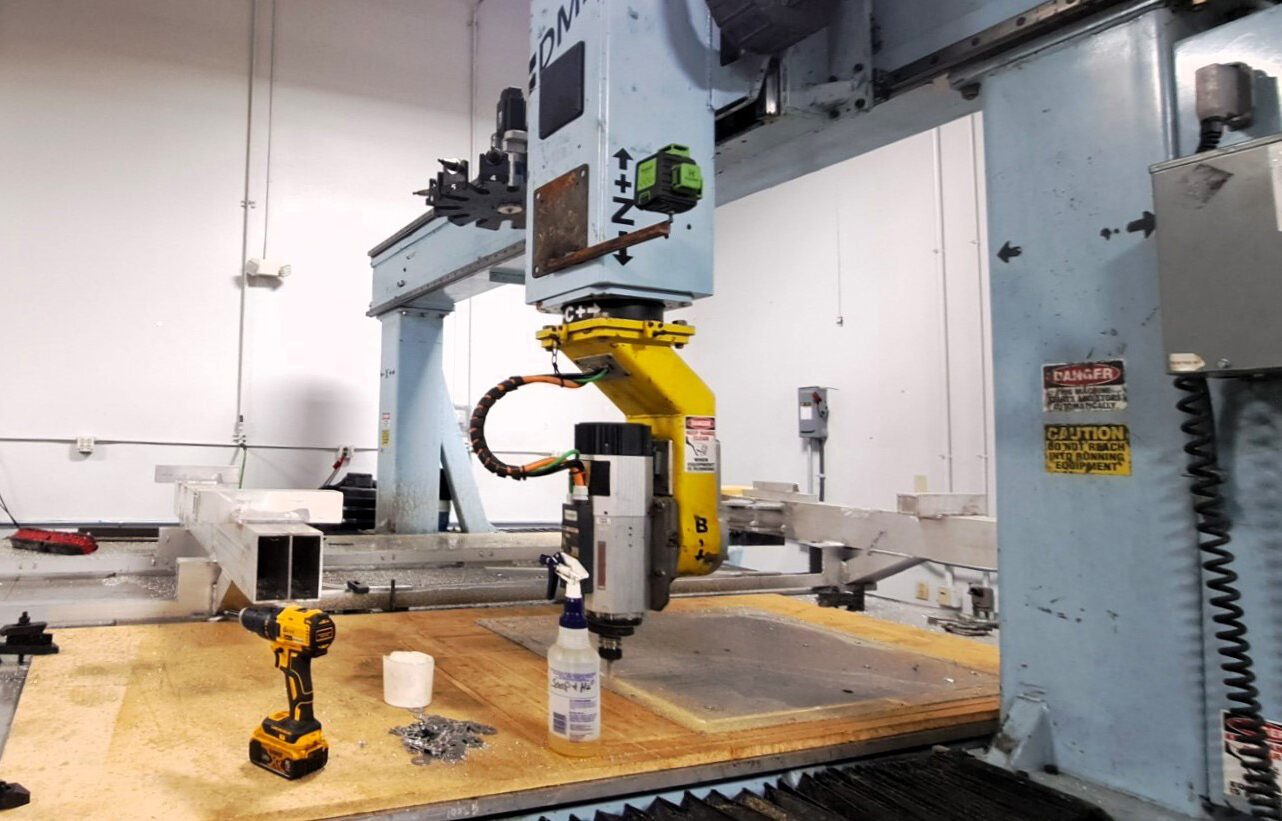

DMS 5 axis CNC router for sale E789

Our Laser-Guided Head Alignment & Kinematic Tuning Process

Through our 5-Axis Head Alignment & Calibration service, CNC Parts Dept., Inc. restores factory-level spatial precision to your multi-axis CNC machines. Our technicians mechanically align physical pivot points, verify spindle squareness, and utilize advanced API Radian laser tracker technology to measure volumetric accuracy. We then update tool center point (TCP) offsets and kinematic settings directly inside your CNC controller—eliminating compound rotary errors and ensuring seamless multi-axis cutting accuracy.

Explore All CNC Calibration Services Schedule On-Site Laser Calibration Service

Key Benefits of 5-Axis Head Alignment

Maintaining proper rotary kinematics prevents costly tool gouging and guarantees uniform surface quality across complex 3D toolpaths. Proactive head calibration protects both your spindle investment and expensive raw materials.

  • Eliminate Multi-Axis Geometry Errors: Prevent dimensional drift, step-overs, and gouging during continuous 5-axis surface profiling.
  • Optimize Spindle & Tool Center Point (TCP) Accuracy: Accurately calibrate rotary centerlines (A, B, or C axes) relative to the machine’s linear grid.
  • Reduce Material Scrap & Retooling Costs: Prevent out-of-tolerance parts on complex composite, aluminum, and mold-making setups.
  • Protect Spindle & Drive Hardware: Correcting structural misalignment stops uneven bearing load and prevents premature spindle head wear.

5-Axis Calibration Capabilities

Our field technicians provide on-site diagnostics and direct controller optimization for heavy-duty 3-axis and 5-axis CNC routers, including Thermwood, Motionmaster, DMS, and C.R. Onsrud machines.

  • Mechanical Pivot & Tramming Realignment: Manual physical adjustment of router heads, spindles, and rotating carriages to restore baseline mechanical geometry.
  • API Radian Laser Tracker Calibration: Micro-inch 3D measurement to evaluate volumetric accuracy and dynamic rotational centerlines.
  • Kinematic Parameter Optimization: Direct controller-level parameter updates for major systems like Fagor CNC systems.
  • Audit-Ready Quality Certification: Full NIST-traceable measurement documentation to satisfy ISO 9001, AS9100, and Nadcap audit standards.

Frequently Asked Questions

We recommend 5-axis calibration following any head collision, spindle replacement, machine relocation, or whenever continuous 3D profiling shows visible step-overs, gouging, or surface defects.

Mechanical alignment physically adjusts the spindle and head geometry (tramming, squareness, perpendicularity) using precision shims and mechanical adjustments. Kinematic TCP (Tool Center Point) calibration updates the controller’s software offset parameters (A, B, C pivot lengths and center points) so the CNC control accurately calculates the tool tip location in 3D space. Both are required for true multi-axis precision.

Head alignment corrects rotational centerlines and TCP offsets. For complete volumetric accuracy, we recommend pairing this service with our laser calibration of linear axes to eliminate X, Y, and Z drive screw pitch errors.

Schedule CNC Router Alignment Service

Do you need a one-time head alignment or full machine calibration? Our CNC services team has the tools and experience to restore your system to peak condition. Contact us today for more information.
