Beyond the Iron: Using Volumetric Compensation for Aerospace Accuracy
Learn how Volumetric Compensation fixes geometric errors and mechanical backlash in large 3-axis and 5-axis CNC routers. Perfect for aerospace and mold applications using Fagor controllers.
When you are operating an industrial CNC router with a significant vertical envelope, 36 inches of Z-axis travel or more, the laws of physics become your biggest challenge. Even the most well-built Motionmaster or DMS machinery has tiny, inherent geometric imperfections.
At the base of a column, a microscopic 0.001 inch misalignment might seem negligible. But extend that Z-axis 3 feet down, and that tiny error can swing the tool tip off by 0.005 inch or more. This is where “good” machines fail high-tolerance inspections, and where Volumetric Compensation becomes the game-changer.
The Problem: The “Stacking” of Geometric Errors
In a perfect world, every CNC axis is perfectly straight, perfectly square, and perfectly perpendicular. In the real world, “Linearity,” “Pitch,” “Roll,” and “Yaw” all exist.
On a large-scale machine, these errors stack up:
Squareness
The X and Y axes might be off by just a fraction of a degree.
Straightness
A 10-foot guide rail might have a microscopic “bow” in the middle.
Backlash
Mechanical play in ball screws or rack-and-pinion drives introduces lost motion every time an axis reverses direction.
The Lever Arm Effect
On a high-Z machine, any tilt in the bridge or head is heavily magnified as the spindle travels further down toward the table.
The Solution: Mapping the “Cloud”

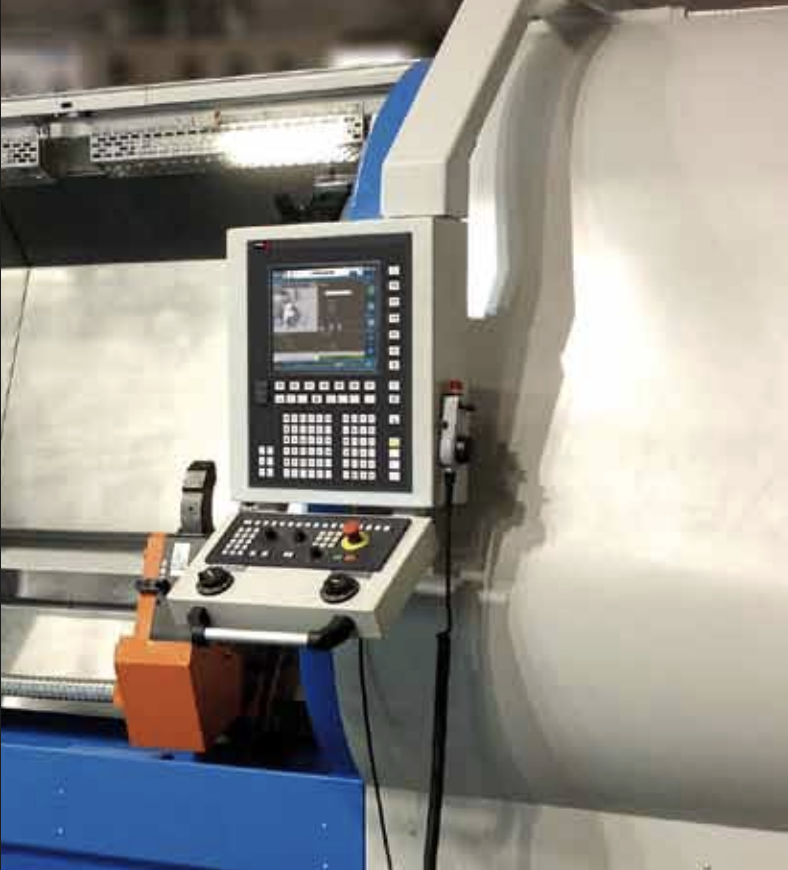

Volumetric Compensation is a software-driven correction method within the Fagor controller. Instead of trying to fix the physical iron (which is often impossible or cost-prohibitive), our Fagor integrators “map” the machine’s errors and teach the controller how to compensate for them in real-time.
The Laser Map
A technical calibration specialist uses a laser tracker to measure the tool tip’s actual physical position at hundreds of coordinates throughout the entire 3D working envelope.
The Error Matrix

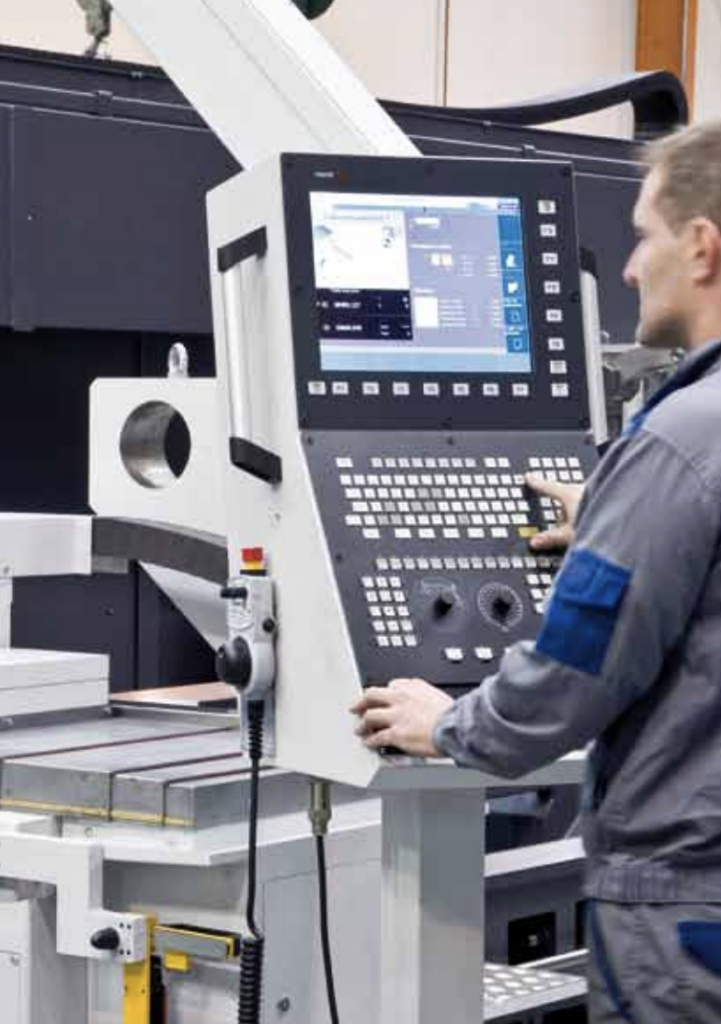

This spatial data is imported directly into the Fagor 8065 or 8070 controller to build a highly detailed error compensation table or multi-axis map.
Dynamic Compensation
As the program runs, the controller references the error map 1,000 times per second, automatically adjusting the X, Y, and Z axes by microns to keep the tool tip on path.
Why Volumetric Compensation is a “Must-Have”
- Aerospace-Grade Accuracy: It allows a used or retrofitted machine to hit tolerances that were previously only possible on brand-new, ultra-high-end machining centers.
- Extended Machine Life: You can take older, “settled” iron and bring it back to—or even exceed—its original factory specifications by correcting for physical wear and mechanical backlash.
- Confidence in Large Parts: When machining expensive molds, tooling block, or aerospace composites, you don’t have to worry about the dimensional “drift” that happens as the tool moves from one side of the table to the other.
| Correction Method | Mechanical Realignment | Fagor Volumetric Compensation |
|---|---|---|
| Cost | Extremely High (Teardown required) | Moderate (Calibration & Software) |
| Precision | Limited by physical tolerances | Compensates for physical limitations |
| Downtime | Weeks of teardown/rebuild | 1-2 days of laser mapping |
| Versatility | Static | Can be re-mapped as the shop floor settles |
Fagor Capability Note
Fagor Automation’s Volumetric Compensation is exceptionally robust, capable of handling up to 30 different geometric error parameters simultaneously. Whether it’s a 3-axis bridge mill or a complex 5-axis router, the controller’s rapid calculation speeds ensure that the “virtual” compensation path matches the “physical” target perfectly.
The Ultimate Precision Duo: Volumetric Comp + RTCP
For shops running complex five-axis setups, volumetric mapping is only half the equation. While Volumetric Compensation corrects the structural errors of the machine frame itself, it is designed to work hand-in-hand with RTCP technology.
While volumetric mapping keeps the machine’s physical axes aligned in 3D space, RTCP manages the tool tip’s rotation. Together, they provide the ultimate foundation for high-tolerance aerospace work.
