Stop Reposting G-Code: How RTCP Streamlines 5-Axis Production

In the world of 5-axis machining, the pivot distance acts as a silent killer of productivity. Running a 5-axis CNC router without RTCP (Rotation Tool Center Point) forces your team to manage complex math problems instead of focusing on machining. This constant calculation wastes valuable shop time and increases the risk of costly errors.

The “Standard” 5-Axis Challenge: Programming the Pivot

In a traditional setup without RTCP, the controller operates in a fixed-coordinate system. It is aware of the machine’s joint positions, but it lacks the real-time kinematic data to track the tool tip’s location relative to the workpiece.

The Problem

When the machine head tilts, the tool tip swings in a wide arc. To hit your target, CAM software must pre-calculate every axis coordinate based on static pivot distances and the exact length of the tool.

The Trap

This hard-codes your G-code to a single tool assembly. If your tool breaks, or if sharpening reduces its length by even a few thousandths of an inch, your programmed toolpath is no longer accurate.

The Cost

Since legacy controllers cannot adjust for physical variations on the fly, operators must halt production, return to CAM, update the parameters, and repost the code, creating a major bottleneck on your floor.

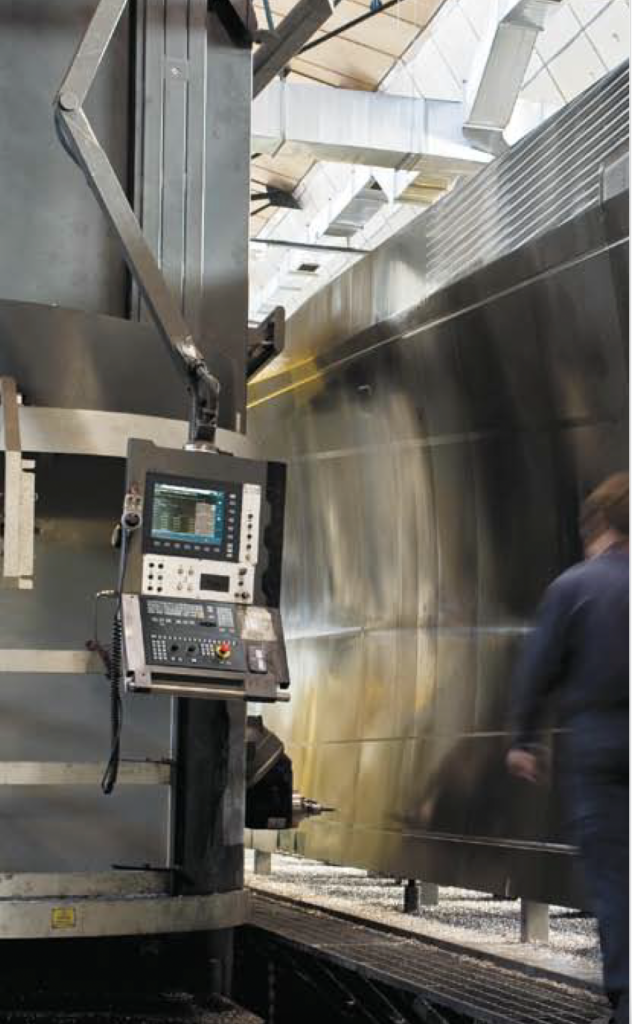

The Fagor Solution: Program the Part, Not the Machine

RTCP (Rotation Tool Center Point) turns the math over to the Fagor controller. Instead of programming the machine’s physical axes, you program the actual path of the tool tip relative to the workpiece.

Dynamic Compensation

The Fagor controller calculates kinematics over 1,000 times per second, moving the physical axes automatically to keep the tool tip locked on the programmed path during complex rotary motion.

Tool Independence

The G-code only targets the part geometry rather than specific tool lengths. Operators simply update the controller’s tool table to swap tools without reposting any programs from CAM.

Simplified G-Code

Programs become significantly shorter and cleaner because they only define the intended path of the tool tip instead of thousands of lines of complicated structural compensation coordinates.

Why RTCP is Mandatory for Modern Shops

Zero Reposting: Swap tools, use regrinds, or move the job to a different 5-axis machine in your fleet without ever opening your CAM software.
Superior Surface Finish: RTCP eliminates the “non-linear errors” that occur during simultaneous motion. By managing the tool vector smoothly, it prevents the “stutter” or gouging often seen in manual 5-axis transitions.
Faster Setup: Your operators spend more time cutting and less time “fiddling” with offsets to get the first part right.

Technical Insight

Fagor’s RTCP also supports Virtual Axis (#VIRTAX). This allows an operator to manually retract a tool along its own axis (the tool vector) rather than just X, Y, or Z. This is a critical safety feature when clearing a tool from a deep pocket or an angled hole.

The Ultimate Precision Duo: Volumetric Comp + RTCP

For shops running high-tolerance, large-envelope applications, RTCP is only half the equation. To achieve true aerospace-grade precision, RTCP is designed to work hand-in-hand with Volumetric Compensation.

While RTCP manages the rotation of the tool tip, Volumetric Compensation dynamically corrects the microscopic physical and structural errors of the machine frame itself. Together, they turn standard used iron into an ultra-precise machining platform.

Upgrade Your 5-Axis Capability

Is your team still stuck in a cycle of constant re-posting? Whether you are looking to retrofit an existing machine or are in the market for a used 5-axis router that is already RTCP-ready, our technical experts specialize in high-Z axis industrial machinery and Fagor integration. Contact CNC Parts Dept. for a Technical Consultation on Fagor Retrofits.
