Cosmec Fox CNC Router
Cosmec FOX CNC routers are entry level high-performance machines designed for a variety of industrial manufacturing applications.
Cosmec Fox Series CNC Routers
Cosmec Technology’s FOX series of high-performance CNC routers is designed for a variety of applications, from sign making to furniture manufacturing. With its robust construction and advanced features, this machine offers exceptional precision and efficiency.
Fox CNC Router Machine Features
The Cosmec Fox series blends high-speed performance with rugged industrial construction, making high-end CNC machining accessible to growing operations. Built on a high-rigidity, welded-steel frame, each machine features multi-zone vacuum suction tables, high-frequency spindle options up to 40,000 RPM, and optional 5-axis capabilities to handle complex three-dimensional geometries in a single setup.

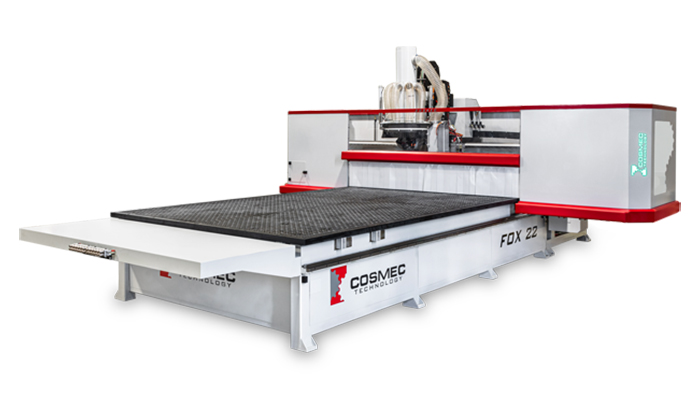

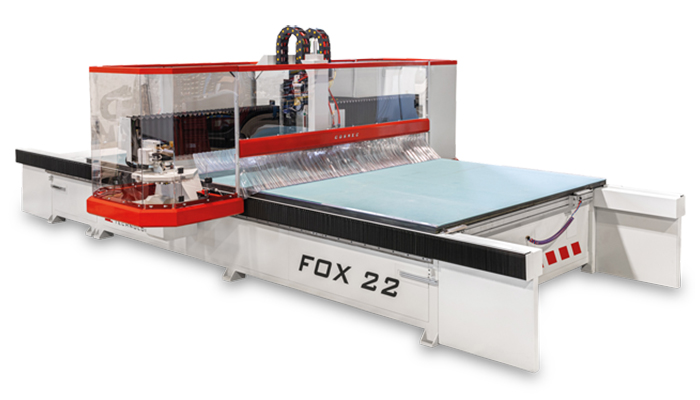

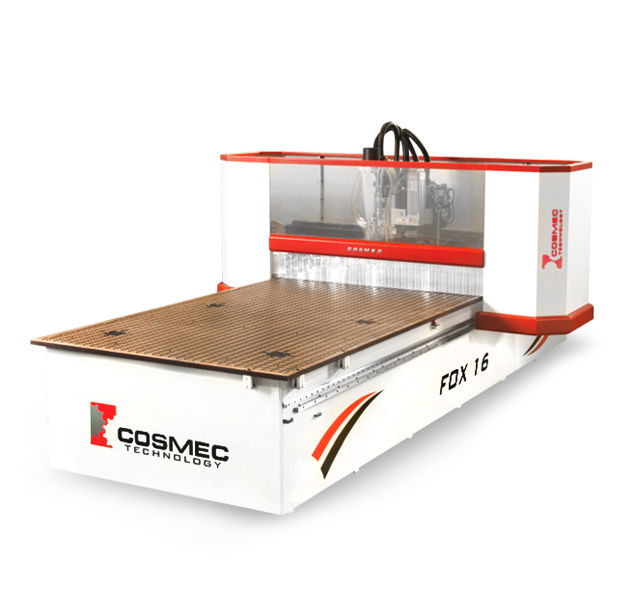

Cosmec Fox 13 – 16 – 22 Models
Available in three standard bed dimensions, the Fox series accommodates a wide range of sheet sizes and processing demands. Whether you need the compact footprint of the Fox 13 for standard 8’x4′ panels or the expansive working field of the Fox 22 for large-format nesting, each model can be customized with various tool changer capacities, table zoning, and axis configurations to match your exact workflow.
Cosmec Fox Technical Specifications Comparison
Compare key technical specifications across the Cosmec Fox model lineup below. From max panel clearance and rapid feed rates to custom spindle options and vacuum pump capacities, review the dimensions and performance metrics to identify the ideal machine setup for your production environment.

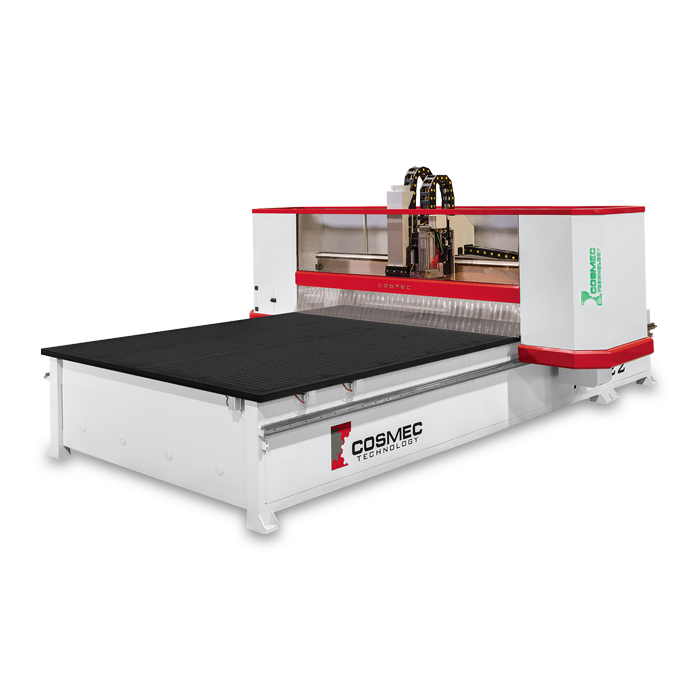

| Technical Data | FOX 13 | FOX 16 | FOX 22 | FOX 22 (5-Axis) |
|---|---|---|---|---|
| Working Field (X x Y) | 2470 x 1400 mm (8.1′ x 4.6′) | 3200 x 1660 mm (10.5′ x 5.4′) | 4140 x 2200 mm (13.5′ x 7.2′) | 4140 x 2200 mm (13.5′ x 7.2′) |
| Max Panel Clearance (Z) | 200 mm | 200 mm | 200 mm | 250 mm |
| Vectorial Speed | 35 m/min (85 m/min optional) | 35 m/min (85 m/min optional) | 35 m/min (85 m/min optional) | 35 m/min (85 m/min optional) |
| Linear Speed | 24 m/min (60 m/min optional) | 24 m/min (60 m/min optional) | 24 m/min (60 m/min optional) | 24 m/min (60 m/min optional) |
| Spindle Power | 13 kW | 13 kW | 13 kW | 13 kW |
| Spindle Speed Options | 24,000 / 36,000 / 40,000 RPM | 24,000 / 36,000 / 40,000 RPM | 24,000 / 36,000 / 40,000 RPM | 24,000 / 36,000 / 40,000 RPM |
| Tool Chuck Types | ISO 30 / HSK F63 / HSK E40 / HSK E32 | ISO 30 / HSK F63 / HSK E40 / HSK E32 | ISO 30 / HSK F63 / HSK E40 / HSK E32 | ISO 30 / HSK F63 / HSK E40 / HSK E32 |

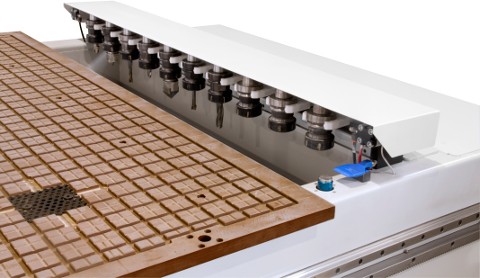

| Tool Changer Positions | 12 Rotary / 8 Rack | 12 Rotary / 10 Rack | 12 Rotary / 12 Rack | 12 Rotary / 12 Rack |
| Vacuum Pump Capacity | 100 m³/h (250 m³/h optional) | 100 m³/h (250 m³/h optional) | 100 m³/h (250 m³/h optional) | 100 m³/h (250 m³/h optional) |
Cosmec Fox Series CNC Router Applications
Engineered for maximum material versatility, the Cosmec Fox excels across diverse manufacturing sectors. From high-speed nesting in cabinet shops to intricate 5-axis milling in aluminum, foam, and composite components, discover how the Fox series delivers consistent precision across custom applications.
Sign Making
Create custom signs, logos, and lettering with precision and efficiency.
Furniture Manufacturing
Produce intricate furniture components and prototypes.
Mold Making
Create molds for various industries, including automotive and aerospace.
Prototyping
Rapidly develop prototypes and models for product design and testing.
Custom Parts
Manufacture custom parts and components.
Optional Aggregates
Maximize the versatility of your Cosmec Fox CNC router with modular attachments and performance-enhancing options. From specialized cutting heads and automated panel alignment to high-efficiency vacuum tables and remote CNC control units, explore the customizable aggregates available to tailor your machine to your exact production requirements.

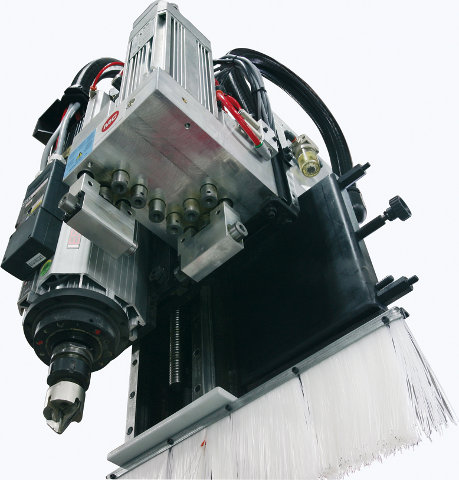

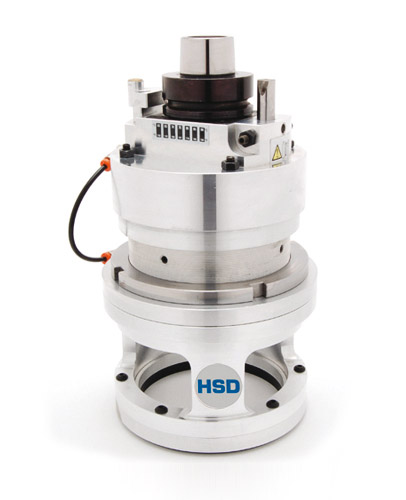

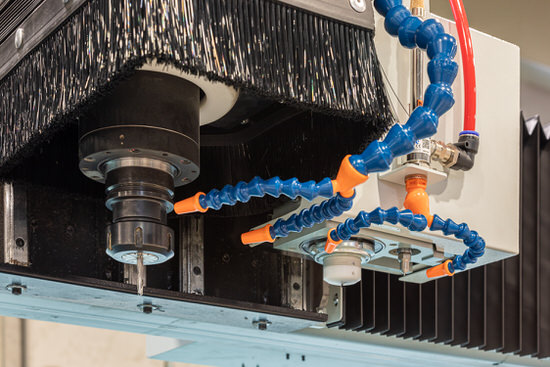

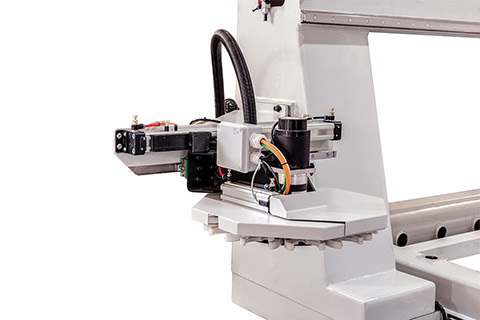

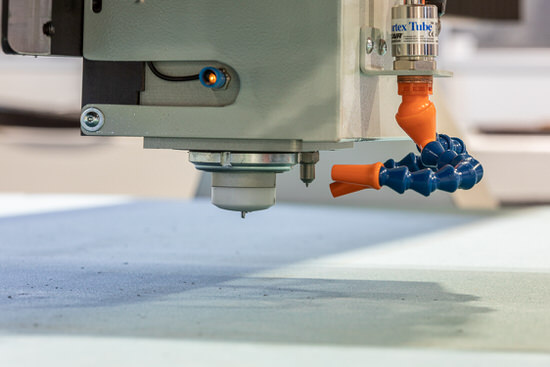

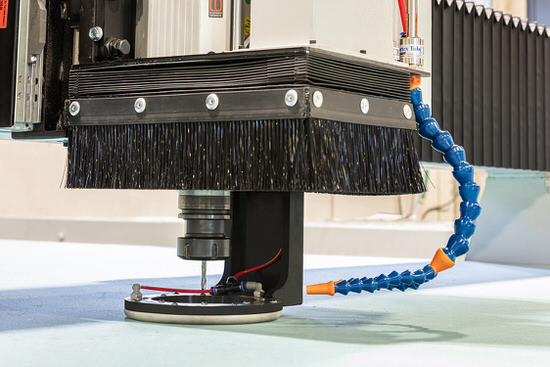

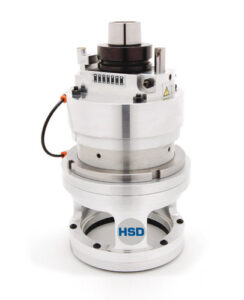

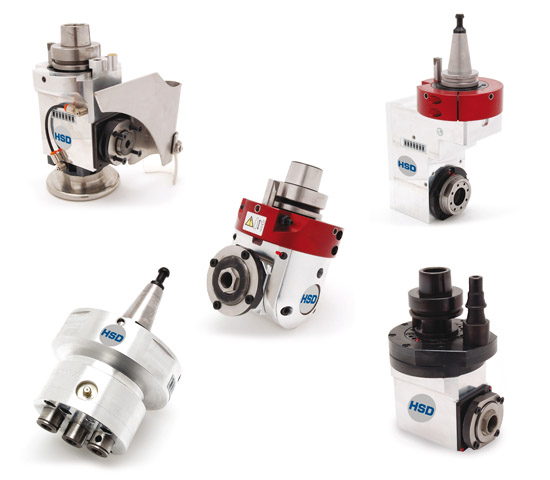

Tailor your spindle output and cutting methods to match complex geometry and specialized materials. Cosmec’s selection of high-performance operating units, floating devices for uneven surfaces, oscillating blades, and flexible aggregate heads allow you to execute intricate 3D carving, beveling, knife cutting, and rapid tool changes without stopping production.

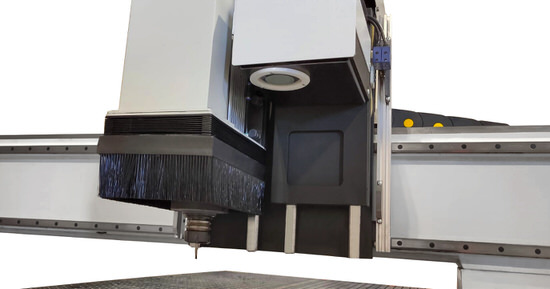

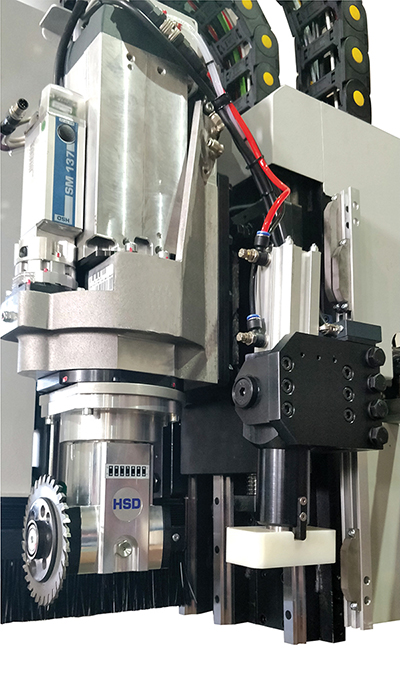

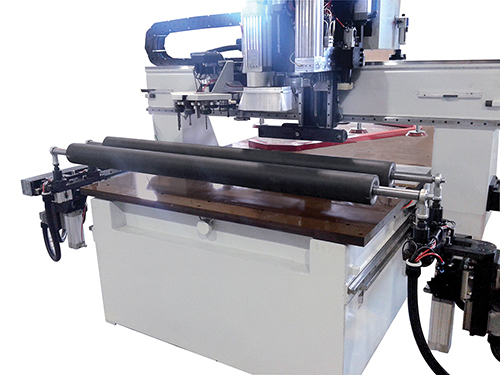

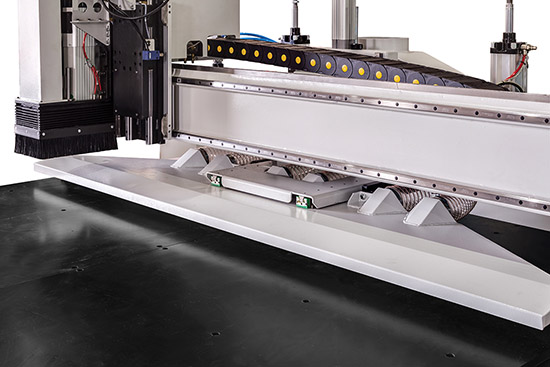

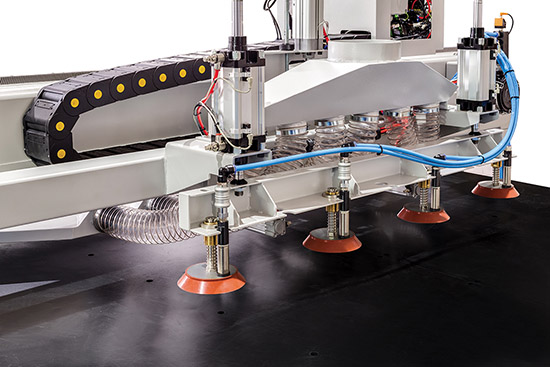

Streamline sheet loading, precision positioning, and panel sweeping to minimize manual handling and downtime. Equipped with optical camera orientation systems and pneumatic board alignment stops, these automated features ensure edge-to-edge accuracy and rapid cycle times for high-volume nesting operations.

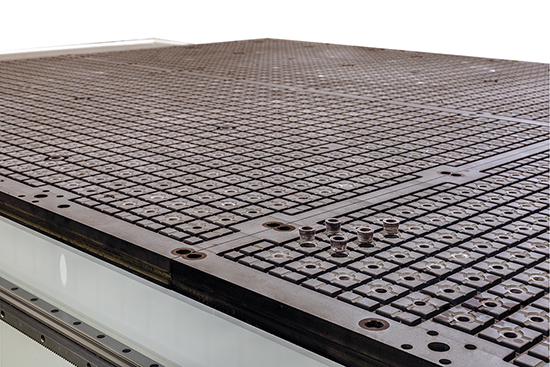

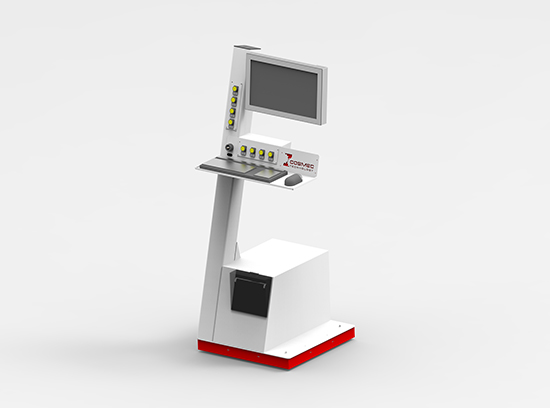

Optimize workholding stability and operator control with customizable table and interface options. High-flow sandwich vacuum tables deliver maximum holding power for thin or non-porous sheet goods, while the handheld remote console gives operators full control directly at the machine bed during setup.
Ready to Configure Your Cosmec Fox CNC Router?
The Cosmec FOX CNC router is a powerful and versatile tool that can significantly enhance your manufacturing capabilities. With its large working area, 5-axis option, and precision engineering, this CNC machine is ideal for a wide range of applications. If you are looking to get into CNC Machining, the FOX can help you achieve your production goals. Contact our sales team today for more information.
