12 hp / 9 kW, 220/380 V

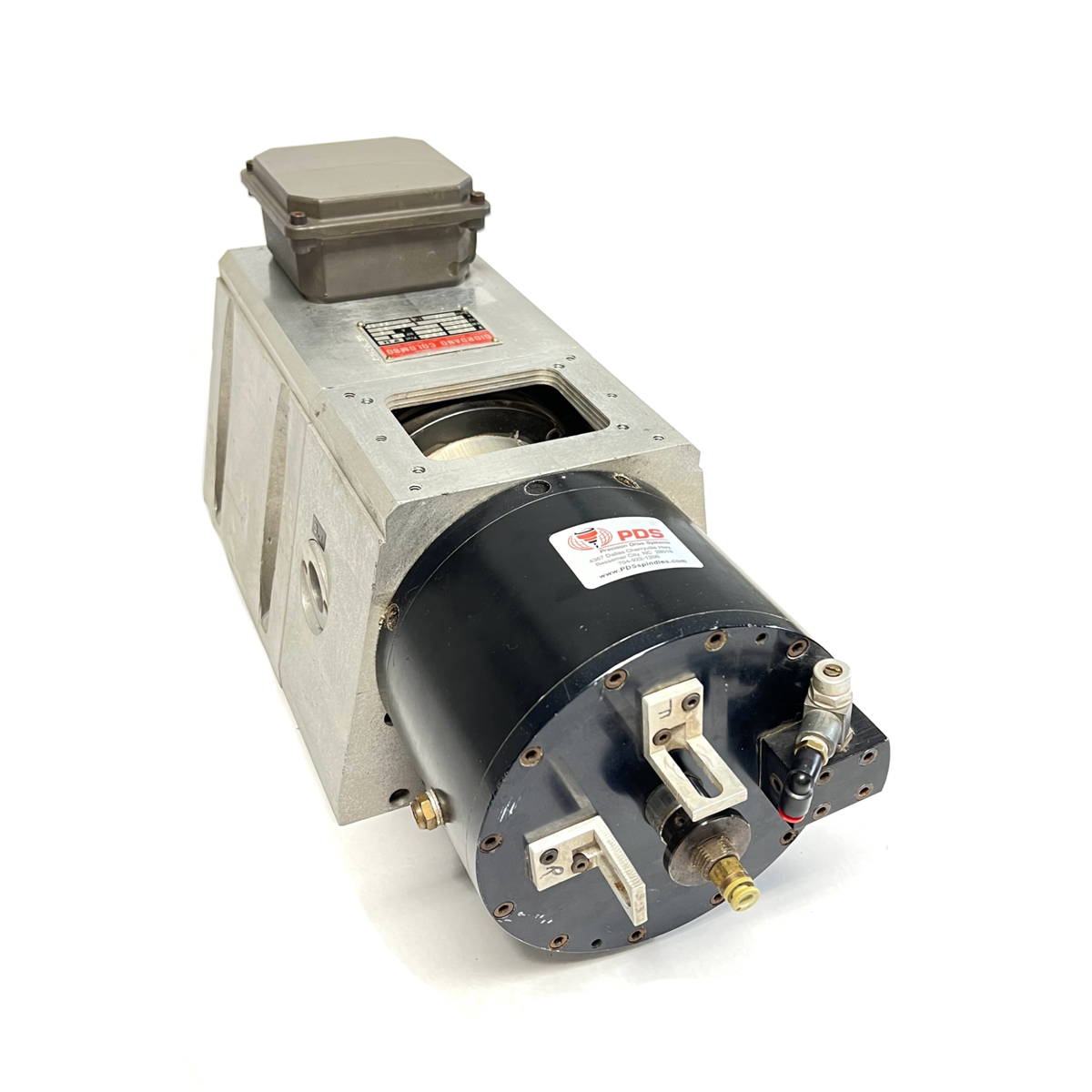

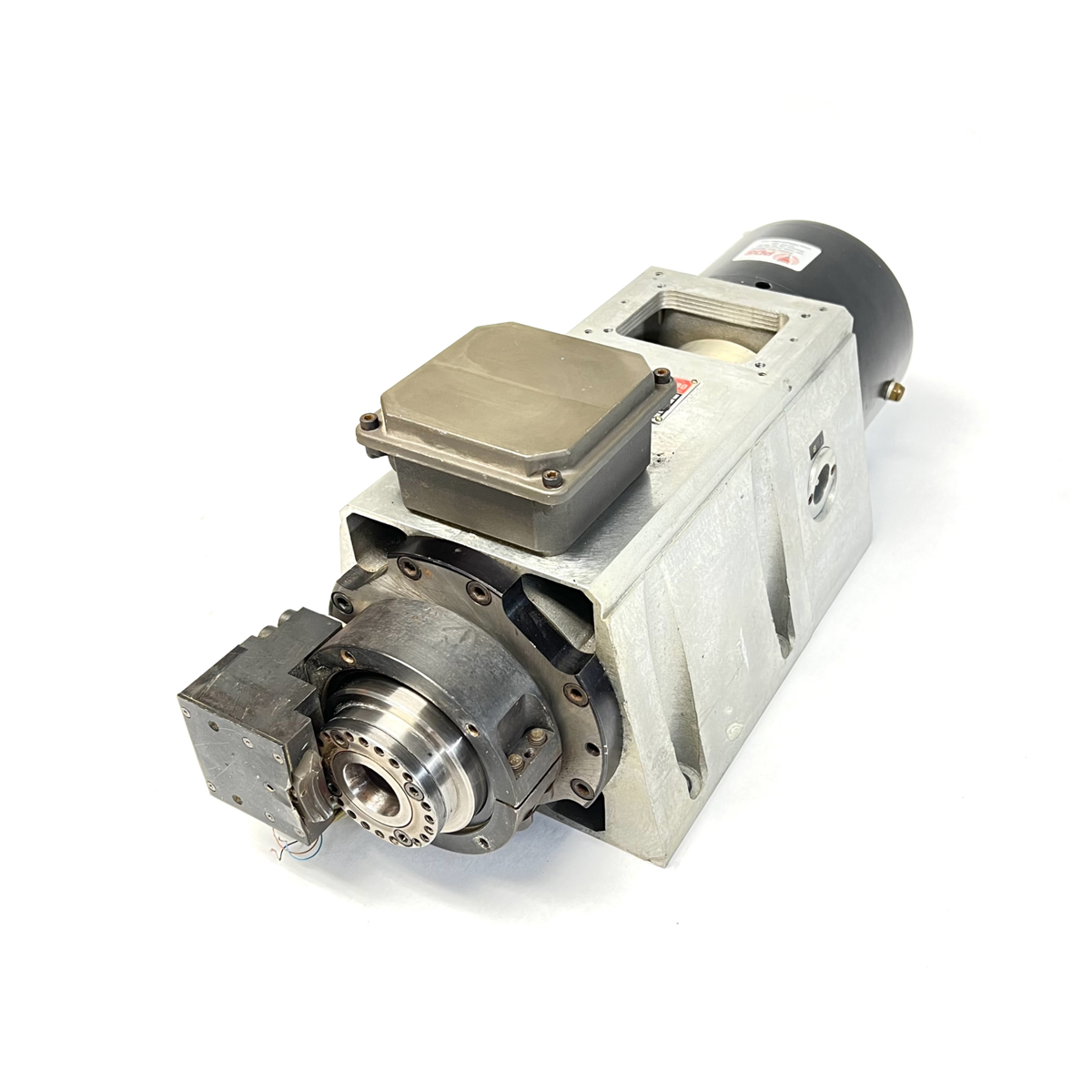

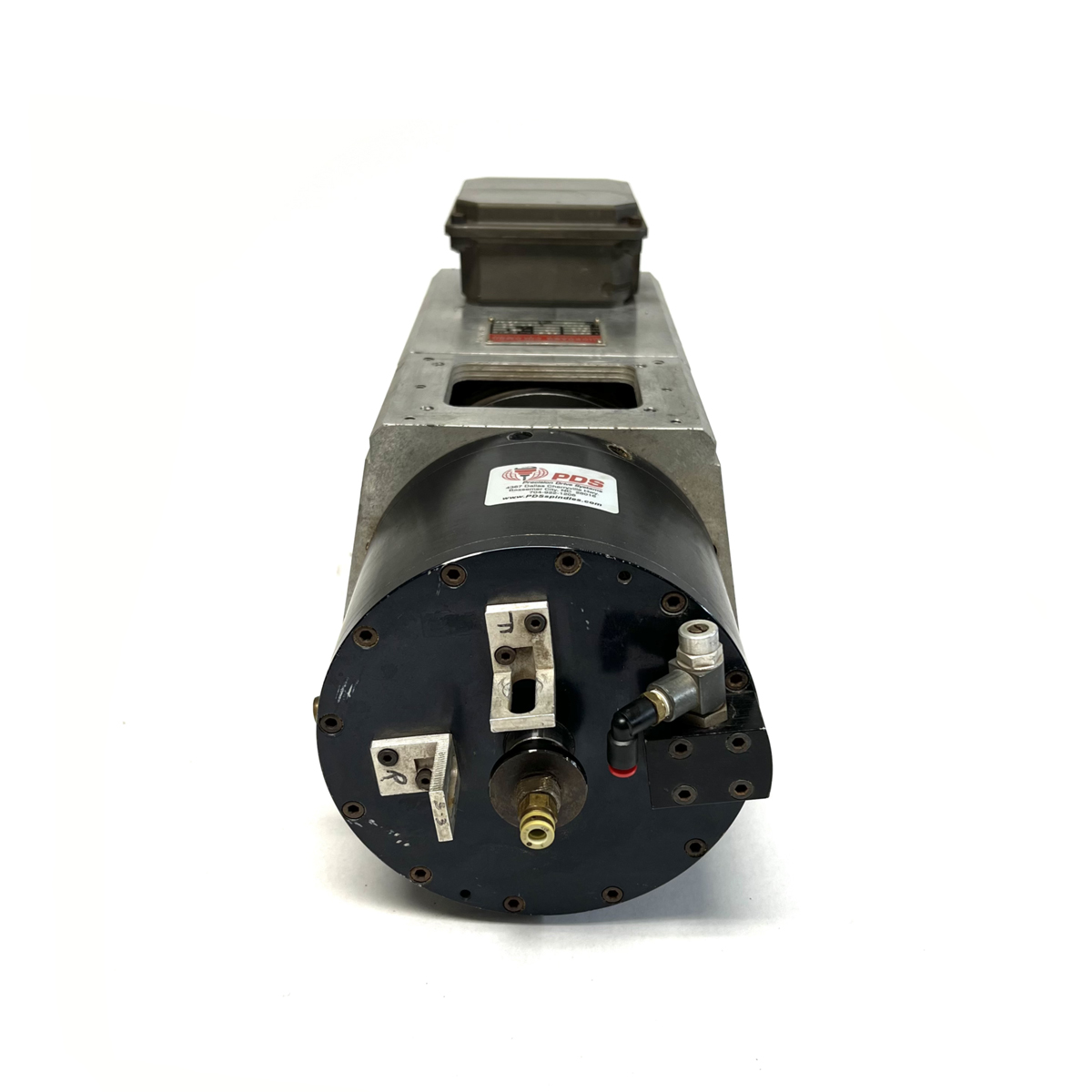

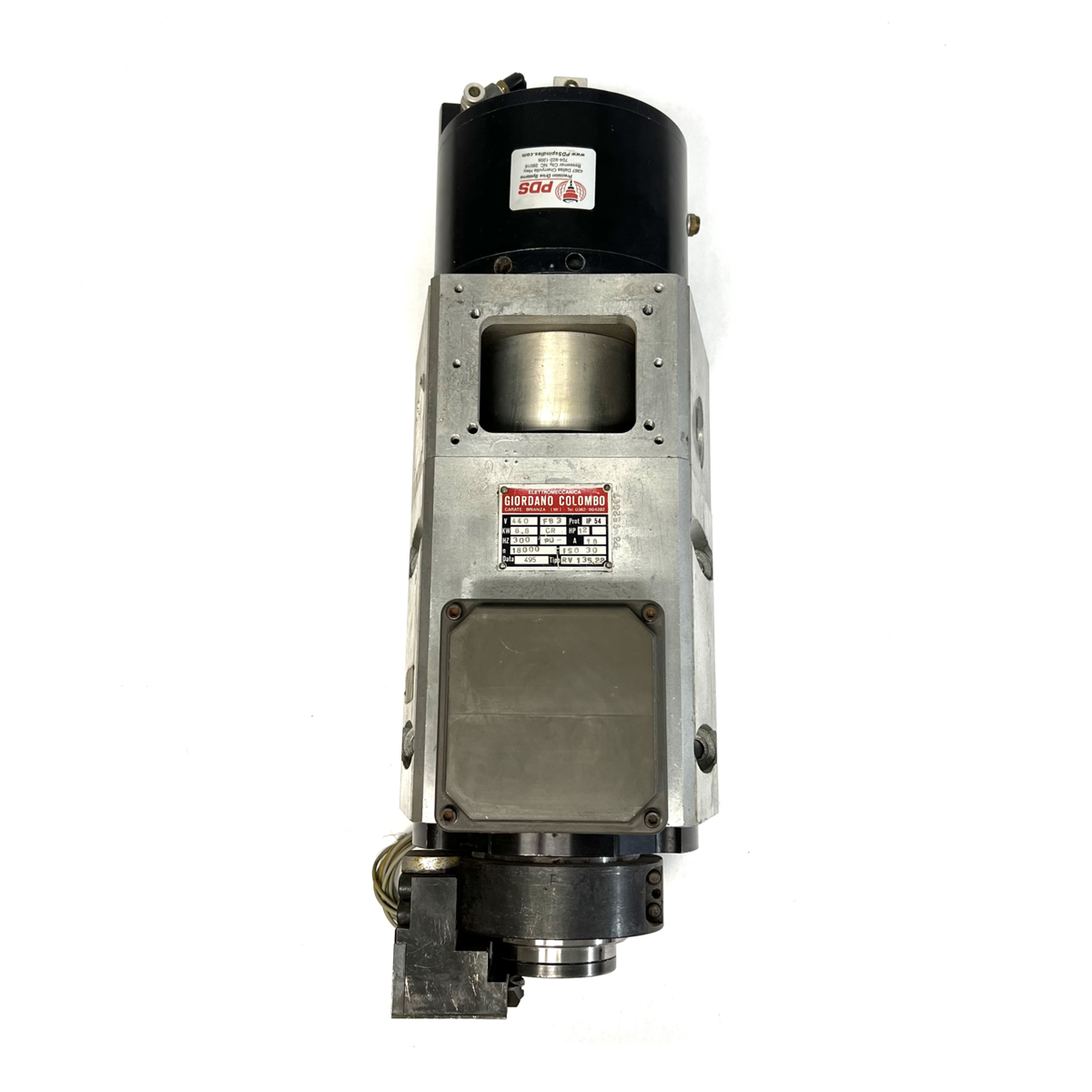

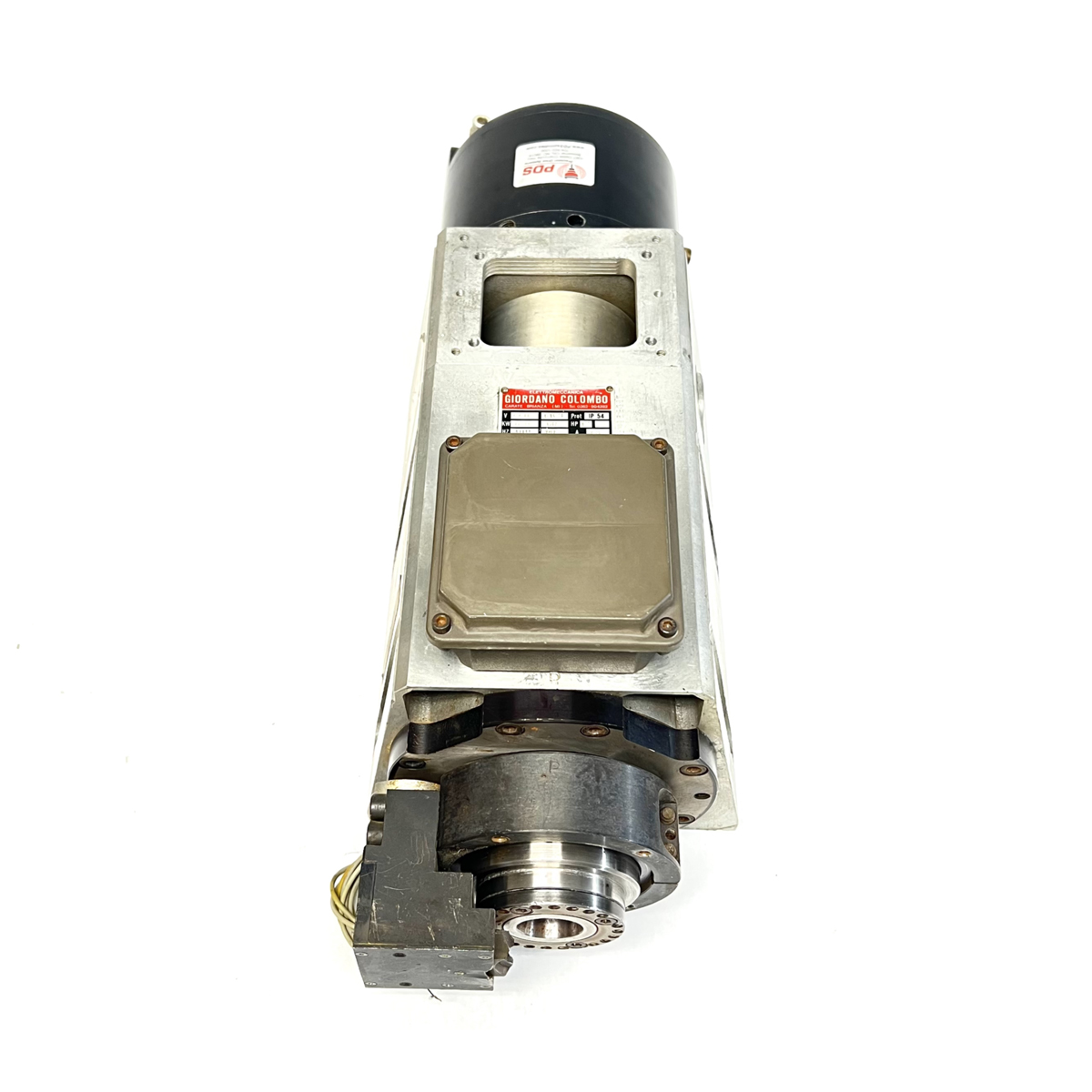

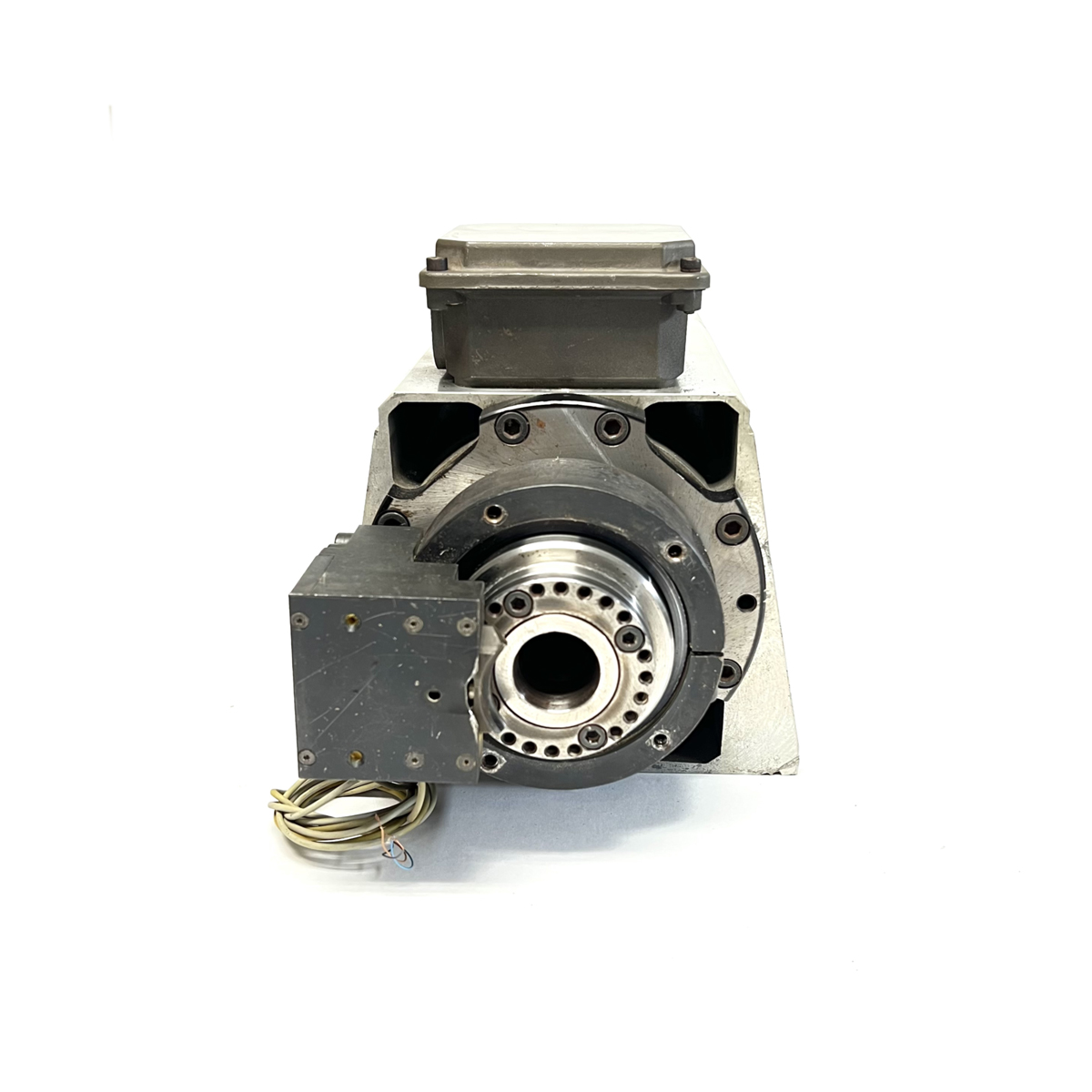

824-135-V103 Colombo Spindle Motor RV 135/22 (Used)
824-135-V103 Giordano Colombo spindle motor, model RV135/22 50 FP1 SB CPE 40 DX, 12 hp, 220/380 V, 36.5/21 A, 18,000 RPM, 300 Hz, 2 Pole. Used condition.
Description
824-135-V103 Colombo electric spindle, model RV 135/22 50 FP1 SB CPE 40 DX. Used condition.
824-135-V103 Motor Specifications
- Motor Series: Colombo RV 135/22 Series
- Power: 12 hp (horsepower) / 9 kW (kilowatts)
- Voltage: 220 V / 380 V (dual voltage capability)
- Maximum Speed: 18,000 RPM (Revolutions Per Minute)
- Frequency: 300 Hz
- Poles: 2 Pole
- Amperage: 36.5 A (at 220 V) / 21 A (at 380 V)
- Tool Change Type: MTC (Manual Tool Change)
- Cooling: Fan-cooled
Additional information
| Condition | Used |
|---|---|
| Manufacturer | Giordano Colombo |
Colombo RV Spindle Motors – Fan Cooled
Giordano Colombo automatic tool change spindles are designed for applications on machines working wood, plastic, aluminum, light alloy, steel, glass and also marble. The frame is obtained from extruded aluminum bar or from heat treated special alloy aluminum ingot. The bearings are precision angular contact type, with steel or ceramic balls and life lubrication with special grease for high speeds.
