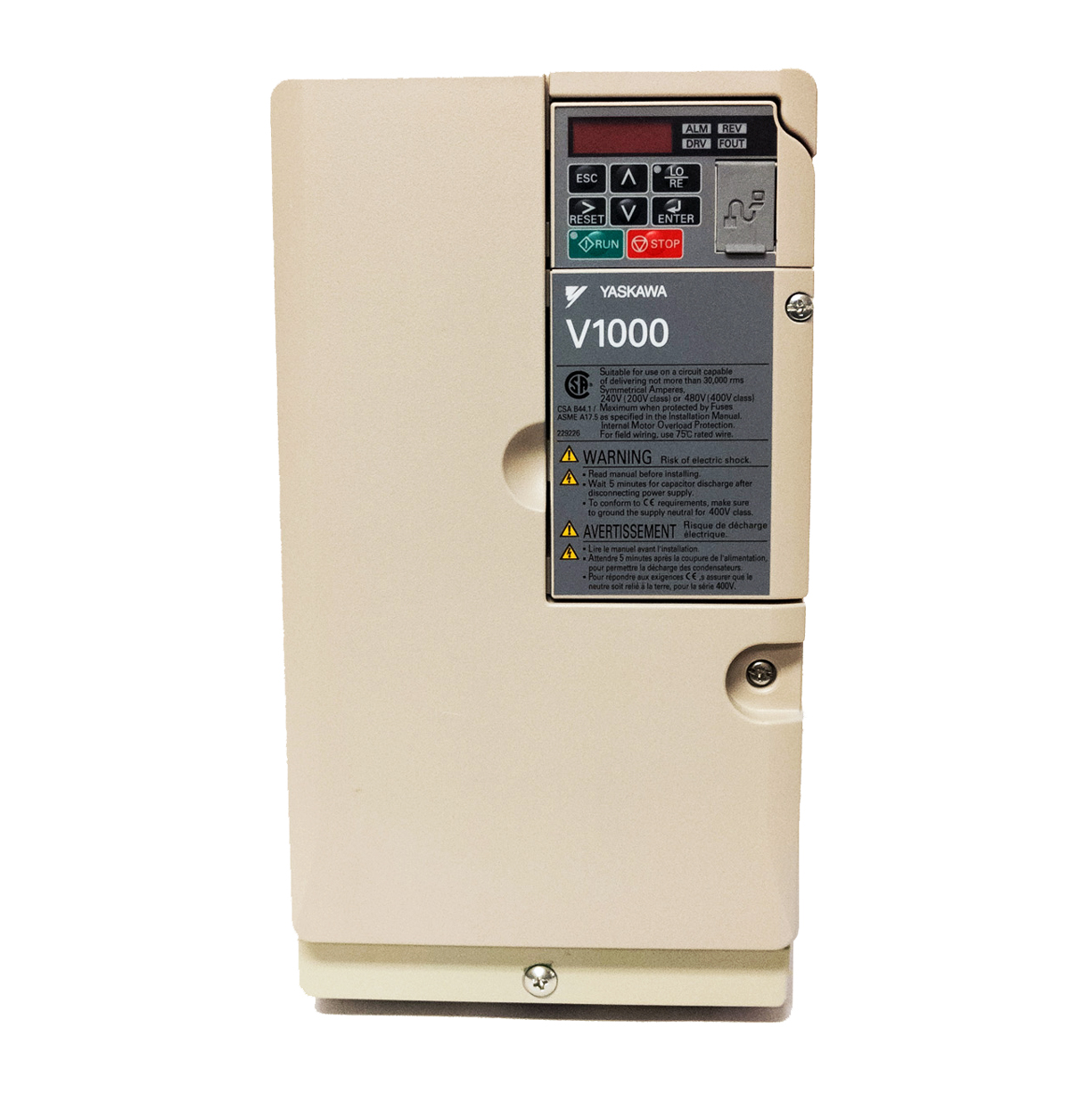

CIMR-VU2A0020FAA Yaskawa AC Drive 5 hp 3.7 kW

Yaskawa

$1,644.00$1,920.00

CIMR-VU2A0020FAA Yaskawa Inverter, Yaskawa V1000 AC drive, 5 hp / 3.7 kW, 200-240 V. 400 Hz and 1167 Hz VFD options available.

Clear
Request More Information

CNC Router Part Request

For a fast and easy CNC router part request, send us a message using the form provided.

SKU: CIMR-VU2A0020FAA, VU2A0020FAA-134 Category: Tag: Brand:

Product Description

CIMR-VU2A0020FAA Yaskawa Inverter, Yaskawa V1000 compact current vector AC drive, 5 hp / 3.7 kW, 200 V – 240 V, 17.5 Amps (heavy duty) rated output current, 3-phase VFD, with easy setup guide. 400 Hz (standard) or 1000 Hz (high frequency) VFD options are available.

CIMR-VU2A0020FAA V1000 Yaskawa Drive Features

  • High performance Sensorless Vector Control
  • Standard LCD display w/optional cable extension for remote mounting
  • Enclosure has NEMA 1 rating
  • Conforms to UL, cUL and CE, RoHS, TUV
  • Complete CNC interface w/standard RS-442/485 MODBUS 115 kbps
  • Optional: DeviceNet,EtherNet/IP,Profibus-DP, Modbus TCP/IP, Mechatrolink-II

Yaskawa V1000 drive variant option VU2A0020FAA-134 comes with custom software that allows output frequencies up to 1167 Hz.

Flyer Catalog Tech Manual

Additional Information

Weight 7 lbs
Dimensions 8 × 8 × 9 in
Brand

Yaskawa, Yaskawa Electric

Power

3.7 kW, 5 hp

Voltage

200-240 V

Amps

17.5 Amps

Condition

New

Maximum Output Frequency

400 Hz, 1000 Hz (1167)

Manufacturer

Yaskawa

Manufacturer Part Number

CIMR-VU2A0020FAA, VU2A0020FAA-134

VU2A0020FAA-134 VFD Cross Reference

  • Yaskawa GA50U2021ABA-134 / GA500
  • Delta VFD17AMS23ANSHA / MS300

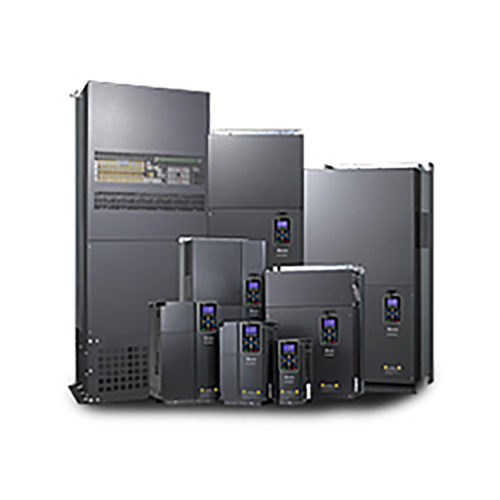

  • Delta VFD037C23A / VFD-C
  • Delta VFD037B23A / VFD-B
  • Yaskawa CIMR-G5M23P71 / G5
  • MagneTek GPD515C-A017
  • Omron IDM G5U23P7-N1
  • Saftronics VG5 VG523P7 E8001-05V
  • ACTech / SMVector ESV402N02TXB

Yaskawa V1000 AC Motor Drives

V1000 Drive – 1/8 – 25 HP

Yaskawa V1000 is a world-class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa pays off the promise of being in control with products that make businesses move. The optimum balance of energy input, product output, maintenance risk, and long life is reached with Yaskawa. The V1000 provides a world of power in the palm of your hand!
