CIMR-VU2A0069FAA Yaskawa AC Drive 20 hp 14.9 Kw

CIMR-VU2A0069FAA Yaskawa AC Drive 20 hp 14.9 Kw

Yaskawa

$1,632.00 – $4,126.00

CIMR-VU2A0069FAA Yaskawa inverter, Yaskawa V1000 AC drive, 20 hp / 14.9 Kw, 200-240 V. 400 Hz and 1167 Hz VFD options available.

Clear
Request More Information

CNC Router Part Request

For a fast and easy CNC router part request, send us a message using the form provided.

SKU: CIMR-VU2A0069FAA, VU2A0069FAA-134 Category: Tag: Brand:

Product Description

CIMR-VU2A0069FAA Yaskawa inverter, Yaskawa V1000 compact current vector AC drive, 20 hp / 14.9 Kw, 200 V – 240 V, 60 Amps (heavy duty) rated output current, 3-phase VFD, with easy set up guide.

CIMR-VU2A0069FAA V1000 Yaskawa Drive Features

  • High performance Sensorless Vector Control
  • Standard LCD display w/optional cable extension for remote mounting
  • Enclosure has NEMA 1 rating
  • Conforms to UL, cUL and CE, RoHS, TUV
  • Complete CNC interface w/standard RS-442/485 MODBUS 115 kbps
  • Optional: DeviceNet,EtherNet/IP,Profibus-DP, Modbus TCP/IP, Mechatrolink-II

Yaskawa V1000 drive variant option VU2A0069FAA-134 comes with custom software that allows output frequencies up to 1167 Hz.

Flyer Catalog Tech Manual

Additional Information

Weight 22 lbs
Dimensions 11 × 13 × 18 in
Condition

New
Manufacturer

Yaskawa
Manufacturer Part Number

CIMR-VU2A0069FAA, VU2A0069FAA-134
Brand

Yaskawa, Yaskawa Electric
Maximum Output Frequency

400 Hz, 1000 Hz (1167)
Power

14.9 kW, 20 hp
Voltage

200-240 V
Amps

60 Amps

VU2A0069FAA-134 VFD Cross Reference

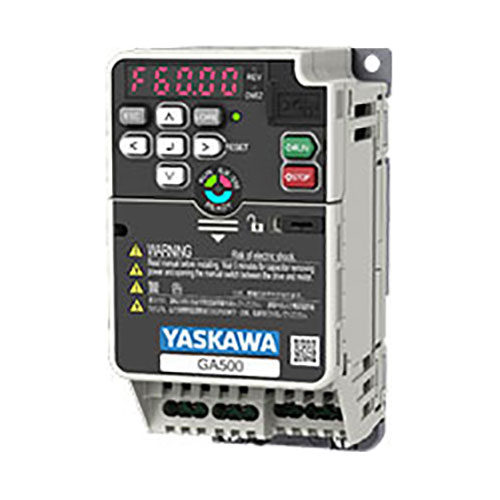

  • Yaskawa GA50U2070ABA-134 / GA500
  • Delta VFD65AMS23ANSHA / MS300

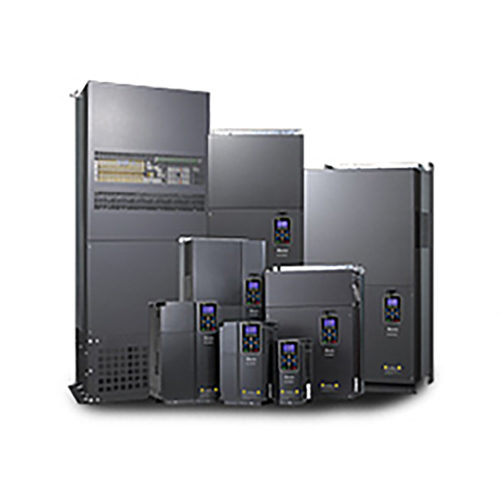

  • Delta VFD150C23A / VFD-C
  • Delta VFD150B23A / VFD-B
  • Yaskawa CIMR-G5M20151 / G5
  • MagneTek GPD515C-A064
  • Omron IDM G5U2015-N1
  • Saftronics VG52015 E8001-09V
  • ACTech / SMVector ESV153N02TXB

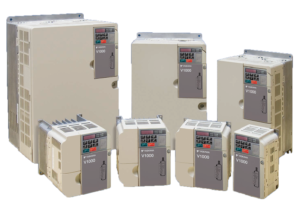

Yaskawa V1000 AC Motor Drives

V1000 Drive – 1/8 – 25 HP

Yaskawa V1000 is a world-class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa pays off the promise of being in control with products that make businesses move. The optimum balance of energy input, product output, maintenance risk, and long life is reached with Yaskawa. The V1000 provides a world of power in the palm of your hand!
