RS 110/22 Colombo Spindle Motor 10 hp / 7.5 kW, Rebuilt

$8,421.00

Colombo spindle motor, Colombo RS 110/22 40 FP1 ISO 30, fan-cooled, 10 hp / 7.5 kW, 220 V, Rebuilt.

This Colombo RS 110/22 spindle motor is freshly rebuilt, in stock and ready to be shipped.

In stock

SKU: S301564-10, 2 Rebuilt Categories: , , Tags: , Brand:

Description

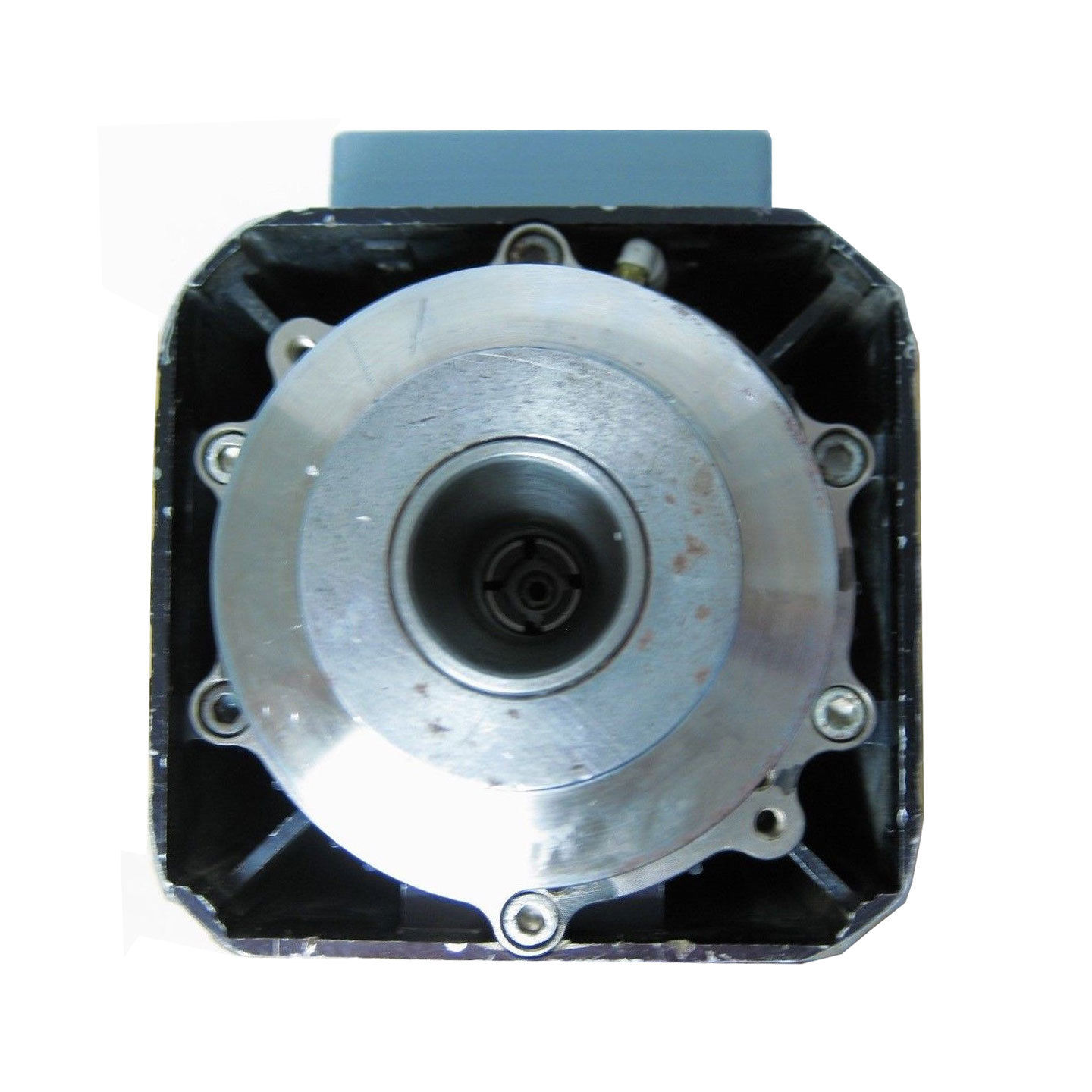

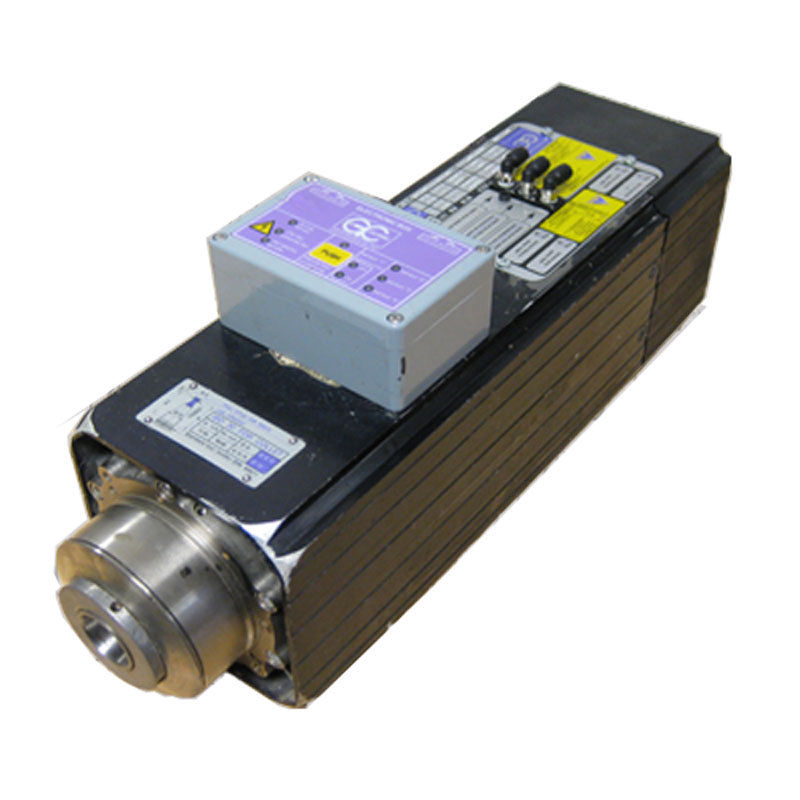

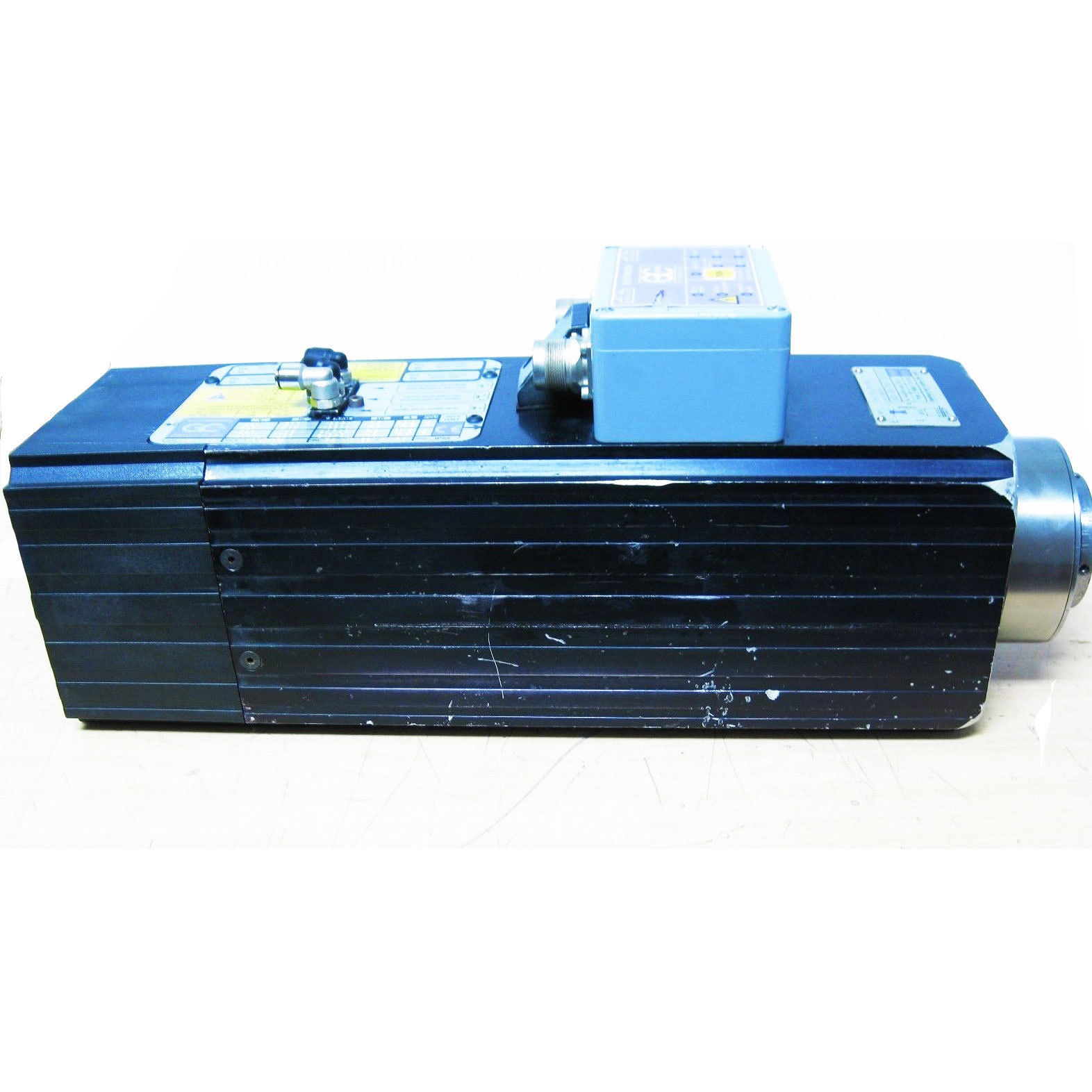

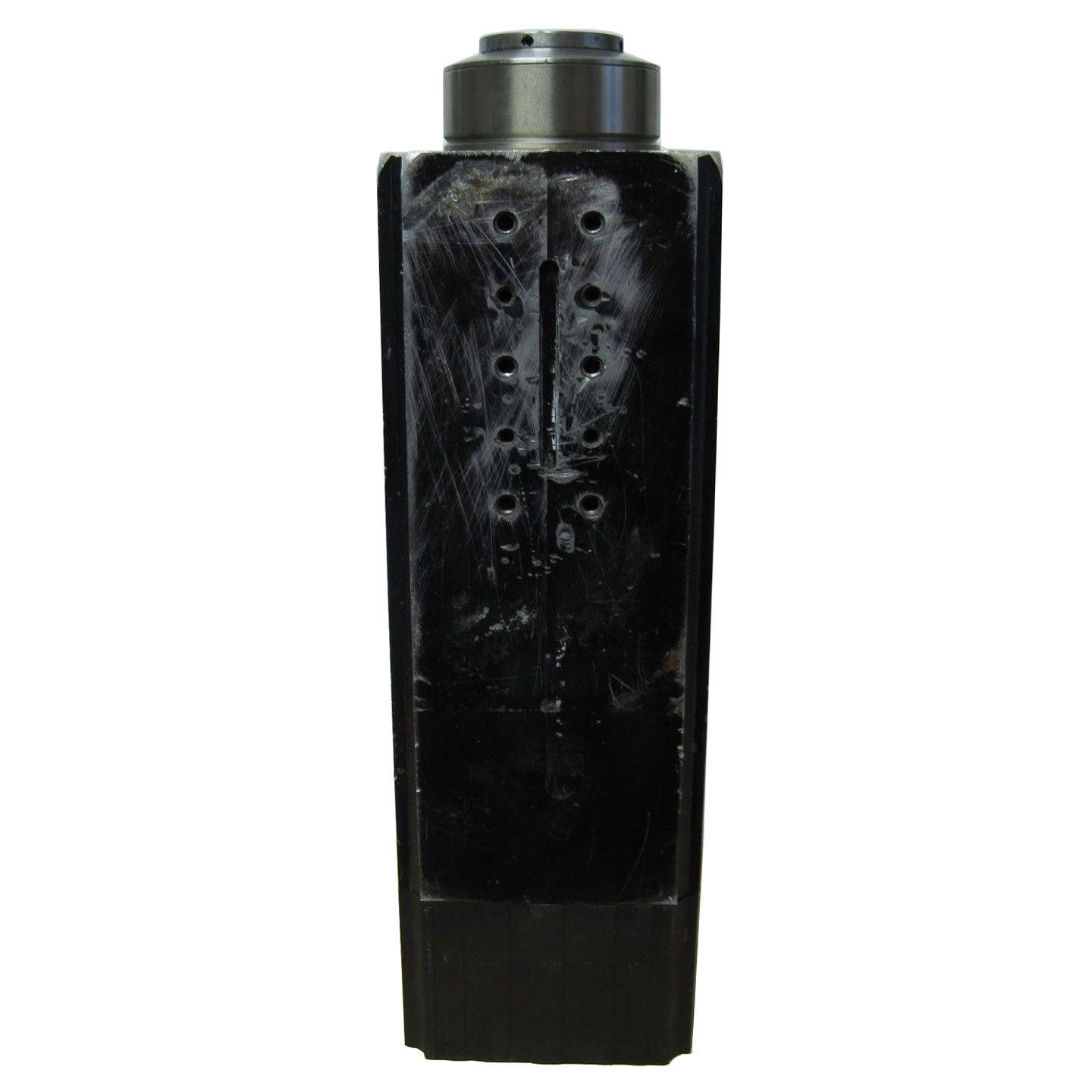

Giordano Colombo spindle motor, Colombo RS 110/22 40 FP1 ISO 30, automatic tool change (ATC), fan-cooled electric motor, 10 hp / 7.5 kW, 220 V. Rebuilt.

Colombo RS 110/22 Spindle Motor Specifications:

  • Taper: ISO30
  • Tool clamping system: Sphere
  • Front bearings type: angular ceramic contact bearings
  • Rear bearings type: angular ceramic contact bearings
  • Bearings Lubrication: Kluber Isoflex Topas NB52 or Lubcon Turmogrease Highspeed L252
  • Compressed air Air pressure (bar) = 6 Bar
  • Noise statement RS Series max dbA = 74 (@60000rpm)
  • Weight = 25 kg

Additional information

Weight 61.00 lbs
Dimensions 30 × 13 × 13 in

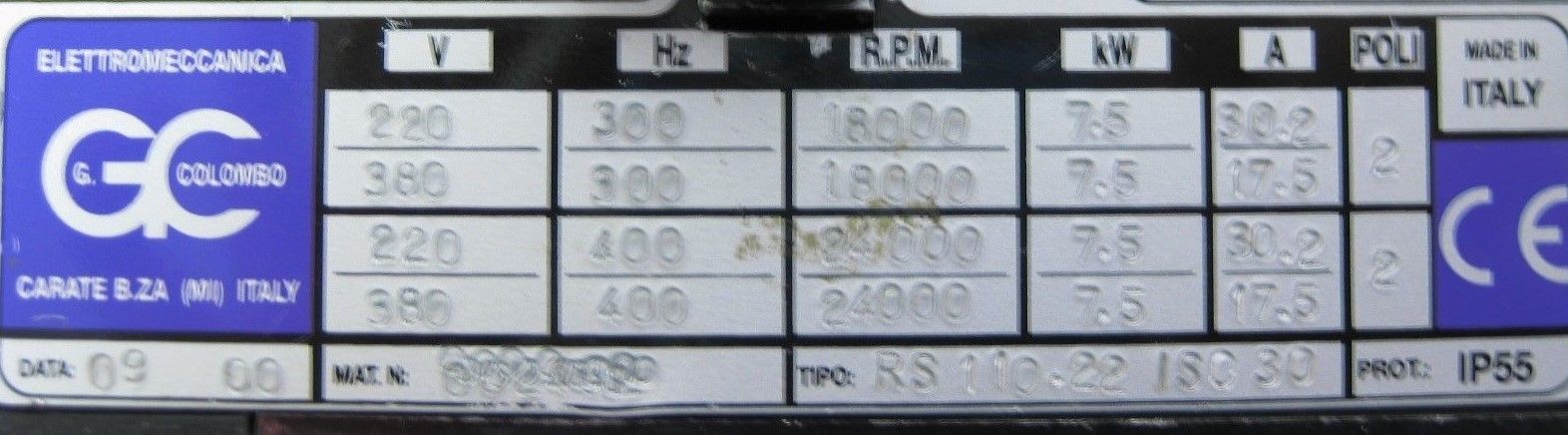

Model

RS 110/22

MPN

S301564-10,2

IP Rating

55

Brand

Giordano Colombo

Condition

Rebuilt

Power

7.5 kW, 10 hp

Voltage

220V

Speed

24,000 RPM

Frequency

400Hz

Poles

2

Cooling Method

Electric Fan

Tool Change

Automatic Tool Change

Tool Holder

ISO 30

Manufacturer

Giordano Colombo

Country/Region of Manufacture

Italy

Colombo RS Series Spindle Motors – Electric Fan Cooled

Giordano Colombo RS series spindle motors are designed for applications on machines working wood, plastic, aluminum, light alloy, glass and marble. The frame is made from extruded aluminum bar or from heat treated special alloy aluminum ingot. The bearings are a precision angular contact type, with steel or ceramic balls and life lubrication with special grease for high speeds.
