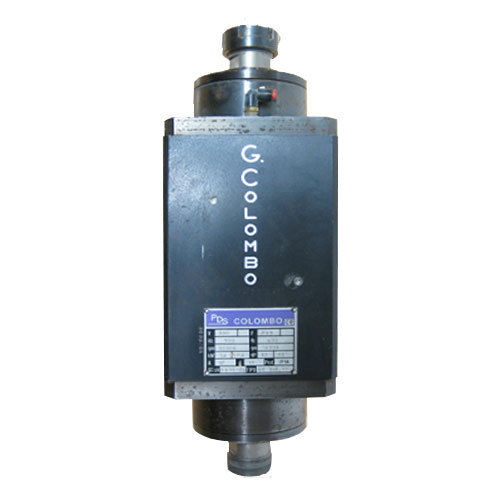

Colombo RC 110/22 Spindle Motor (Used)
$2,678.00
Giordano Colombo spindle motor, Colombo RC110/22, ER 32 collet, double-ended shaft, MTC (manual tool change), fan-cooled, 10 hp / 7.5 kW, 380 V. Used.
Out of stock
Description
Giordano Colombo RC series electric spindle motor, model RC 110/22. Features ER 32, double-ended, manual tool change (MTC), fan-cooled, 10 hp / 7.5 kW, 380 V, 18,000 – 24,000 RPM range. Used.
Additional information
| Manufacturer | Giordano Colombo |
|---|---|
| Country/Region of Manufacture | Italy |
| Part Number (MPN) | S11C002-10BI-3 |
| Speed (RPM) | 18,000, 24,000 |
| Tool Change | |
| Collet size | ER 32 |
| Cooling Method | Fan Cooled |
| Current (Amps) | 17 |
| Poles | 2 |
| Horsepower (hp) | 10 |
| Kilowatt (kW) | 7.5 |
| Voltage (V) | 380 |
| Condition | Used |
Colombo RC Series Spindle Motors – Compressed Air Cooling
Giordano Colombo spindles are designed for applications on machines working wood, plastic, aluminum, light alloy, glass and marble. The frame is made from extruded aluminum bar or from heat treated special alloy aluminum ingot. The bearings are a precision angular contact type, with steel or ceramic balls and life lubrication with special grease for high speeds.
