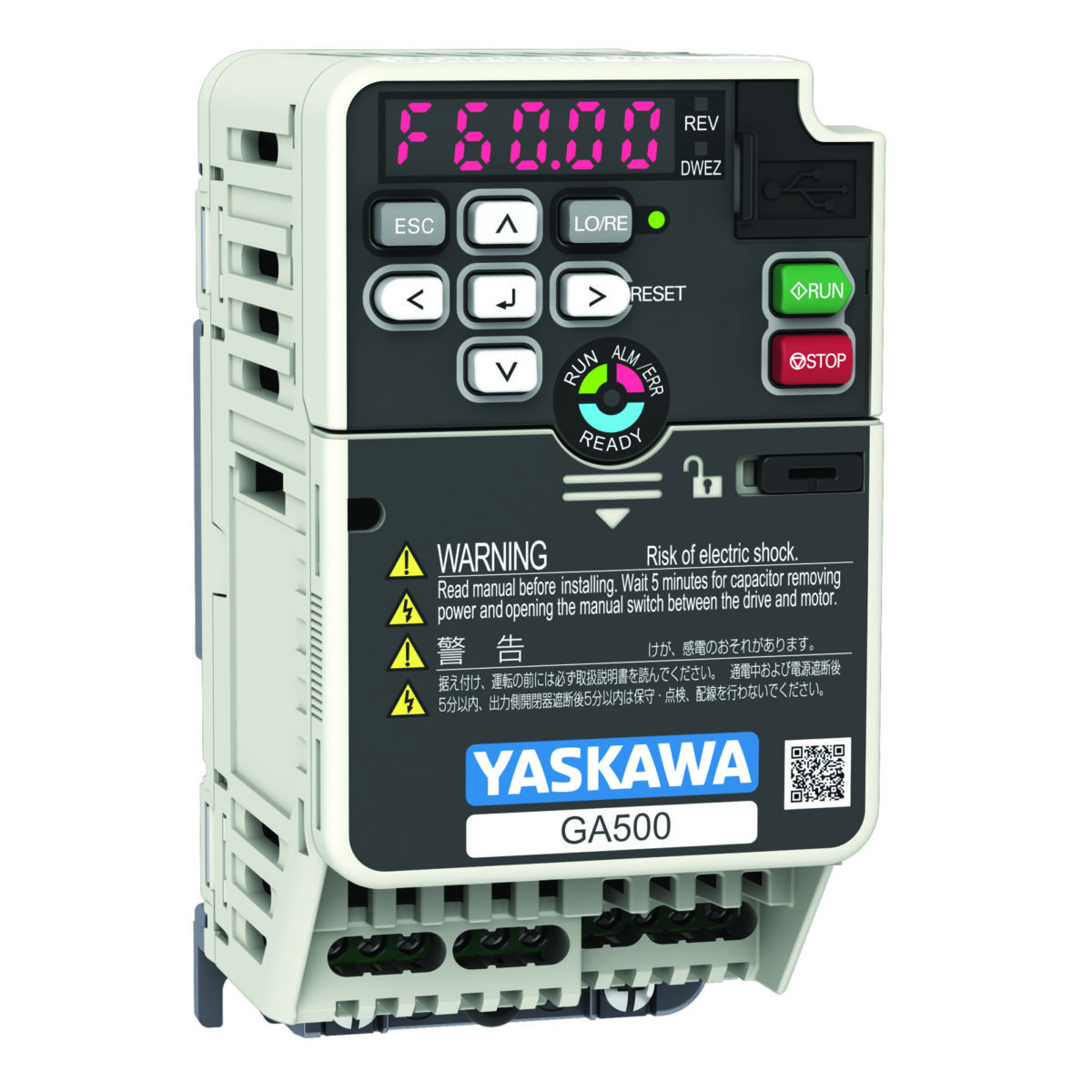

GA50U4005ABA Yaskawa GA500 VFD 3 hp 2.2 kW 480 V
The Yaskawa GA50U4005ABA is an industrial-grade 3 HP (2.2 kW) standard-frequency AC microdrive designed for high-voltage 480V systems. Rated at 4.8 Amps Heavy Duty, this 3-phase unit delivers precision motor speed control and reliable performance up to 590 Hz output frequency.
This VFD come with CNC Parts Dept’s easy setup guide. Alternately for a small fee, we can pre-program your drive to match your spindle motor. Ask us about our VFD programming services.
Description
The Yaskawa GA50U4005ABA variable frequency drive provides exceptional motor control and drop-in reliability for high-voltage industrial setups. Capable of outputting up to 590 Hz, this AC drive is optimized for compact manufacturing workstations, industrial blowers, assembly conveyors, and intermediate machine tool drives.
Operating on a 380–480 V 3-phase incoming power line, this model provides continuous power in Heavy Duty mode with a rated output current of 4.8 Amps. Its high-voltage architecture decreases current demand and minimizes wiring requirements, while its advanced current-monitoring algorithms actively prevent stalling during sudden mechanical loading spikes.
Additional information
| Manufacturer | Yaskawa |
|---|---|
| Model Series | |
| Part Number (MPN) | GA50U4005ABA |
| Horsepower (hp) | 3 |
| Kilowatt (kW) | 2.2 |
| Voltage (V) | 380-480 |
| Current (Amps) | 4.8 |
| Output Frequency (Hz) | 590 |
| Condition | New |
Key Performance & Architectural Advantages
Standard Frequency Speed Profile
Broad standard-frequency output ranges support speed-machining and motor-drive operations up to 590 Hz without sacrificing motor torque efficiency or thermal performance across all load profiles.
Universal Motor Control
Supports advanced sensorless open-loop vector, EZ Vector, PM motor tracking, and traditional V/f control for highly adaptive operation across standard spindle and standard induction motor designs.
Embedded DriveWorksEZ
Customize specific VFD logic operations and automate auxiliary controls without an external PLC by utilizing built-in icon-based software programming environments.
Integrated Braking Transistor
Offers direct dynamic braking torque capability out of the box to rapidly slow and stop standard routing and milling spindles safely (requires external resistors).
Coated PCB Protection
Standard dual-conformally coated printed circuit boards provide robust resistance to conductive metal fragments, carbon wood dust, and humid cooling mist atmospheres.
24 VDC Auxiliary Control Power
Directly powers internal control logic loops and connected external system sensors without requiring a secondary auxiliary cabinet power supply unit.
