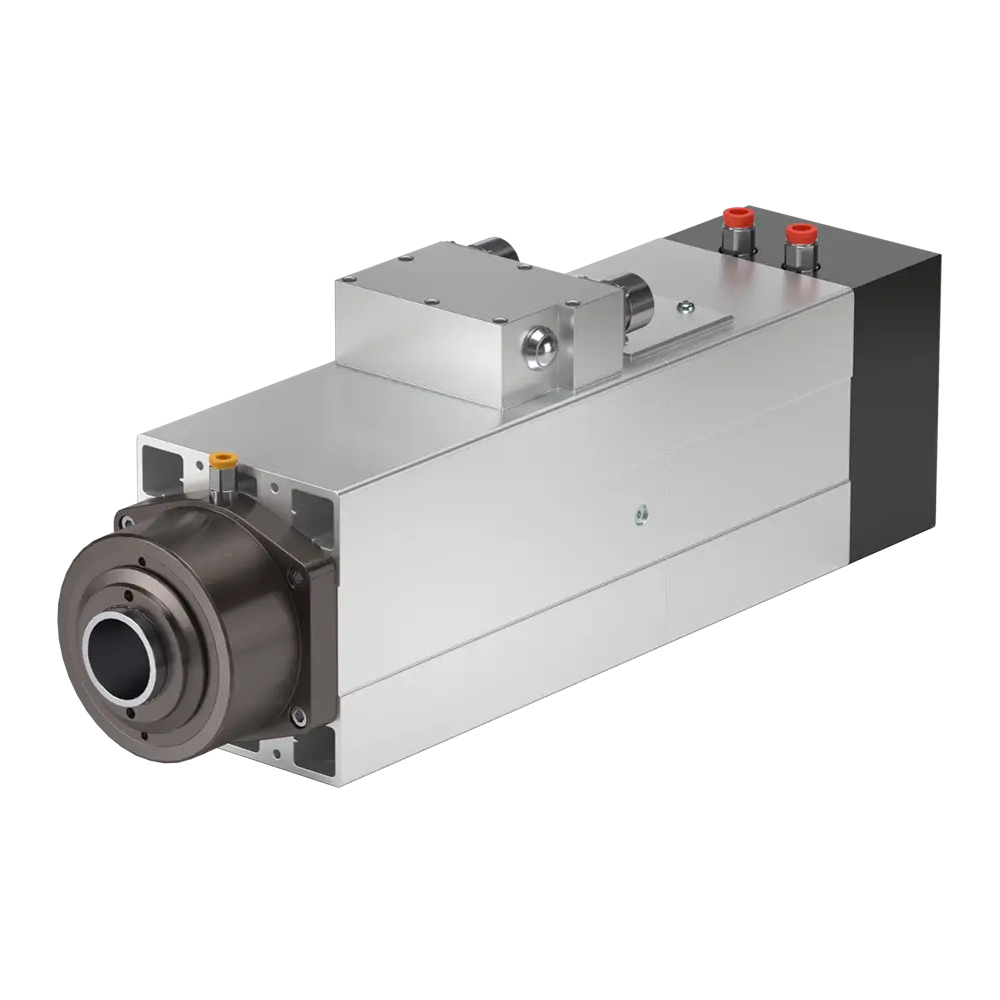

HSD H6161090A2 ES330 Spindle Motor

Call for price

HSD H6161090A2 spindle motor, ES330 series, ATC, electric fan cooled, ISO 30 tooling, short nose, 24,000 RPM, 800 Hz, 4-pole, 5.4 hp (4.0 kW), 220 V.

Description

H6161090A2 HSD ATC spindle motor.

Model Series: HSD ES330
Model no.: H6161090A2 (or A6161090A2)
Tool Change: Automatic with quick-change tool release button
Tool Interface: ISO 30 tool holder, short nose shaft
Bearings: Ceramic
Body: Aluminum alloy
Cooling: Electric fan-cooled
Pole Count: 4-pole
Speed / Frequency Range:
- Rated: 12,000 RPM @ 400 Hz
- Maximum: 24,000 RPM @ 800 Hz
Power (@ Rated Speed):
- S1: 5.4 hp (4.0 kW)
- S6 (40%): 6 hp (4.5 kW)
Power (@ Maximum Speed):
- S1: 2.5 kW
- S6 (40%): 2.6 kW
Voltage: 220 V

Manufacturer	HSD
Country/Region of Manufacture	Italy
Part Number (MPN)	H6161090A2, A6161090A2
Model Series	HSD ES330
Tool Change	Automatic Tool Change
Tool Holder	ISO 30
Spindle Nose	Short Nose
Cooling Method	Electric Fan-Cooled
Poles	4
Rated Speed (RPM)	12,000
Maximum Speed (RPM)	24,000
Rated Frequency (Hz)	400
Maximum Frequency (Hz)	800
Kilowatt (kW)	4
Horsepower (hp)	5.4
Voltage (V)	220
Condition	New
