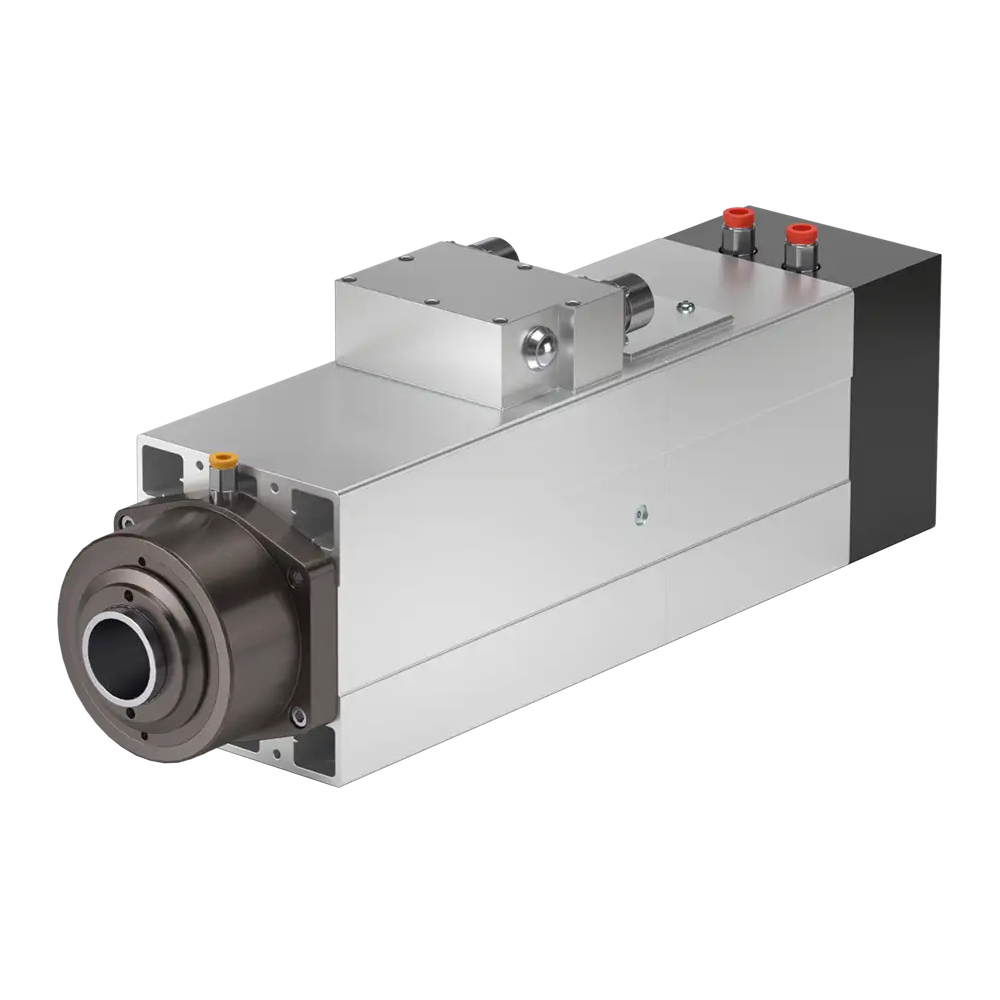

HSD H6161090A6 ES330 Spindle Motor

Call for price

HSD H6161090A6 spindle motor, ES330 series, ATC, electric fan cooled, ISO 30 tooling, short nose, 24,000 RPM, 800 Hz, 4-pole, 5.4 hp (4 kW), 380 V.

Description

H6161090A6 HSD ATC spindle motor.

Model Series: HSD ES330
Model no.: H6161090A6 (or A6161090A6)
Tool Change: Automatic with quick-change tool release button
Tool Interface: ISO 30 tool holder, short nose shaft
Bearings: Ceramic (Front & Rear)
Spindle Body: Aluminum alloy
Cooling: Electric fan-cooled
Pole Count: 4-pole
Speed Range:
- Rated: 12,000 RPM @ 400 Hz
- Maximum: 24,000 RPM @ 800 Hz
Power (@ Rated Speed):
- S1: 5.4 hp (4 kW)
- S6: 6 hp (4.5 kW)
Voltage: 380 V

Manufacturer	HSD
Country/Region of Manufacture	Italy
Model Series	HSD ES330
Part Number (MPN)	H6161090A6, A6161090A6
Tool Change	Automatic Tool Change
Tool Holder	ISO 30
Spindle Nose	Short Nose
Cooling Method	Electric Fan-Cooled
Poles	4
Rated Speed (RPM)	12,000
Maximum Speed (RPM)	24,000
Rated Frequency (Hz)	400
Maximum Frequency (Hz)	800
Kilowatt (kW)	4
Horsepower (hp)	5.4
Voltage (V)	380
Condition	New
