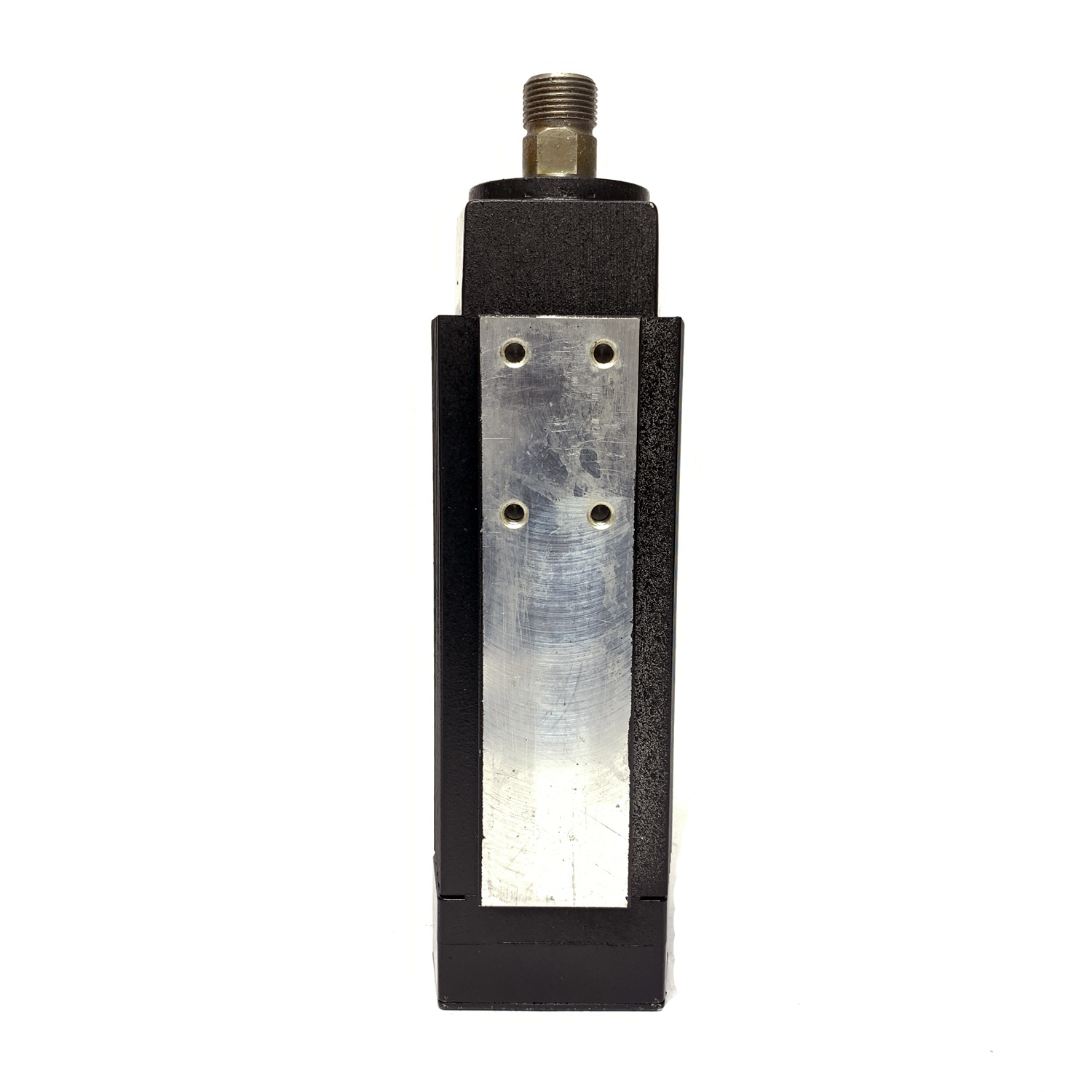

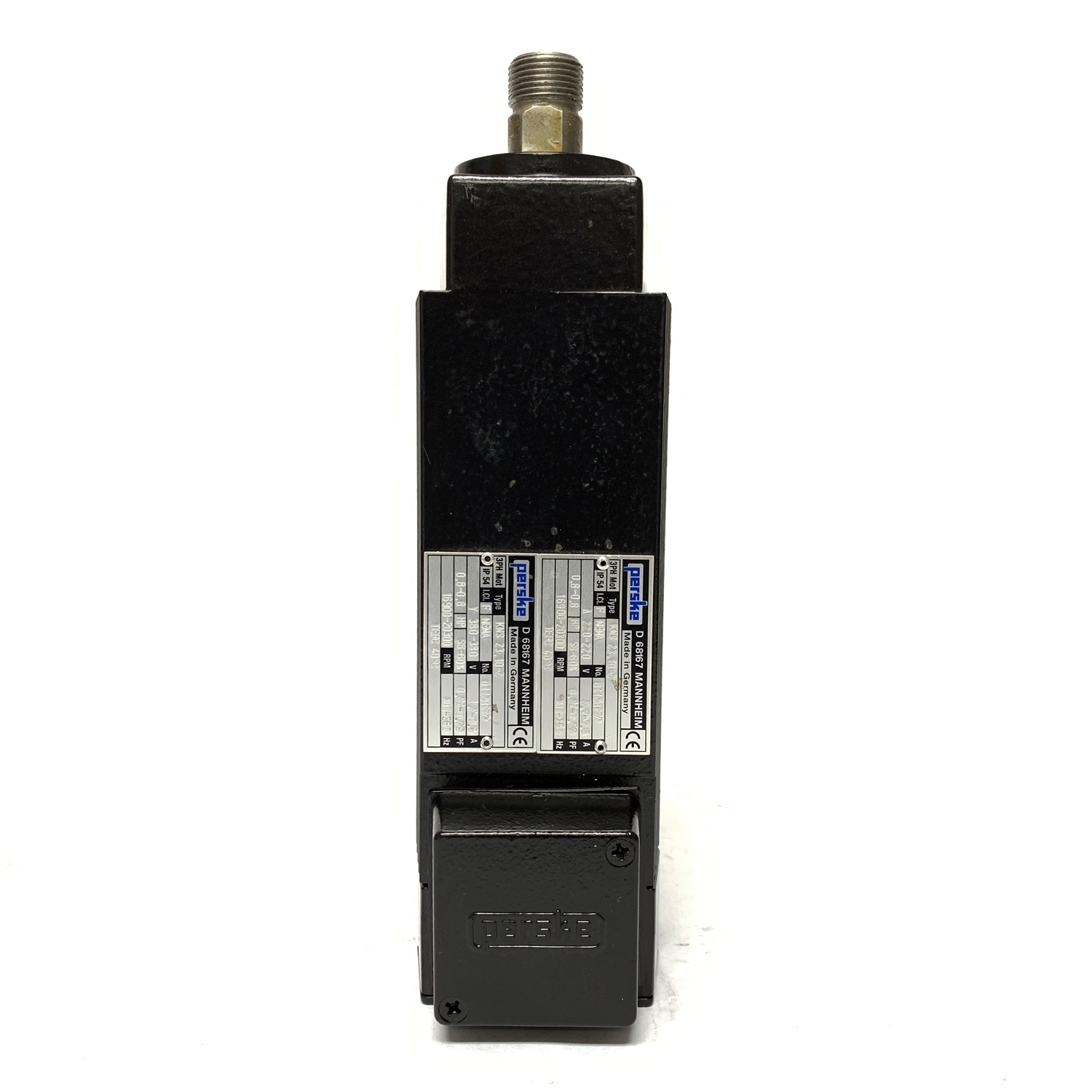

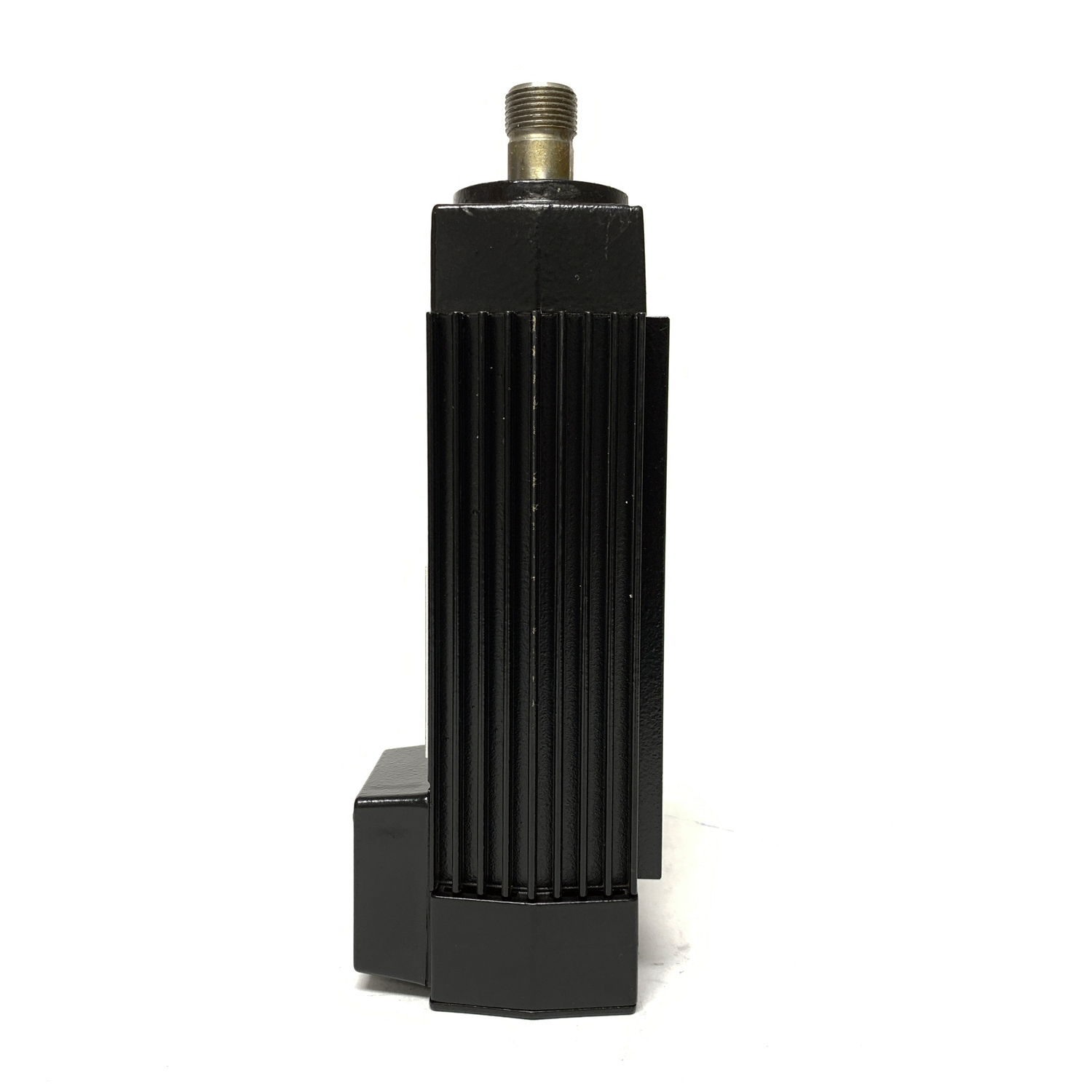

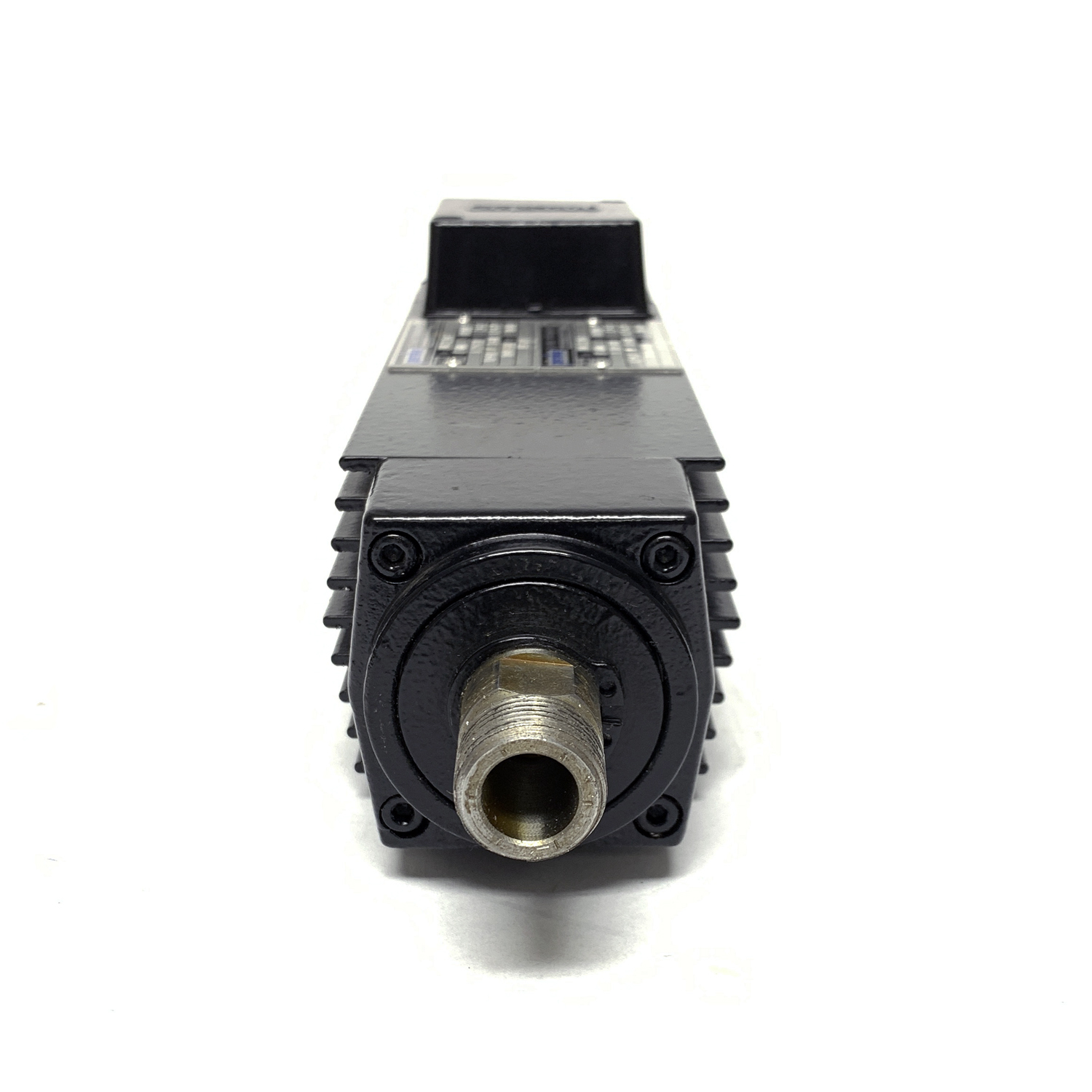

Perske KNS23-10-210MM Spindle Motor
Perske KNS 23.10-210MM spindle motor / flat motor, MTC, 18,000-21,600 RPM, 300-360 Hz, 2-pole, .8 hp (.6 kW), 220/380 V, 3 phase.
Description
Perske KNS 23-10-210MM spindle motor is a flat motor / milling motor with single bearing, ideal for cylindrical shaft tools and small axle center distances.
Technical Specifications
- Series: Perske model KN 20, type KNS 23
- Model no.: KNS 23-10-210MM
- Tool Change:Â Manual Tool Change (MTC)
- Tool Interface:Â ER 16 collet
- 3/8 inch max tool diameter
- ER 16 high speed mini cover nut 53116
- Protection: IP54
- Thread: Standard RH (right-hand) thread
- Cooling:Â Self-cooled by integrated fan
- Speed:
- Rated: 18,000 RPM
- Maximum: 21,600 RPM
- Frequency:
- Rated: 300 Hz
- Maximum: 360 Hz
- Pole Count: 2-pole
- Power:Â .8 hp / .6 kW (S1)
- Voltage: 220 V / 380 V (Dual Voltage), 3 phase
Additional information
| Manufacturer | Perske |
|---|---|
| Terminal Box Location | Top Rear |
| Voltage (V) | 220 |
| Horsepower (hp) | .8 |
| Country/Region of Manufacture | Germany |
| Thread Direction | RH (Right-Hand) |
| Model Series | |
| Part Number (MPN) | KNS23-10-210MM |
| Tool Change | |
| Collet size | ER 16 |
| Cooling Method | Fan Cooled |
| Rated Speed (RPM) | 18,000 |
| Maximum Speed (RPM) | 21,600 |
| Rated Frequency (Hz) | 300 |
| Maximum Frequency (Hz) | 360 |
| Poles | 2 |
| Kilowatt (kW) | 0.6 |
| Condition | New |
