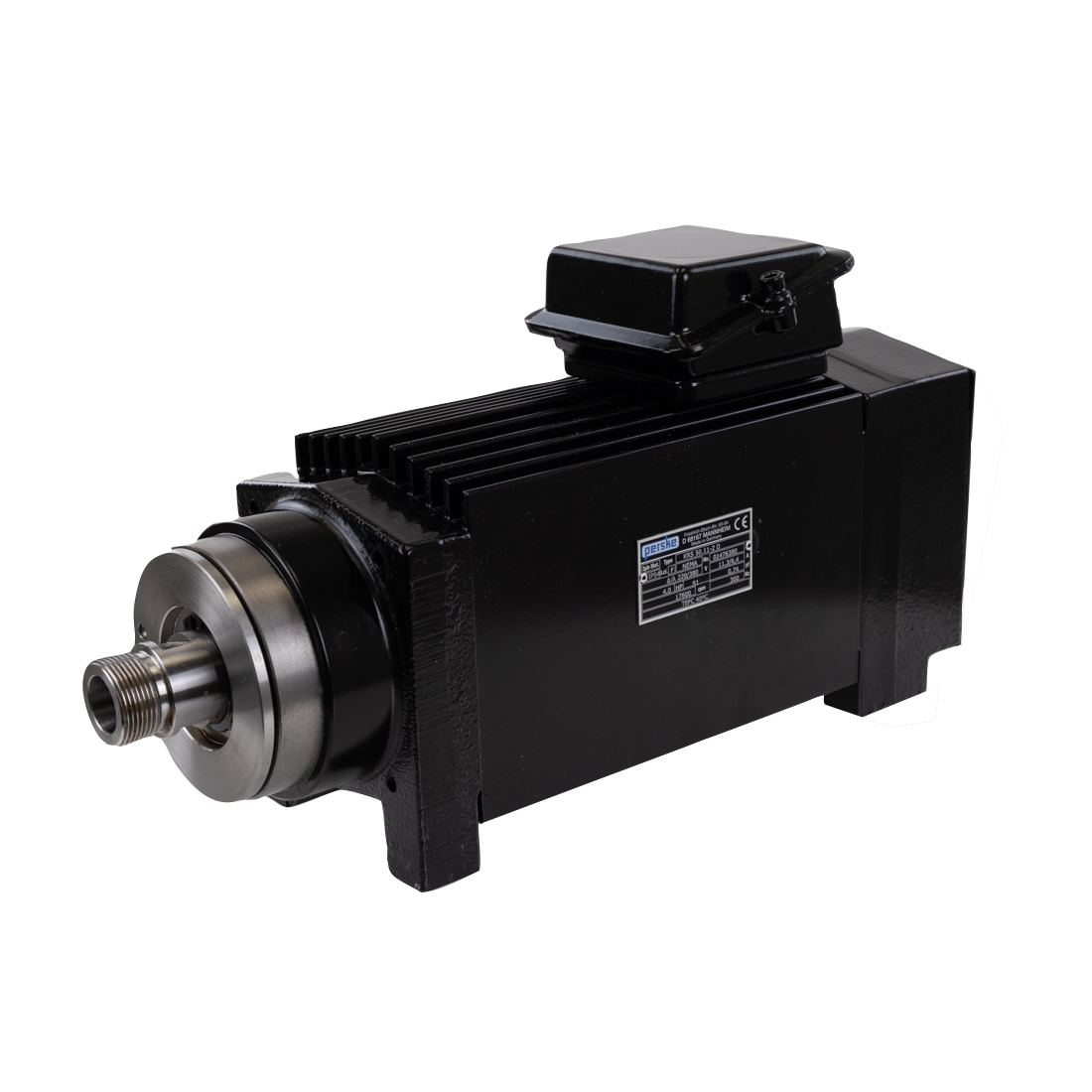

Perske KRS50-11-2D Spindle Motor
Perske KRS 50-11-2D4HP spindle motor, model KR 50, type KRS 50, MTC, 18,000 RPM, 300 Hz, 2-pole, 4 hp (2.9 kW), 220/380 V.
Description
KRS50-11-2D4HP Perske spindle motor is a milling motor / high-frequency / high-speed machining motor for cylindrical shaft tools and small axle center distances.
Technical Specifications
- Model Series:Â Perske type KRS 50 D, model KRS50-11-2D4HP
- Tool Change: Manual Tool Change (MTC)
- Tool Interface:Â SYOZ 20 / EOC 12 / OZ 1833 collet
- 1/2 inch max tool capacity
- OZ 1822 cover nut 83634
- Bearing: Double bearing
- Protection Class:Â IP54
- Cooling: Self-cooled by integrated fan
- Speed:Â 18,000 RPM speed
- Frequency: 300 Hz
- Pole Count: 2-pole
- Power: 4 hp (2.9 kW)
- Voltage: 220 V / 380 V (Dual Voltage), 3 phase
Additional information
| Manufacturer | Perske |
|---|---|
| Country/Region of Manufacture | Germany |
| Model Series | |
| Part Number (MPN) | KRS50-11-2D4HP, KRS 50.11-2 D |
| Tool Change | |
| Tool Holder | SYOZ 20 |
| Cooling Method | Shaft Fan-Cooled |
| Speed (RPM) | 18,000 |
| Output Frequency (Hz) | 300 |
| Poles | 2 |
| Horsepower (hp) | 4 |
| Kilowatt (kW) | 2.9 |
| Voltage (V) | 220, 380 |
| Condition | New |
