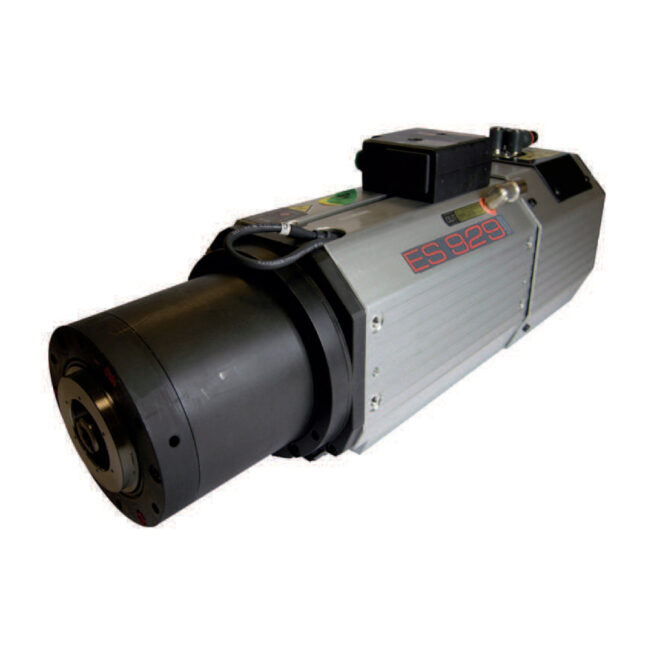

H6161H0765 ES929 HSD Spindle Motor
H6161H0765 HSD spindle motor, ES929 series, ATC, liquid cooled, HSK 63F tooling, long nose, 12-24,000 RPM, 400-800 Hz, 4-pole, 380 V.
Description
H6161H0765 (or A6161H0765) HSD spindle motor.
Technical Specifications
- Model Series: HSD ES929
- Model no.: H6161H0765
- Tool Change: Automatic with quick-change tool release button
- Tooling Interface: HSK 63F tool holder, long nose shaft
- Cooling: Liquid cooled
- Bearings: Ceramic (front and back)
- Rated Speed @ Frequency:
- 24,000 RPM @ 800 Hz
- 12,000 RPM @ 400 Hz
- Power @ 12,000 RPM (400 Hz):
- S1: 21.5 hp (16 kW)
- S6: 24 hp (18 kW)
- Power @ 24,000 RPM (800 Hz):
- S1: 11 hp (8.2 kW)
- S6: 13.4 hp (10 kW)
- Voltage: 380 V
- Pole Count: 4-Pole
Additional information
| Tool Change | |
|---|---|
| Country/Region of Manufacture | Italy |
| Part Number (MPN) | H6161H0765, A6161H0765 |
| Model Series | |
| Manufacturer | HSD |
| Condition | New |
Discover the HSD ES929 Spindle Series
HSD ES929 series is an industrial-grade powerhouse engineered for heavy-duty routing, milling, and high-precision CNC operations. Featuring advanced ceramic bearings and robust fan-cooling, it delivers the stability and longevity required for multi-shift production environments.
