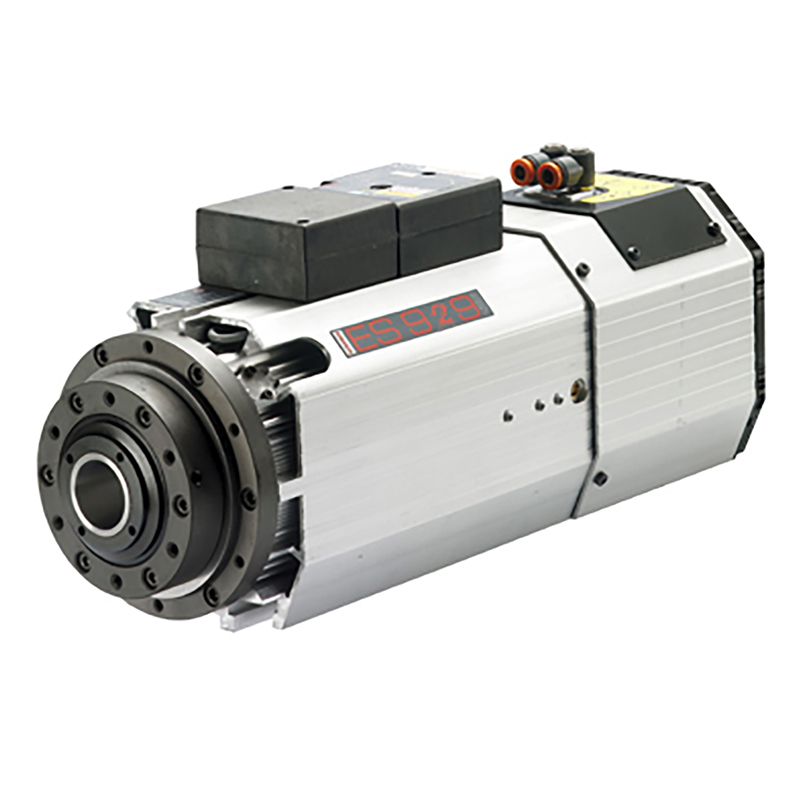

H6161H0824 ES929 HSD Spindle Motor
$9,018.57
H6161H0824 HSD spindle motor, ES929 series, ATC, electric fan cooled, ISO 30 tooling, short nose, 12-24,000 RPM, 400-800 Hz, 4-pole, 220 V / 380 V.
Only 1 left in stock
Description
H6161H0824 (or A6161H0824) HSD automatic tool change spindle motor.
Technical Specifications
- Model Series: HSD ES929
- Model no.: H6161H0824
- Tool Change: Automatic with an integrated quick-change tool release button for manual tool changes
- Tooling Interface: ISO 30 tool holder, short nose shaft
- Cooling: Electric fan
- Bearings: Ceramic (front and rear)
- Rated Speed:
- 12,000 RPM @ 400 Hz
- 24,000 RPM @ 800 Hz
- Power @ 12,000 RPM (400 Hz):
- S1: 13.4 hp (10 kW)
- S6: 16 hp (12 kW)
- Power @ 24,000 RPM (800 Hz):
- S1: 8 hp (6 kW)
- S6: 10 hp (7.5 kW)
- Voltage: 220 V / 380 V (Dual Voltage)
- Pole Count: 4-pole
Additional information
| Condition | New |
|---|---|
| Model Series | |
| Manufacturer | HSD |
| Tool Change | |
| Part Number (MPN) | A6161H0824, H6161H0824, SPINDLE-HSD-251, SP-HSD-ES929S-12HP-ISO-DV |
| Country/Region of Manufacture | Italy |
Discover the HSD ES929 Spindle Series
HSD ES929 series is an industrial-grade powerhouse engineered for heavy-duty routing, milling, and high-precision CNC operations. Featuring advanced ceramic bearings and robust fan-cooling, it delivers the stability and longevity required for multi-shift production environments.
