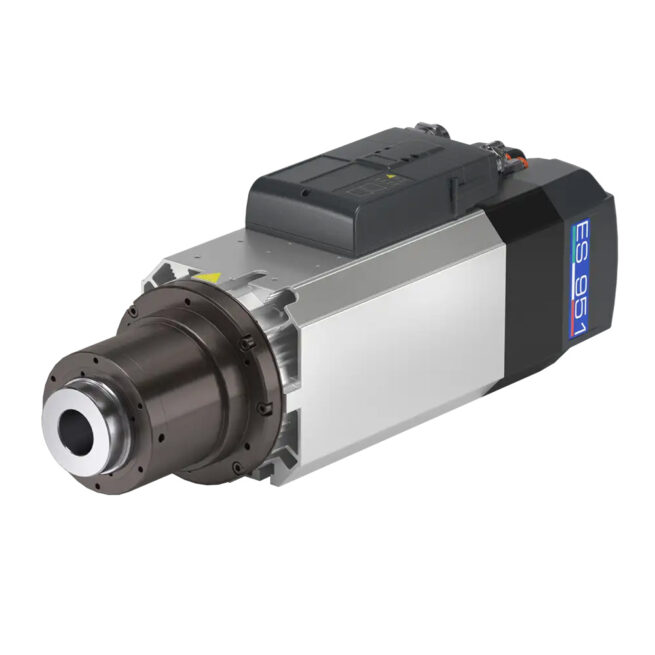

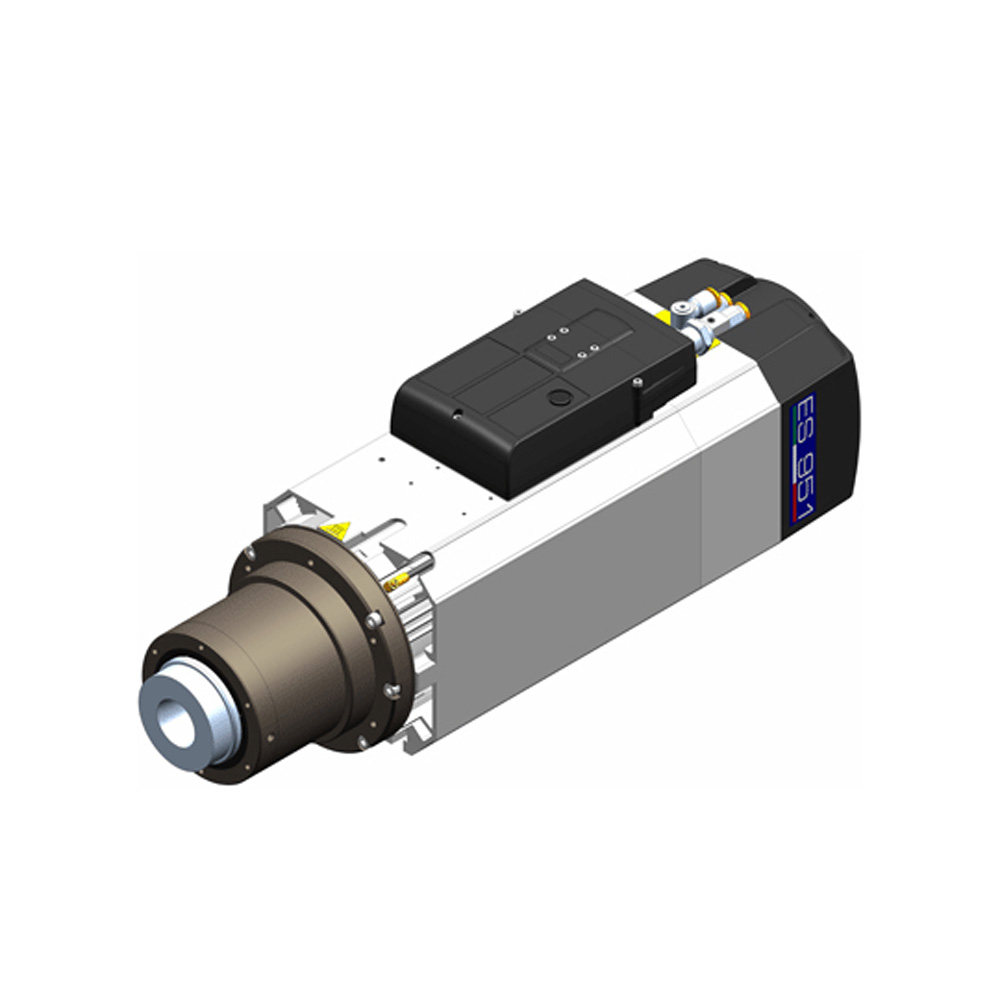

HSD H6161H1222 ES951 Spindle Motor
HSD H6161H1222 spindle motor, ES951 series, ATC, fan-cooled, ISO 30 tooling, long nose, 24,000 RPM, 800 Hz, 4-pole, 10.7 hp (8 kW), 220 / 380 V.
Description
HSD H6161H1222 ATC spindle motor.
Technical Specifications
- Model Series: HSD ES951
- Model no.: H6161H1222 (or A6161H1222)
- Tool Change: Automatic (ATC)
- Tooling Interface: ISO 30 tool holder, long nose shaft
- Cooling: Electric fan
- Pole Count: 4-pole
- Speed Range:
- Rated: 12,000 RPM
- Maximum: 24,000 RPM
- Output Frequency:
- Rated: 400 Hz
- Maximum: 800 Hz
- Power: 10.7 hp (8 kW)
- Voltage: 220 V / 380 V (Dual Voltage)
Additional information
| Manufacturer | HSD |
|---|---|
| Country/Region of Manufacture | Italy |
| Model Series | |
| Part Number (MPN) | H6161H1222, A6161H1222 |
| Tool Change | |
| Tool Holder | ISO 30 |
| Spindle Nose | Long Nose |
| Cooling Method | Electric Fan-Cooled |
| Poles | 4 |
| Rated Speed (RPM) | 12,000 |
| Maximum Speed (RPM) | 24,000 |
| Rated Frequency (Hz) | 400 |
| Maximum Frequency (Hz) | 800 |
| Kilowatt (kW) | 8 |
| Horsepower (hp) | 10.7 |
| Voltage (V) | 220, 380 |
| Condition | New |
Explore the HSD ES951 Spindle Series
HSD ES951 high-performance, fan-cooled ATC spindles are designed for precision and reliability. Featuring a 4-pole design with 24,000 RPM capacity, this series is engineered to meet demanding industrial standards. Don’t see the exact configuration you need? Browse our online inventory.
