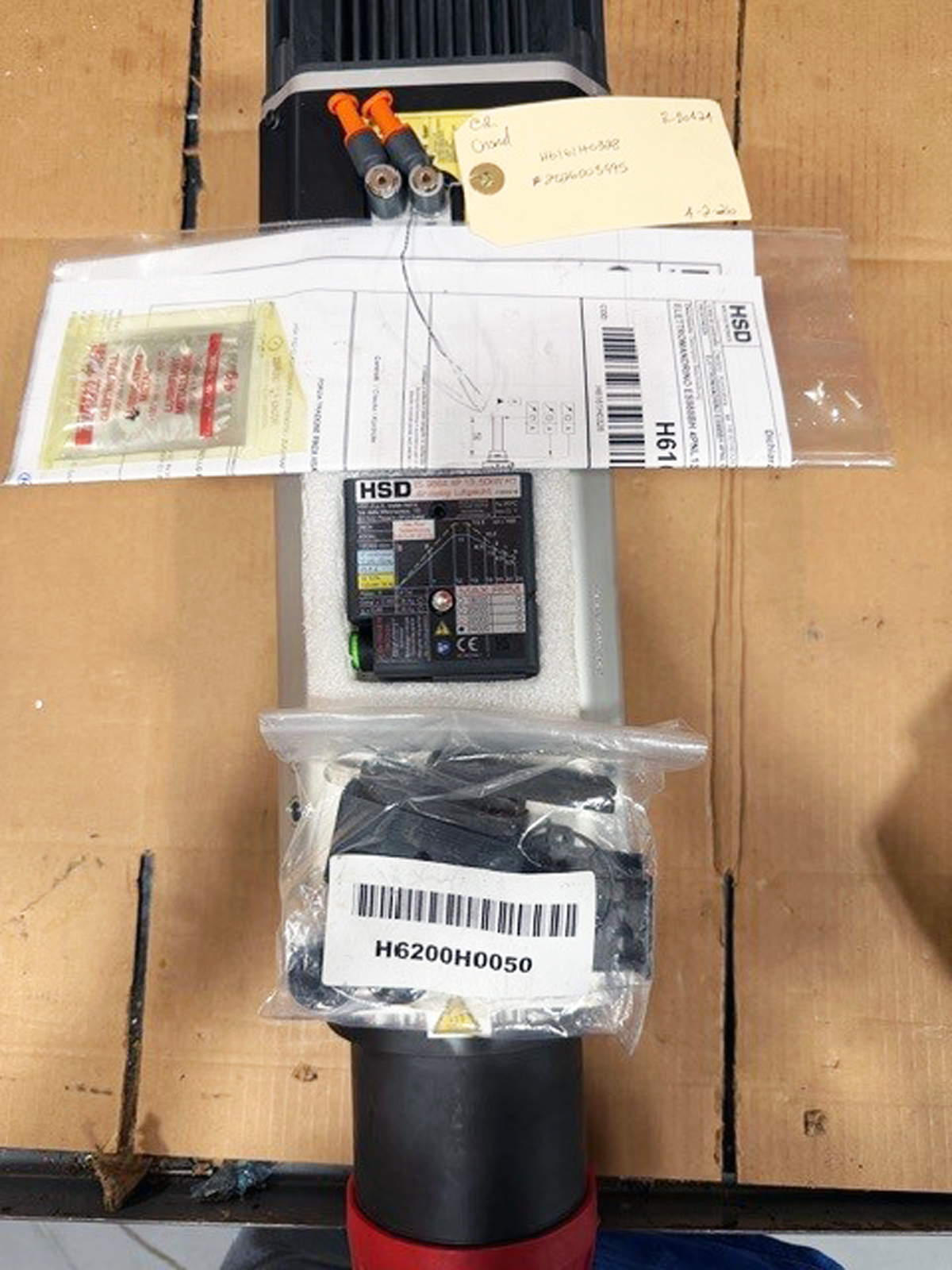

HSD H6161H0328 ES988 Spindle Motor (Used)
HSD H6161H0328 spindle motor, ES988 series, ATC, electric fan cooled, HSK 63F tooling, long nose, 12-24,000 RPM max speed, 14.8 hp (11 kW), 380 V.

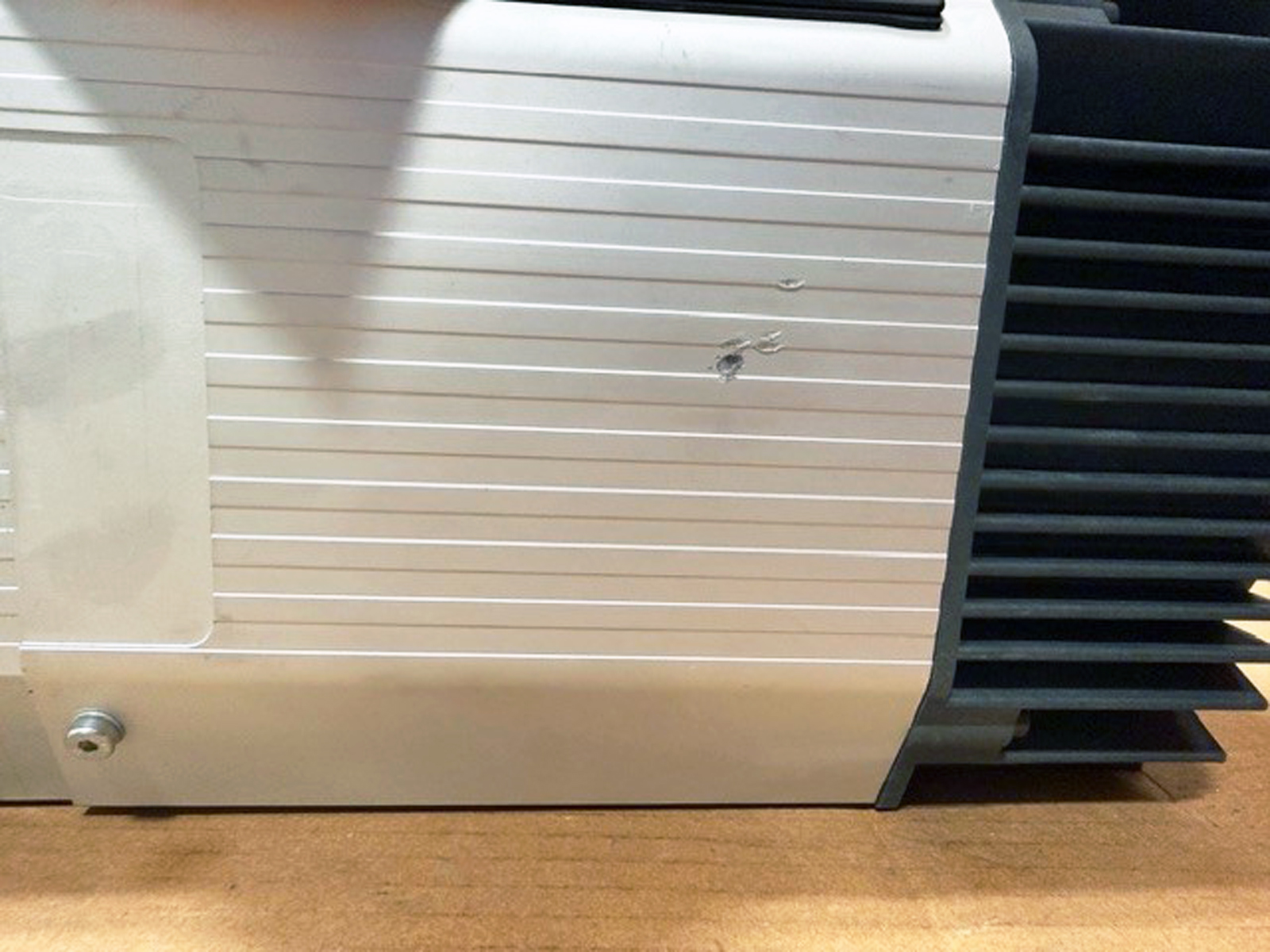

Note: Spindle has minor cosmetic damage. (see photo.) Includes one year warranty from Manufacturer.
Description
The HSD H6161H0328 ES988 motor delivers industrial-grade output for high-speed machining across wood, plastics, aluminum, and advanced composite materials. Engineered by HSD Mechatronics, this Electrospindle integrates a heavy-duty 4-pole design with an HSK 63F automatic tool-change (ATC) interface to maximize tooling rigidity and reduce dynamic runout under load.
Operating Speed is rated 11 kW (14.8 HP) S1 continuous duty at 12,000 RPM (400 Hz), and scales to a maximum speed of 24,000 RPM at 800 Hz. Its long-nose housing allows extended reach into deep-cavity tooling profiles and 3D geometric workpieces without sacrificing dynamic balance or TIR performance. Integrated electric fan cooling ensures independent thermal management across low- and high-frequency operating bands.
Technical Specifications
- Model Series: HSD ES988
- Model no.: H6161H0328 (or A6161H0328)
- Motor Type: Asynchronous 3-phase
- Tool Change: Automatic with quick-change tool release button
- Tooling Interface: HSK 63F tool holder, long nose shaft
- Bearings: Ceramic (front and rear)
- Spindle Body: Aluminium alloy
- Cooling: Electric fan-cooled
- Pole Count: 4-pole
- Speed Range:
- Rated: 12,000 RPM @ 400 Hz
- Maximum: 24,000 RPM @ 800 Hz
- Power @ Rated Speed:
- S1: 14.8 hp (11 kW)
- S6: 18 hp (13.5 kW)
- Power @ Maximum Speed:
- S1: 7.4 hp (5.5 kW)
- S6: 8 hp (6 kW)
- Voltage: 380 V
Additional information
| Manufacturer | HSD |
|---|---|
| Country/Region of Manufacture | Italy |
| Model Series | |
| Part Number (MPN) | H6161H0328, A6161H0328 |
| Tool Change | |
| Tool Holder | HSK 63F |
| Cooling Method | Electric Fan-Cooled |
| Rated Speed (RPM) | 12,000 |
| Maximum Speed (RPM) | 24,000 |
| Rated Frequency (Hz) | 400 |
| Maximum Frequency (Hz) | 800 |
| Poles | 4 |
| Horsepower (hp) | 14.8 |
| Kilowatt (kW) | 11 |
| Condition | Used |
| Voltage (V) | 380 |
Discover the HSD ES988 Spindle Series
HSD ES988 series delivers high-performance power and versatility for demanding CNC applications, including wood, composites, aluminum, and plastics. Engineered with premium ceramic bearings and high-speed capabilities, this series provides the durability needed for intensive machining.
