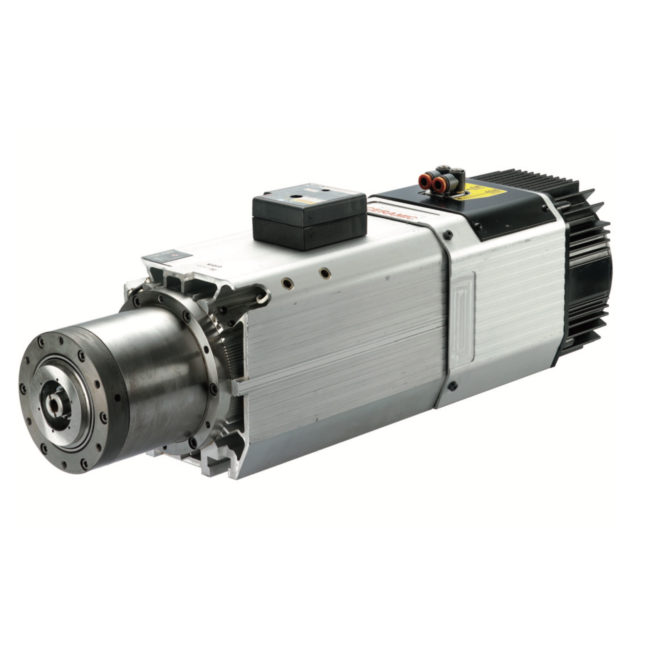

HSD H6161H0328 ES988 Spindle Motor
HSD H6161H0328 spindle motor, ES988 series, ATC, HSK 63F tooling, long nose, fan-cooled, 12-24,000 RPM, 400-800 Hz, 4-pole, 14.8 hp (11 kW) S1 max power, 380 V.
Description
H6161H0328 HSD ATC spindle motor.
Technical Specifications
- Model Series: HSD ES988
- Model no.: H6161H0328 (or A6161H0328)
- Motor Type: Asynchronous 3-phase
- Tool Change: Automatic with quick-change tool release button
- Tooling Interface: HSK 63F tool holder, long nose shaft
- Bearings: Ceramic (front and rear)
- Spindle Body: Aluminium alloy
- Cooling: Electric fan-cooled
- Pole Count: 4-pole
- Speed Range:
- Rated: 12,000 RPM @ 400 Hz
- Maximum: 24,000 RPM @ 800 Hz
- Power @ Rated Speed:
- S1: 14.8 hp (11 kW)
- S6: 18 hp (13.5 kW)
- Power @ Maximum Speed:
- S1: 7.4 hp (5.5 kW)
- S6: 8 hp (6 kW)
- Voltage: 380 V
Additional information
| Manufacturer | HSD |
|---|---|
| Country/Region of Manufacture | Italy |
| Model Series | |
| Part Number (MPN) | H6161H0328, A6161H0328 |
| Tool Change | |
| Tool Holder | HSK 63F |
| Spindle Nose | Long Nose |
| Cooling Method | Electric Fan-Cooled |
| Poles | 4 |
| Rated Speed (RPM) | 12,000 |
| Maximum Speed (RPM) | 24,000 |
| Rated Frequency (Hz) | 400 |
| Maximum Frequency (Hz) | 800 |
| Kilowatt (kW) | 11 |
| Horsepower (hp) | 14.8 |
| Voltage (V) | 380 |
| Condition | New |
Discover the HSD ES988 Spindle Series
HSD ES988 series delivers high-performance power and versatility for demanding CNC applications, including wood, composites, aluminum, and plastics. Engineered with premium ceramic bearings and high-speed capabilities, this series provides the durability needed for intensive machining.
