HSD A6395H0038 Spindle Motor Electrical Box Kit
$513.21
OEM HSD A6395H0038 spindle electrical box kit with integrated male connectors is designed for HSD ISO 30 spindle motors. It shields vital wiring from dust and coolant ingress. Buy online today.
Only 1 left in stock
Description
The HSD A6395H0038 Electrical Box Kit provides a replacement terminal enclosure for HSD ISO 30 electrospindles. It manages high-voltage power leads and low-voltage sensor feedback signals. This component protects electrical connections inside demanding CNC machining environments.

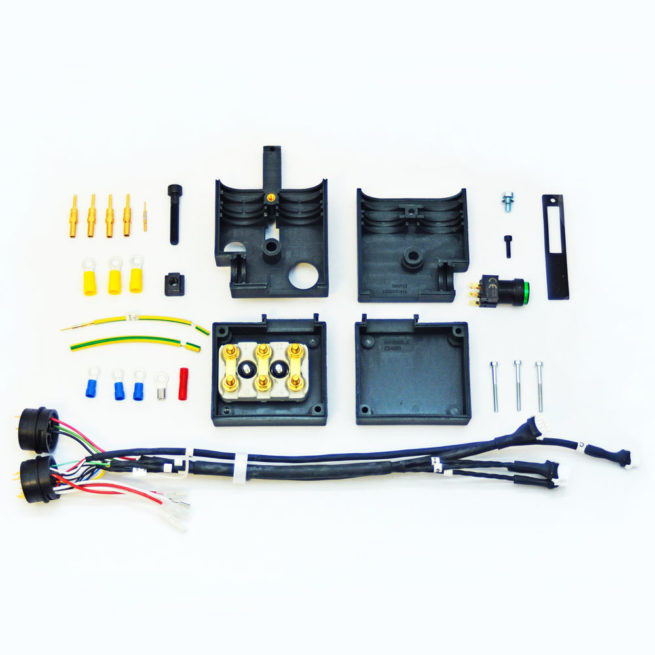

This kit includes terminal block housings, male circular connector plugs, and mounting hardware. Replacing a damaged junction box stops electrical shorts and restores clean signal transmission to the CNC controller.
Common Failure Modes & Diagnostic Guide
Dynamic movement and harsh milling environments wear out spindle junction boxes over time. Installing the replacement A6395H0038 kit resolves several technical issues:
- Coolant Ingress & Arcing: Deteriorated housing gaskets permit fluid or metallic dust entry. This creates ground faults and phase-to-phase short circuits across power terminals.
- Burnt Connector Pins: Thermal expansion degrades contact spring force inside pin connectors over time. Increased resistance overheats pins and causes intermittent sensor faults.
- Cracked Cable Strain Reliefs: Continuous axis acceleration fractures plastic entry ports. This compromises environmental sealing and exposes signal wires to strain.
